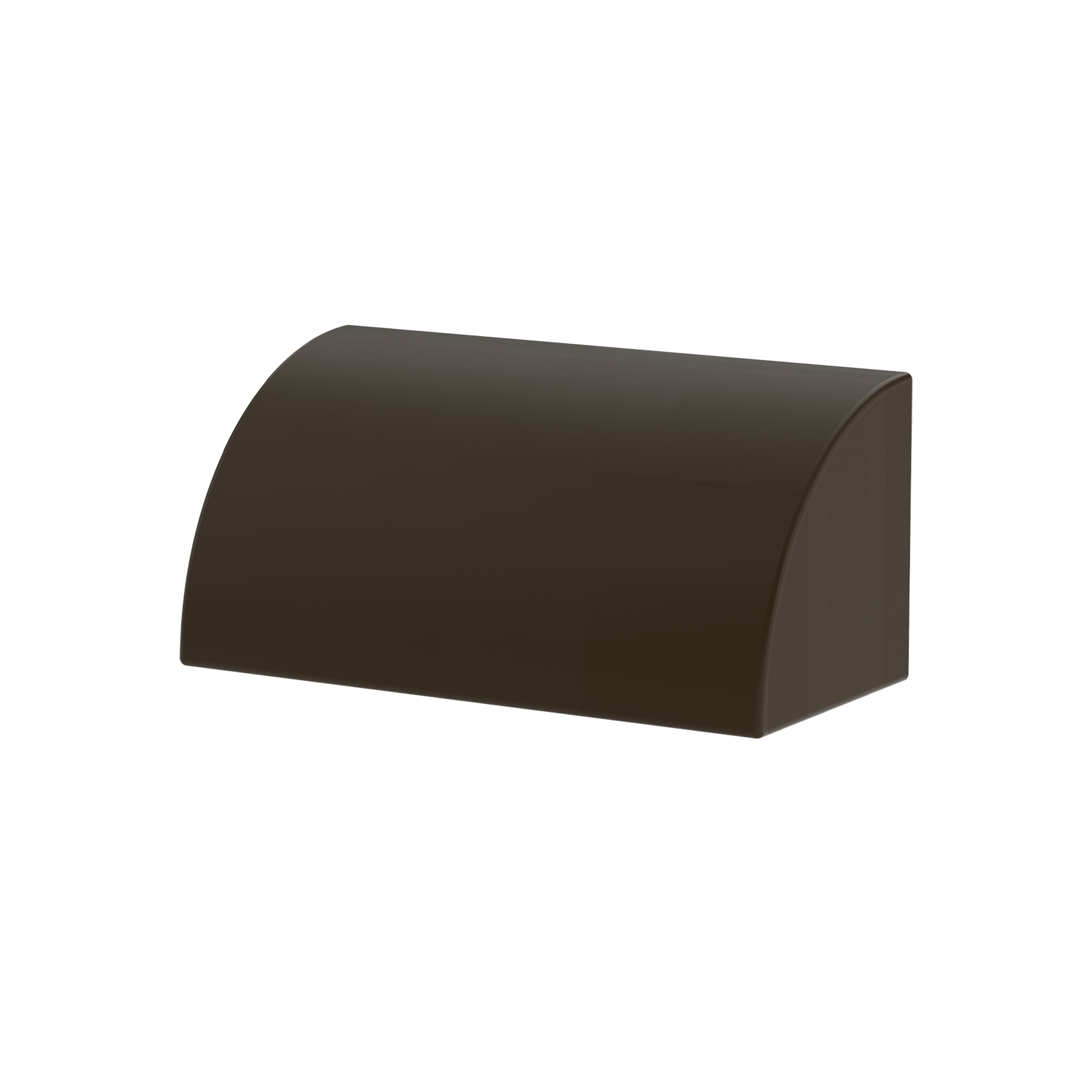

Phoenix

    AQL-520

    Step Light

    AQL-520
    AQL-520
    AQL-520
    AQL-520
    AQL-520

    Introduction

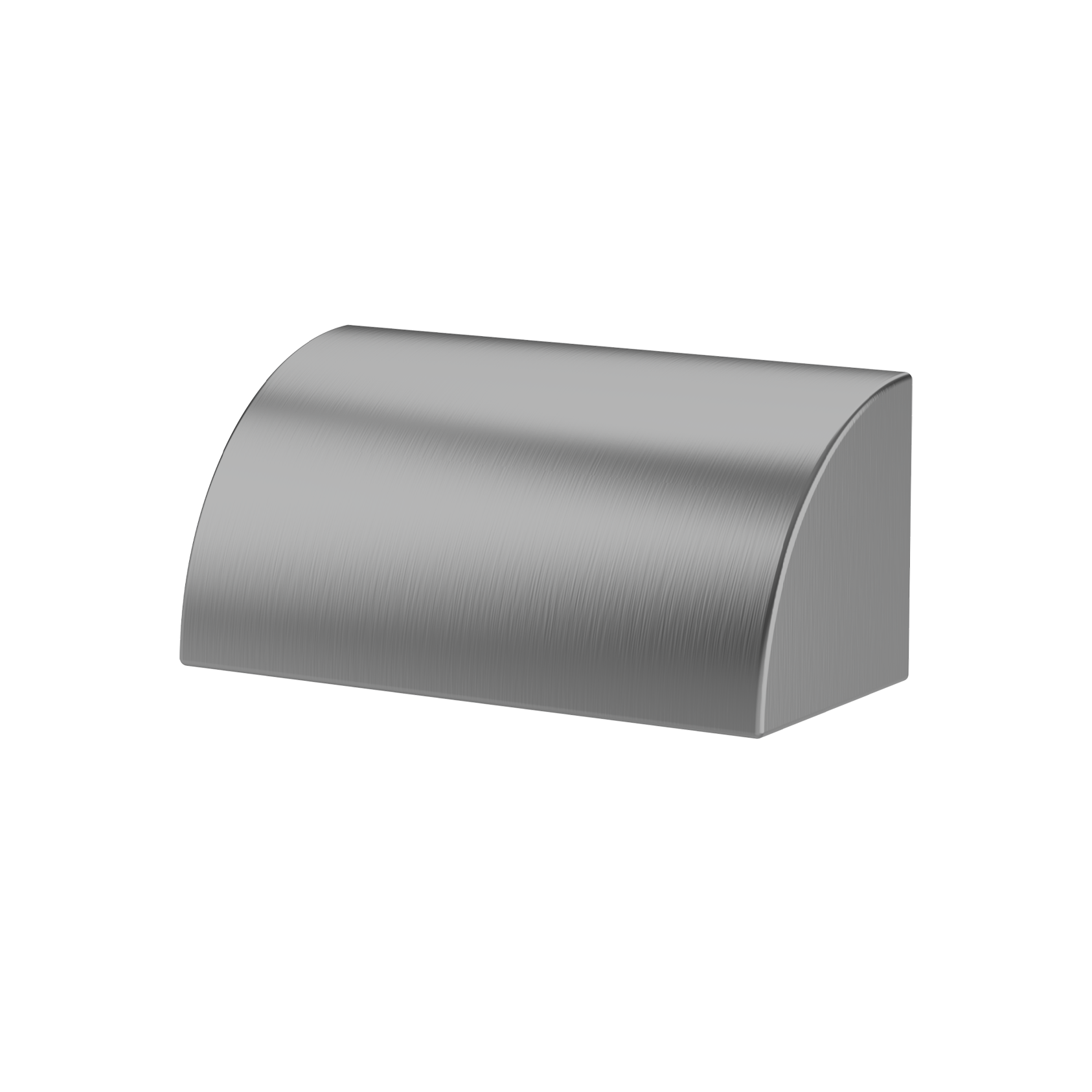

    The AQL-520 is the latest addition to the Phoenix range offering a huge amount of light from a compact unit just like it's sister the AQL-510. Designed to fit on 90mm posts it is available in 5 finishes making it suitable for a variety of landscape designs.

    Specification

    AQL-520

    Phoenix

    Solid Cast Brass

    900mm Aqualux 2-Core Silicone / PTFE Cable

    7 Year Aqualux Warranty

    IP65

    Options

    Body

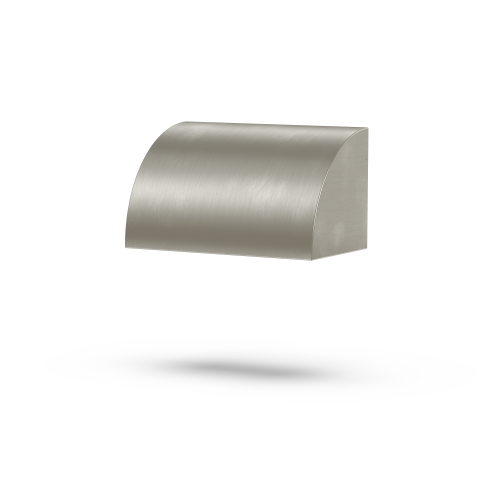

    • B1 - Brushed Chrome

      Brass

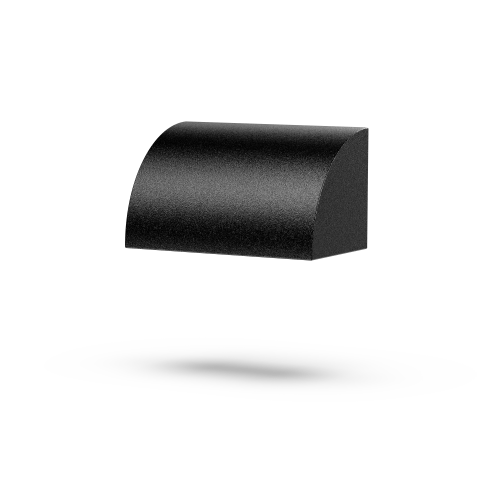

    • B2 - Black

      Brass

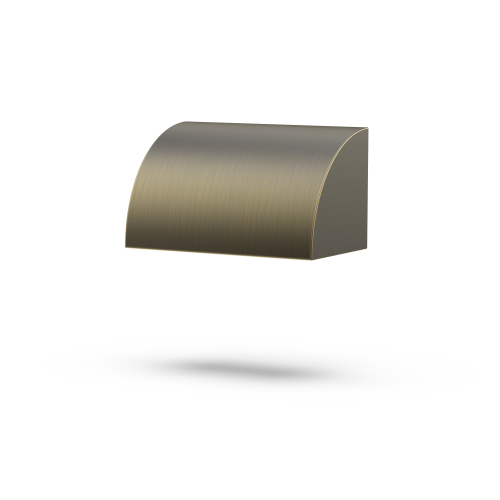

    • B3 - Aged Brass

      Brass

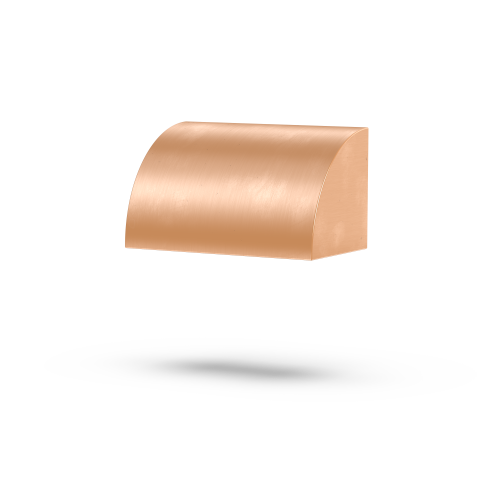

    • B5 - Brushed Copper

      Brass

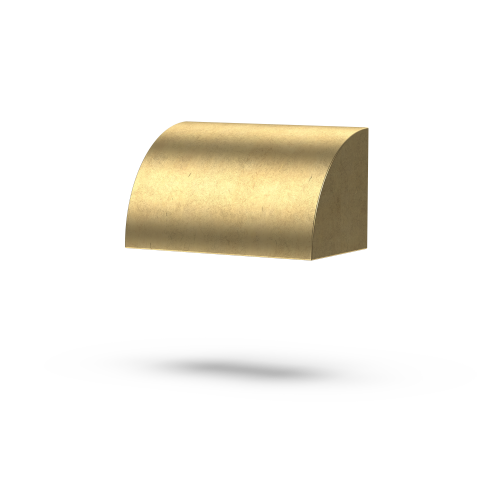

    • B6 - Natural Waxed

      Brass

    Control Gear

    • 24V DC 3-Wire

      Dimming: 3-wire PWM 10V Dimming

    • 24V DC 2-Wire

      Dimming: 2-Wire PWM Power

    Light Sources

    • 4W / 400lm

      2700K

    • 4W / 400lm

      3000K

    • 4W / 400lm

      4000K

    Optical

    • Diffuse (Frosted)

      DF

    Cable

    • S

      500mm 2 Core Aqualux Cable

    • S

      500mm 3 Core Aqualux Cable

    Configure order code

    AQL-520

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    B1 - Brushed Chrome Brass B2 - Black Brass B3 - Aged Brass Brass B5 - Brushed Copper Brass B6 - Natural Waxed Brass
    24V DC 3-Wire 24V DC 2-Wire
    4W / 400lm / 2700K 4W / 400lm / 3000K 4W / 400lm / 4000K
    Diffuse (Frosted)
    500mm 2 Core Aqualux Cable 500mm 3 Core Aqualux Cable

    AQL-520 - has 30 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-520-B1-B00430DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 400lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B6-B00440DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 400lm / 4000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B6-B00427DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 400lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B6-B00430DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 400lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B5-B00440DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 400lm / 4000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B5-B00427DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 400lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B5-B00430DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 400lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B3-B00440DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 400lm / 4000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B3-B00427DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 400lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B3-B00430DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 400lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B2-B00440DFS
    PDF
    		B2 - Black
    Brass    		 4W 400lm / 4000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B2-B00427DFS
    PDF
    		B2 - Black
    Brass    		 4W 400lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B2-B00430DFS
    PDF
    		B2 - Black
    Brass    		 4W 400lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B1-B00440DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 400lm / 4000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B1-B00427DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 400lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming 500mm 3 Core Aqualux Cable
    PDF
    AQL-520-B1-E00430DFS
    PDF IES
    		B1 - Brushed Chrome
    Brass    		 4W 400lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF IES
    AQL-520-B6-E00440DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 400lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B6-E00427DFS
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 400lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B5-E00440DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 400lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B5-E00427DFS
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 400lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B3-E00440DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 400lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B3-E00427DFS
    PDF
    		B3 - Aged Brass
    Brass    		 4W 400lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B2-E00440DFS
    PDF
    		B2 - Black
    Brass    		 4W 400lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B2-E00427DFS
    PDF
    		B2 - Black
    Brass    		 4W 400lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B1-E00440DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 400lm / 4000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B1-E00427DFS
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 400lm / 2700K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF
    AQL-520-B6-E00430DFS
    PDF IES
    		B6 - Natural Waxed
    Brass    		 4W 400lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF IES
    AQL-520-B5-E00430DFS
    PDF IES
    		B5 - Brushed Copper
    Brass    		 4W 400lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF IES
    AQL-520-B3-E00430DFS
    PDF IES
    		B3 - Aged Brass
    Brass    		 4W 400lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF IES
    AQL-520-B2-E00430DFS
    PDF IES
    		B2 - Black
    Brass    		 4W 400lm / 3000K DF 24V DC 2-Wire 2-Wire PWM Power 500mm 2 Core Aqualux Cable
    PDF IES
