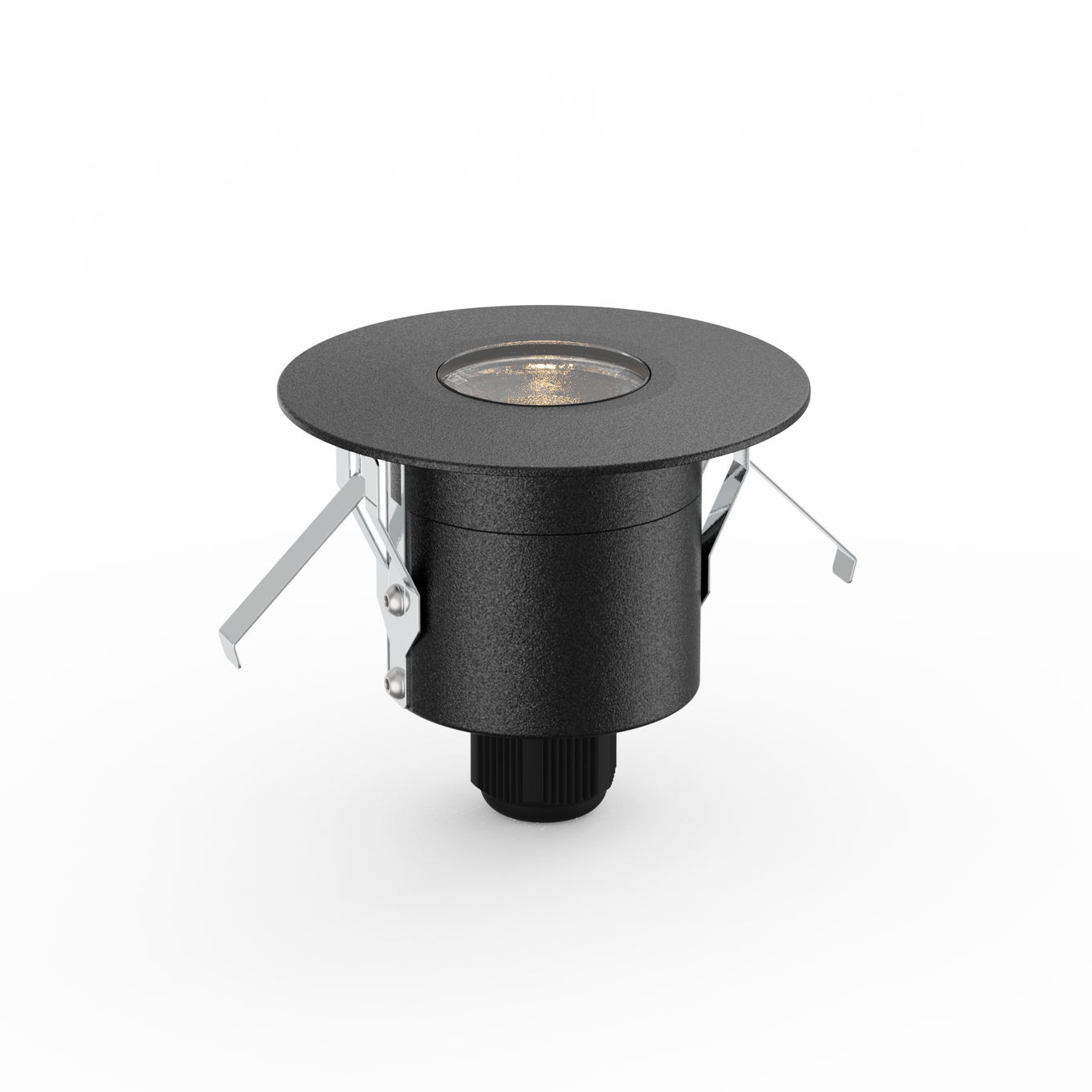

    Introduction

    The AQL-155 is a compact, stylish recessed uplight suitable for many applications including wall-washing, feature highlighting and flora illumination.

    Specification

    AQL-155

    Lumena

    CNC Machined Aluminium

    1M Aqualux PLUS QuickConnect

    7 Year Aqualux Warranty

    IP67

    AQL-155 Installation & Wiring

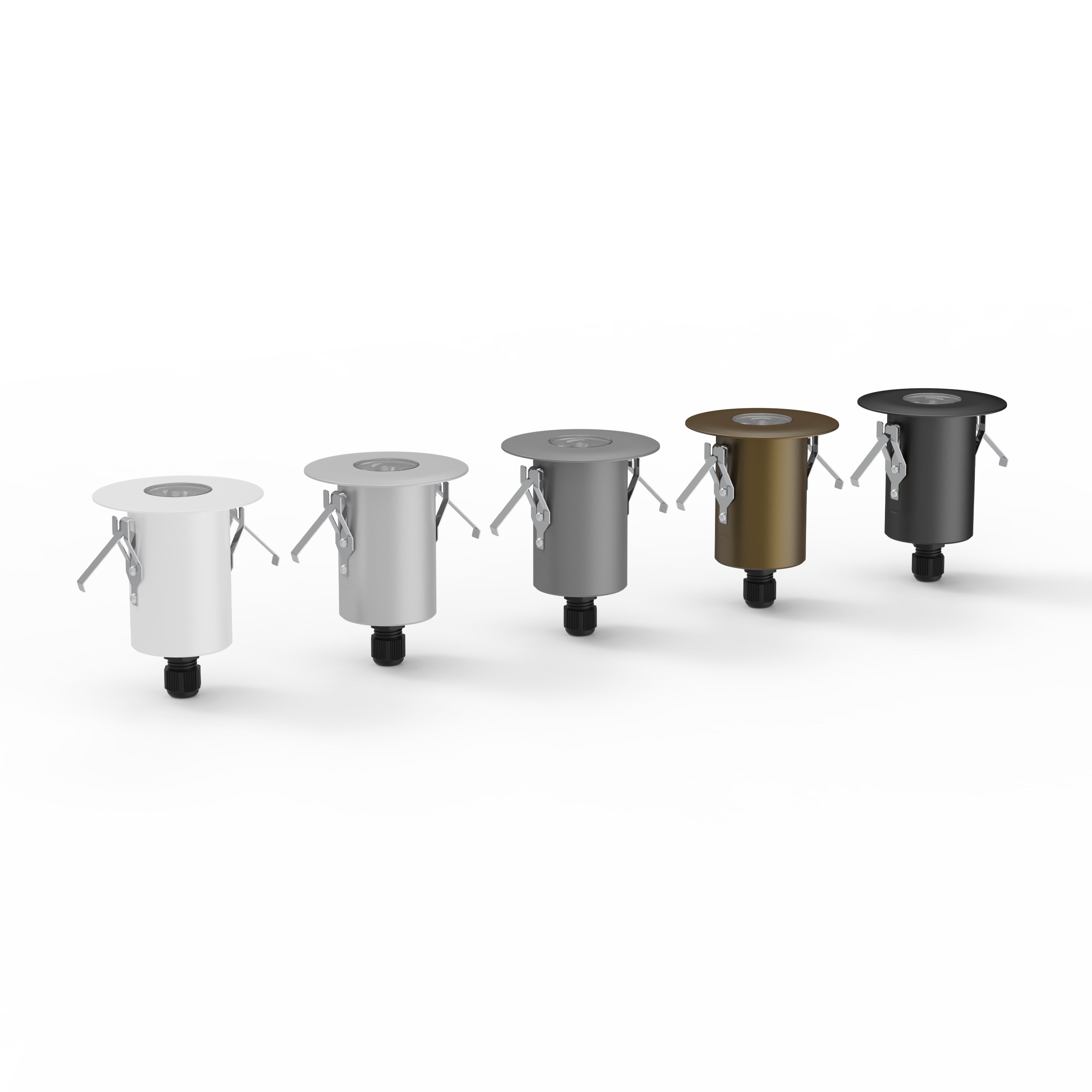

    Options

    Body

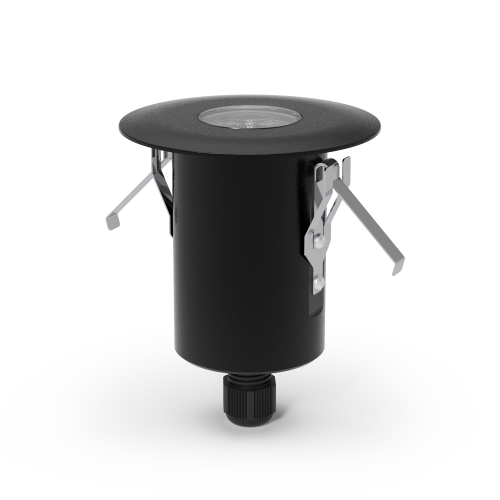

    • A2 - Black

      Aluminium 6000 Series

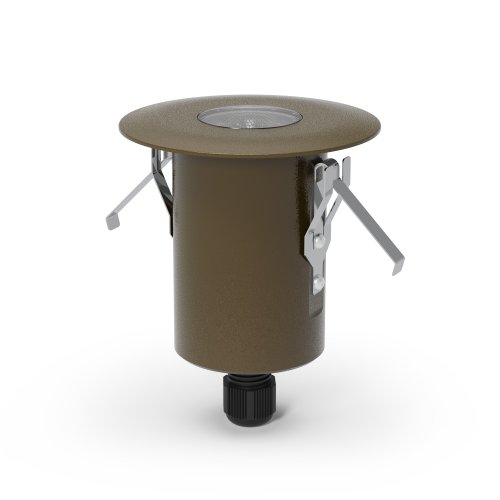

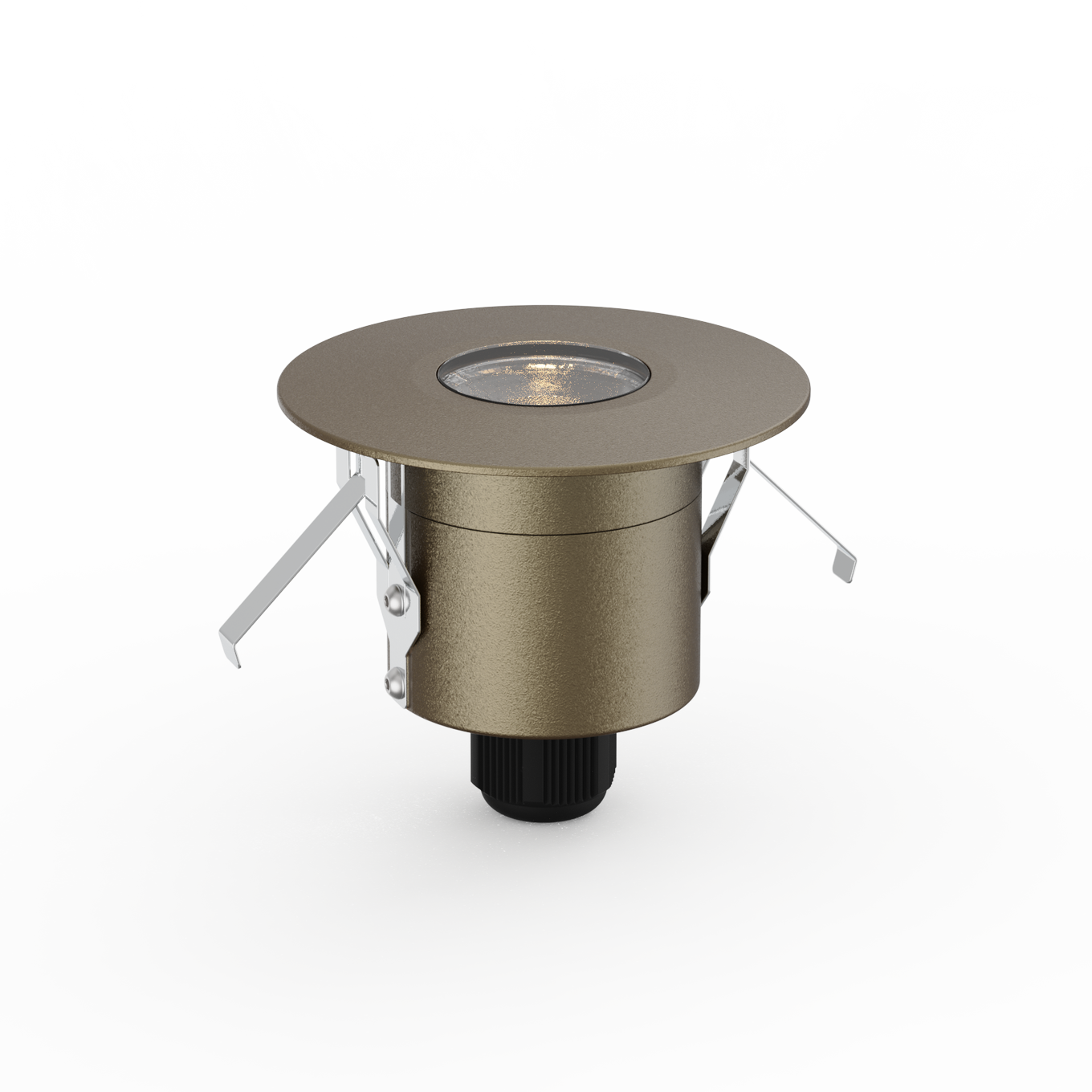

    • A3 - Bronze

      Aluminium 6000 Series

    • A4 - Basalt

      Aluminium 6000 Series

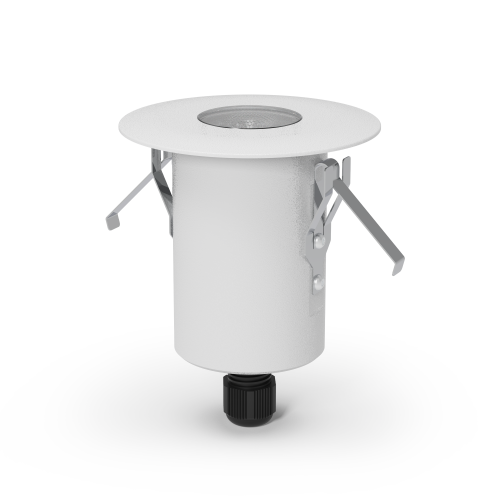

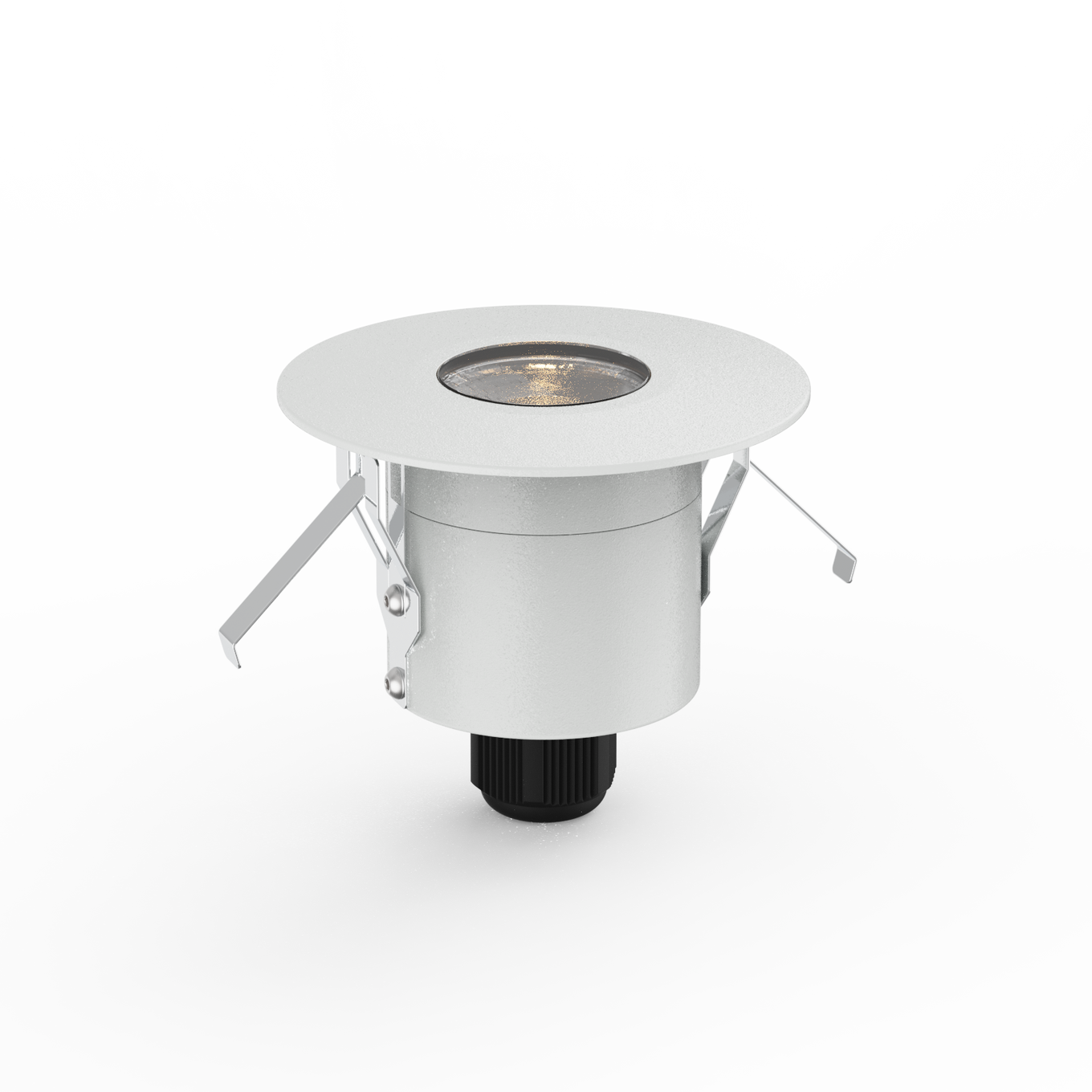

    • A8 - White

      Aluminium 6000 Series

    Control Gear

    • 12~24V AC / 24V DC

      Dimming: 3-Wire 10V PWM

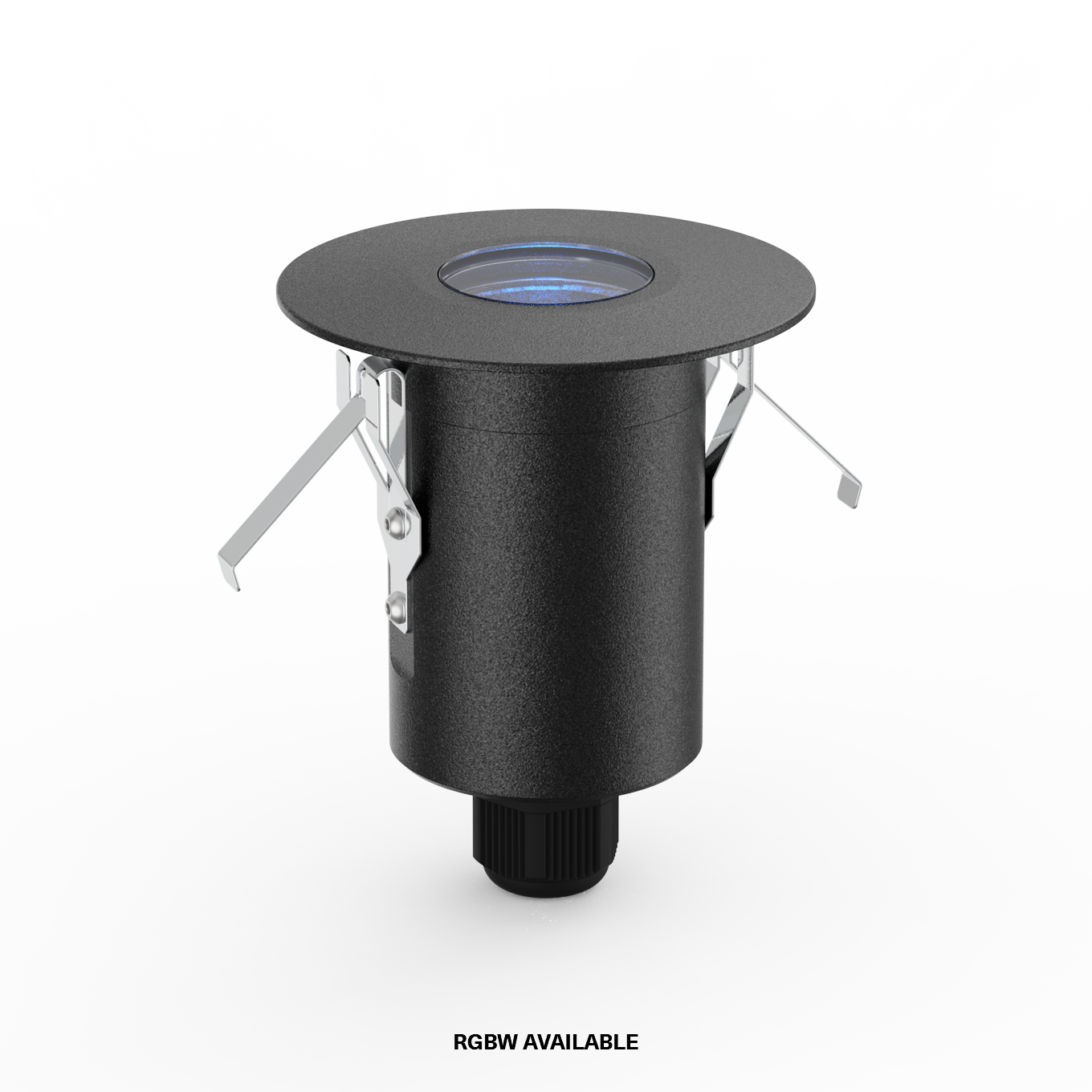

    • 24V DC RGBW

      Dimming: 4CH Low-Side PWM

    Light Sources

    • 4W / 300lm

      2700K

    • 7W / 550lm

      2700K

    • 4W / 300lm

      3000K

    • 7W / 550lm

      3000K

    • 4W / 320lm

      5700K

    • 7W / 600lm

      5700K

    • 7W / 320lm

      Amber 585nm

    • 7W / 160lm

      Blue 470nm

    • 7W / 420lm

      Green 530nm

    • 10W / 555lm

      RGB+3000K

    • 7W / 280lm

      Red 630nm

    Optical

    • Narrow (10°)

      10

    • Medium (25°)

      25

    • Wide (40°)

      40

    • Diffuse (Frosted)

      DF

    • Asymmetric ~30° offset

      A1

    • Wide Wide (55°)

      55

    Cable

    • Q

      AqualuxPLUS QuickConnect

    Configure order code

    AQL-155

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    A2 - Black Aluminium 6000 Series A3 - Bronze Aluminium 6000 Series A4 - Basalt Aluminium 6000 Series A8 - White Aluminium 6000 Series
    12~24V AC / 24V DC 24V DC RGBW
    4W / 300lm / 2700K 7W / 550lm / 2700K 4W / 300lm / 3000K 7W / 550lm / 3000K 4W / 320lm / 5700K 7W / 600lm / 5700K 7W / 320lm / Amber 585nm 7W / 160lm / Blue 470nm 7W / 420lm / Green 530nm 10W / 555lm / RGB+3000K 7W / 280lm / Red 630nm
    Narrow (10°) Medium (25°) Wide (40°) Diffuse (Frosted) Asymmetric ~30° offset Wide Wide (55°)
    AqualuxPLUS QuickConnect

    AQL-155 - has 248 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-155-A2-X0043010Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0043025Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0043040Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0073010Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0073025Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0073040Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0045710Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 320lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0045725Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 320lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0045740Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 320lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0075710Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 600lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0075725Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 600lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0075740Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 600lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007BU10Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007BU25Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007BU40Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007RD10Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007RD25Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007RD40Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007GN10Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007GN25Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007GN40Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007AM10Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007AM25Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007AM40Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0042710Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0042725Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0042740Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0072710Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0072725Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0072740Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0043010Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0043025Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0043040Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0073010Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0073025Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0073040Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0045710Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 320lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0045725Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 320lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0045740Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 320lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0075710Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 600lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0075725Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 600lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0075740Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 600lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007BU10Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007BU25Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007BU40Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007RD10Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007RD25Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007RD40Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007GN10Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007GN25Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007GN40Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007AM10Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007AM25Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007AM40Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0042710Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0042725Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0042740Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0072710Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0072725Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0072740Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0043010Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0043025Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0043040Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0073010Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0073025Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0073040Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0045710Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 320lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0045725Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 320lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0045740Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 320lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0075710Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 600lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0075725Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 600lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0075740Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 600lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007BU10Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007BU25Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007BU40Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007RD10Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007RD25Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007RD40Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007GN10Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007GN25Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007GN40Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007AM10Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007AM25Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007AM40Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0042710Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0042725Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0042740Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0072710Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0072725Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0072740Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-Z010Z210Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-Z010Z225Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-Z010Z240Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-Z010Z210Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-Z010Z225Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-Z010Z240Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-Z010Z210Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-Z010Z225Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-Z010Z240Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X00430DFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X00730DFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X00457DFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 320lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X00757DFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 600lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007BUDFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007RDDFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 280lm / Red 630nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007GNDFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 420lm / Green 530nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X007AMDFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X00427DFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X00727DFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X00430DFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X00730DFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X00457DFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 320lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X00757DFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 600lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007BUDFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007RDDFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 280lm / Red 630nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007GNDFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 420lm / Green 530nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X007AMDFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X00427DFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X00727DFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X00430DFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X00730DFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X00457DFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 320lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X00757DFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 600lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007BUDFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007RDDFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 280lm / Red 630nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007GNDFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 420lm / Green 530nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X007AMDFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X00427DFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X00727DFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-Z010Z2DFQ
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-Z010Z2DFQ
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-Z010Z2DFQ
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0043010Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0043025Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0043040Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X00430DFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0073010Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0073025Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0073040Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X00730DFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0045710Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 320lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0045725Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 320lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0045740Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 320lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X00457DFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 320lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0075710Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 600lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0075725Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 600lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0075740Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 600lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X00757DFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 600lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007BU10Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007BU25Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007BU40Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007BUDFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 160lm / Blue 470nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007RD10Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007RD25Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007RD40Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 280lm / Red 630nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007RDDFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 280lm / Red 630nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007GN10Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007GN25Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007GN40Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 420lm / Green 530nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007GNDFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 420lm / Green 530nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007AM10Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007AM25Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007AM40Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X007AMDFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 320lm / Amber 585nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0042710Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0042725Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0042740Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X00427DFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0072710Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0072725Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0072740Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X00727DFQ
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X00430A1Q
    PDF IES
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A2-X00730A1Q
    PDF IES
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A2-X00457A1Q
    PDF IES
    		A2 - Black
    Aluminium 6000 Series    		 4W 320lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A2-X00757A1Q
    PDF IES
    		A2 - Black
    Aluminium 6000 Series    		 7W 600lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A2-X00427A1Q
    PDF IES
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A2-X00727A1Q
    PDF IES
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A2-Z010Z2A1Q
    PDF IES
    		A2 - Black
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K A1 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A3-X00430A1Q
    PDF IES
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A3-X00730A1Q
    PDF IES
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A3-X00457A1Q
    PDF IES
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 320lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A3-X00757A1Q
    PDF IES
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 600lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A3-X00427A1Q
    PDF IES
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A3-X00727A1Q
    PDF IES
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A3-Z010Z2A1Q
    PDF IES
    		A3 - Bronze
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K A1 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A4-X00430A1Q
    PDF IES
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A4-X00730A1Q
    PDF IES
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A4-X00457A1Q
    PDF IES
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 320lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A4-X00757A1Q
    PDF IES
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 600lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A4-X00427A1Q
    PDF IES
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A4-X00727A1Q
    PDF IES
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A4-Z010Z2A1Q
    PDF IES
    		A4 - Basalt
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K A1 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A8-X00430A1Q
    PDF IES
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A8-X00730A1Q
    PDF IES
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A8-X00457A1Q
    PDF IES
    		A8 - White
    Aluminium 6000 Series    		 4W 320lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A8-X00757A1Q
    PDF IES
    		A8 - White
    Aluminium 6000 Series    		 7W 600lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A8-X00427A1Q
    PDF IES
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A8-X00727A1Q
    PDF IES
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A8-Z010Z2A1Q
    PDF IES
    		A8 - White
    Aluminium 6000 Series    		 10W 555lm / RGB+3000K A1 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF IES
    AQL-155-A2-X0043055Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0073055Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0045755Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 320lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0075755Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 600lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0042755Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0072755Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0043055Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0073055Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0045755Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 320lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0075755Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 600lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0042755Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0072755Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0043055Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0073055Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0045755Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 320lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0075755Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 600lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0042755Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0072755Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0043055Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0073055Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0045755Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 320lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0075755Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 600lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0042755Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0072755Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0043055Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0073055Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0045755Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 320lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0075755Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 600lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0042755Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 4W 300lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A2-X0072755Q
    PDF
    		A2 - Black
    Aluminium 6000 Series    		 7W 550lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0043055Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0073055Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0045755Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 320lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0075755Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 600lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0042755Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 4W 300lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A3-X0072755Q
    PDF
    		A3 - Bronze
    Aluminium 6000 Series    		 7W 550lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0043055Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0073055Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0045755Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 320lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0075755Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 600lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0042755Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 4W 300lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A4-X0072755Q
    PDF
    		A4 - Basalt
    Aluminium 6000 Series    		 7W 550lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0043055Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0073055Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 3000K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0045755Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 320lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0075755Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 600lm / 5700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0042755Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 4W 300lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-155-A8-X0072755Q
    PDF
    		A8 - White
    Aluminium 6000 Series    		 7W 550lm / 2700K 55 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF

    You may also need these accessories

    DAP-04

    DAP-04

    Products that work well with your selection

    AQL-115

    AQL-115

    AQL-120

    AQL-120

    AQL-121

    AQL-121

    AQL-122

    AQL-122

    AQL-123

    AQL-123

    AQL-124

    AQL-124

    AQL-125

    AQL-125
