Lumena

AQL-166

4-Way Grazing Light

Introduction

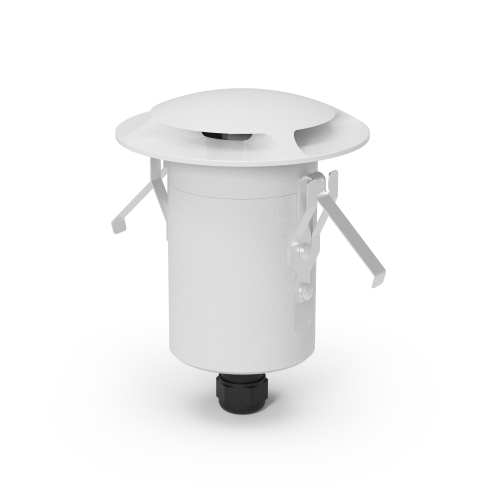

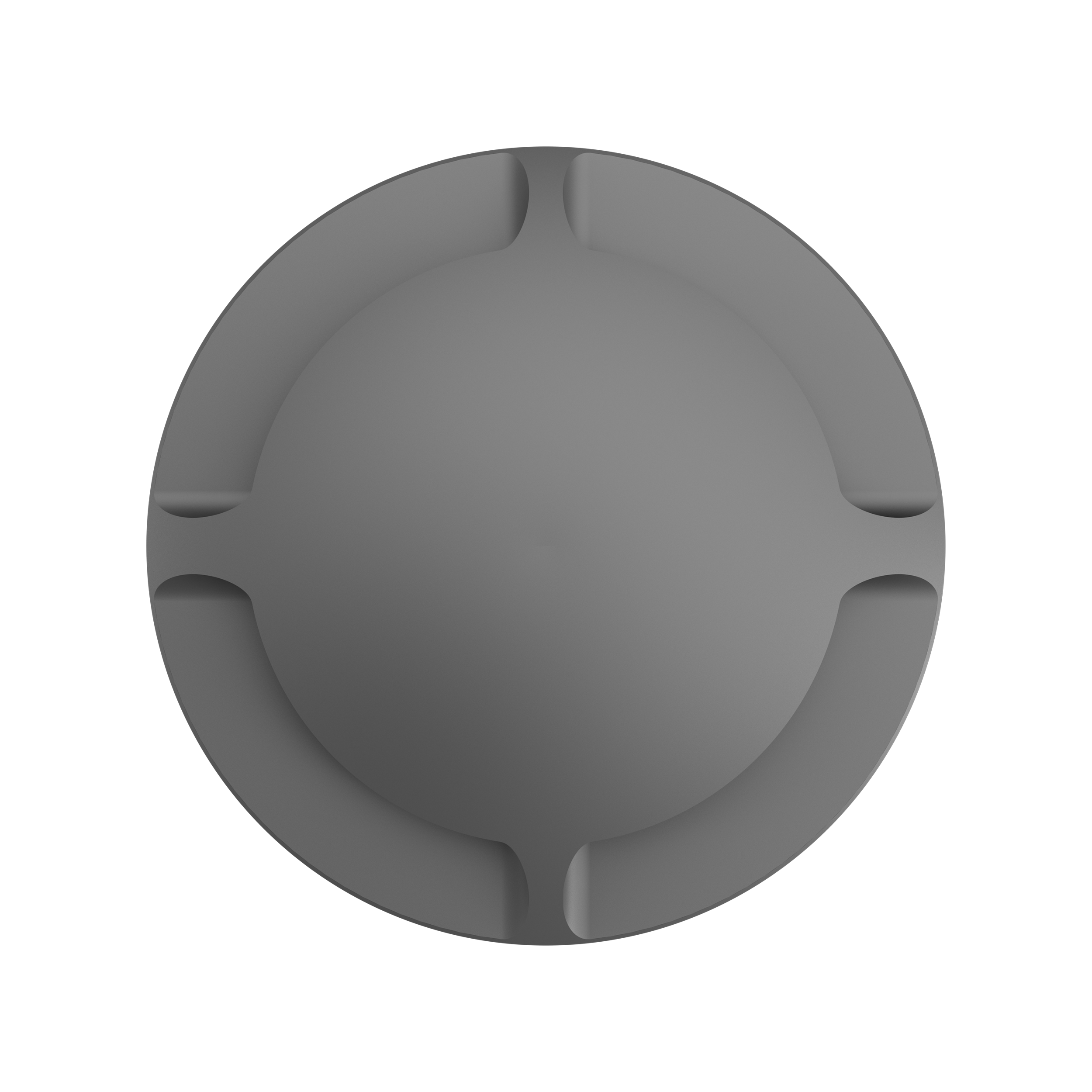

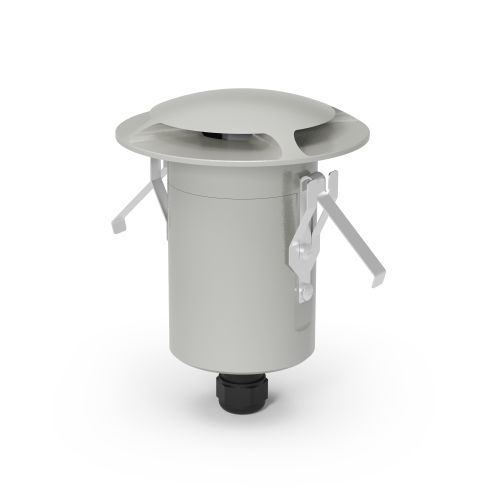

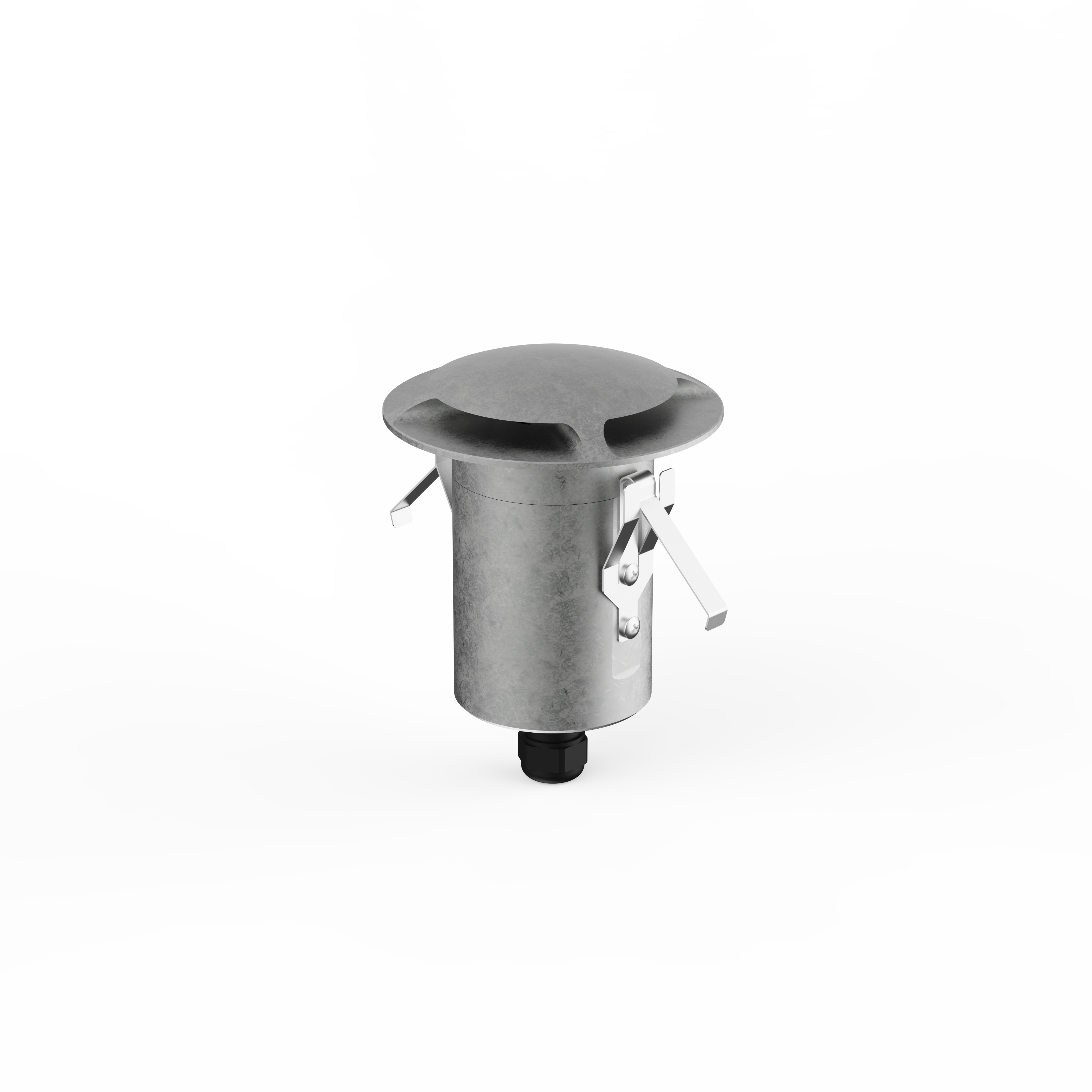

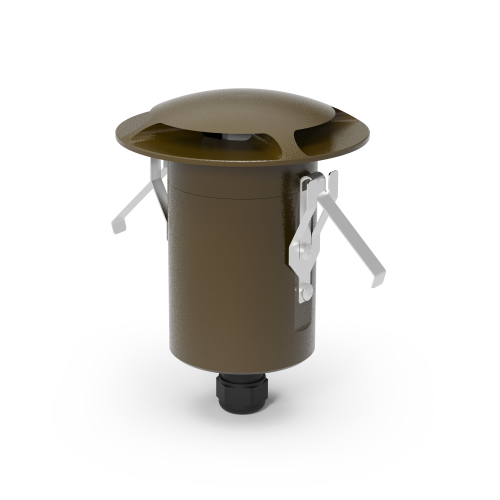

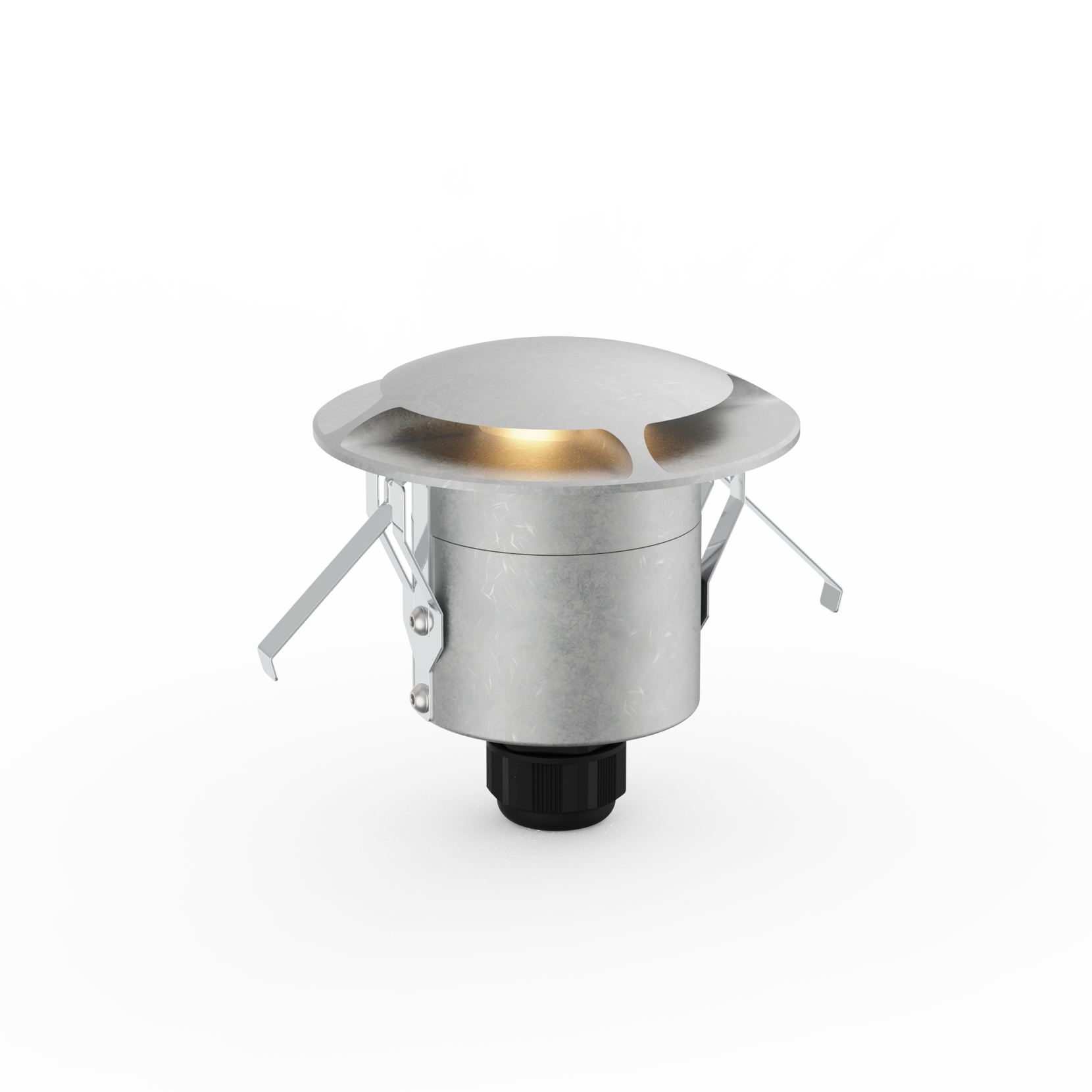

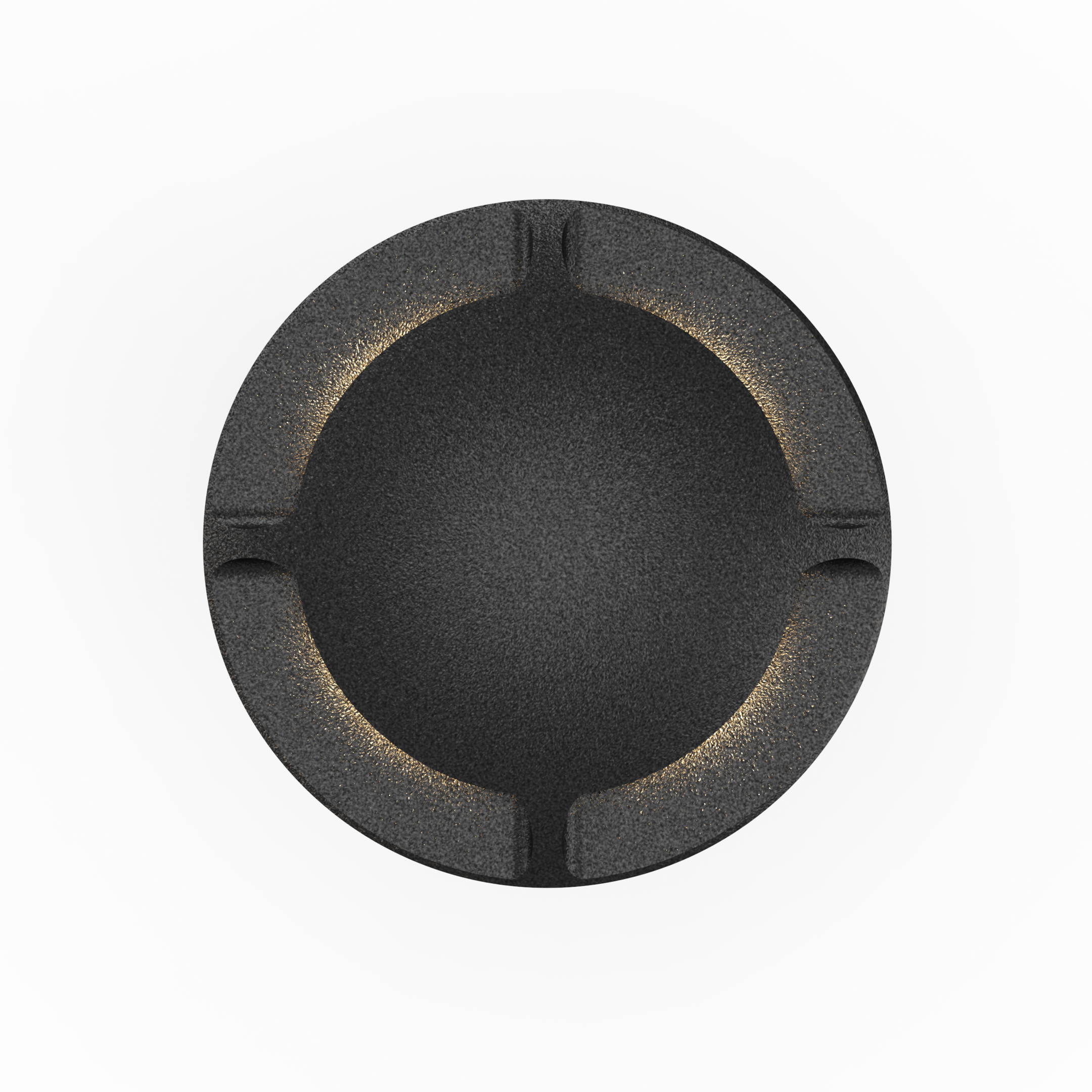

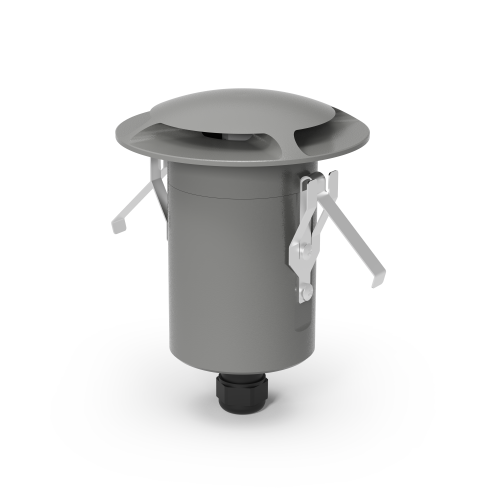

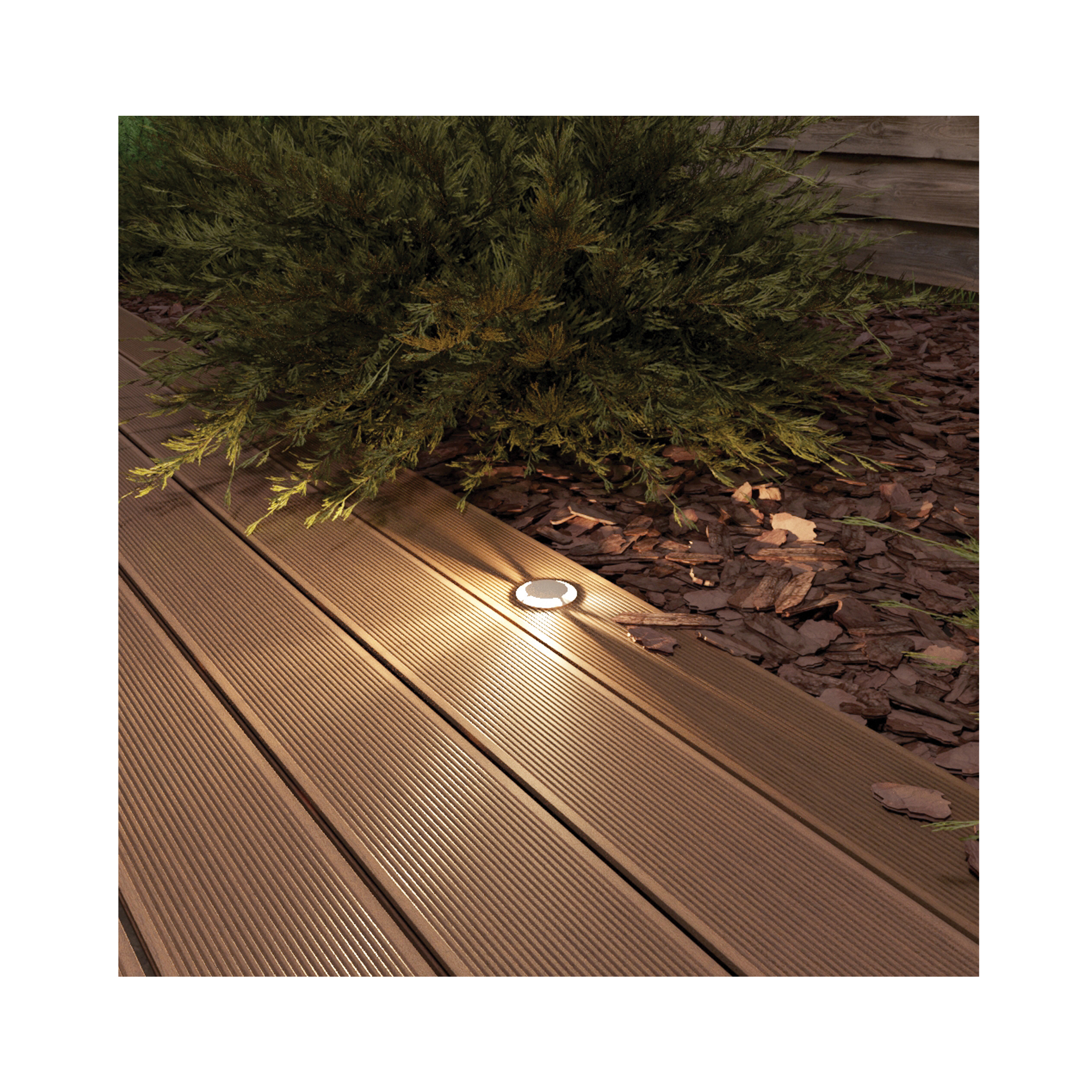

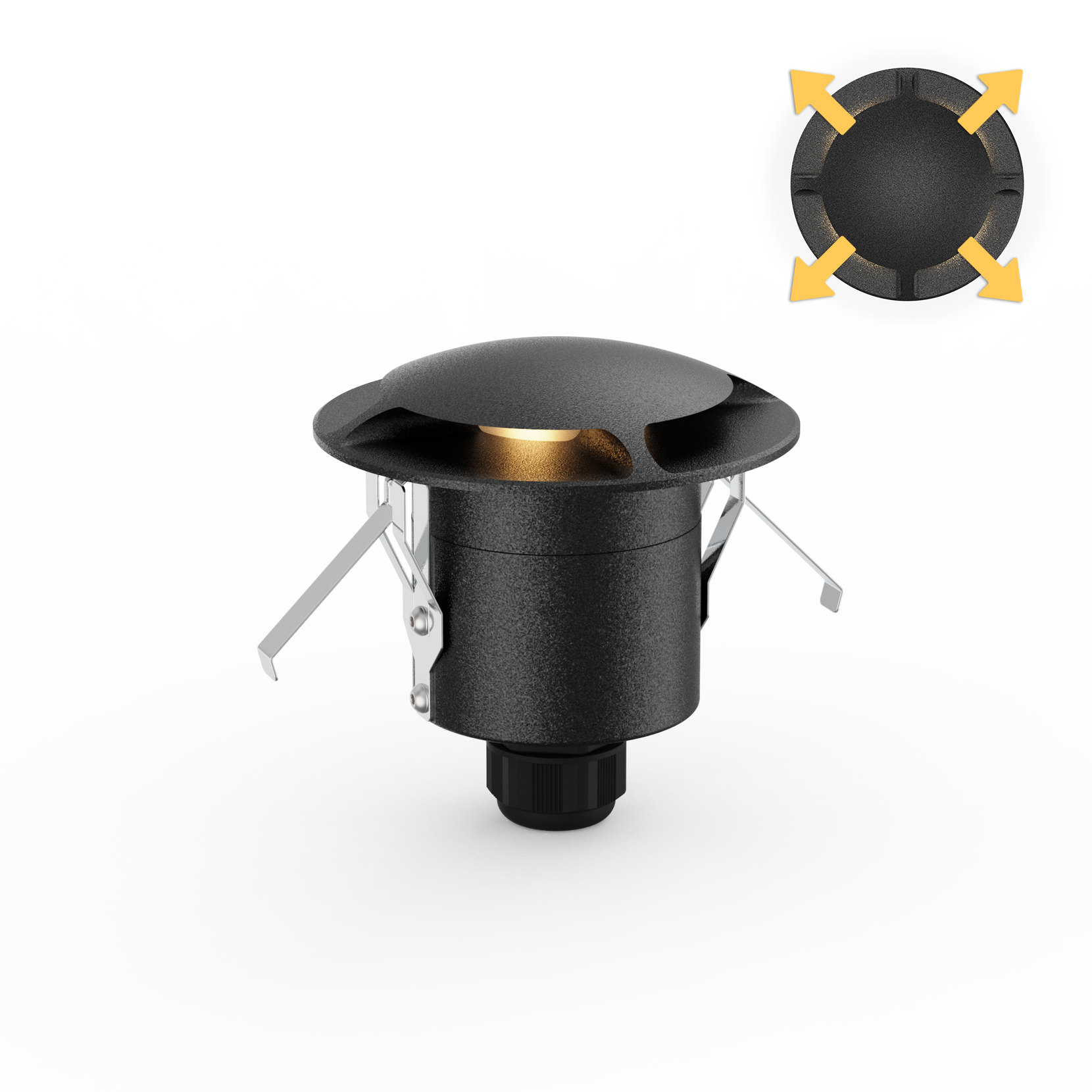

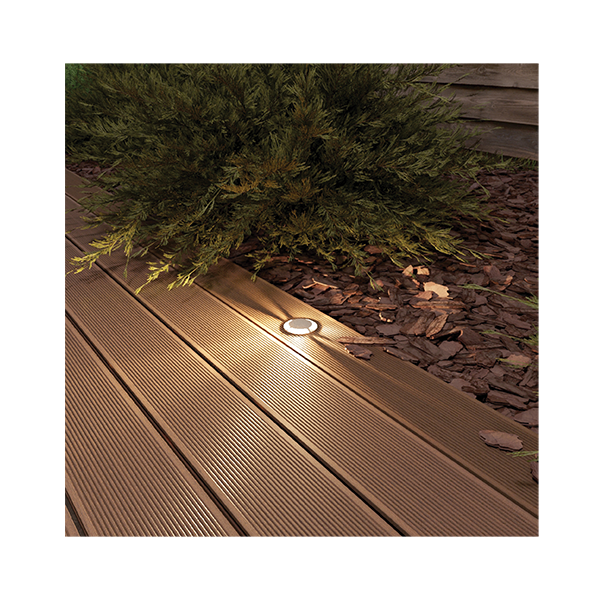

The AQL-166 is a compact, stylish recessed grazing light with 360° spread.

Specification

AQL-166

Lumena

CNC Machined Aluminium

900mm Aqualux 2-Core Silicone / PTFE Cable

7 Year Aqualux Warranty

IP67

RGBW option to be driven at 50% max total.
Not rated for high-pressure cleaning.

Options

Body

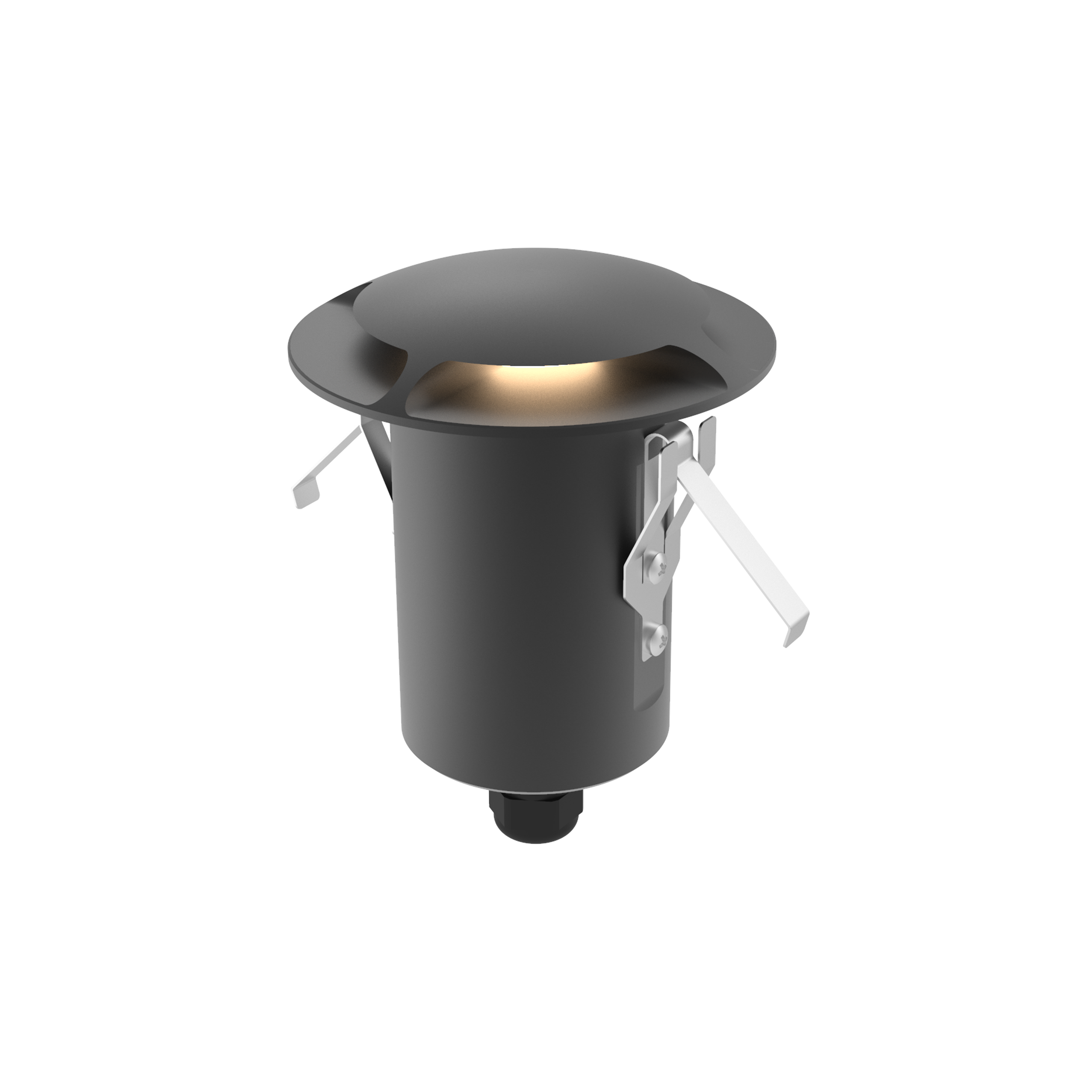

  • A2 - Black

    Aluminium 6000 Series

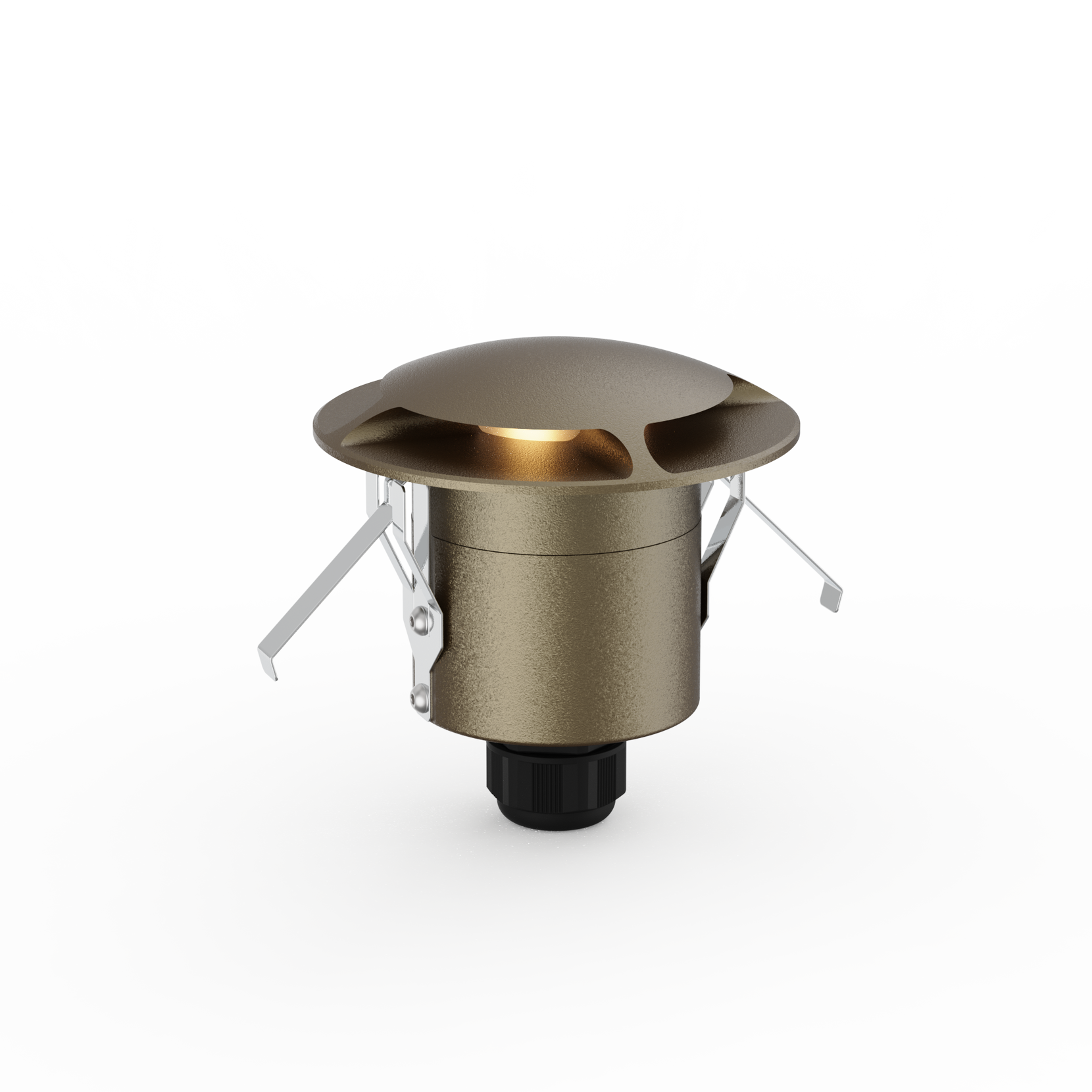

  • A3 - Bronze

    Aluminium 6000 Series

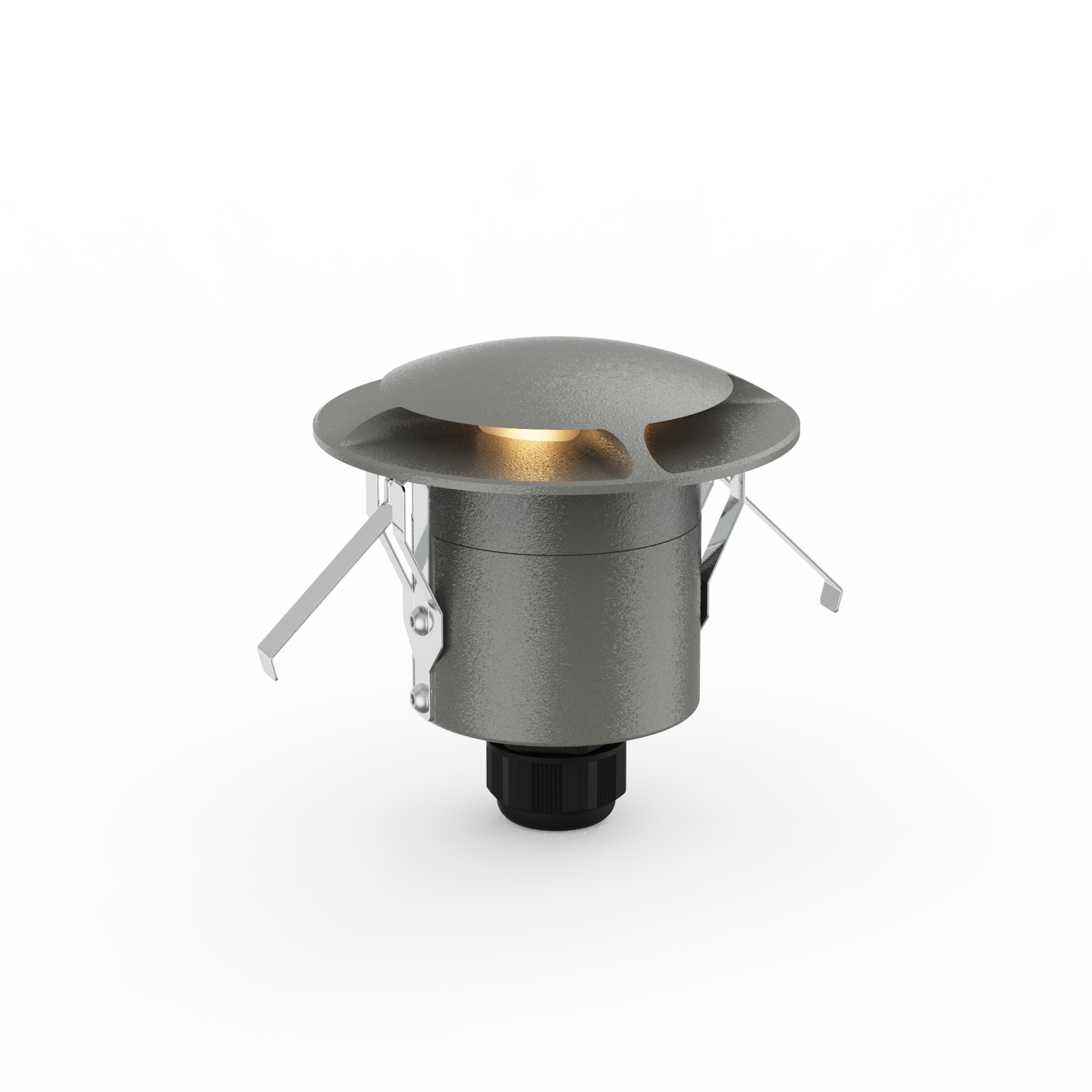

  • A4 - Basalt

    Aluminium 6000 Series

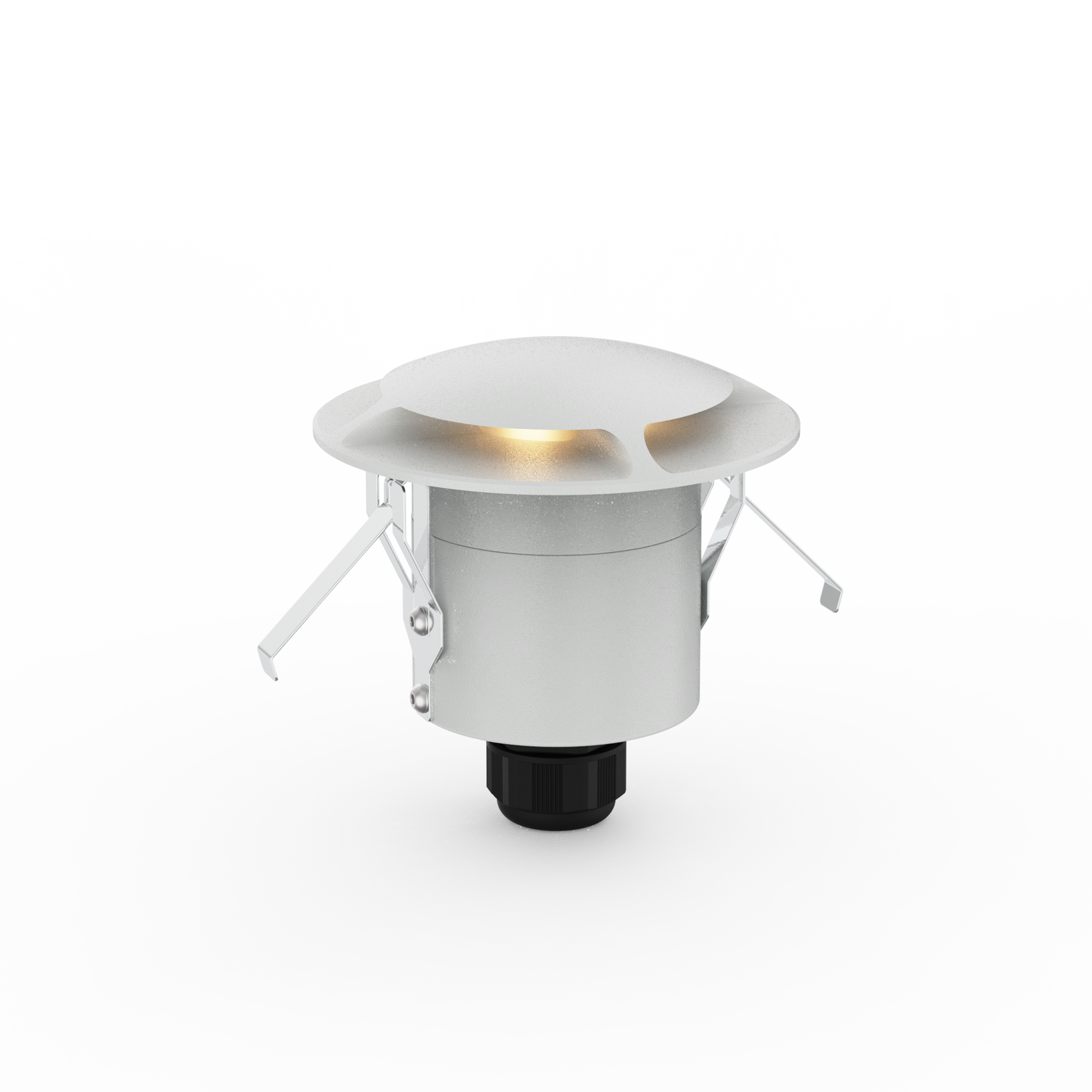

  • A8 - White

    Aluminium 6000 Series

Control Gear

  • 12~24V AC / 24V DC

    Dimming: 3-Wire 10V PWM

  • 24V DC RGBW

    Dimming: 4CH Low-Side PWM

Light Sources

  • 4W / 400lm

    3000K

  • 4W / 400lm

    5700K

  • 4W / 280lm

    Amber

  • 4W / 160lm

    Blue

  • 4W / 400lm

    Green

  • 20W / 940lm

    RGB+3000K

  • 4W / 280lm

    Red

Optical

  • Diffuse (Frosted)

    DF

  • Diffuse (Clear)

    DC

Cable

  • Q

    AqualuxPLUS QuickConnect


Configure order code

AQL-166

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.


AQL-166 - has 34 variations

Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
AQL-166-A8-X004RDDCQ
PDF
A8 - White
Aluminium 6000 Series
4W 280lm / Red DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A2-Z020Z1DFQ
PDF
A2 - Black
Aluminium 6000 Series
20W 940lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A3-Z020Z1DFQ
PDF
A3 - Bronze
Aluminium 6000 Series
20W 940lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A4-Z020Z1DFQ
PDF
A4 - Basalt
Aluminium 6000 Series
20W 940lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X00430DFQ
PDF
A8 - White
Aluminium 6000 Series
4W 400lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X00430DCQ
PDF
A8 - White
Aluminium 6000 Series
4W 400lm / 3000K DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X00457DFQ
PDF
A8 - White
Aluminium 6000 Series
4W 400lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X00457DCQ
PDF
A8 - White
Aluminium 6000 Series
4W 400lm / 5700K DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X004RDDFQ
PDF
A8 - White
Aluminium 6000 Series
4W 280lm / Red DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A4-X004AMDCQ
PDF
A4 - Basalt
Aluminium 6000 Series
4W 280lm / Amber DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X004BUDFQ
PDF
A8 - White
Aluminium 6000 Series
4W 160lm / Blue DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X004BUDCQ
PDF
A8 - White
Aluminium 6000 Series
4W 160lm / Blue DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X004GNDFQ
PDF
A8 - White
Aluminium 6000 Series
4W 400lm / Green DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X004GNDCQ
PDF
A8 - White
Aluminium 6000 Series
4W 400lm / Green DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X004AMDFQ
PDF
A8 - White
Aluminium 6000 Series
4W 280lm / Amber DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-X004AMDCQ
PDF
A8 - White
Aluminium 6000 Series
4W 280lm / Amber DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A8-Z020Z1DFQ
PDF
A8 - White
Aluminium 6000 Series
20W 940lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A3-X004BUDCQ
PDF
A3 - Bronze
Aluminium 6000 Series
4W 160lm / Blue DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A2-X00457DCQ
PDF
A2 - Black
Aluminium 6000 Series
4W 400lm / 5700K DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A2-X004RDDCQ
PDF
A2 - Black
Aluminium 6000 Series
4W 280lm / Red DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A2-X004BUDCQ
PDF
A2 - Black
Aluminium 6000 Series
4W 160lm / Blue DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A2-X004GNDCQ
PDF
A2 - Black
Aluminium 6000 Series
4W 400lm / Green DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A2-X004AMDCQ
PDF
A2 - Black
Aluminium 6000 Series
4W 280lm / Amber DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A3-X00430DCQ
PDF
A3 - Bronze
Aluminium 6000 Series
4W 400lm / 3000K DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A3-X00457DCQ
PDF
A3 - Bronze
Aluminium 6000 Series
4W 400lm / 5700K DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A3-X004RDDCQ
PDF
A3 - Bronze
Aluminium 6000 Series
4W 280lm / Red DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A2-X00430DCQ
PDF
A2 - Black
Aluminium 6000 Series
4W 400lm / 3000K DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A3-X004GNDCQ
PDF
A3 - Bronze
Aluminium 6000 Series
4W 400lm / Green DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A3-X004AMDCQ
PDF
A3 - Bronze
Aluminium 6000 Series
4W 280lm / Amber DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A4-X00430DCQ
PDF
A4 - Basalt
Aluminium 6000 Series
4W 400lm / 3000K DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A4-X00457DCQ
PDF
A4 - Basalt
Aluminium 6000 Series
4W 400lm / 5700K DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A4-X004RDDCQ
PDF
A4 - Basalt
Aluminium 6000 Series
4W 280lm / Red DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A4-X004BUDCQ
PDF
A4 - Basalt
Aluminium 6000 Series
4W 160lm / Blue DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
AQL-166-A4-X004GNDCQ
PDF
A4 - Basalt
Aluminium 6000 Series
4W 400lm / Green DC 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
PDF
