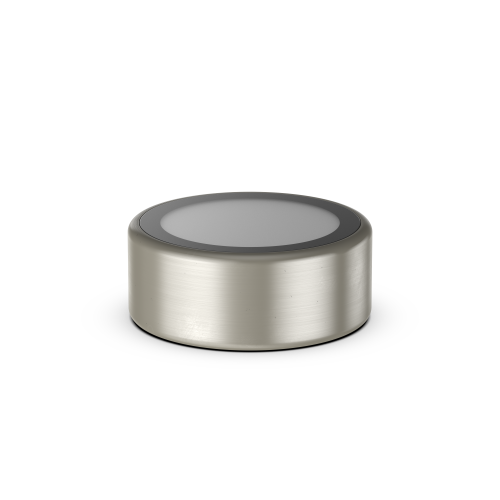

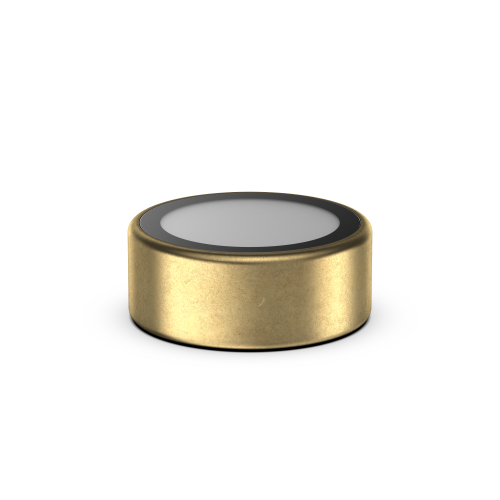

Phoenix
AQL-177
Underwater glow light
Introduction
An enacpsulated, IP68 surface uplight for pond and water feature illumination. Available in Electroless Nickle & Natural Brass with diffuse optic.
Note: 12w version must be submerged in water
Specification
AQL-177
Phoenix
CNC Machined Brass
5m Aqualux 3-Core Silicone / PTFE Cable
7 Year Aqualux Warranty
IP68
Note: 12w version must be submerged in water
Configure order code
AQL-177
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-177 - has 4 variations
Product Code
Downloads
Body
Rated Power
Light Source
Optical
Control Gear
Dimming
Cable
Downloads
AQL-177-B1-B01230DFS
B1 - Brushed Chrome
Brass
12W
900lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
5m Aqualux Cable
AQL-177-B6-B01230DFS
B6 - Natural Waxed
Brass
12W
900lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
5m Aqualux Cable
AQL-177-B1-B00430DFS
B1 - Brushed Chrome
Brass
4W
250lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
5m Aqualux Cable
AQL-177-B6-B00430DFS
B6 - Natural Waxed
Brass
4W
250lm /
3000K
DF
24V DC 3-Wire
3-wire PWM 10V Dimming
5m Aqualux Cable
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-177 - has 4 variations
| Product Code | Downloads | Body | Rated Power | Light Source | Optical | Control Gear | Dimming | Cable | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQL-177-B1-B01230DFS | B1 - Brushed Chrome Brass |
12W | 900lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 5m Aqualux Cable | |||
| AQL-177-B6-B01230DFS | B6 - Natural Waxed Brass |
12W | 900lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 5m Aqualux Cable | |||
| AQL-177-B1-B00430DFS | B1 - Brushed Chrome Brass |
4W | 250lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 5m Aqualux Cable | |||
| AQL-177-B6-B00430DFS | B6 - Natural Waxed Brass |
4W | 250lm / 3000K | DF | 24V DC 3-Wire | 3-wire PWM 10V Dimming | 5m Aqualux Cable |
