Lumena
AQL-195
Micro Decklight
Introduction

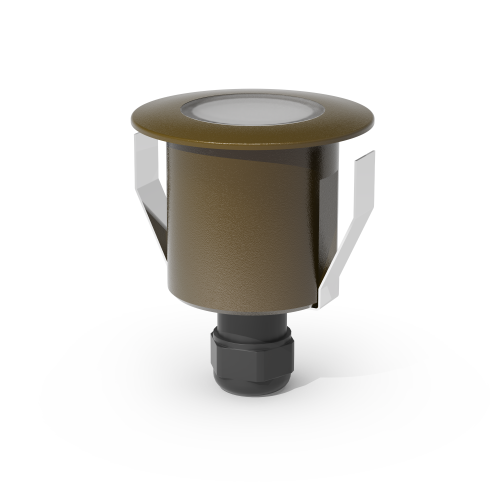

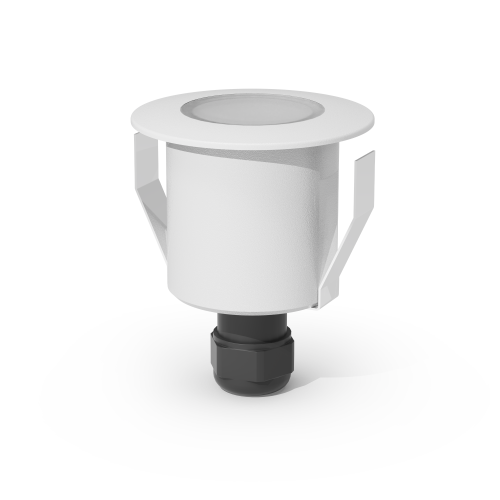

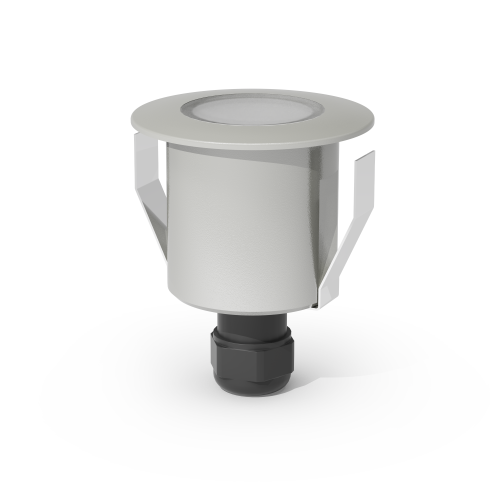

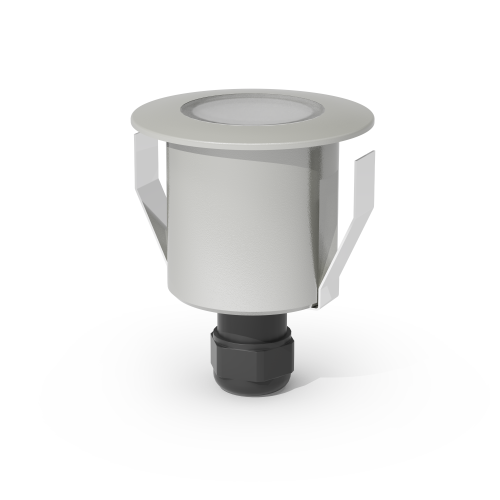

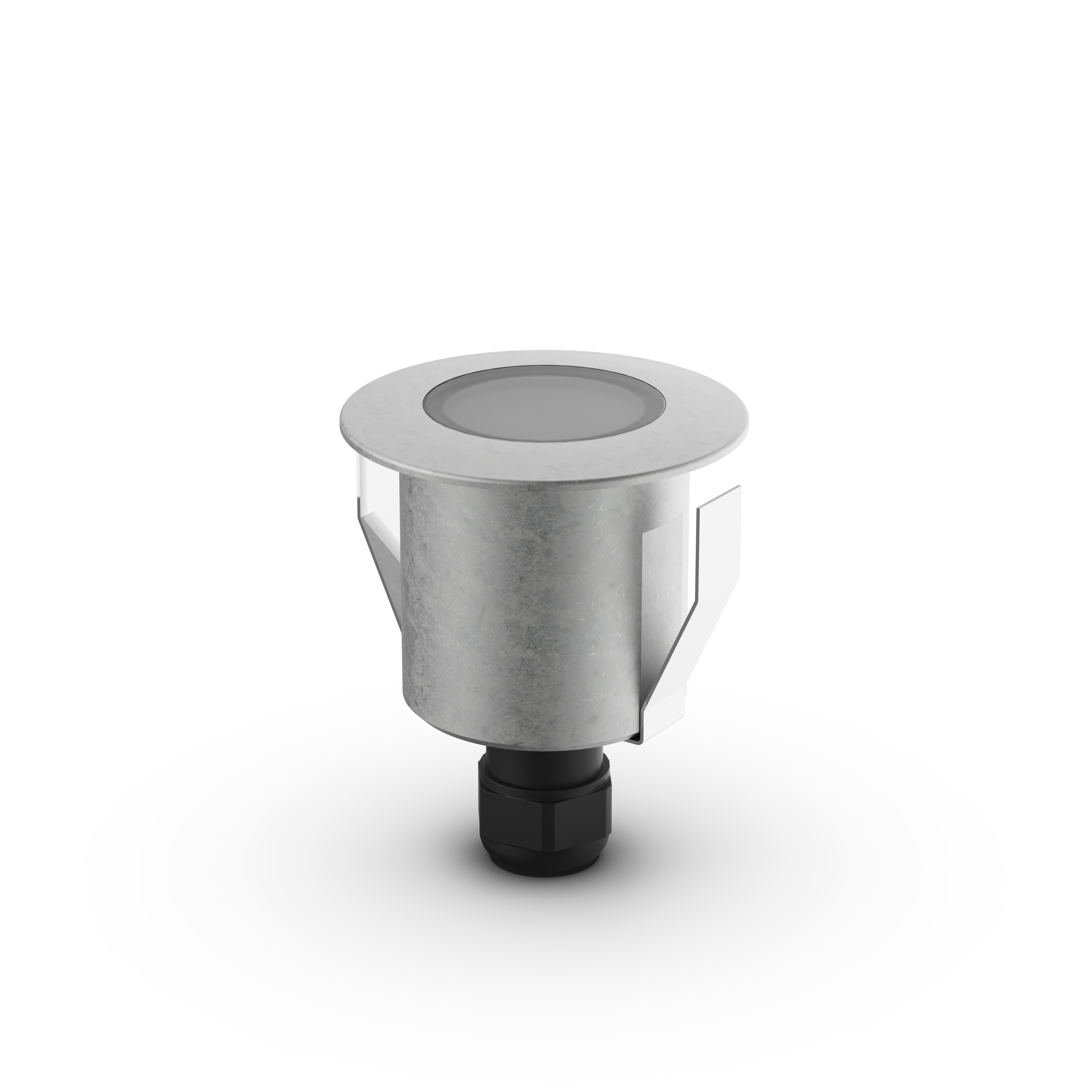

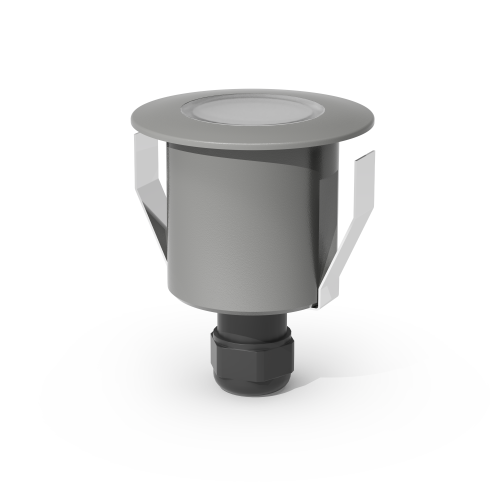

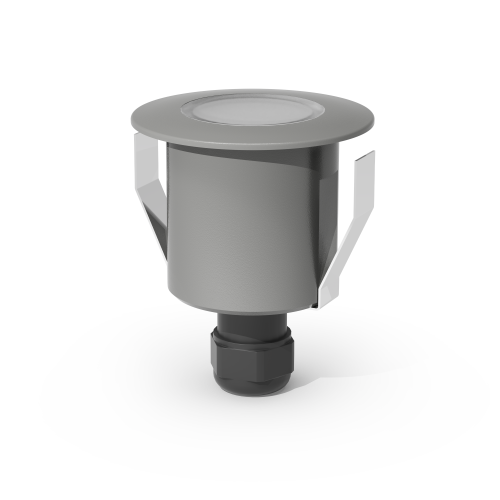

The AQL-195 is a compact, stylish recessed 1.5W micro deck light with frost lens.
Specification
AQL-195
Lumena
CNC Machined Aluminium
1M Aqualux PLUS QuickConnect
7 Year Aqualux Warranty
IP67
Configure order code
AQL-195
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-195 - has 24 variations
Product Code
Downloads
Body
Rated Power
Light Source
Optical
Control Gear
Dimming
Cable
Downloads
AQL-195-A3-X00230DFS
Medium Bronze
Aluminium 6000 Series
2W
150lm /
3000k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A4-X002BUDFS
Venerable Silver
Aluminium 6000 Series
2W
080lm /
Blue / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A4-X002GNDFS
Venerable Silver
Aluminium 6000 Series
2W
080lm /
Green / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A4-X002RDDFS
Venerable Silver
Aluminium 6000 Series
2W
080lm /
Red / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A4-X00257DFS
Venerable Silver
Aluminium 6000 Series
2W
150lm /
5700k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A4-X00227DFS
Venerable Silver
Aluminium 6000 Series
2W
150lm /
2700k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A4-X00230DFS
Venerable Silver
Aluminium 6000 Series
2W
150lm /
3000k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A3-X002BUDFS
Medium Bronze
Aluminium 6000 Series
2W
080lm /
Blue / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A3-X002GNDFS
Medium Bronze
Aluminium 6000 Series
2W
080lm /
Green / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A3-X002RDDFS
Medium Bronze
Aluminium 6000 Series
2W
080lm /
Red / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A3-X00257DFS
Medium Bronze
Aluminium 6000 Series
2W
150lm /
5700k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A3-X00227DFS
Medium Bronze
Aluminium 6000 Series
2W
150lm /
2700k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A1-X00230DFS
Silver Reign
Aluminium 6000 Series
2W
150lm /
3000k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A2-X002BUDFS
Black Ace
Aluminium 6000 Series
2W
080lm /
Blue / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A2-X002GNDFS
Black Ace
Aluminium 6000 Series
2W
080lm /
Green / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A2-X002RDDFS
Black Ace
Aluminium 6000 Series
2W
080lm /
Red / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A2-X00257DFS
Black Ace
Aluminium 6000 Series
2W
150lm /
5700k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A2-X00227DFS
Black Ace
Aluminium 6000 Series
2W
150lm /
2700k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A2-X00230DFS
Black Ace
Aluminium 6000 Series
2W
150lm /
3000k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A1-X002BUDFS
Silver Reign
Aluminium 6000 Series
2W
080lm /
Blue / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A1-X002GNDFS
Silver Reign
Aluminium 6000 Series
2W
080lm /
Green / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A1-X002RDDFS
Silver Reign
Aluminium 6000 Series
2W
080lm /
Red / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A1-X00257DFS
Silver Reign
Aluminium 6000 Series
2W
150lm /
5700k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
AQL-195-A1-X00227DFS
Silver Reign
Aluminium 6000 Series
2W
150lm /
2700k / 500mA
DF
12~24V AC / 24V DC
Optional 3-Wire 10V PWM (DC)
1m Aqualux Cable
Aqualux is introducing an updated product code structure throughout 2021.
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-195 - has 24 variations
| Product Code | Downloads | Body | Rated Power | Light Source | Optical | Control Gear | Dimming | Cable | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQL-195-A3-X00230DFS | Medium Bronze Aluminium 6000 Series |
2W | 150lm / 3000k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A4-X002BUDFS | Venerable Silver Aluminium 6000 Series |
2W | 080lm / Blue / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A4-X002GNDFS | Venerable Silver Aluminium 6000 Series |
2W | 080lm / Green / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A4-X002RDDFS | Venerable Silver Aluminium 6000 Series |
2W | 080lm / Red / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A4-X00257DFS | Venerable Silver Aluminium 6000 Series |
2W | 150lm / 5700k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A4-X00227DFS | Venerable Silver Aluminium 6000 Series |
2W | 150lm / 2700k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A4-X00230DFS | Venerable Silver Aluminium 6000 Series |
2W | 150lm / 3000k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A3-X002BUDFS | Medium Bronze Aluminium 6000 Series |
2W | 080lm / Blue / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A3-X002GNDFS | Medium Bronze Aluminium 6000 Series |
2W | 080lm / Green / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A3-X002RDDFS | Medium Bronze Aluminium 6000 Series |
2W | 080lm / Red / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A3-X00257DFS | Medium Bronze Aluminium 6000 Series |
2W | 150lm / 5700k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A3-X00227DFS | Medium Bronze Aluminium 6000 Series |
2W | 150lm / 2700k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A1-X00230DFS | Silver Reign Aluminium 6000 Series |
2W | 150lm / 3000k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A2-X002BUDFS | Black Ace Aluminium 6000 Series |
2W | 080lm / Blue / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A2-X002GNDFS | Black Ace Aluminium 6000 Series |
2W | 080lm / Green / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A2-X002RDDFS | Black Ace Aluminium 6000 Series |
2W | 080lm / Red / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A2-X00257DFS | Black Ace Aluminium 6000 Series |
2W | 150lm / 5700k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A2-X00227DFS | Black Ace Aluminium 6000 Series |
2W | 150lm / 2700k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A2-X00230DFS | Black Ace Aluminium 6000 Series |
2W | 150lm / 3000k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A1-X002BUDFS | Silver Reign Aluminium 6000 Series |
2W | 080lm / Blue / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A1-X002GNDFS | Silver Reign Aluminium 6000 Series |
2W | 080lm / Green / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A1-X002RDDFS | Silver Reign Aluminium 6000 Series |
2W | 080lm / Red / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A1-X00257DFS | Silver Reign Aluminium 6000 Series |
2W | 150lm / 5700k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-195-A1-X00227DFS | Silver Reign Aluminium 6000 Series |
2W | 150lm / 2700k / 500mA | DF | 12~24V AC / 24V DC | Optional 3-Wire 10V PWM (DC) | 1m Aqualux Cable |
Aqualux is introducing an updated product code structure throughout 2021.
