Hydra
AQL-417
Eyelid Steplight
Introduction

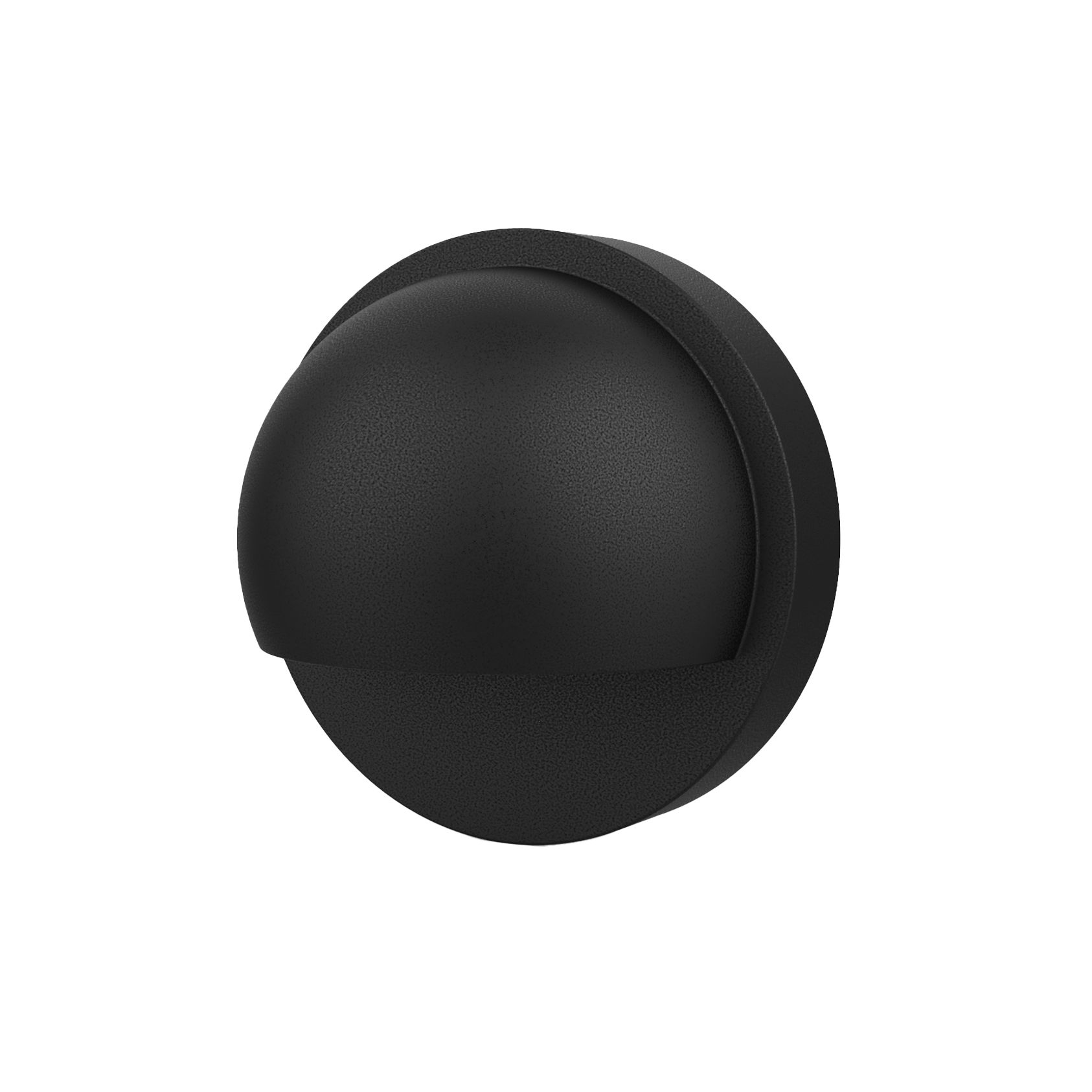

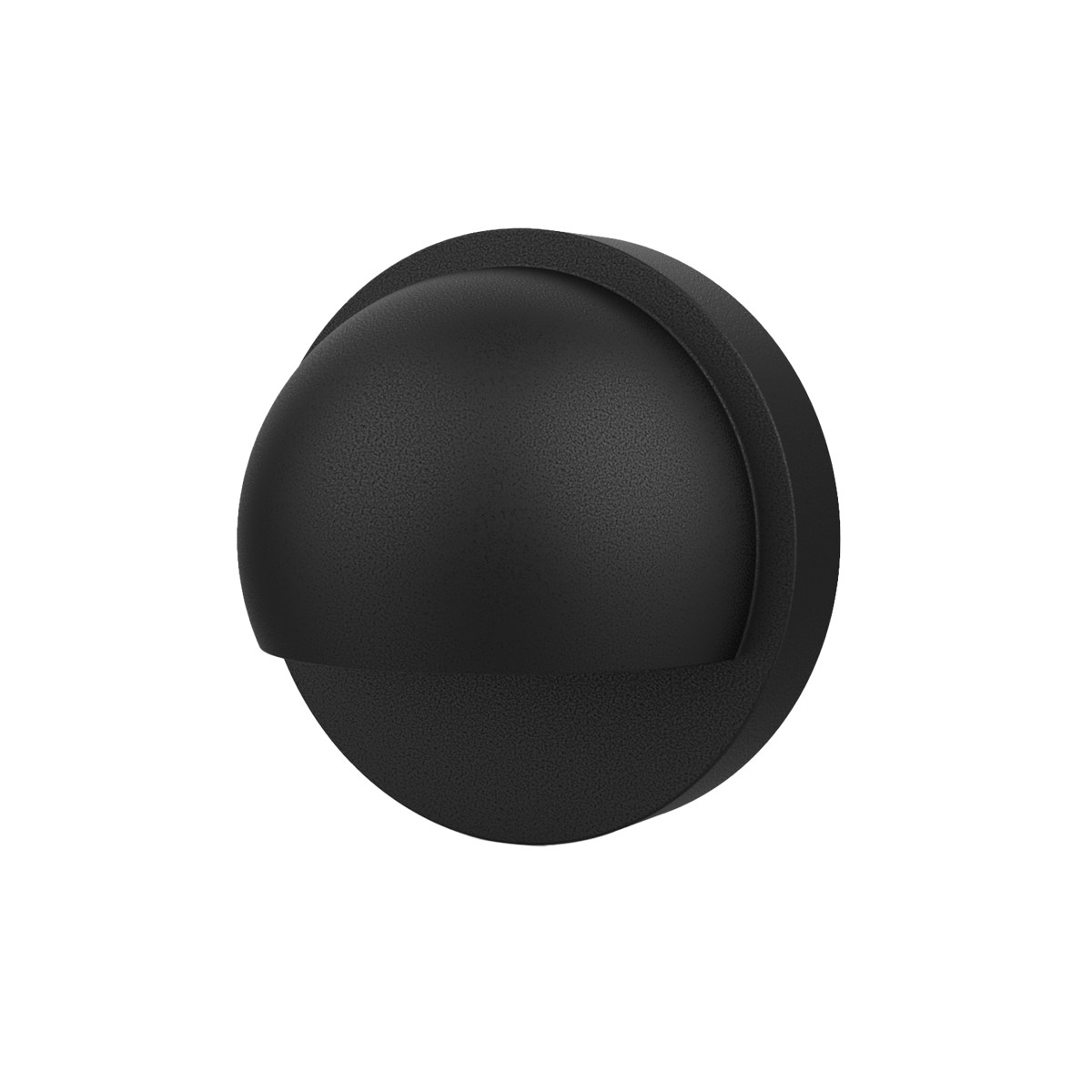

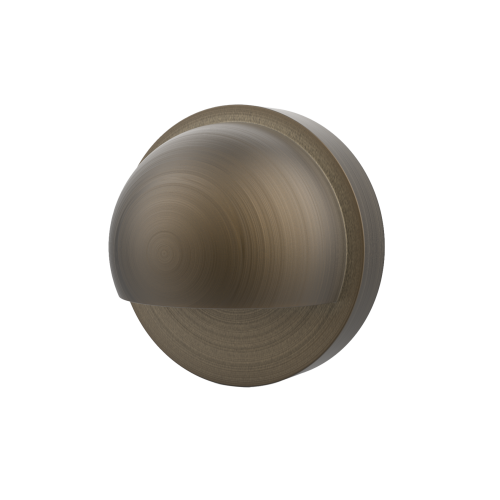

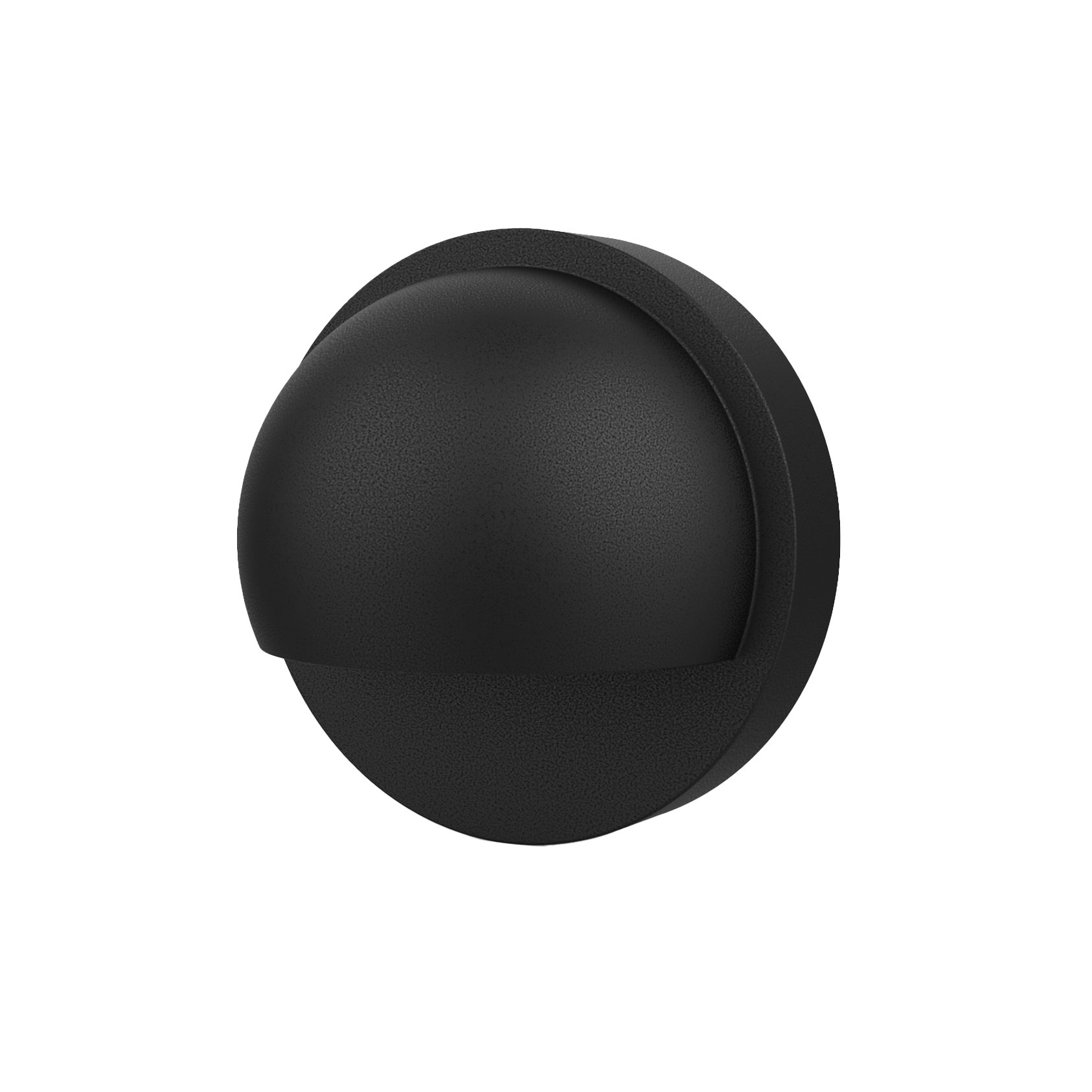

Brass Steplight with integral LED
Specification
AQL-417
Hydra
Solid Cast Brass
500mm Fig 8 cable
3 Year Aqualux Warranty
IP65
Configure order code
AQL-417
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-417 - has 3 variations
Product Code
Downloads
Body
Rated Power
Light Source
Optical
Control Gear
Dimming
Cable
Downloads
AQL-417-B1-X00430DFS
Brushed Chrome
Brass
4W
250lm /
3000K / 500mA
DF
12~24V AC / 24V DC
Optional 10V PWM (DC)
1m Aqualux Cable
AQL-417-B2-X00430DFS
Black
Brass
4W
250lm /
3000K / 500mA
DF
12~24V AC / 24V DC
Optional 10V PWM (DC)
1m Aqualux Cable
AQL-417-B3-X00430DFS
Aged Brass
Brass
4W
250lm /
3000K / 500mA
DF
12~24V AC / 24V DC
Optional 10V PWM (DC)
1m Aqualux Cable
Aqualux is introducing an updated product code structure throughout 2021.
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQL-417 - has 3 variations
| Product Code | Downloads | Body | Rated Power | Light Source | Optical | Control Gear | Dimming | Cable | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQL-417-B1-X00430DFS | Brushed Chrome Brass |
4W | 250lm / 3000K / 500mA | DF | 12~24V AC / 24V DC | Optional 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-417-B2-X00430DFS | Black Brass |
4W | 250lm / 3000K / 500mA | DF | 12~24V AC / 24V DC | Optional 10V PWM (DC) | 1m Aqualux Cable | |||
| AQL-417-B3-X00430DFS | Aged Brass Brass |
4W | 250lm / 3000K / 500mA | DF | 12~24V AC / 24V DC | Optional 10V PWM (DC) | 1m Aqualux Cable |
Aqualux is introducing an updated product code structure throughout 2021.
