Introduction

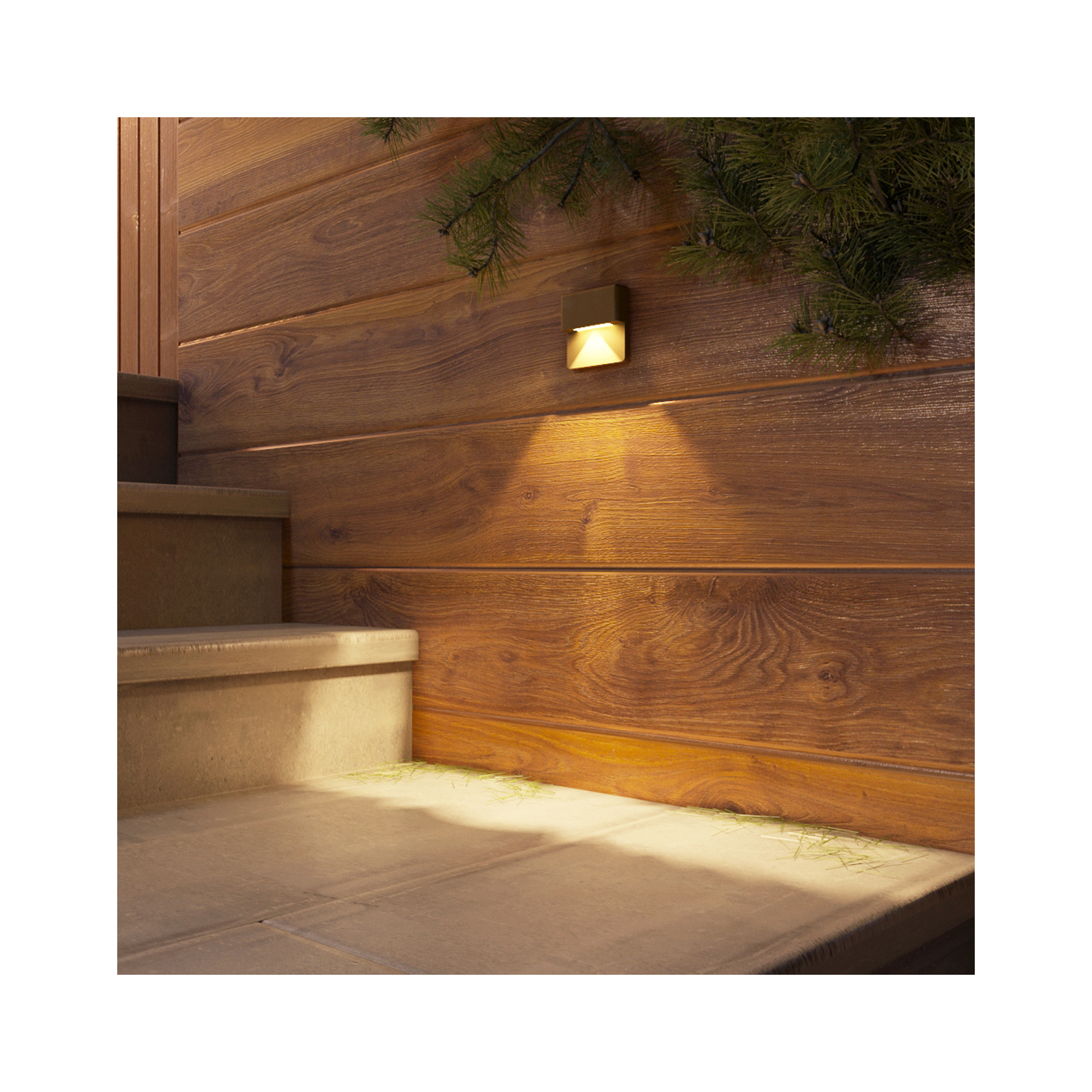

A low profile LED steplight perfect for steps, retaining walls and corridors.

Specification

Product Code

AQL-419

Family

Hydra

Construction Material

Solid Cast Brass

Cable

500mm Fig 8 cable

Warranty

3 Year Aqualux Warranty

IP Rating

IP65

Options

Body

Brushed Chrome

Brass
Black

Brass
Aged Brass

Brass

Control Gear

12~24V AC / 24V DC

Dimming: Optional 10V PWM (DC)

Light Sources

2W / 100lm

3000K / 300mA

Optical

Diffuse (Clear)

DC

Cable

S

1m Aqualux Cable

Configure order code

Base Code:

AQL-419

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

AQL-419 - You have 3 variations with this product

Product Code	Body	Rated Power	Light Source	Optical	Control Gear	Dimming	Cable
AQL-419-B1-X00230DCS	Brushed Chrome Brass	2W	100lm / 3000K / 300mA	DC	12~24V AC / 24V DC	Optional 10V PWM (DC)	1m Aqualux Cable
AQL-419-B2-X00230DCS	Black Brass	2W	100lm / 3000K / 300mA	DC	12~24V AC / 24V DC	Optional 10V PWM (DC)	1m Aqualux Cable
AQL-419-B3-X00230DCS	Aged Brass Brass	2W	100lm / 3000K / 300mA	DC	12~24V AC / 24V DC	Optional 10V PWM (DC)	1m Aqualux Cable

Aqualux is introducing an updated product code structure throughout 2020. Quotes, invoices and other documents may reference the previous product code structure until we have completed this update.
