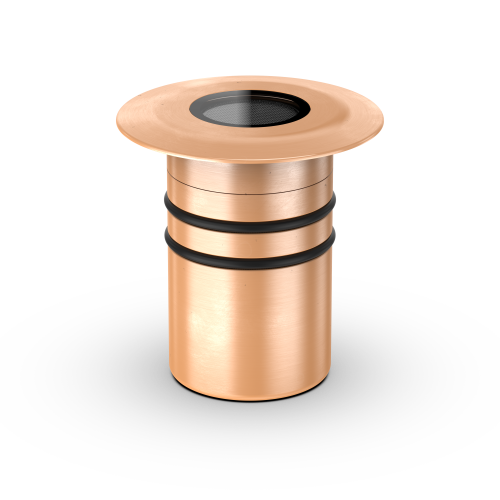

    AQL-530

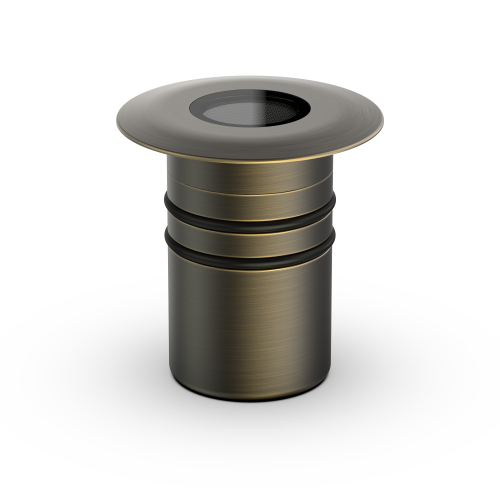

    AQL-530

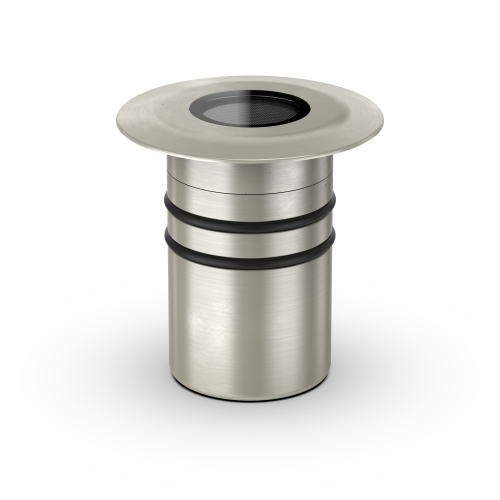

    AQL-530
    AQL-530
    AQL-530

    Introduction

    Sharing many of the same components as the AQL-540, the AQL-530 is designed to withstand the worst conditions nature can offer. Solid cast brass with 4 finish options and epoxy encapsulated internals the AQL-530 is suitable for any application that requires the best in reliability and performance.

    Specification

    AQL-530

    Phoenix

    Solid Cast Brass

    1M Aqualux PLUS QuickConnect

    7 Year Aqualux Warranty

    IP65

    Options

    Body

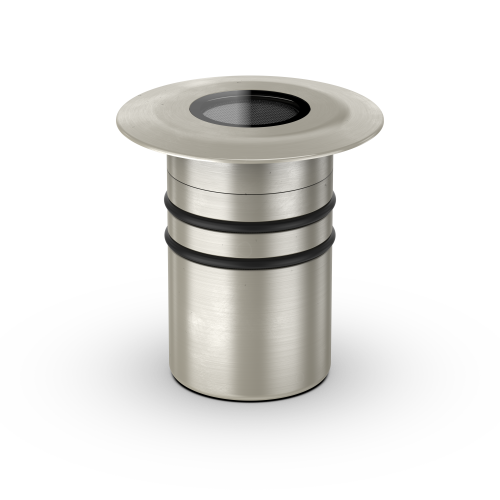

    • B1 - Brushed Chrome

      Brass

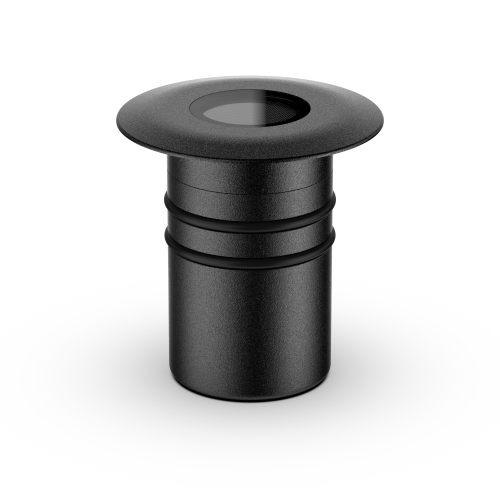

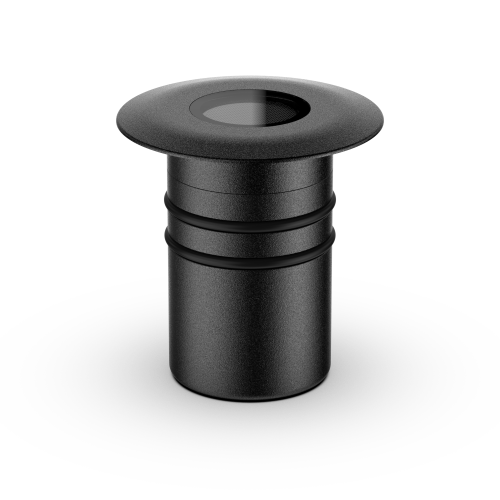

    • B2 - Black

      Brass

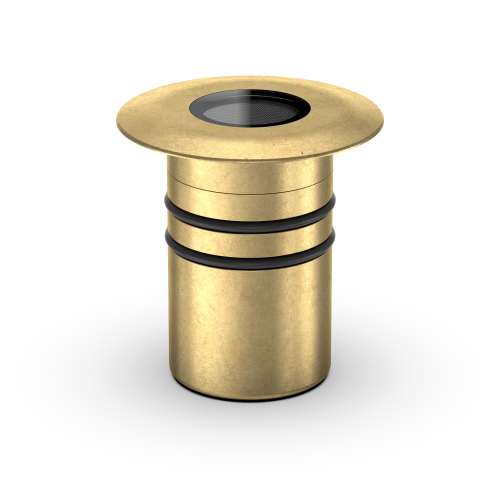

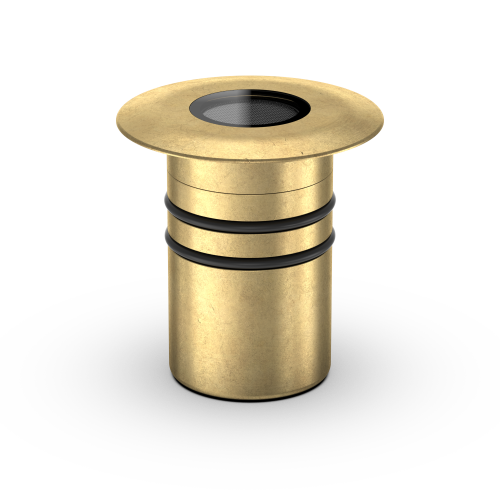

    • B3 - Aged Brass

      Brass

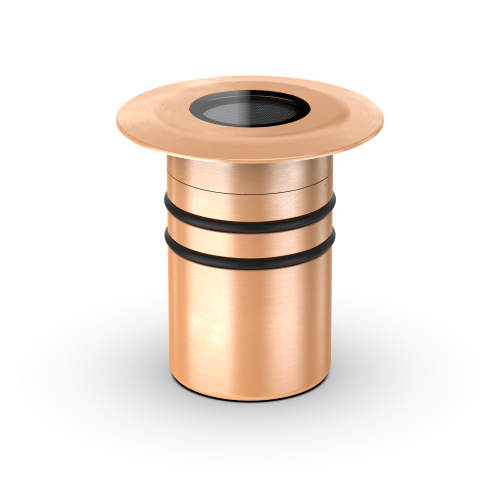

    • B5 - Brushed Copper

      Brass

    • B6 - Natural Waxed

      Brass

    Control Gear

    • 12~24V AC / 24V DC

      Dimming: 3-Wire 10V PWM

    • 24V DC RGBW

      Dimming: 4CH Low-Side PWM

    Light Sources

    • 4W / 300lm

      2700K

    • 7W / 550lm

      2700K

    • 4W / 300lm

      3000K

    • 7W / 550lm

      3000K

    • 4W / 320lm

      5700K

    • 7W / 600lm

      5700K

    • 7W / 320lm

      Amber 585nm

    • 7W / 160lm

      Blue 470nm

    • 7W / 420lm

      Green 530nm

    • 10W / 555lm

      RGB+3000K

    • 7W / 280lm

      Red 630nm

    Optical

    • Narrow (10°)

      10

    • Medium (25°)

      25

    • Wide (40°)

      40

    • Diffuse (Frosted)

      DF

    • Asymmetric ~30° offset

      A1

    Cable

    • Q

      AqualuxPLUS QuickConnect

    Configure order code

    AQL-530

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    B1 - Brushed Chrome Brass B2 - Black Brass B3 - Aged Brass Brass B5 - Brushed Copper Brass B6 - Natural Waxed Brass
    12~24V AC / 24V DC 24V DC RGBW
    4W / 300lm / 2700K 7W / 550lm / 2700K 4W / 300lm / 3000K 7W / 550lm / 3000K 4W / 320lm / 5700K 7W / 600lm / 5700K 7W / 320lm / Amber 585nm 7W / 160lm / Blue 470nm 7W / 420lm / Green 530nm 10W / 555lm / RGB+3000K 7W / 280lm / Red 630nm
    Narrow (10°) Medium (25°) Wide (40°) Diffuse (Frosted) Asymmetric ~30° offset
    AqualuxPLUS QuickConnect

    AQL-530 - has 255 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-530-B1-X0043010Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0043025Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0043040Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00430DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0073010Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0073025Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0073040Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00730DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0045710Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0045725Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0045740Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00457DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0075710Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 600lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0075725Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 600lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0075740Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 600lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00757DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 600lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007BU10Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 160lm / Blue 470nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007BU25Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 160lm / Blue 470nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007BU40Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 160lm / Blue 470nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007BUDFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 160lm / Blue 470nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007RD10Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 280lm / Red 630nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007RD25Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 280lm / Red 630nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007RD40Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 280lm / Red 630nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007RDDFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 280lm / Red 630nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007GN10Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 420lm / Green 530nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007GN25Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 420lm / Green 530nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007GN40Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 420lm / Green 530nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007GNDFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 420lm / Green 530nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007AM10Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 320lm / Amber 585nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007AM25Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 320lm / Amber 585nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007AM40Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 320lm / Amber 585nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X007AMDFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 320lm / Amber 585nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0042710Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0042725Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0042740Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00427DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0072710Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0072725Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X0072740Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00727DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0043010Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0043025Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0043040Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00430DFQ
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0073010Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0073025Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0073040Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00730DFQ
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0045710Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0045725Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0045740Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00457DFQ
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0075710Q
    PDF
    		B2 - Black
    Brass    		 7W 600lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0075725Q
    PDF
    		B2 - Black
    Brass    		 7W 600lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0075740Q
    PDF
    		B2 - Black
    Brass    		 7W 600lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00757DFQ
    PDF
    		B2 - Black
    Brass    		 7W 600lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007BU10Q
    PDF
    		B2 - Black
    Brass    		 7W 160lm / Blue 470nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007BU25Q
    PDF
    		B2 - Black
    Brass    		 7W 160lm / Blue 470nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007BU40Q
    PDF
    		B2 - Black
    Brass    		 7W 160lm / Blue 470nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007BUDFQ
    PDF
    		B2 - Black
    Brass    		 7W 160lm / Blue 470nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007RD10Q
    PDF
    		B2 - Black
    Brass    		 7W 280lm / Red 630nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007RD25Q
    PDF
    		B2 - Black
    Brass    		 7W 280lm / Red 630nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007RD40Q
    PDF
    		B2 - Black
    Brass    		 7W 280lm / Red 630nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007RDDFQ
    PDF
    		B2 - Black
    Brass    		 7W 280lm / Red 630nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007GN10Q
    PDF
    		B2 - Black
    Brass    		 7W 420lm / Green 530nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007GN25Q
    PDF
    		B2 - Black
    Brass    		 7W 420lm / Green 530nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007GN40Q
    PDF
    		B2 - Black
    Brass    		 7W 420lm / Green 530nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007GNDFQ
    PDF
    		B2 - Black
    Brass    		 7W 420lm / Green 530nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007AM10Q
    PDF
    		B2 - Black
    Brass    		 7W 320lm / Amber 585nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007AM25Q
    PDF
    		B2 - Black
    Brass    		 7W 320lm / Amber 585nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007AM40Q
    PDF
    		B2 - Black
    Brass    		 7W 320lm / Amber 585nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X007AMDFQ
    PDF
    		B2 - Black
    Brass    		 7W 320lm / Amber 585nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0042710Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0042725Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0042740Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00427DFQ
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0072710Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0072725Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X0072740Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00727DFQ
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0043010Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0043025Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0043040Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00430DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0073010Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0073025Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0073040Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00730DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0045710Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0045725Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0045740Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00457DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0075710Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 600lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0075725Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 600lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0075740Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 600lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00757DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 7W 600lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007BU10Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 160lm / Blue 470nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007BU25Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 160lm / Blue 470nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007BU40Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 160lm / Blue 470nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007BUDFQ
    PDF
    		B3 - Aged Brass
    Brass    		 7W 160lm / Blue 470nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007RD10Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 280lm / Red 630nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007RD25Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 280lm / Red 630nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007RD40Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 280lm / Red 630nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007RDDFQ
    PDF
    		B3 - Aged Brass
    Brass    		 7W 280lm / Red 630nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007GN10Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 420lm / Green 530nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007GN25Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 420lm / Green 530nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007GN40Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 420lm / Green 530nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007GNDFQ
    PDF
    		B3 - Aged Brass
    Brass    		 7W 420lm / Green 530nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007AM10Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 320lm / Amber 585nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007AM25Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 320lm / Amber 585nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007AM40Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 320lm / Amber 585nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X007AMDFQ
    PDF
    		B3 - Aged Brass
    Brass    		 7W 320lm / Amber 585nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0042710Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0042725Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0042740Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00427DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0072710Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0072725Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X0072740Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00727DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0043010Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0043025Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0043040Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00430DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0073010Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0073025Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0073040Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00730DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0045710Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0045725Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0045740Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00457DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0075710Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 600lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0075725Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 600lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0075740Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 600lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00757DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 600lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007BU10Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 160lm / Blue 470nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007BU25Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 160lm / Blue 470nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007BU40Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 160lm / Blue 470nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007BUDFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 160lm / Blue 470nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007RD10Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 280lm / Red 630nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007RD25Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 280lm / Red 630nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007RD40Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 280lm / Red 630nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007RDDFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 280lm / Red 630nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007GN10Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 420lm / Green 530nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007GN25Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 420lm / Green 530nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007GN40Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 420lm / Green 530nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007GNDFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 420lm / Green 530nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007AM10Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 320lm / Amber 585nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007AM25Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 320lm / Amber 585nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007AM40Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 320lm / Amber 585nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X007AMDFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 320lm / Amber 585nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0042710Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0042725Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0042740Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00427DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0072710Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0072725Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X0072740Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00727DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0043010Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0043025Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0043040Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00430DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0073010Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 3000K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0073025Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 3000K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0073040Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 3000K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00730DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 3000K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0045710Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0045725Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0045740Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00457DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0075710Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 600lm / 5700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0075725Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 600lm / 5700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0075740Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 600lm / 5700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00757DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 600lm / 5700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007BU10Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 160lm / Blue 470nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007BU25Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 160lm / Blue 470nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007BU40Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 160lm / Blue 470nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007BUDFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 160lm / Blue 470nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007RD10Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 280lm / Red 630nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007RD25Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 280lm / Red 630nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007RD40Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 280lm / Red 630nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007RDDFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 280lm / Red 630nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007GN10Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 420lm / Green 530nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007GN25Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 420lm / Green 530nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007GN40Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 420lm / Green 530nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007GNDFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 420lm / Green 530nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007AM10Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 320lm / Amber 585nm 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007AM25Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 320lm / Amber 585nm 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007AM40Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 320lm / Amber 585nm 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X007AMDFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 320lm / Amber 585nm DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0042710Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0042725Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0042740Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00427DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0072710Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 2700K 10 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0072725Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 2700K 25 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X0072740Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 2700K 40 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00727DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 2700K DF 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-Z010Z210Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-Z010Z225Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-Z010Z240Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-Z010Z2DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-Z010Z210Q
    PDF
    		B2 - Black
    Brass    		 10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-Z010Z225Q
    PDF
    		B2 - Black
    Brass    		 10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-Z010Z240Q
    PDF
    		B2 - Black
    Brass    		 10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-Z010Z2DFQ
    PDF
    		B2 - Black
    Brass    		 10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-Z010Z210Q
    PDF
    		B3 - Aged Brass
    Brass    		 10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-Z010Z225Q
    PDF
    		B3 - Aged Brass
    Brass    		 10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-Z010Z240Q
    PDF
    		B3 - Aged Brass
    Brass    		 10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-Z010Z2DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-Z010Z210Q
    PDF
    		B5 - Brushed Copper
    Brass    		 10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-Z010Z225Q
    PDF
    		B5 - Brushed Copper
    Brass    		 10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-Z010Z240Q
    PDF
    		B5 - Brushed Copper
    Brass    		 10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-Z010Z2DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-Z010Z210Q
    PDF
    		B6 - Natural Waxed
    Brass    		 10W 555lm / RGB+3000K 10 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-Z010Z225Q
    PDF
    		B6 - Natural Waxed
    Brass    		 10W 555lm / RGB+3000K 25 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-Z010Z240Q
    PDF
    		B6 - Natural Waxed
    Brass    		 10W 555lm / RGB+3000K 40 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-Z010Z2DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 10W 555lm / RGB+3000K DF 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-Z010Z2A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 10W 555lm / RGB+3000K A1 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-Z010Z2A1Q
    PDF
    		B2 - Black
    Brass    		 10W 555lm / RGB+3000K A1 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-Z010Z2A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 10W 555lm / RGB+3000K A1 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-Z010Z2A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 10W 555lm / RGB+3000K A1 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-Z010Z2A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 10W 555lm / RGB+3000K A1 24V DC RGBW 4CH Low-Side PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00430A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00730A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00457A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00757A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 600lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00427A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B1-X00727A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 7W 550lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00430A1Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00730A1Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00457A1Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00757A1Q
    PDF
    		B2 - Black
    Brass    		 7W 600lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00427A1Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B2-X00727A1Q
    PDF
    		B2 - Black
    Brass    		 7W 550lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00430A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00730A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00457A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00757A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 600lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00427A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B3-X00727A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 7W 550lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00430A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00730A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00457A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00757A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 600lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00427A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B5-X00727A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 7W 550lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00430A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00730A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 3000K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00457A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00757A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 600lm / 5700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00427A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF
    AQL-530-B6-X00727A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 7W 550lm / 2700K A1 12~24V AC / 24V DC 3-Wire 10V PWM AqualuxPLUS QuickConnect
    PDF

    Products that work well with your selection

    AQL-177

    AQL-177

    AQL-510

    AQL-510

    AQL-520

    AQL-520

    AQL-530-01

    AQL-530-01

    AQL-531

    AQL-531

    AQL-531-01

    AQL-531-01

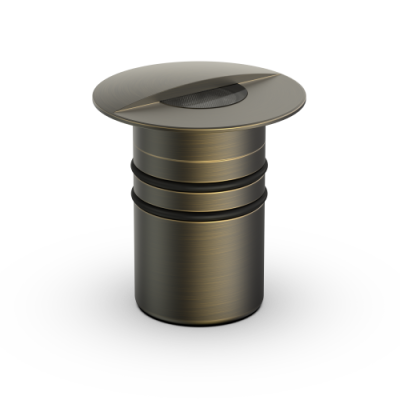

    AQL-532

    AQL-532
