Phoenix

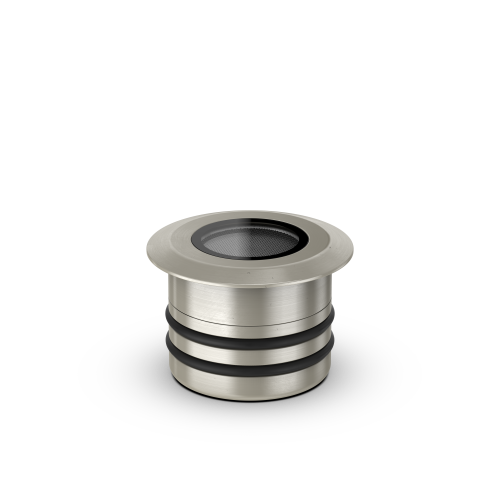

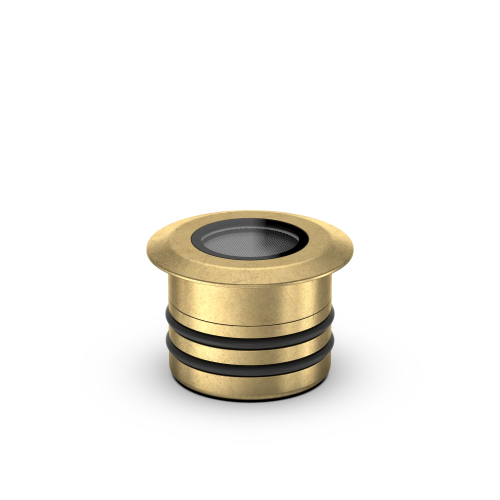

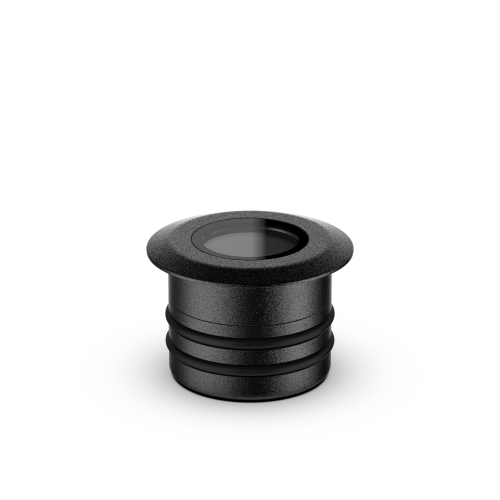

    AQL-531-01

    Inground Uplight

    AQL-531-01
    AQL-531-01
    AQL-531-01
    AQL-531-01
    AQL-531-01

    Introduction

    AQL-531-01 has a shortened body of 40mm and is designed to withstand the worst conditions nature can offer. Solid cast brass with 5 finish options and epoxy encapsulated internals the AQL-531 is suitable for any application that requires the best in reliability and performance.

    Specification

    AQL-531-01

    Phoenix

    CNC Machined Brass

    1M Aqualux PLUS QuickConnect

    7 Year Aqualux Warranty

    IP65

    4W / 24V DC only

    Options

    Body

    • B1 - Brushed Chrome

      Brass

    • B2 - Black

      Brass

    • B3 - Aged Brass

      Brass

    • B5 - Brushed Copper

      Brass

    • B6 - Natural Waxed

      Brass

    Control Gear

    • 24V DC 3-Wire

      Dimming: 3-wire PWM 10V Dimming

    Light Sources

    • 4W / 300lm

      2700K

    • 4W / 300lm

      3000K

    • 4W / 320lm

      5700K

    Optical

    • Narrow (10°)

      10

    • Medium (25°)

      25

    • Wide (40°)

      40

    • Diffuse (Frosted)

      DF

    • Asymmetric ~30° offset

      A1

    Cable

    • Q

      AqualuxPLUS QuickConnect

    Configure order code

    AQL-531-01

    To configure your product/s, select from the options below.
    Multiple selections are possible to produce your downloadable datasheet/s.

    Clear Filter
    B1 - Brushed Chrome Brass B2 - Black Brass B3 - Aged Brass Brass B5 - Brushed Copper Brass B6 - Natural Waxed Brass
    24V DC 3-Wire
    4W / 300lm / 2700K 4W / 300lm / 3000K 4W / 320lm / 5700K
    Narrow (10°) Medium (25°) Wide (40°) Diffuse (Frosted) Asymmetric ~30° offset
    AqualuxPLUS QuickConnect

    AQL-531-01 - has 75 variations

    Product Code Downloads Body Rated Power Light Source Optical Control Gear Dimming Cable Downloads
    AQL-531-01-B5-B0042740Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B00457DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B0045740Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B0045725Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B0045710Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B00430DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B0043040Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B0043025Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B0043010Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B00427DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B0042710Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B0042725Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B0042710Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B00457DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B0045740Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B0045725Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B0045710Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B00430DFQ
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B0043040Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B00427A1Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B00427A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B00457A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 320lm / 5700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B00430A1Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 3000K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B00427A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 2700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B00457A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 320lm / 5700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B00430A1Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B00427A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B00457A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B00430A1Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B0043025Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B00457A1Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B00430A1Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B00427A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B00457A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B00430A1Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K A1 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B00427DFQ
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B0042740Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B6-B0042725Q
    PDF
    		B6 - Natural Waxed
    Brass    		 4W 300lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B0042725Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B0045740Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B0045725Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B0045710Q
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B00430DFQ
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B0043040Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B0043025Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B0043010Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B00427DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B0042740Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B00457DFQ
    PDF
    		B2 - Black
    Brass    		 4W 320lm / 5700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B0042710Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 2700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B00457DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B0045740Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B0045725Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B0045710Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 320lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B00430DFQ
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B0043040Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B0043025Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B0045710Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B5-B0043010Q
    PDF
    		B5 - Brushed Copper
    Brass    		 4W 300lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B00427DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B0042740Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B0042725Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B0042710Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 2700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B00457DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B0045740Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B0045725Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 320lm / 5700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B1-B0043010Q
    PDF
    		B1 - Brushed Chrome
    Brass    		 4W 300lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B00430DFQ
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B0043040Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B0043025Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B3-B0043010Q
    PDF
    		B3 - Aged Brass
    Brass    		 4W 300lm / 3000K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B00427DFQ
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K DF 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B0042740Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K 40 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B0042725Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K 25 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF
    AQL-531-01-B2-B0042710Q
    PDF
    		B2 - Black
    Brass    		 4W 300lm / 2700K 10 24V DC 3-Wire 3-wire PWM 10V Dimming AqualuxPLUS QuickConnect
    PDF

    Products that work well with your selection

    AQL-177

    AQL-177

    AQL-510

    AQL-510

    AQL-520

    AQL-520

    AQL-530

    AQL-530

    AQL-530-01

    AQL-530-01

    AQL-531

    AQL-531

    AQL-532

    AQL-532
