Neon Flex
AQS-400

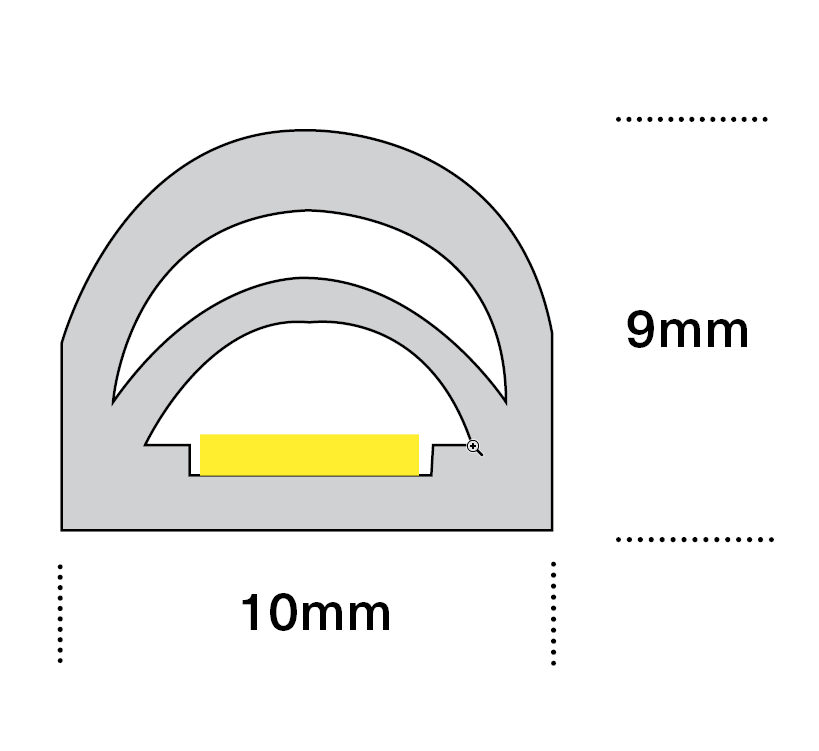

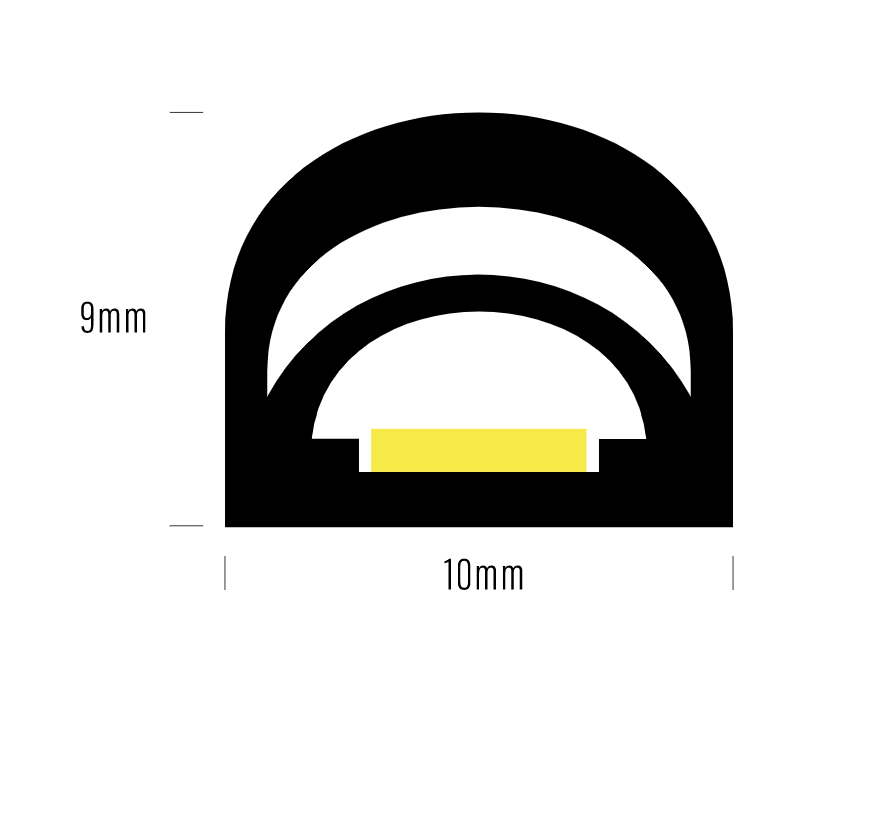

AQS-400 Neon Flex 0910 Size
Introduction

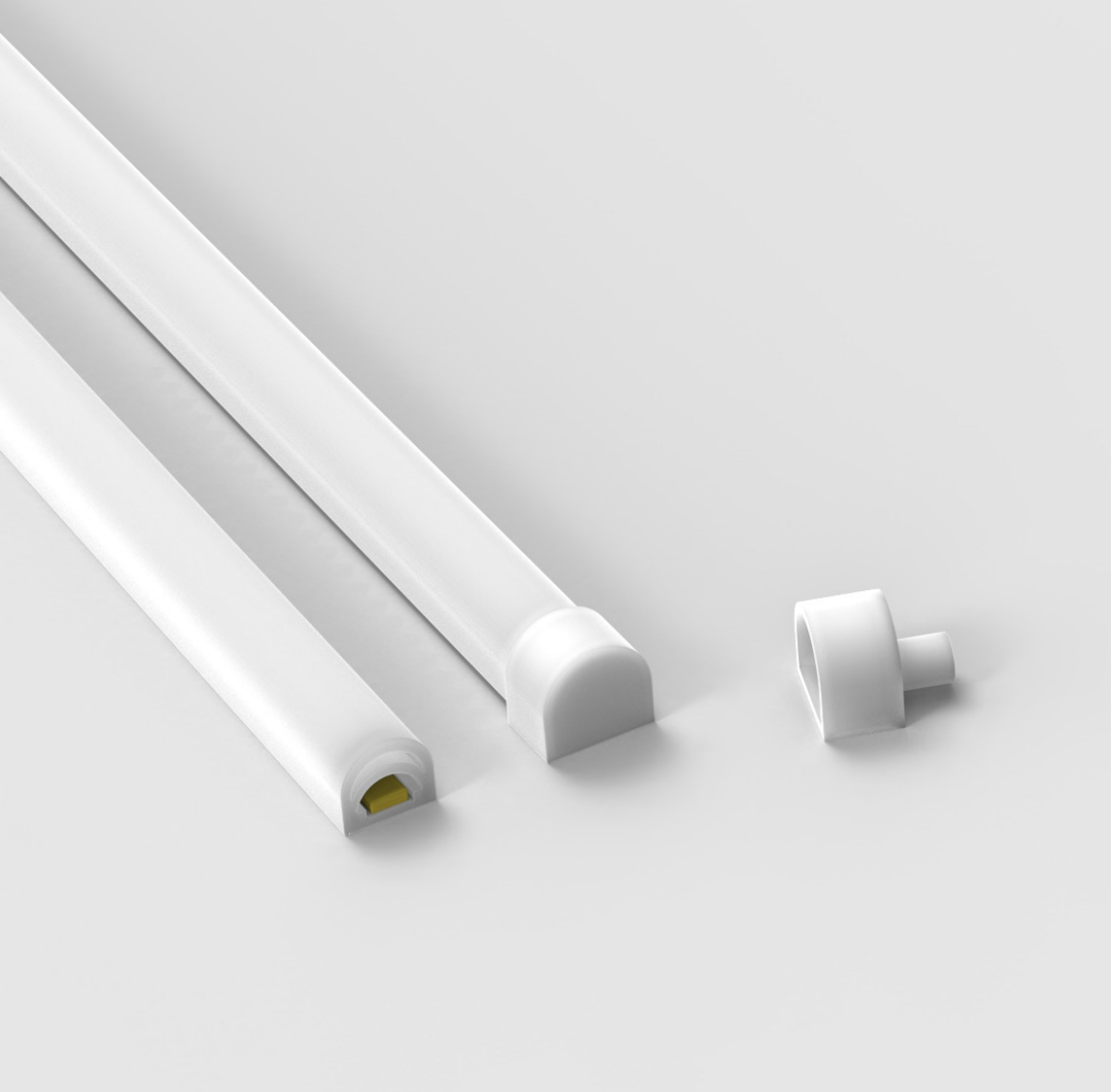

The AQS-400 Neon Flex product is manufactured in a continuous extrusion process and then manually terminated to length with IP65 overmolded cable entry points here in our Sydney factory for a quicker turn-around time.
Specifications
AQS-400
Neon Flex
Strip Lighting
24V DC
05W / 10W
500lm to 620lm
2700K / 3000K / 4000K / 5000K
10m / 6m
20m / 12m
31mm
Vertically
60mm
2216
192pcs
70000 Hours L70 at 25°C / 50000 Hours L70 at 50°C
Silicone
180°
-20° to +40°C
5° to +35°C
3 Year Aqualux Warranty
Constant Voltage (PWM) / DMX / DALI
IP65
AQS-400
Configure order code
AQS-400
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQS-400 - has 10 variations
Product Code
Downloads
CCT
Power Input
Watts/M
Lumen Output
CRI
Max Length
Cut Interval
Downloads
AQS-400-27A05
2700K
24V DC
5W pm
545lm
90 CRI
10m Single
31mm
AQS-400-27A10
2700K
24V DC
10W pm
545lm
90 CRI
10m Single
31mm
AQS-400-30A05
3000K
24V DC
5W pm
545lm
90 CRI
10m Single
31mm
AQS-400-30A10
3000K
24V DC
10W pm
545lm
90 CRI
10m Single
31mm
AQS-400-40A05
4000K
24V DC
5W pm
545lm
90 CRI
10m Single
31mm
AQS-400-40A10
4000K
24V DC
10W pm
545lm
90 CRI
10m Single
31mm
AQS-400-50A05
5000K
24V DC
5W pm
545lm
90 CRI
10m Single
31mm
AQS-400-50A10
5000K
24V DC
10W pm
545lm
90 CRI
10m Single
31mm
AQS-400-20A15
2000K
24V DC
15W pm
300lm
80 CRI
15m
71.4mm
AQS-400-20A10
2000K
24V DC
10W pm
350lm
90 CRI
10m Single
31mm
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQS-400 - has 10 variations
| Product Code | Downloads | CCT | Power Input | Watts/M | Lumen Output | CRI | Max Length | Cut Interval | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQS-400-27A05 | 2700K | 24V DC | 5W pm | 545lm | 90 CRI | 10m Single | 31mm | |||
| AQS-400-27A10 | 2700K | 24V DC | 10W pm | 545lm | 90 CRI | 10m Single | 31mm | |||
| AQS-400-30A05 | 3000K | 24V DC | 5W pm | 545lm | 90 CRI | 10m Single | 31mm | |||
| AQS-400-30A10 | 3000K | 24V DC | 10W pm | 545lm | 90 CRI | 10m Single | 31mm | |||
| AQS-400-40A05 | 4000K | 24V DC | 5W pm | 545lm | 90 CRI | 10m Single | 31mm | |||
| AQS-400-40A10 | 4000K | 24V DC | 10W pm | 545lm | 90 CRI | 10m Single | 31mm | |||
| AQS-400-50A05 | 5000K | 24V DC | 5W pm | 545lm | 90 CRI | 10m Single | 31mm | |||
| AQS-400-50A10 | 5000K | 24V DC | 10W pm | 545lm | 90 CRI | 10m Single | 31mm | |||
| AQS-400-20A15 | 2000K | 24V DC | 15W pm | 300lm | 80 CRI | 15m | 71.4mm | |||
| AQS-400-20A10 | 2000K | 24V DC | 10W pm | 350lm | 90 CRI | 10m Single | 31mm |
