Neon Flex
AQS-410
IP65 Neon Flex
Introduction
The AQS-410 Neon Flex product is manufactured in a continuous extrusion process and then manually terminated to length with IP65 overmolded cable entry points here in our Sydney factory for a quicker turn-around time.
Specifications
AQS-410
Neon Flex
Strip Lighting
24V DC
10W
IP65
580lm
RGB
Constant Voltage (PWM) / DMX
8m
16m

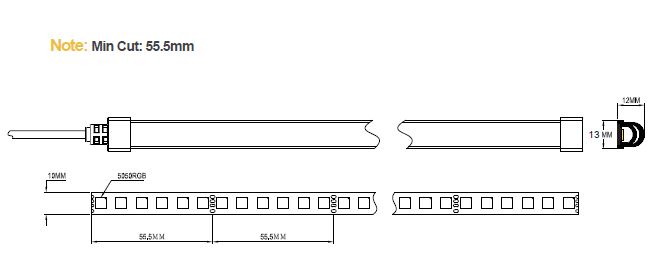

55.5mm
Vertically
100mm
SMD5050
108pcs
70000 Hours L70 at 25°C, 50000 Hours L70 at 50°C
Silicone
180°
-20° to +40°C
5° to +35°C
3 Year Aqualux Warranty
AQS-410
Configure order code
AQS-410
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQS-410 - has 3 variations
Product Code
Downloads
CCT
Power Input
Watts/M
Lumen Output
CRI
Max Length
Cut Interval
Downloads
AQS-410-RGBA05
RGB
24V DC
5W pm
1418lm
90 CRI
5m Single
55.5mm
AQS-410-RGBA10
RGB
24V DC
10W pm
1418lm
90 CRI
5m Single
55.5mm
AQS-410-RGBA15
RGB
24V DC
15W pm
1418lm
90 CRI
5m Single
55.5mm
To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.
AQS-410 - has 3 variations
| Product Code | Downloads | CCT | Power Input | Watts/M | Lumen Output | CRI | Max Length | Cut Interval | Downloads | |
|---|---|---|---|---|---|---|---|---|---|---|
| AQS-410-RGBA05 | RGB | 24V DC | 5W pm | 1418lm | 90 CRI | 5m Single | 55.5mm | |||
| AQS-410-RGBA10 | RGB | 24V DC | 10W pm | 1418lm | 90 CRI | 5m Single | 55.5mm | |||
| AQS-410-RGBA15 | RGB | 24V DC | 15W pm | 1418lm | 90 CRI | 5m Single | 55.5mm |
