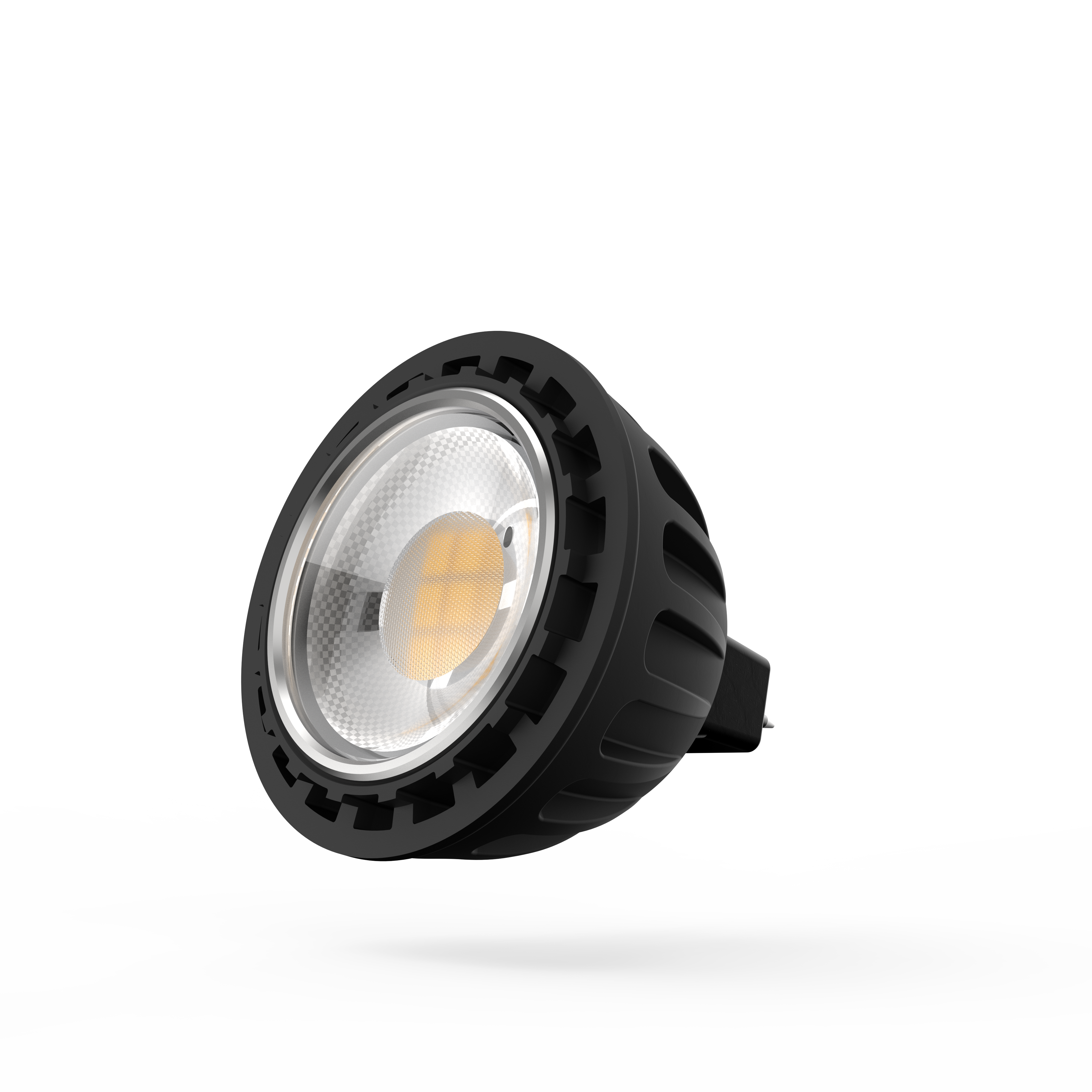

AGL-300
3W LED Globe MR16
The AGL-300 series of 3w LED drop-in lamps are the perfect globe for any MR16 application whether it be indoor or outdoor. See datasheets for full electrical, mechanical and photometric data.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AGL-300 |
| Description | Aqualux 300 Series LED Lamp |
| Type | MR16 GU5.6 |
| Construction | Aluminium Heatsink + PMMA Optic |
| Warranty | 3 Year Aqualux Warranty |
| Country of Manufacture | Australia |
| Input Voltage Range | 12~24V AC/DC |
| Nominal Voltage | 24VDC |
| Nominal Power | 3W |
| Nominal Current | 125mA |
| Input Voltage | 12VDC / 12VAC / 24VDC / 24VAC |
| Rated Power | 3.4-3.6 / 2.8-2.9 / 3.3-3.5 / 3.4-3.6 |
| Operating Frequency | 50Hz (12VAC) / 50Hz (24VAC) |
| Max. no. of lamps on AQD24-040 | 9 (12VDC) / 9 (24VDC) |
| Max. no. of lamps on AQD24-100 | >22 (12VDC) / >22 (24VDC) |
| Dimming Compatibility | Non dimming |
| Wiring Scheme | Parallel |
| Startup Time | < 0.5s |
| Overall Length | 52.6mm |
| Max Diameter | 50mm |
| Lamp Base | GU5.6 |
| Weight | 55g |
| Operating Temp Range | 20° - 45° |
| IP Rating | IP20 |
| Nominal Flux (lm) | 300 |
| Input Voltage | 12VDC / 12VAC / 24VDC / 24VAC |
| Input Power (W) | 3.4-3.6 / 2.8-2.9 / 3.3-3.5 / 3.4-3.6 |
| Rated Flux (lm) | 357-492 / 292-396 / 363-492 / 364-491 |
| Efficacy (lm/W) | 104-144 / 103-138 / 109-151 / 105-145 |
| CCT | 2200K / 2700K / 3000K / 5500K |
| CCT Description | Ultra Warm White / Warm White / Cool White |
| CRI (Ra) | 82 - 84 |
| CRI (R9) | 01 - 11 |
| TM-30 (Rf) | 82 - 85 |
| TM-30 (Rg) | 91 - 97 |
| SDCM | - |
| Peak Intensity (cd) | 356 - 2615 |
| Nominal Beam Angle | 15° - 60° |
| Measured Beam Angle (FWHM) | 17° - 55° |
| EMI | Yes |
| RCM | N/A |
| Mercury Content | 0mg |
| L70 | 15,000h |
| Switching Cycles | 15,000 |
