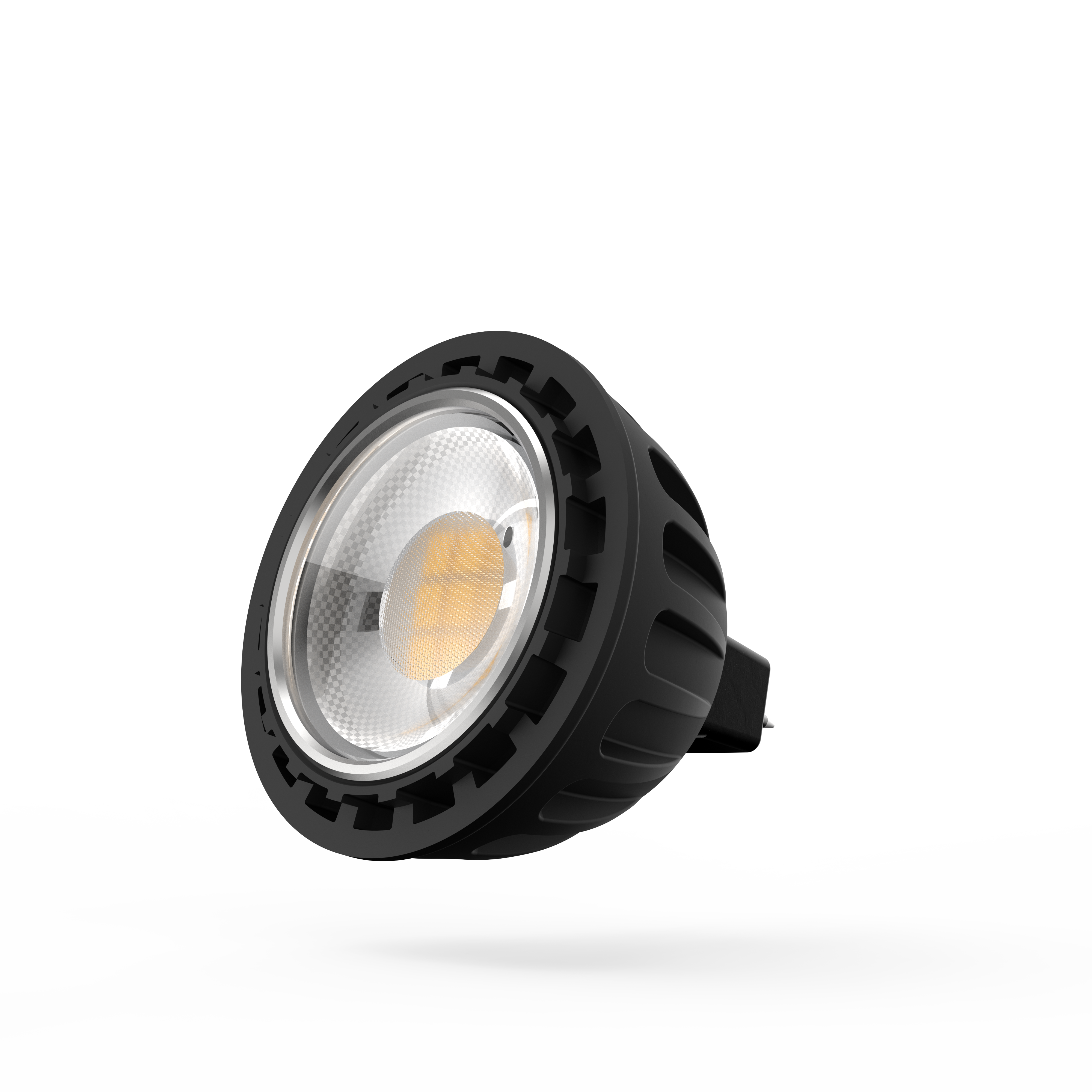

AGL-560
6W LED Globe MR16
The AGL-560 series of 3w LED drop-in lamps are the perfect globe for any MR16 application whether it be indoor or outdoor. See datasheets for full electrical, mechanical and photometric data.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AGL-560 |
| Description | Aqualux 560 Series LED Lamp |
| Type | MR16 GU5.3 / GU10 |
| Construction | Aluminium Heatsink + PMMA Optic |
| Warranty | 3 Year Aqualux Warranty |
| Country of Manufacture | Australia |
| Input Voltage Range | 12~24V AC/DC |
| Nominal Voltage | 24VDC |
| Nominal Power | 6W |
| Nominal Current | 250mA |
| Input Voltage | 12VDC / 12VAC / 24VDC / 24VAC |
| Rated Power | 6.0-6.2 / 3.8-4.0 / 5.5-6.0 / 5.7-6.0 |
| Operating Frequency | 50Hz (12VAC) / 50Hz (24VDC) / 50Hz (24VAC) |
| Max. no. of lamps on AQD24-040 | 5 (12VDC) / 5 (24VDC) |
| Max. no. of lamps on AQD24-100 | 17 (12VDC) /17 (24VDC) |
| Dimming Compatibility | Dimmable / NTC |
| Wiring Scheme | Parallel |
| Startup Time | < 0.5s |
| Overall Length | 52.6mm |
| Max Diameter | 50mm |
| Lamp Base | GU5.3 / GU10 |
| Weight | 55g |
| Operating Temp Range | 20° - 45° |
| IP Rating | IP20 |
| Nominal Flux (lm) | 560 |
| Input Voltage | 12VDC / 12VAC / 24VDC / 24VAC |
| Input Power (W) | 6.0-6.2 / 3.8-4.0 / 5.5-6.0 / 5.7-6.0 |
| Rated Flux (lm) | 552-697 / 355-450 / 545-710 / 496-703 |
| Efficacy (lm/W) | 92-114 / 93-114 / 99-123 / 85-118 |
| CCT | 2700K / 3000K |
| CCT Description | Warm White |
| CRI (Ra) | 81 - 84 |
| CRI (R9) | 0 - 11 |
| TM-30 (Rf) | 83 - 84 |
| TM-30 (Rg) | 92 - 97 |
| SDCM | - |
| Peak Intensity (cd) | 186 - 757 |
| Nominal Beam Angle | 40° - 120° |
| Measured Beam Angle (FWHM) | 42° - 116° |
| EMI | Yes |
| RCM | N/A |
| Mercury Content | 0mg |
| L70 | 15,000h |
| Switching Cycles | 15,000 |
