AQD-24-060-B-N

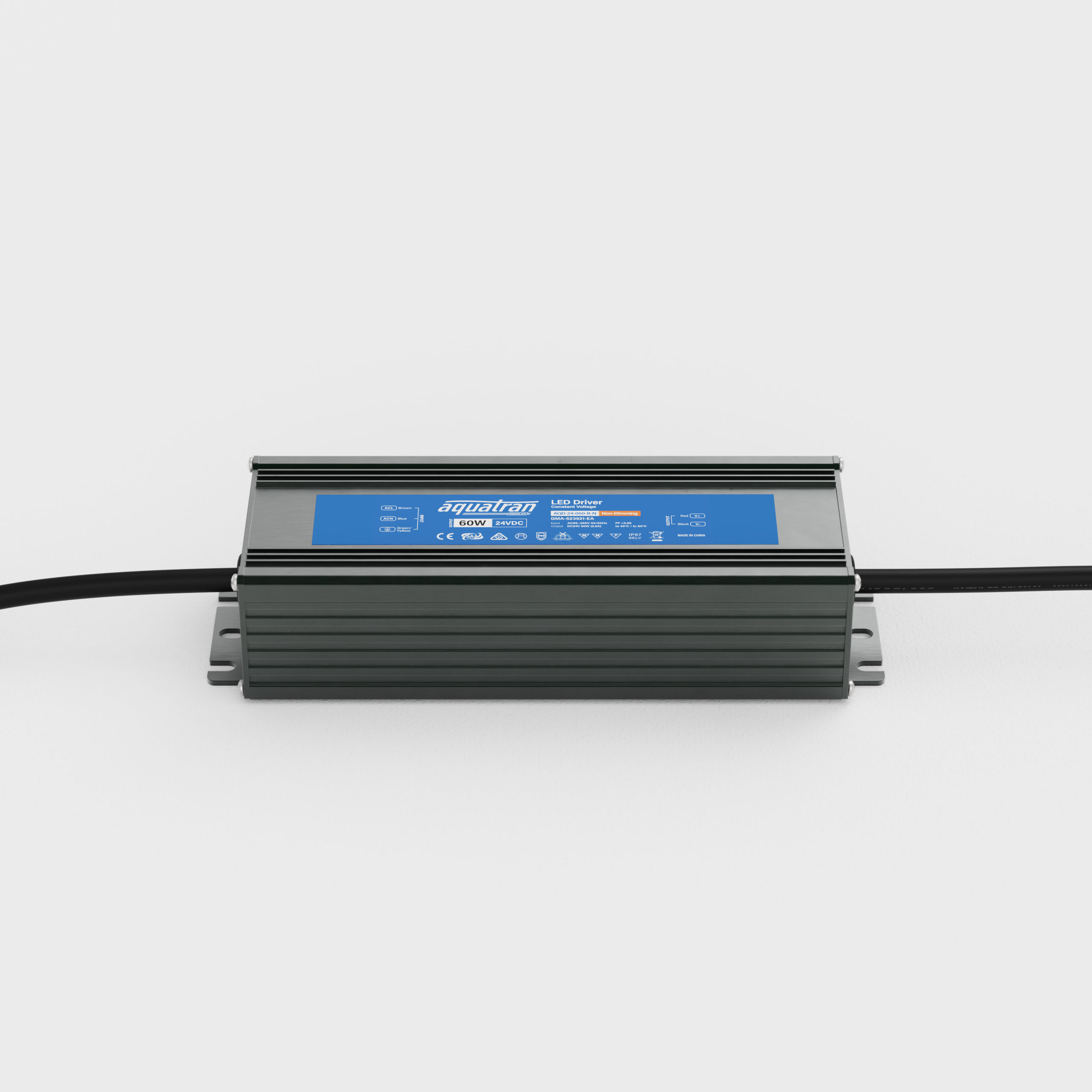

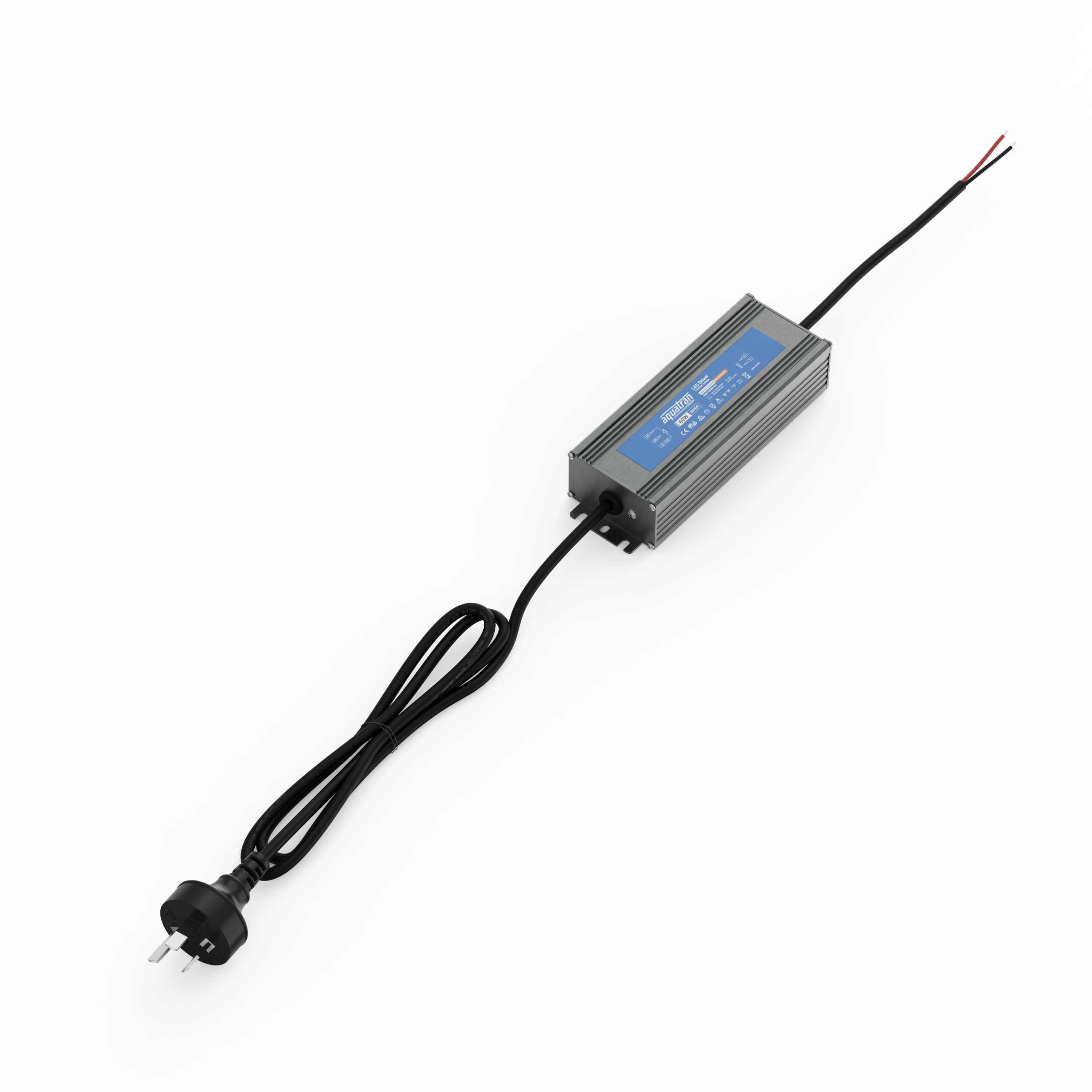

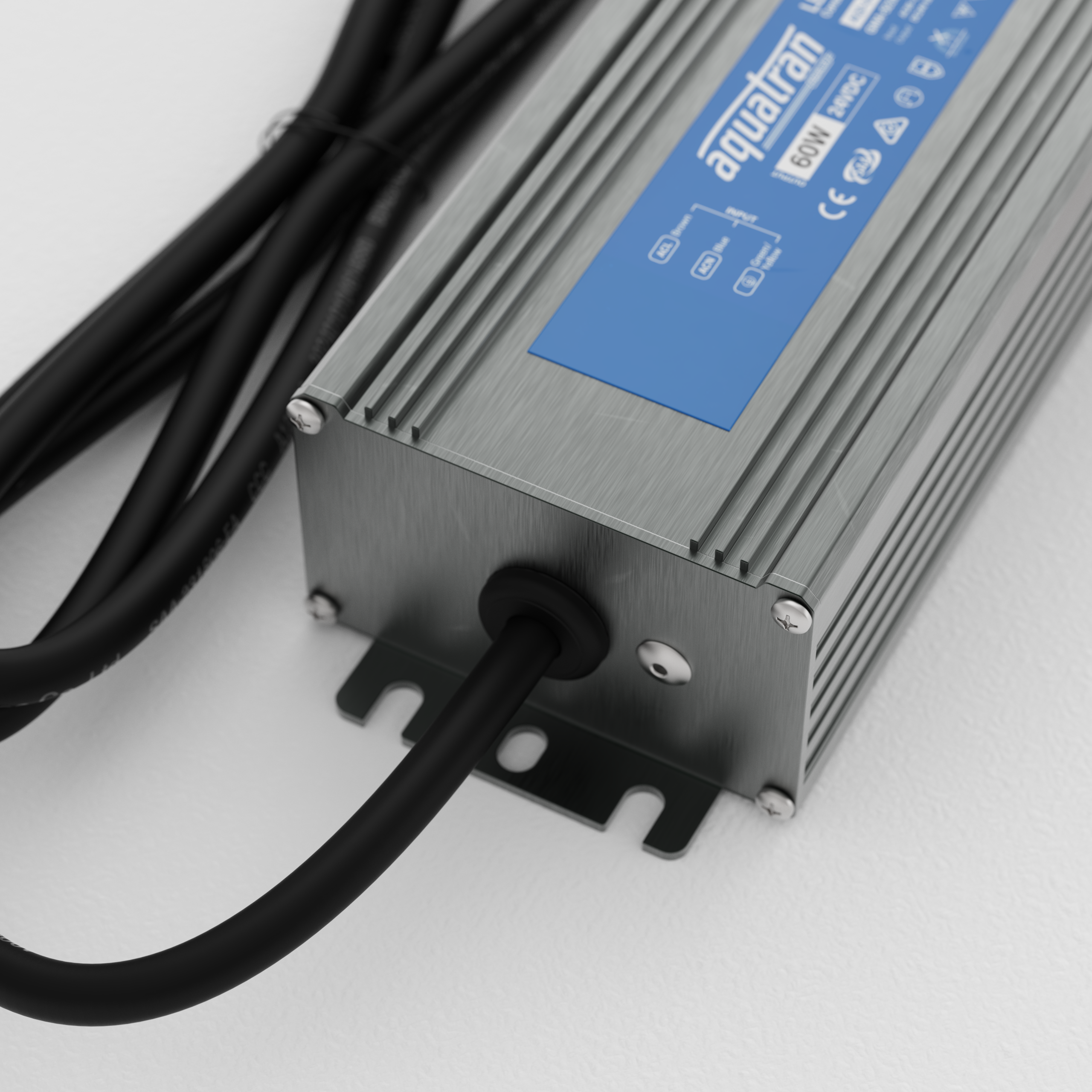

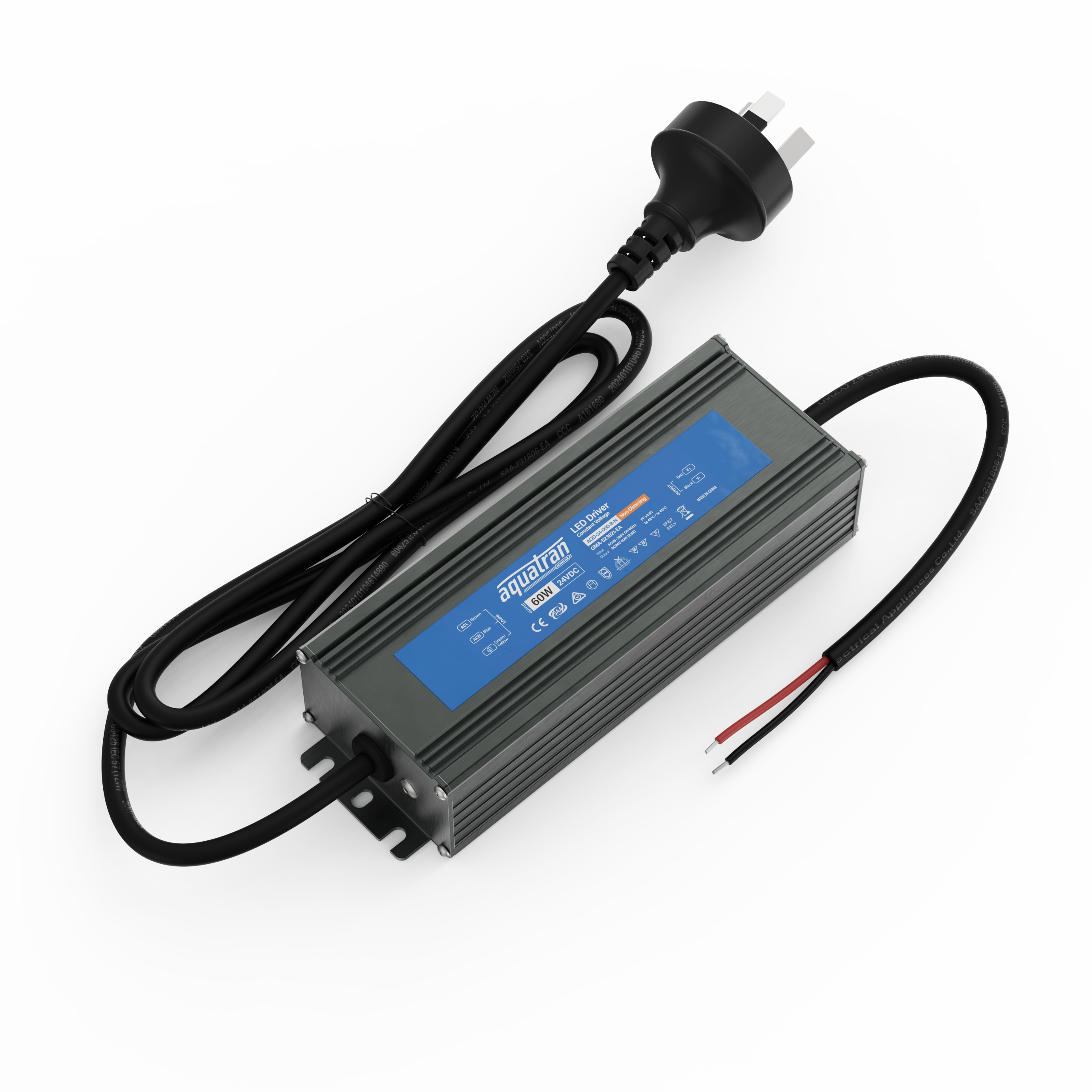

Aquatran 60W 24VDC Non-Dimming IP67 Power Supply
The Aquatran AQD-24-060-B-N is a 60W 24VDC constant-voltage non-dimming power supply with an IP67 rating for indoor and outdoor applications. This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.
Available Downloads
Dimension
SPECIFICATIONS
| Product Dimensions | 164*56*35mm |
| Individual Box Dimensions | 200*85*50mm |
| Product Weight | 0.65kg |
| Carton Dimensions | 415*270*190mm |
| Carton QTY | 20pcs |
| Carton Weight | 13.5kg |
| Voltage | 24VDC |
| Current | 2.5A |
| Power | 60W |
| Ripple & Noise (max) | 400mv |
| Channel | 1 |
| Voltage Tolerance | ±5% |
| Warranty | 5 years |
| Short Circuit | yes |
| Over Voltage | yes |
| Over Load | yes |
| Input Voltage | 85-265v |
| Frequency | 50/60Hz |
| Power Factor | >0.95 |
| THD | <10% |
| Standby Power | <0.5W |
| Current | <0.7A |
| Inrush Current (Full Output Load) | 17.25A |
| Efficiency Full Load 110VAC | 85% |
| Efficiency Full Load 230VAC | 87% |
| Start 230VAC (milliseconds) | <700 |
| Rise Time 230VAC (milliseconds) | <700 |
| Hold Time 230VAC (milliseconds) | <20 |
| Pulse Duration (T50) | 682uS |
| Protocol | / |
| Output Frequency | / |
| Dimming Ratio | / |
| Dimming Compatibility | / |
| Minimum output current | / |
| Maximum output current | / |
| Working Temperature | -20-40 |
| Storage Temperature | -20-80 |
| TC | 75 |
| Housing Material | Aluminum shell |
| IP Rating | IP67 |
| Lifetime | 50000H |
| Vibration | - |
| Switch Cycle | 100000 |
| Lighting Strike | 4KV |
| Withstand Voltage | 3750V |
| Safety Standards | EN IEC 55015 |
| EMC Emission EMC | EN IEC 61000-3-2 |
| EMC Immunity EMC | EN IEC61547 |
| Safety Approval Mark | SAA RCM |
| Output | 24VDC |
| VA | 60W |
| IP | IP67 |
| Dimming | Non-dimmable |
