AQF-G-004
Accessories · Globe
Accessories
AQF-G-004

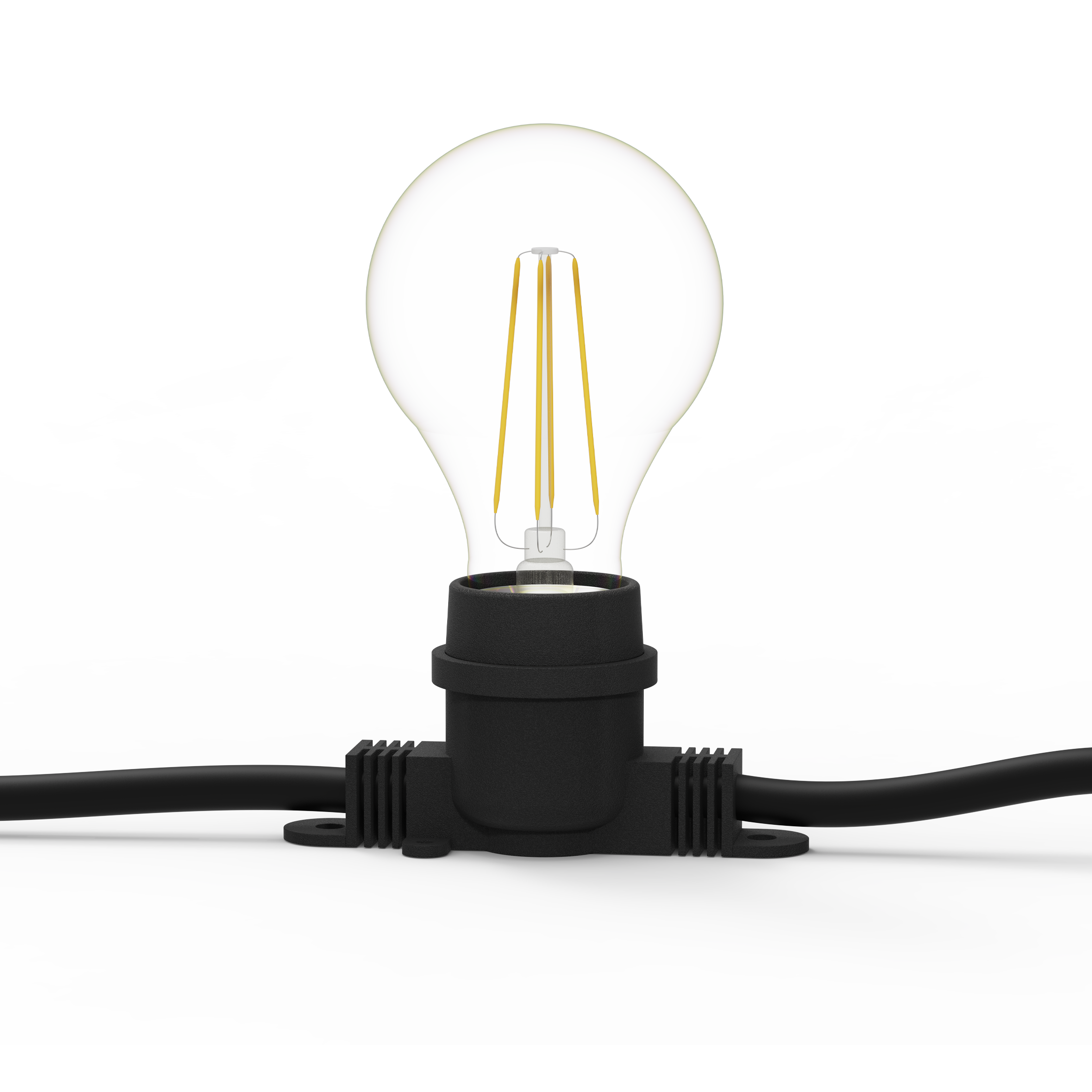

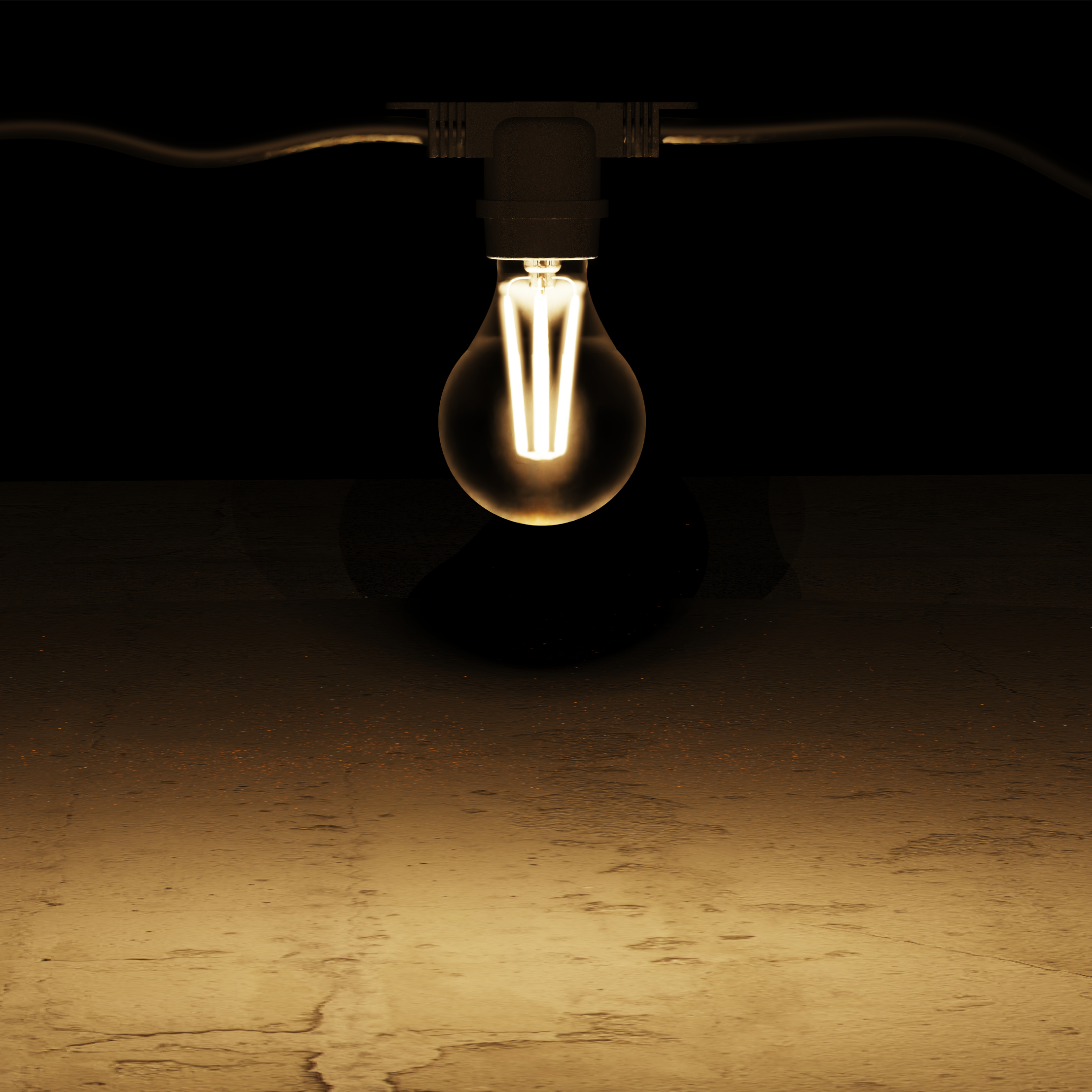

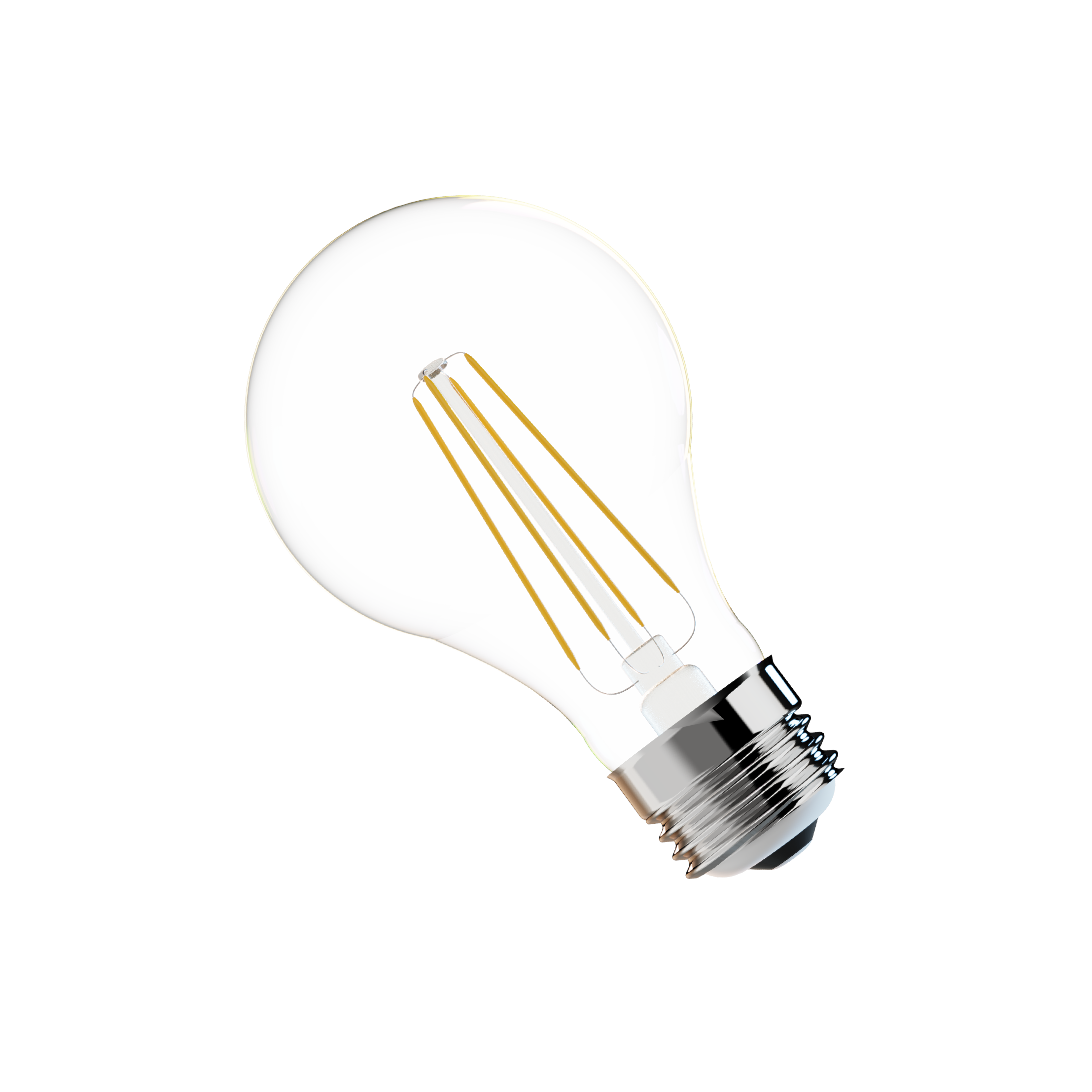

24V E27 Festoon Bulb in 2200K and 2700K
24V E27 Festoon Bulb in 2200K and 2700K
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQF-G-004 |
| Description | Aqualux G Series LED Lamp |
| Type | E27 |
| Construction | PET Shell + LED + Aluminium Base |
| Warranty | 3 Year Aqualux Warranty |
| Country of Manufacture | Australia |
| Input Voltage Range | 24V AC/DC |
| Nominal Voltage | 24V DC |
| Nominal Power | 2W |
| Nominal Current | 83 mA |
| Input Voltage | 24VDC / 24VAC |
| Rated Power | 0.5 - 0.6 W / 1.7 - 1.8 W |
| Operating Frequency | 50Hz (24VAC) |
| Dimming Compatibility | PWM (PSU dependant) |
| Wiring Scheme | Parallel |
| Startup Time | < 0.5s |
| Overall Length | 103.25mm |
| Max Diameter | 58.7mm |
| Lamp Base | E27 |
| Weight | 26g |
| Operating Temp Range | -20° - 60° |
| IP Rating | IP20 |
| Nominal Flux (lm) | 166 - 191 |
| Input Voltage | 24VDC / 24VAC |
| Input Power (W) | 0.5 - 0.6 W / 1.7 - 1.8 W |
| Rated Flux (lm) | 65 - 81 / 150 - 173 |
| Efficacy (lm/W) | 125 - 141 / 87 - 97 |
| CCT | 2200K / 2700K |
| CCT Description | Warm White |
| CRI (Ra) | 93 - 94 |
| CRI (R9) | 64 - 65 |
| TM-30 (Rf) | 92 |
| TM-30 (Rg) | 98 - 100 |
| SDCM | - |
| Peak Intensity (cd) | 7.4 - 7.8 |
| Nominal Beam Angle | - |
| Measured Beam Angle (FWHM) | 325° |
| L70 | 100,000h |
| Switching Cycles | 100,000 |
| EMI | Yes |
| RCM | N/A |
| Mercury Content | 0mg |
