AQL-123

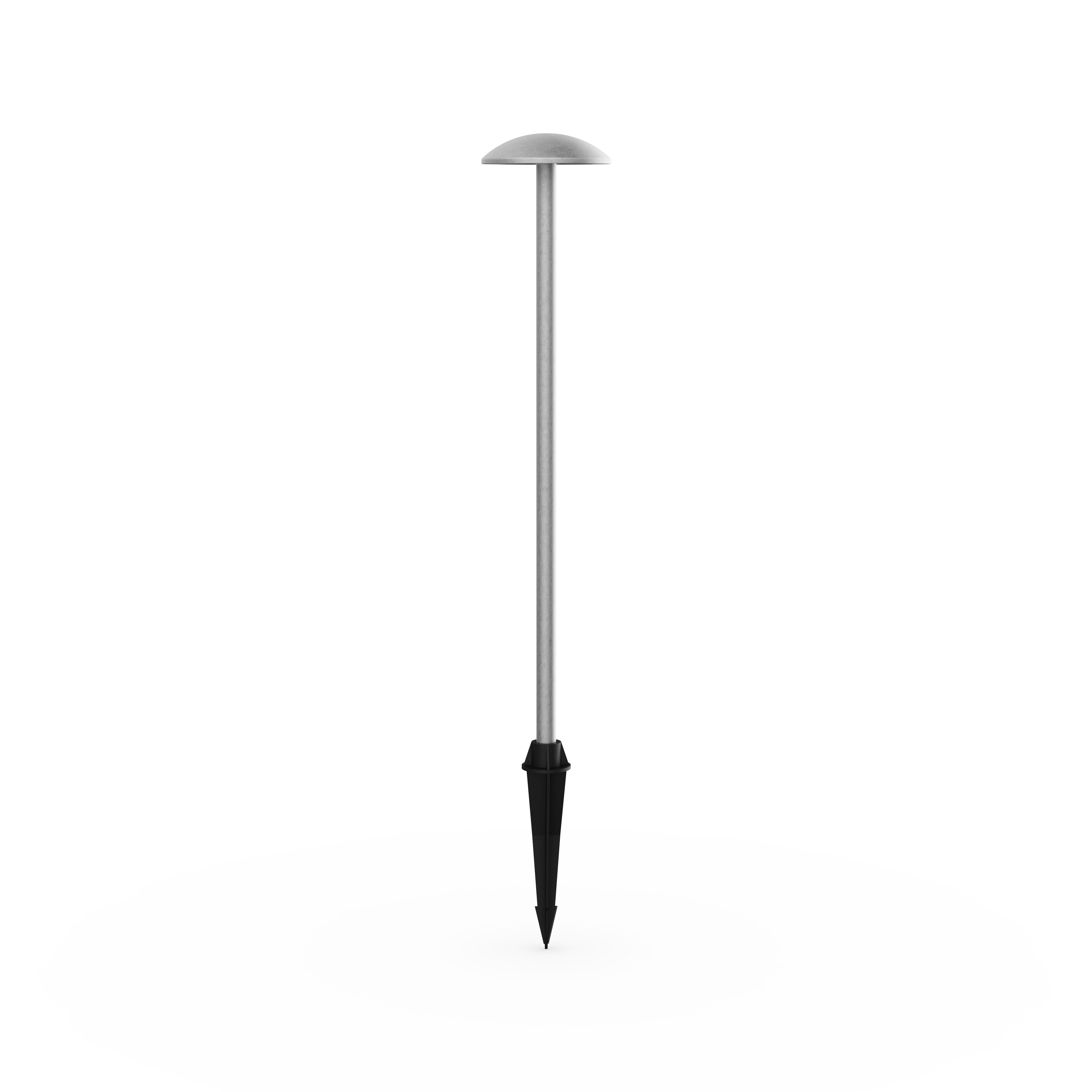

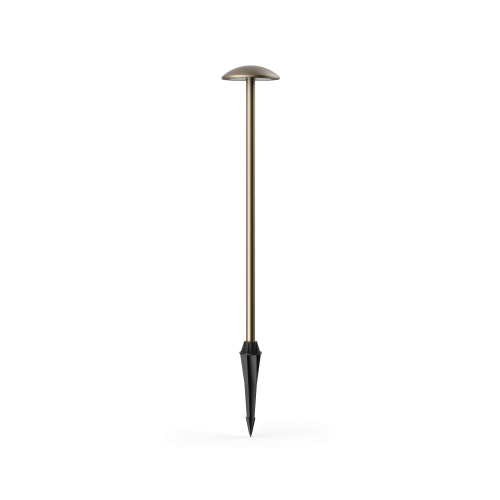

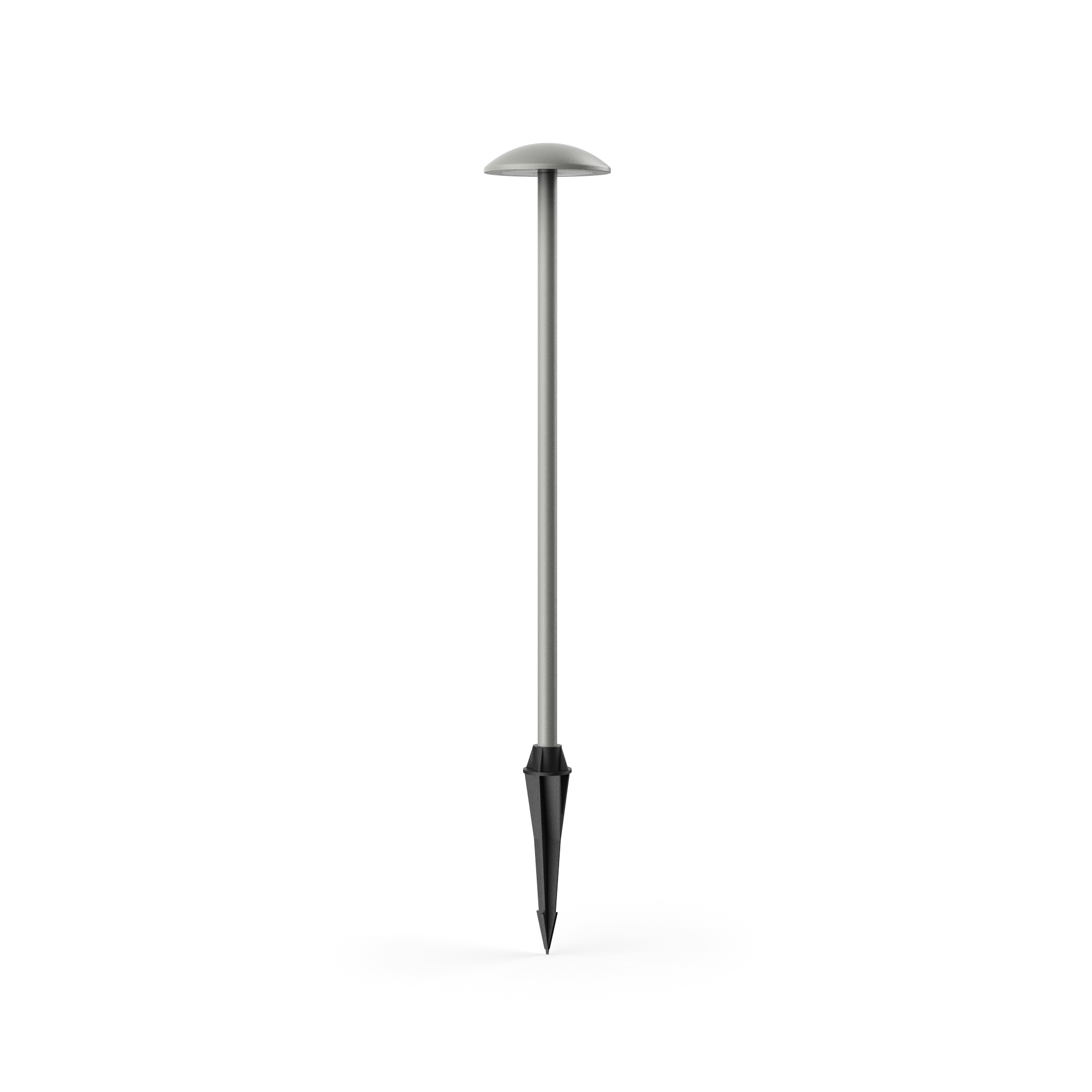

Center mount spike pathlight designed for full circle illumination of pathways and garden beds.
The AQL-123 is a center-mounted spike pathlight designed to project light in a full circle. Its primary application is the illumination of pathways and garden beds.
Constructed from CNC machined 6000 series aluminium, this IP65-rated fixture features a diffused lens. It operates on 12–24V AC/DC with a 4W, 300lm LED source and a 1m anti-siphon cable.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-123 |
| Construction | CNC Machined Aluminium |
| Warranty | 7 Years |
| Country of Manufacture | Australia |
| Voltage | 24V DC |
| Frequency | - |
| Flicker free | Yes. |
| Dimming | Yes. Direct PWM. |
| Max. qty of fixtures C16 Breaker | PSU Dependant |
| CRI (3000K) | 90+ |
| SDCM | 3 |
| LED Lifetime | L80 B10 70,000h (Ta 25C) |
| Operating temperature range | 0C - 40C |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 2-Core Anti-Siphon Cable |
| Electrical insulation class | Class II |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
