AQL-125

CNC machined aluminium center mount spike pathlight designed for modern settings.

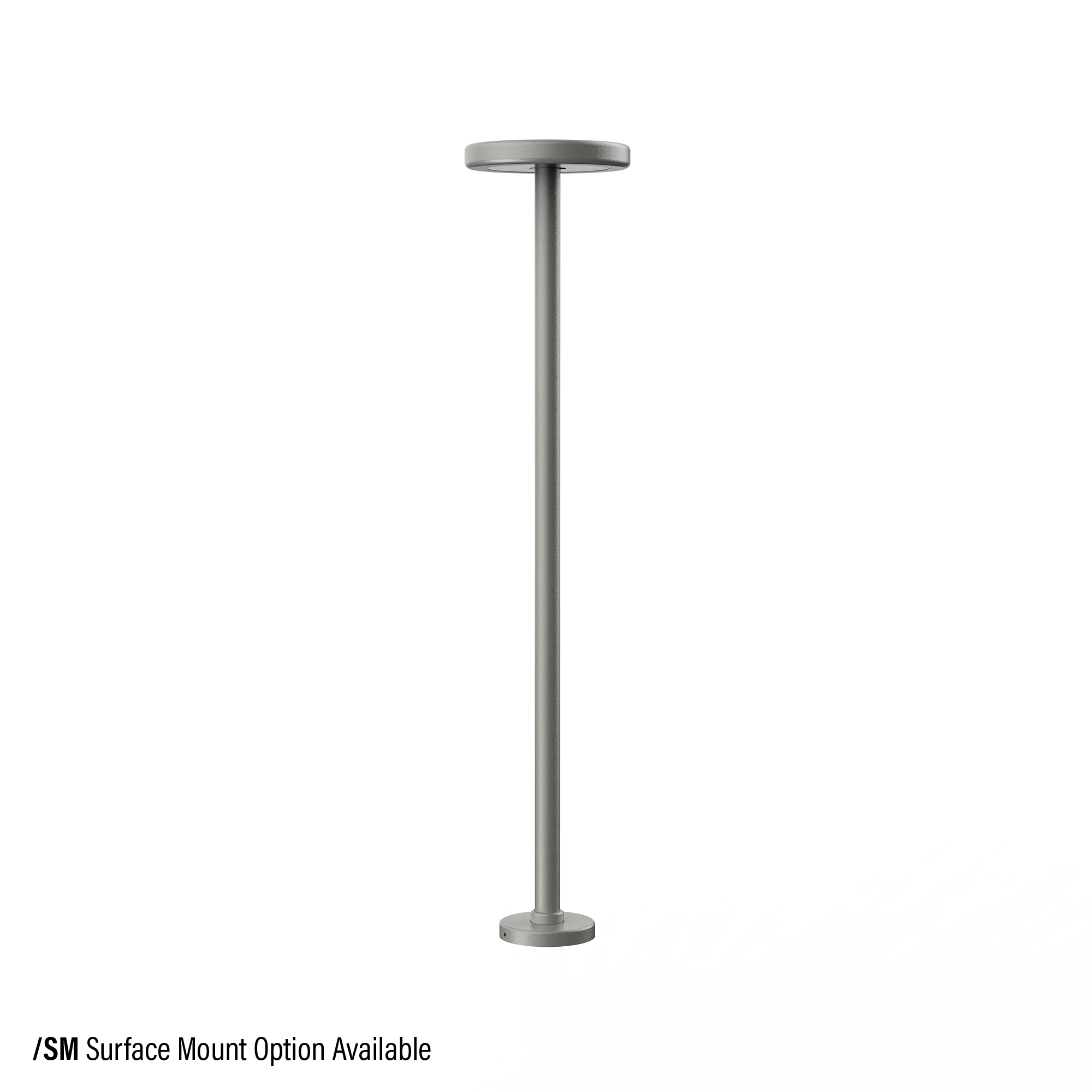

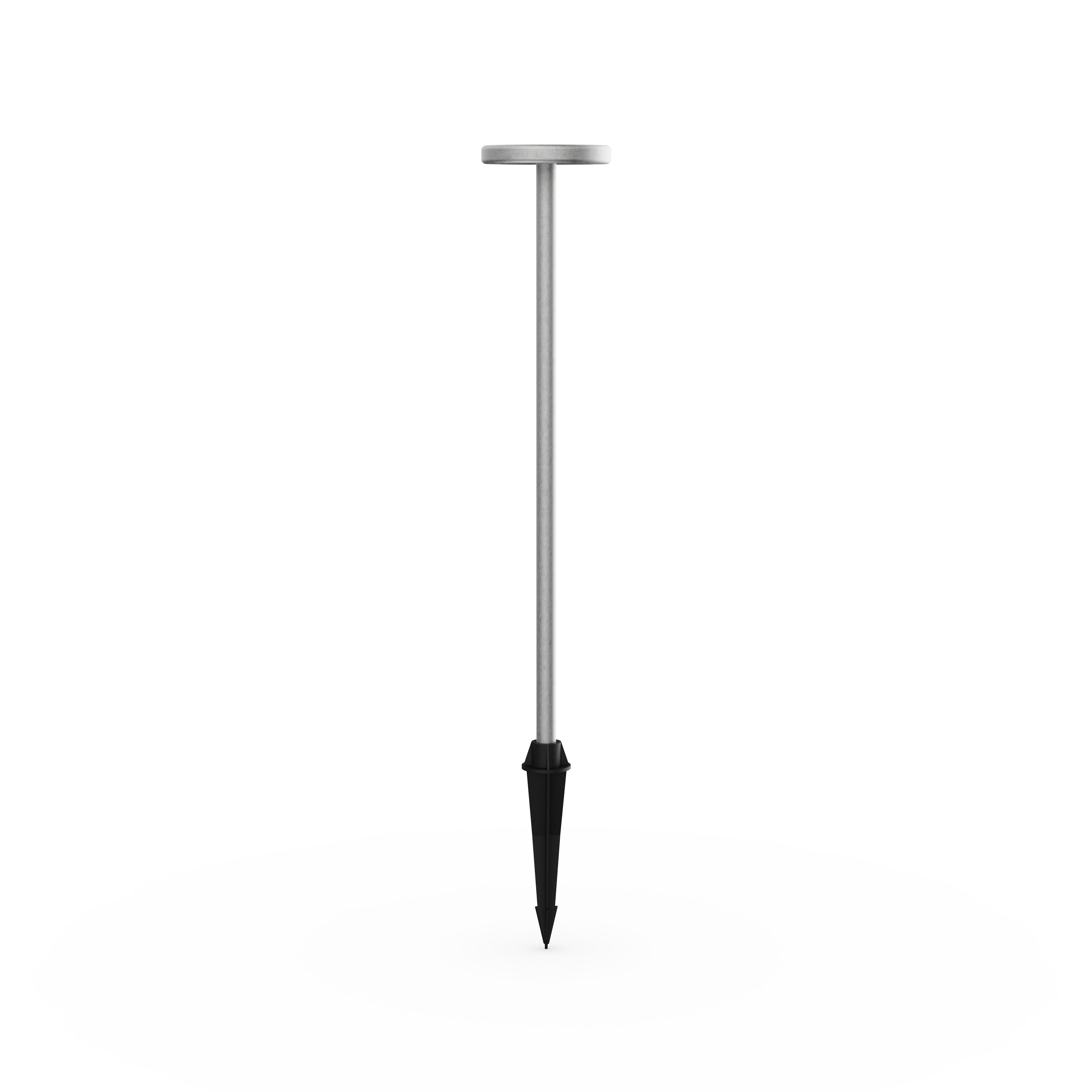

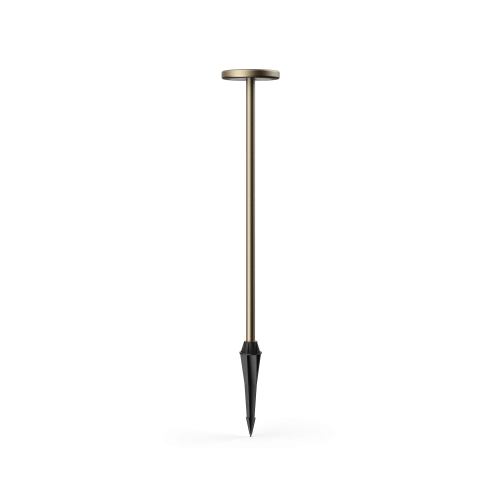

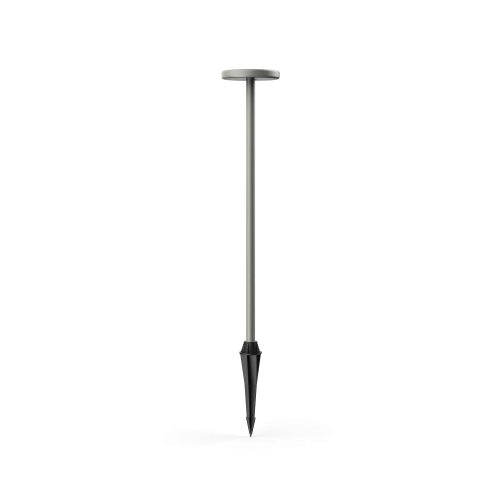

The AQL-125 is a center-mount spike pathlight designed for modern outdoor pathway applications. Featuring a disc-top design, this fixture is available in both spike and surface-mount configurations.

Machined from CNC 6000-series aluminium, this IP65-rated fixture features a frosted diffused optic and a 3-core anti-siphon cable. It operates on 12–24V AC/DC with a 4W, 300lm LED source (2700K/3000K) and supports 3-wire 10V PWM dimming.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-125
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

CRI (3000K)	90+
SDCM	3

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II

Compliance / Certifications	SELV
Environmental certifications	IP IK
