AQL-155

RGBW OPTION

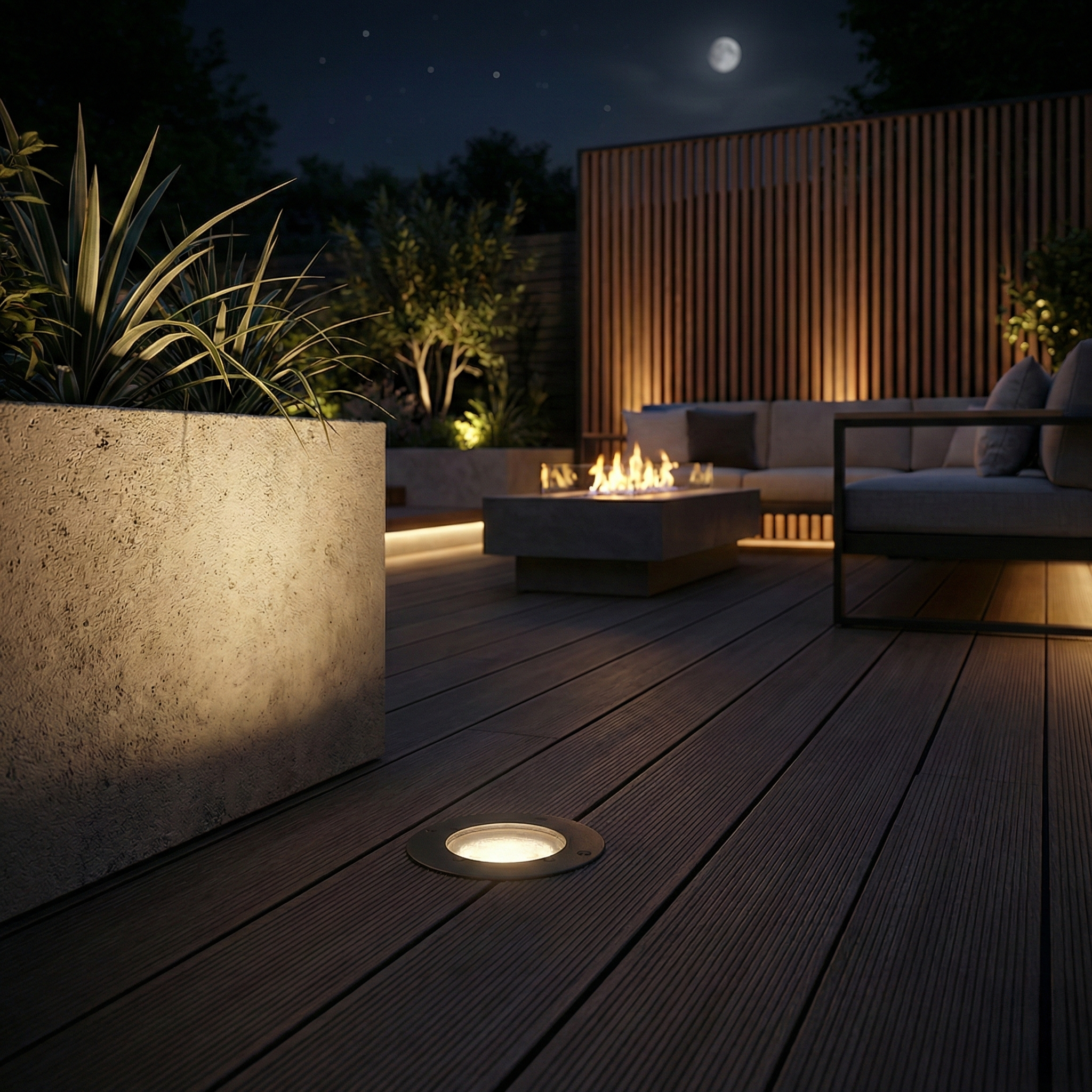

Recessed inground uplight designed for wall-washing, feature highlighting and flora illumination.

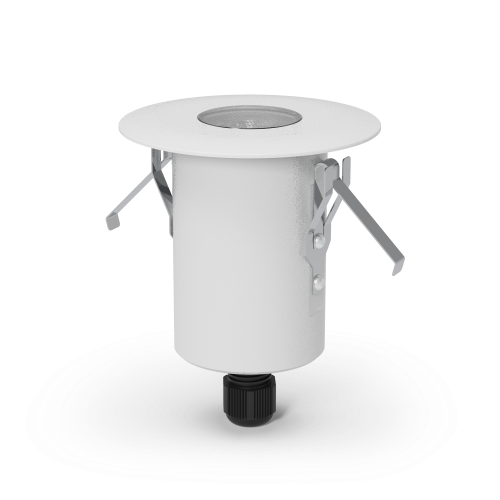

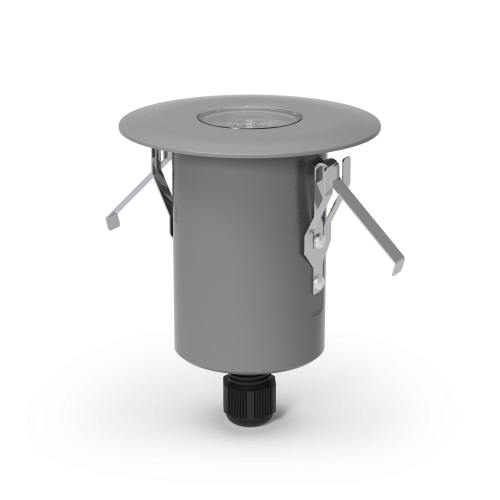

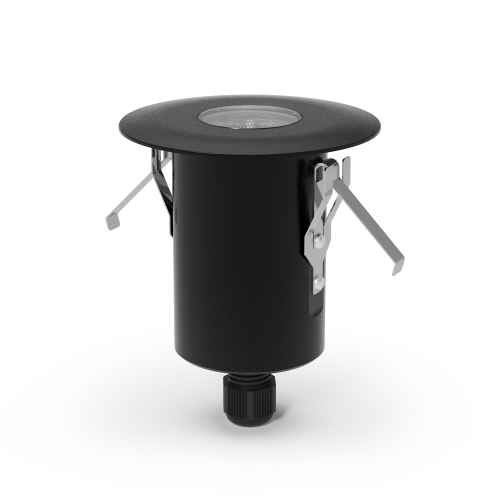

The AQL-155 is a compact recessed inground decklight designed for outdoor lighting. It is engineered for applications including wall-washing, feature highlighting, and flora illumination.

Constructed from CNC machined 6000 series aluminium, this IP65-rated fixture features anti-siphon cabling. It supports 24V DC control gear, power options from 4W to 10W, and various optical beam angles.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-155
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
