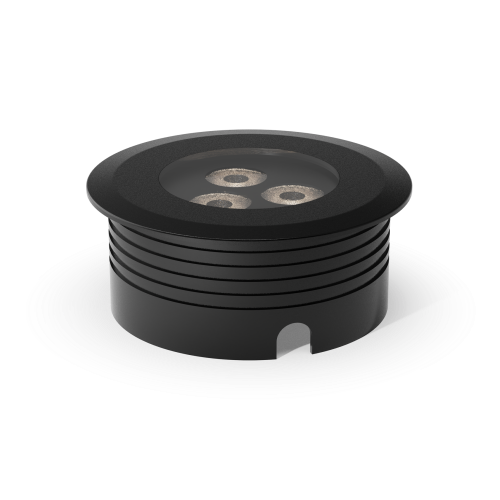

AQL-158

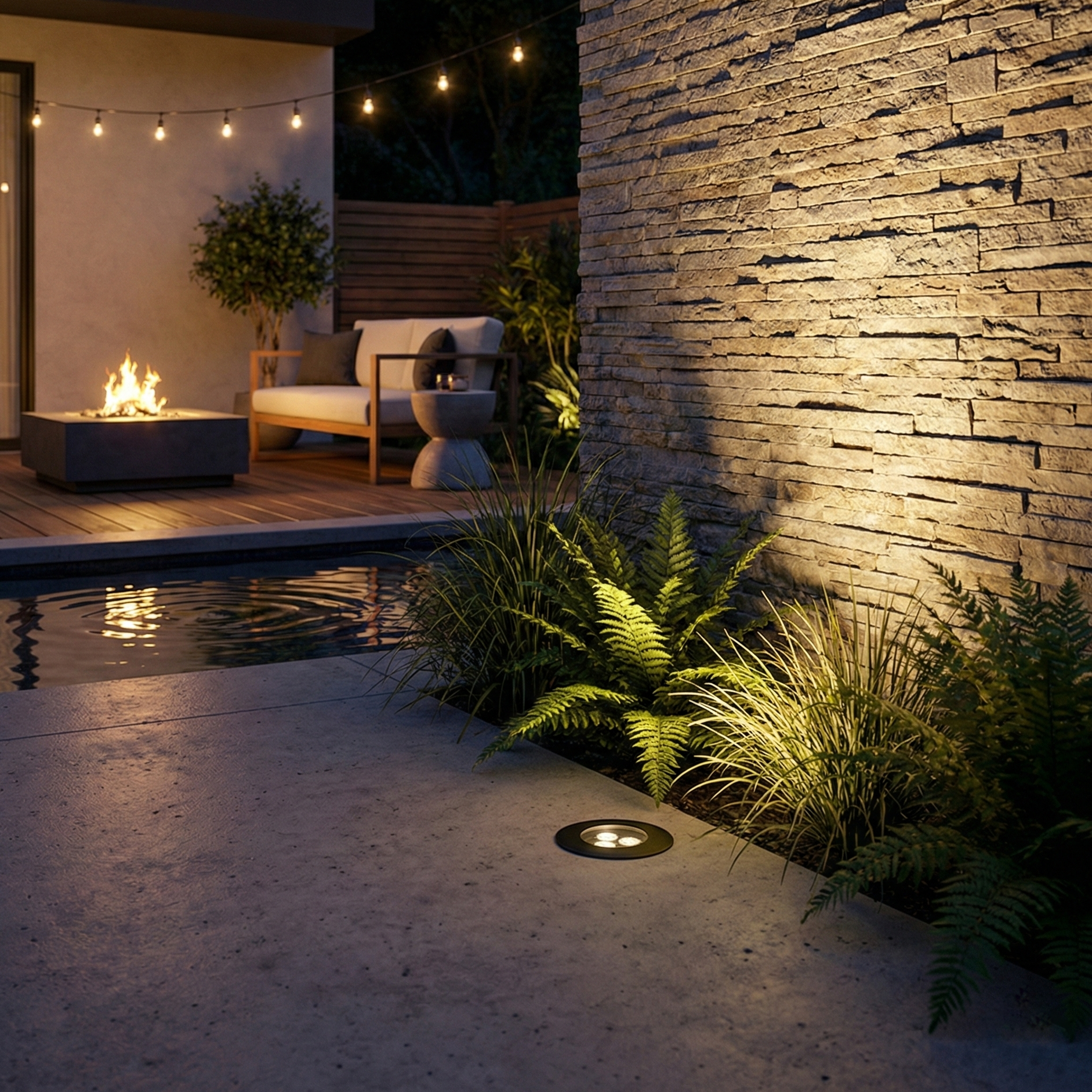

High-powered recessed uplight designed for illuminating walls, features and columns.

The AQL-158 is a high-powered recessed inground uplight designed to illuminate walls, features, and columns. It features an optional wall-washing reflector for even horizontal illumination and glare minimisation, or triple TIR optics for symmetric beam patterns.

CNC machined from 6000 series aluminium, this IP65-rated fixture operates on 24V DC. It offers ~2200lm, delivered in 25W or 30W configurations, 10° to 35° optics, and a 3-core anti-siphon cable.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-158
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
