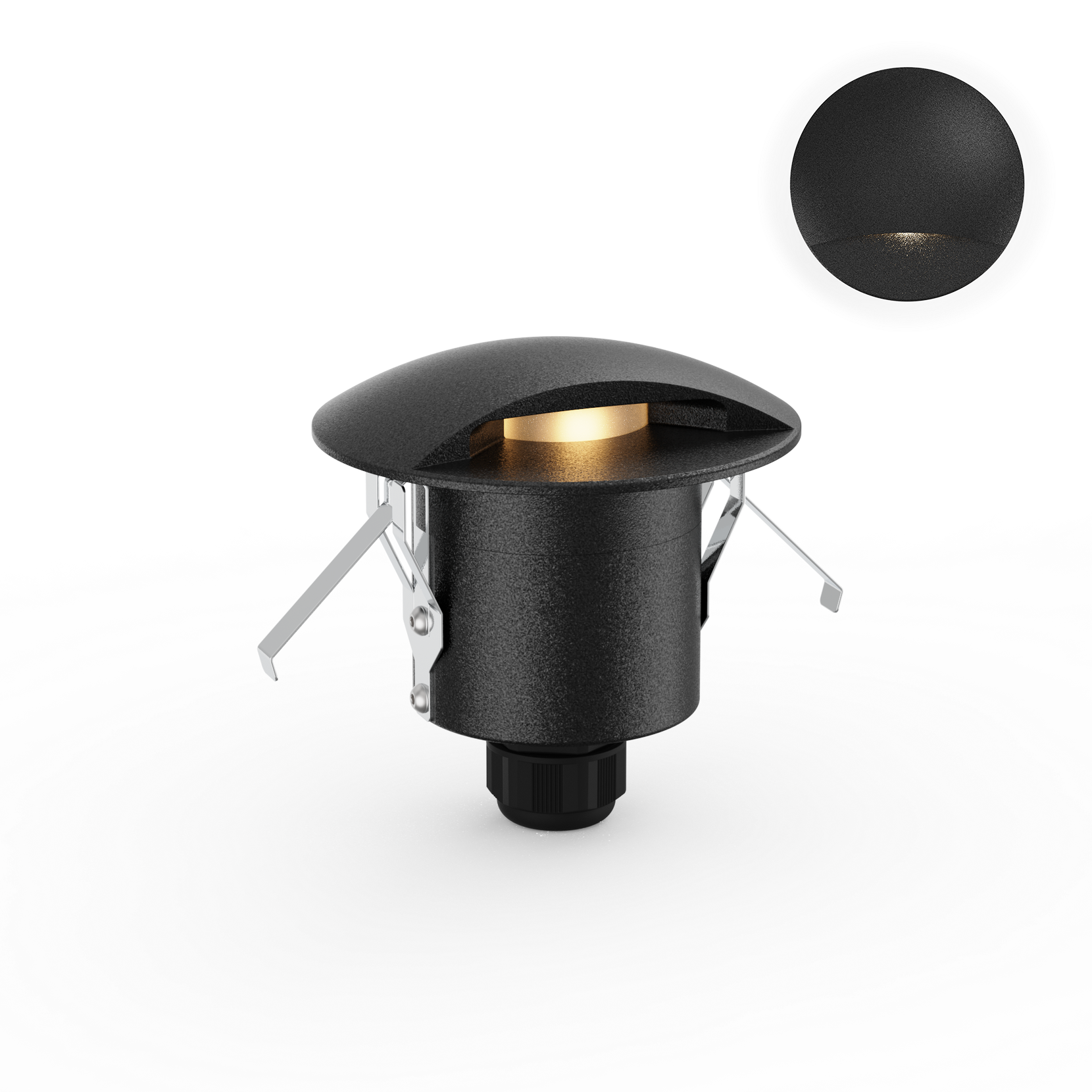

AQL-162

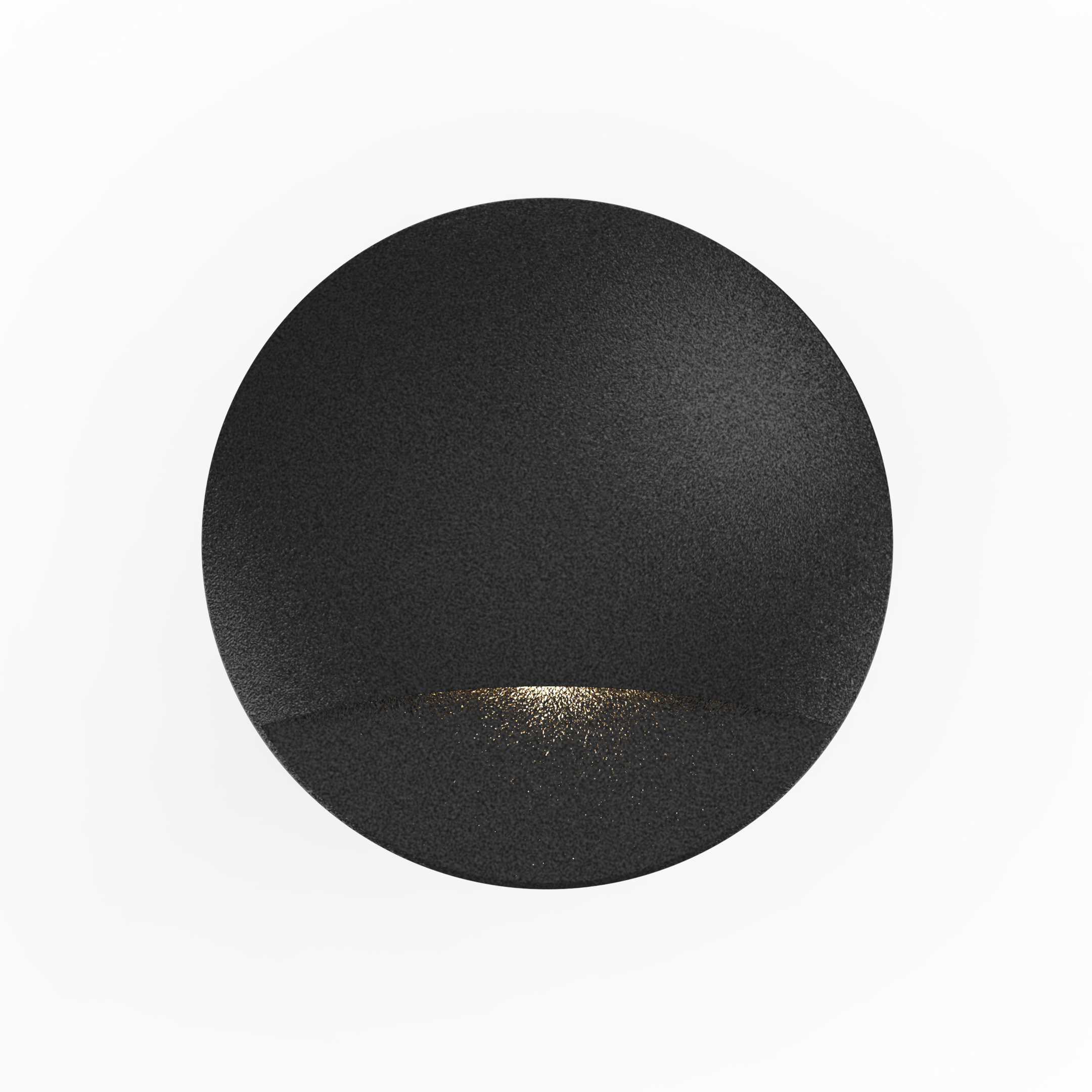

Recessed step light designed for illuminating further onto the step.

The AQL-162 is a recessed step light designed for grazing applications. It features a unique dress ring that projects a deeper spread of light further onto step surfaces.

Constructed from CNC machined 6000 series aluminium, this IP65-rated fixture is available in 2W or 10W configurations with diffused optics. It operates on 24V DC control gear and features anti-siphon cabling.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-162
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
