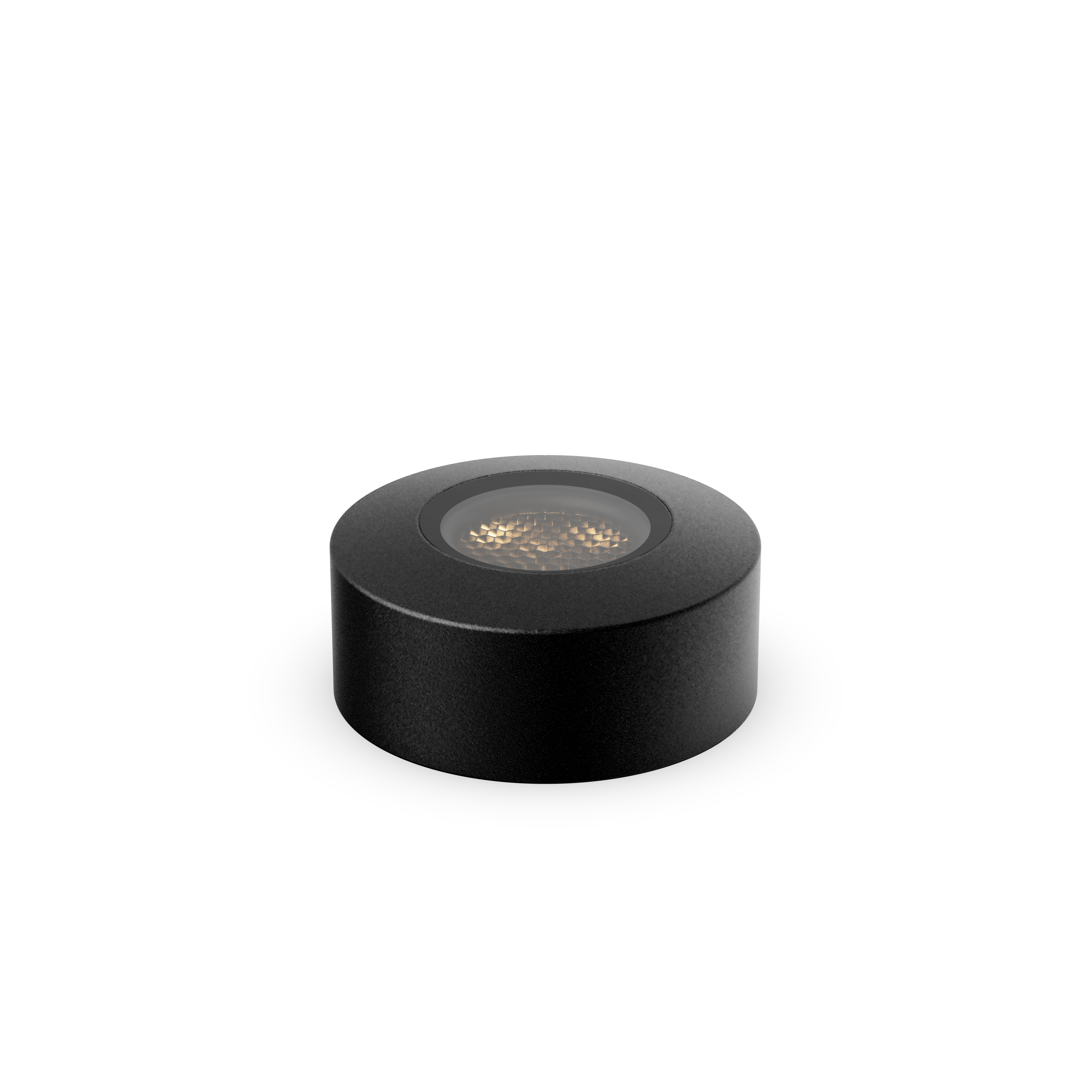

AQL-175

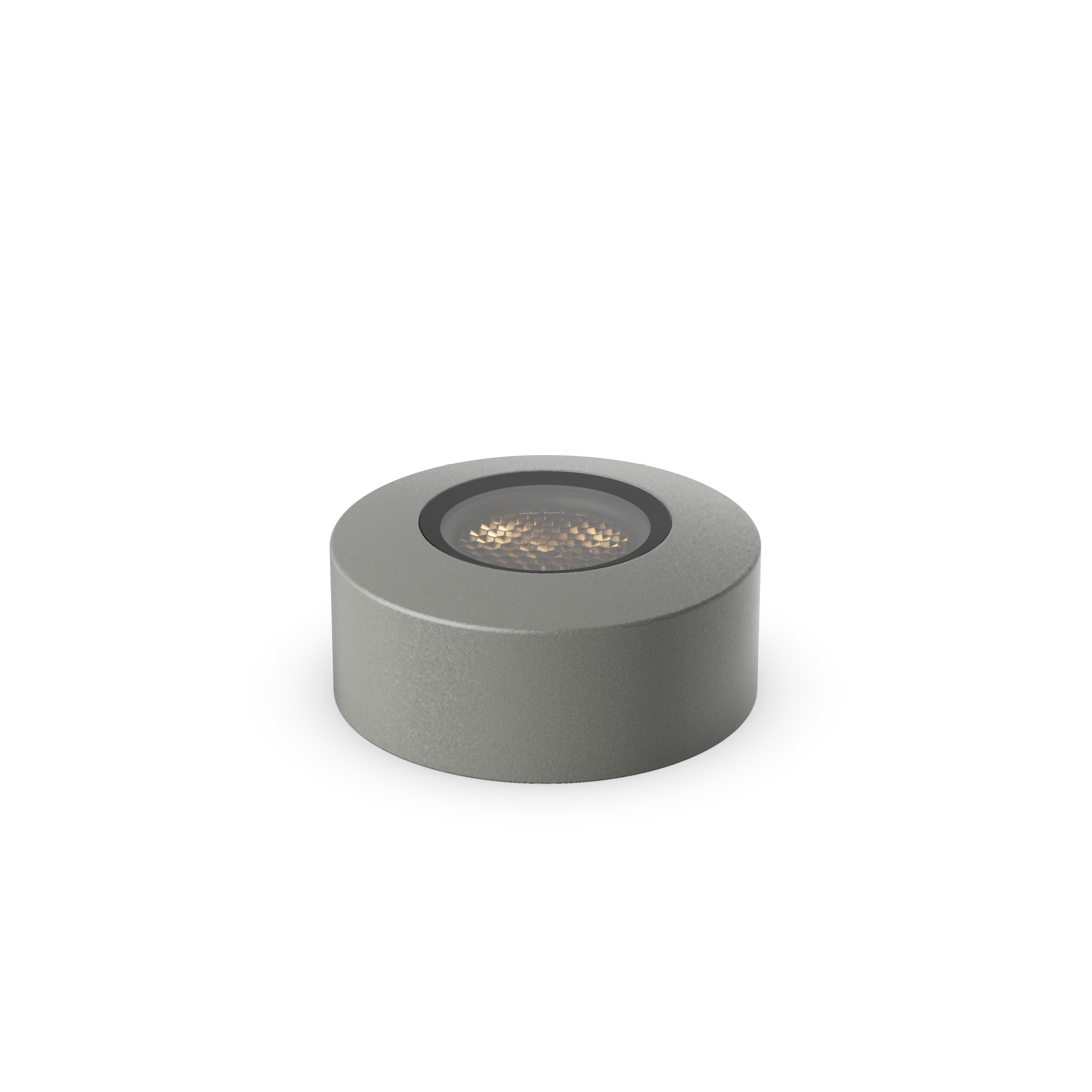

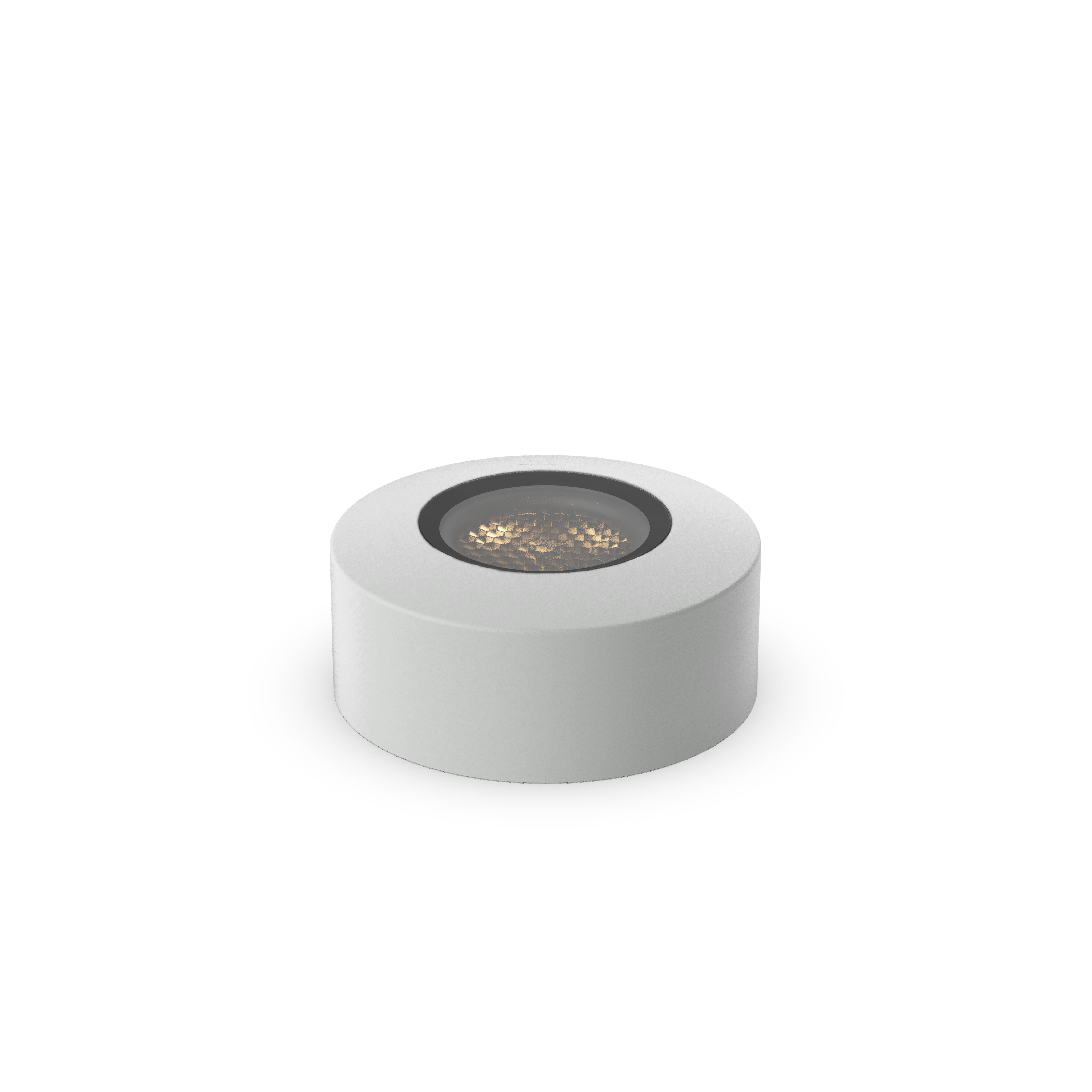

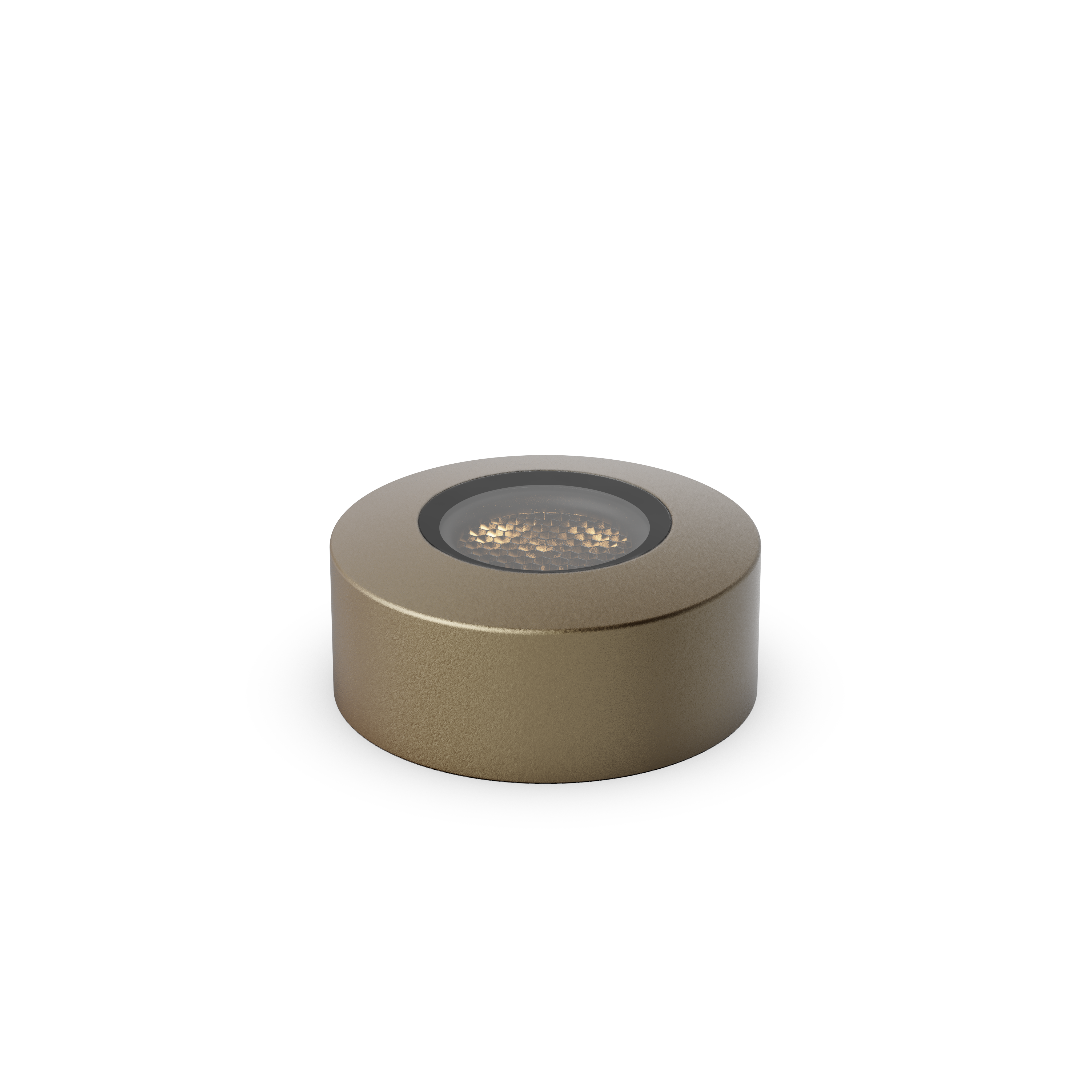

CNC machined aluminium pucklight designed for veranda downlighting, alcove uplighting and...

The AQL-175 is a compact pucklight engineered for architectural wall lighting. Its primary applications include veranda downlighting, alcove uplighting, and cabinet illumination.

CNC machined from 6000 series aluminium, this IP65-rated fixture features a 500mm 3-core cable. It operates on a 24V DC system with 2-wire PWM dimming, supporting 4W or 6W light sources in 2700K or 3000K across various optical distributions.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-175
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

CRI (3000K)	90+
SDCM	3

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II

Compliance / Certifications	SELV
Environmental certifications	IP IK
