AQL-177

Encapsulated IP68 surface uplight designed for pond and water feature illumination.

The AQL-177 is an encapsulated, IP68 surface uplight and projector designed for pond and water feature illumination. It provides diffused underwater glow lighting for architectural landscape applications.

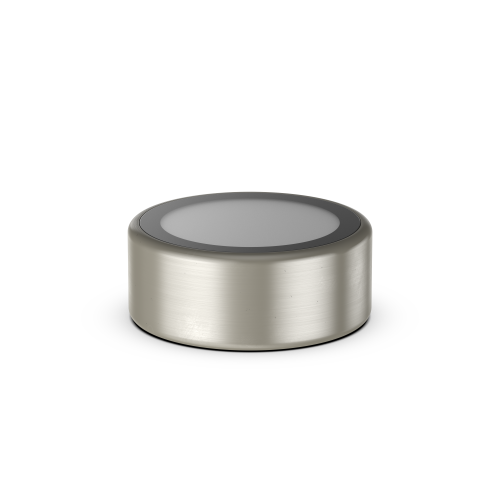

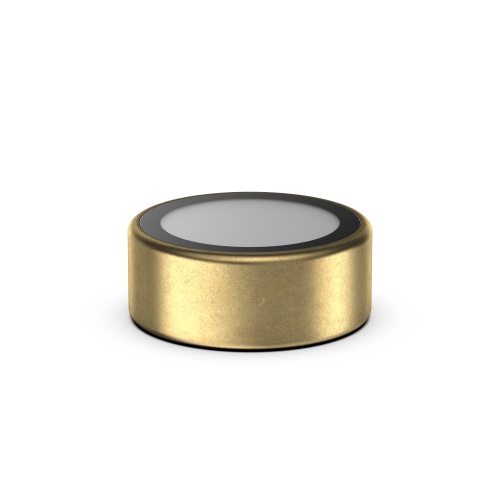

CNC machined from brass, this fixture features a diffused optic and a 5m silicone/PTFE cable. Available in brushed chrome or natural waxed brass, it offers 4W or 12W 3000K LED options operating on 24V DC.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-177
Construction	Brass
Warranty	7 Years
Country of Manufacture	Australia

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

CRI (3000K)	90+
SDCM	3

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II

Compliance / Certifications	SELV
Environmental certifications	IP IK
