AQL-180

RGBW OPTION

High-output projector designed for architectural, commercial, and external facade lighting...

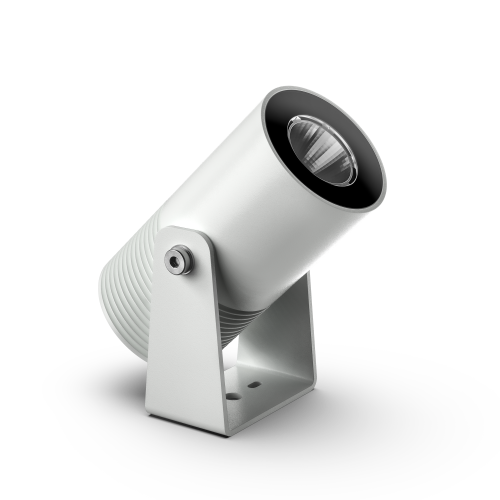

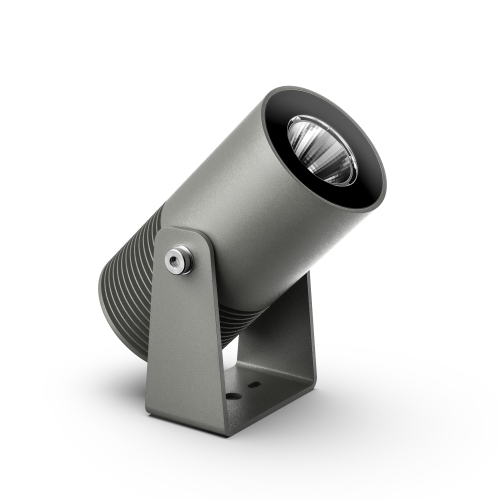

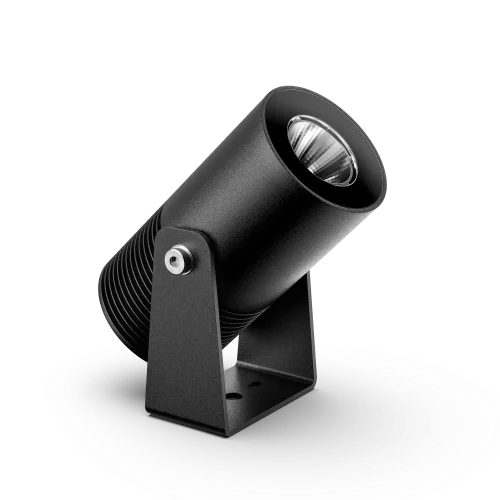

The AQL-180 is a high-output projector designed for architectural and commercial applications. It provides dynamic RGB and white illumination for external facades and features using advanced colour mixing optics.

Constructed from CNC machined 6000 series aluminium, this IP65-rated fixture features a 20W light source with multiple CCT and reflector options. It operates on 24V DC with 3-wire or RGBW control gear, supporting DALI integration.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-180
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
