AQL-181

RGBW OPTION

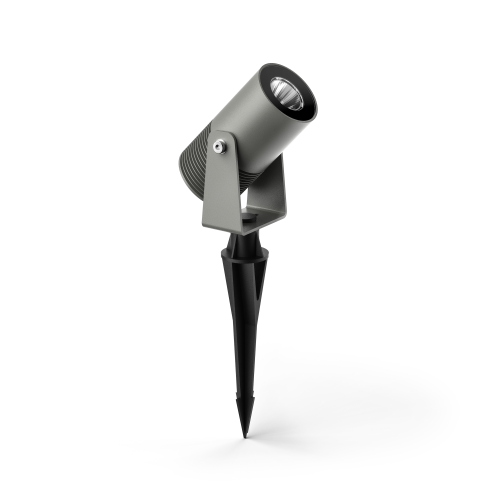

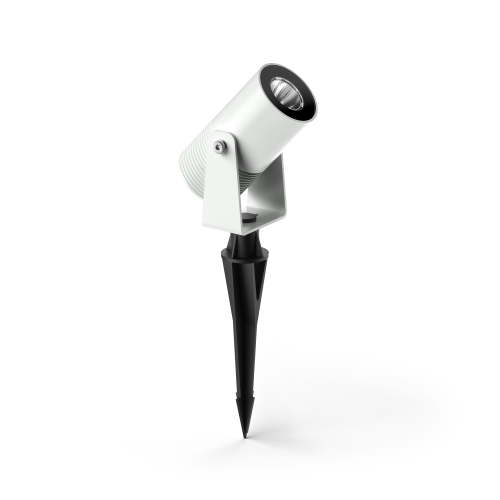

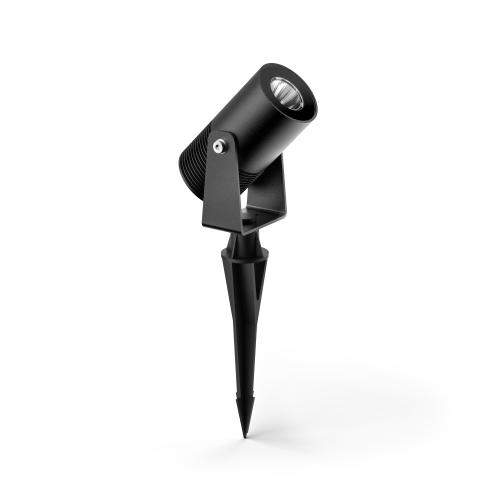

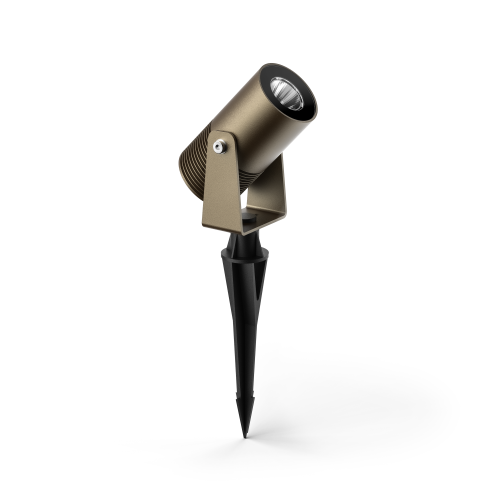

High-output spike spot light designed for architectural and commercial lighting applications.

The AQL-181 is a high-output spike spot light designed for architectural and commercial applications. This projector is engineered for the dynamic illumination of external facades and features, utilizing white or RGBW light sources.

Constructed from CNC machined 6000 series aluminium, this IP65-rated fixture features a 20W light source delivering up to 2410 lumens. It operates on 24V DC with optical beam angles ranging from 10° to 50°.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-181
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

CRI (3000K)	90+
SDCM	3

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II

Compliance / Certifications	SELV
Environmental certifications	IP IK
