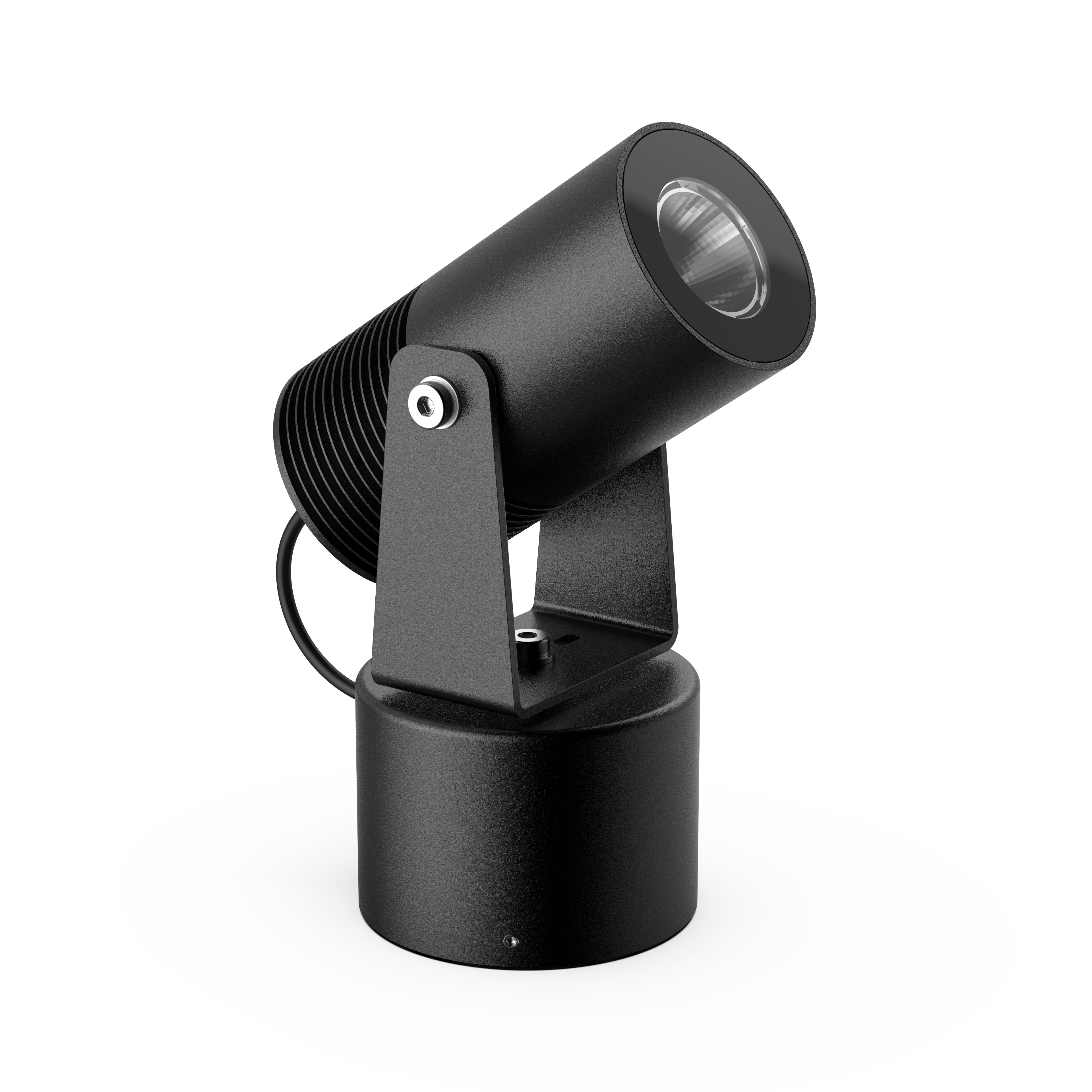

AQL-182

High-output spotlight projector designed for architectural and commercial lighting applications.

The AQL-182 is a high-output projector designed for architectural and commercial external facade illumination. It features a large mounting base that allows for 240V integration.

Constructed from 6000 Series aluminium, this 20W fixture offers RGBW or white LED options up to 2410 lumens. Technical specifications include 24V DC or 240V DALI dimming, terminal block cabling, and optics ranging from 10° to 50°.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-182
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

CRI (3000K)	90+
SDCM	3

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II

Compliance / Certifications	SELV
Environmental certifications	IP IK
