AQL-190
Lights · Inground Uplight
Lights
AQL-190

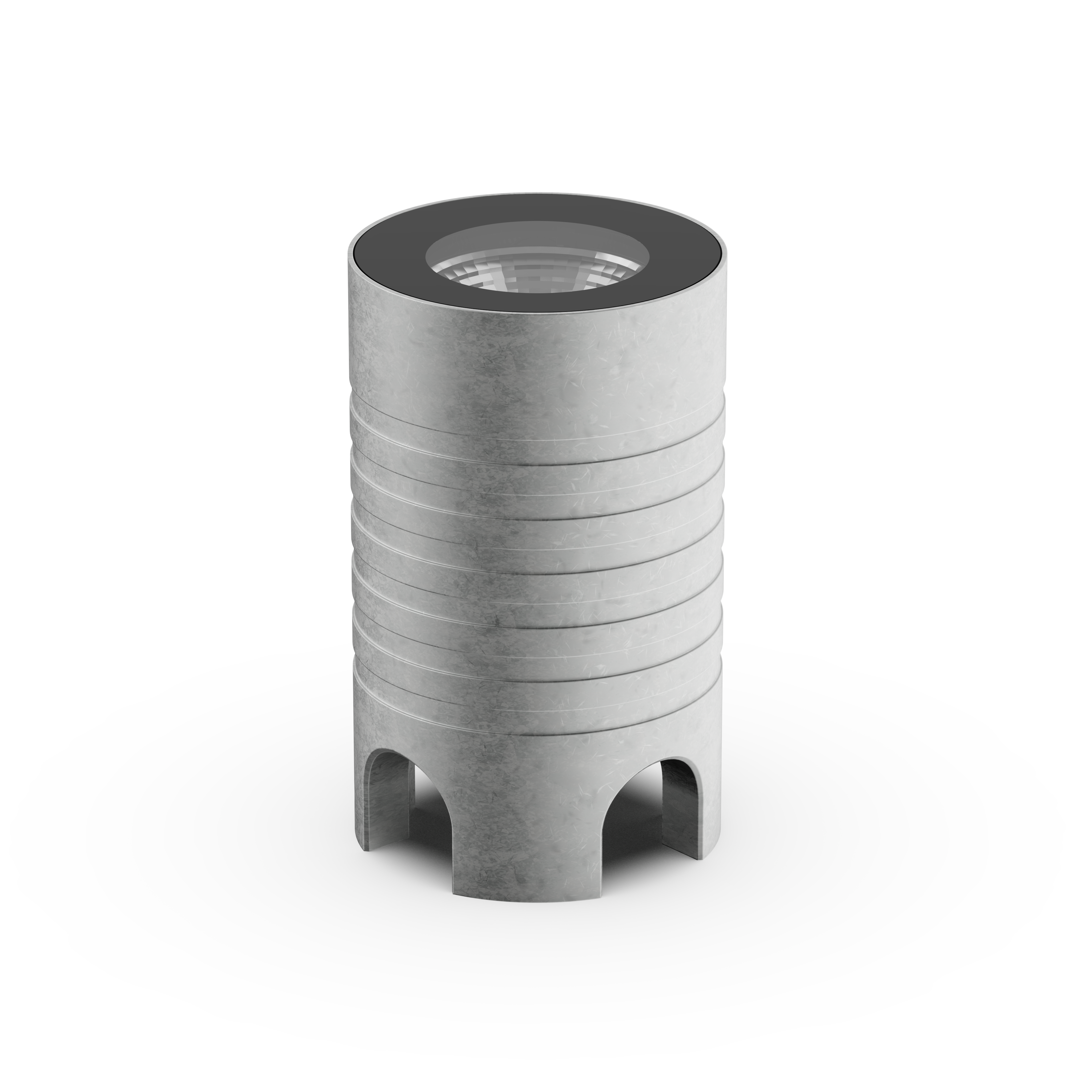

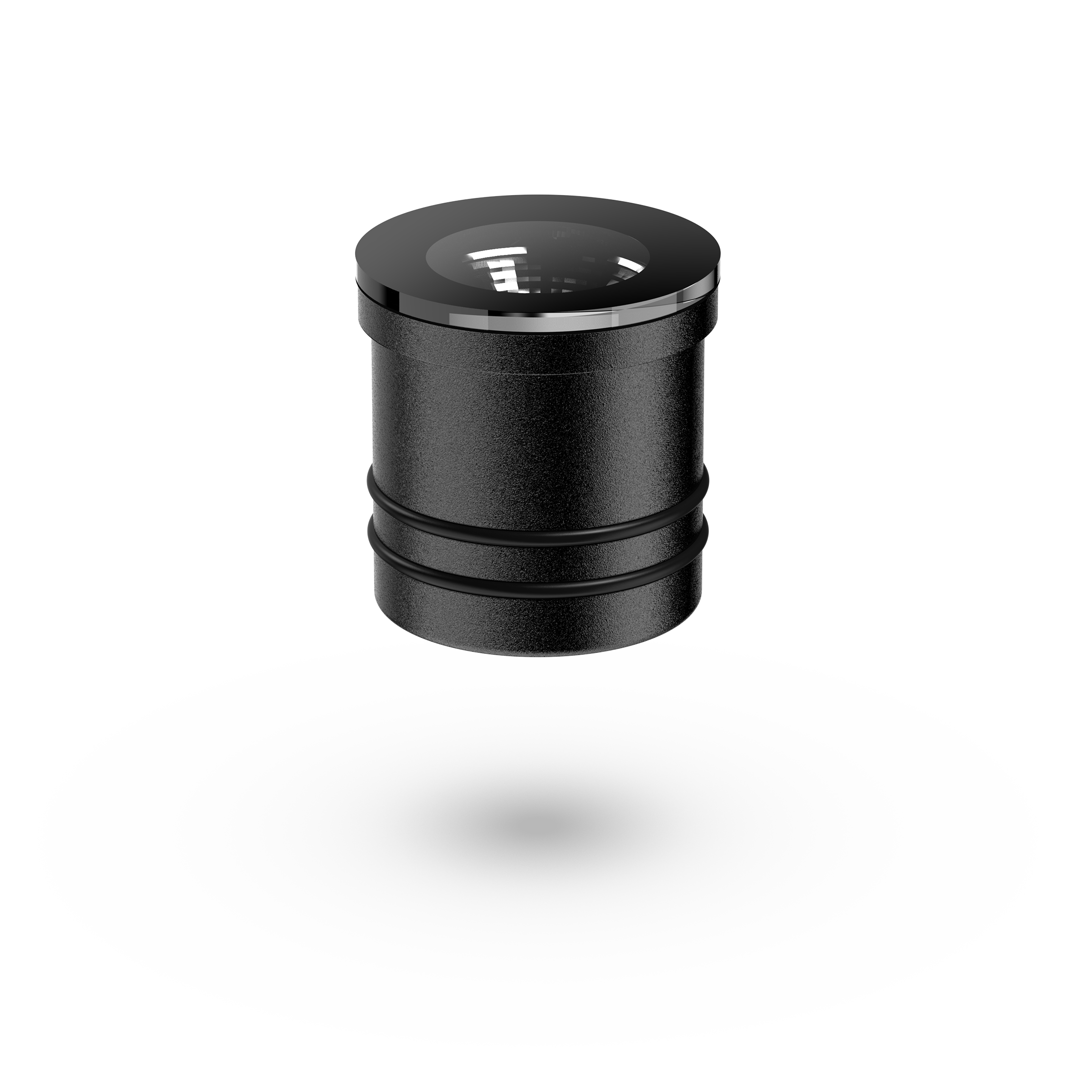

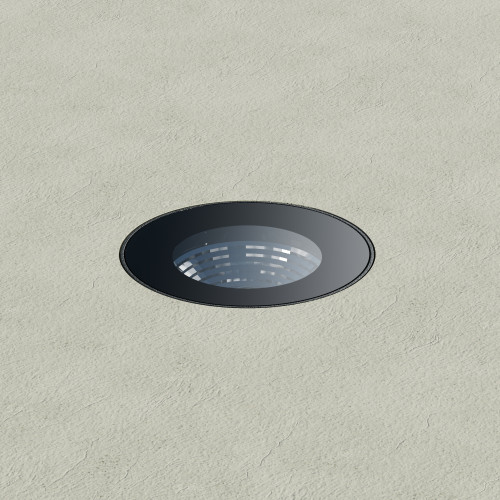

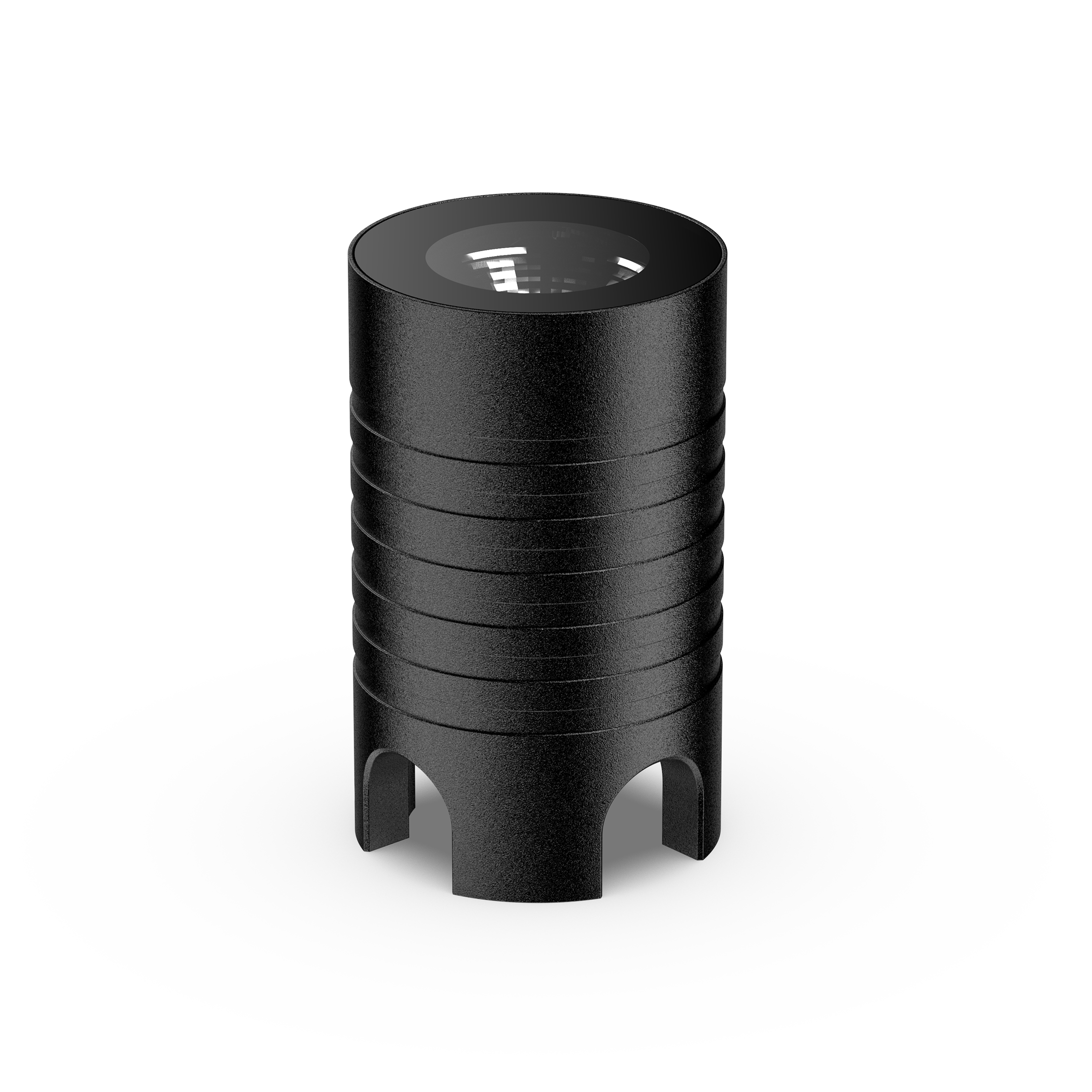

Trimless inground LED uplight designed for discreet and controlled low-glare illumination.
The AQL-190 is a trimless inground uplight designed for discreet, low-glare architectural illumination. This mid-power luminaire delivers up to 1100 lumens of controlled light, engineered for recessed ground-mount installations.
Constructed from CNC-machined 6000-series aluminium, this IP65-rated fixture features a 15W LED source, 24V DC control gear, and a 3-core anti-siphon cable. It offers multiple low-glare optical distributions.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-190 |
| Construction | CNC Machined Aluminium |
| Warranty | 7 Years |
| Country of Manufacture | Australia |
| Voltage | 24V DC |
| Frequency | - |
| Flicker free | Yes. |
| Dimming | Yes. Direct PWM. |
| Max. qty of fixtures C16 Breaker | PSU Dependant |
| CRI (3000K) | 90+ |
| SDCM | 3 |
| LED Lifetime | L80 B10 70,000h (Ta 25C) |
| Operating temperature range | 0C - 40C |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 2-Core Anti-Siphon Cable |
| Electrical insulation class | Class II |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
