AQL-240

Twin surface mount adjustable projector designed for improved glare control.

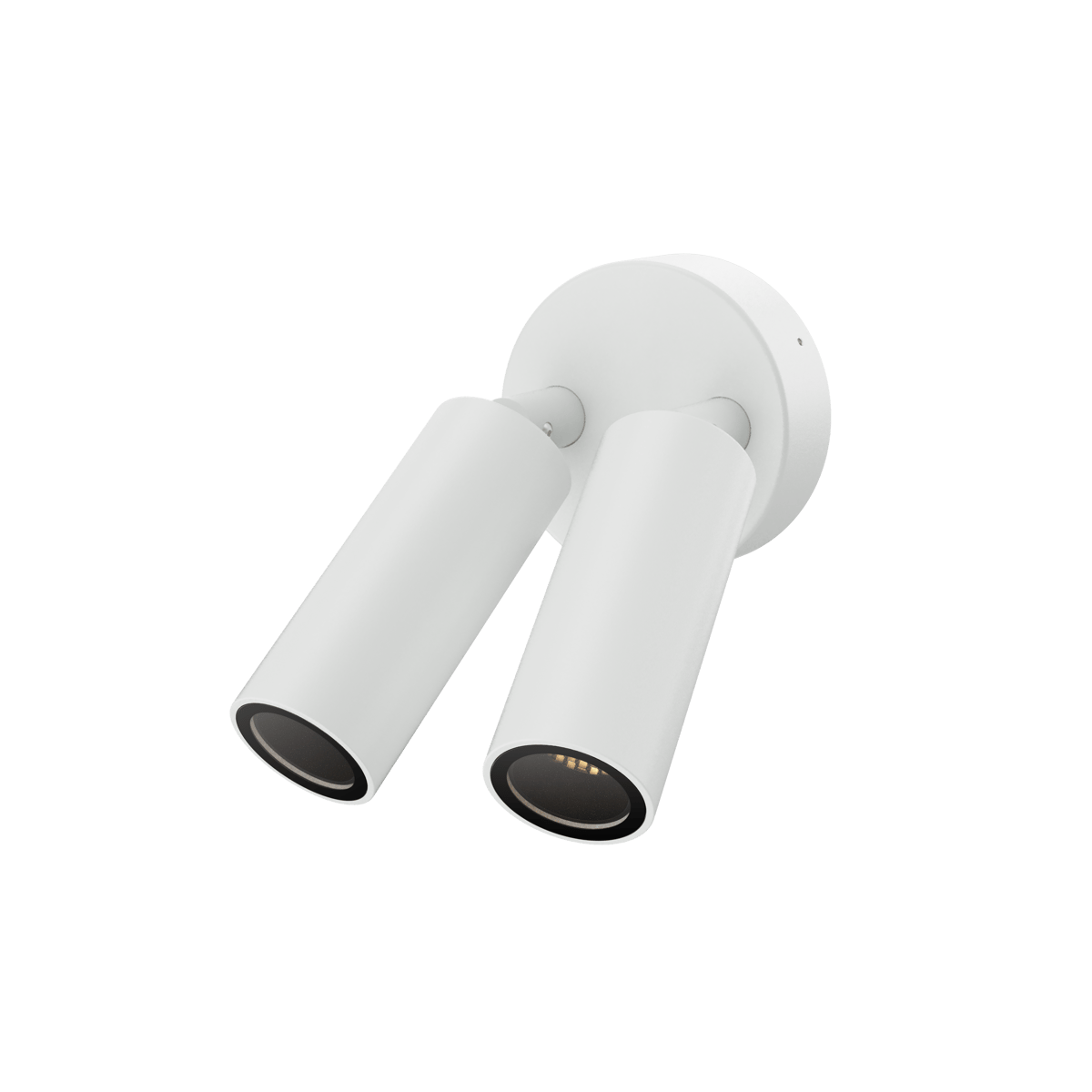

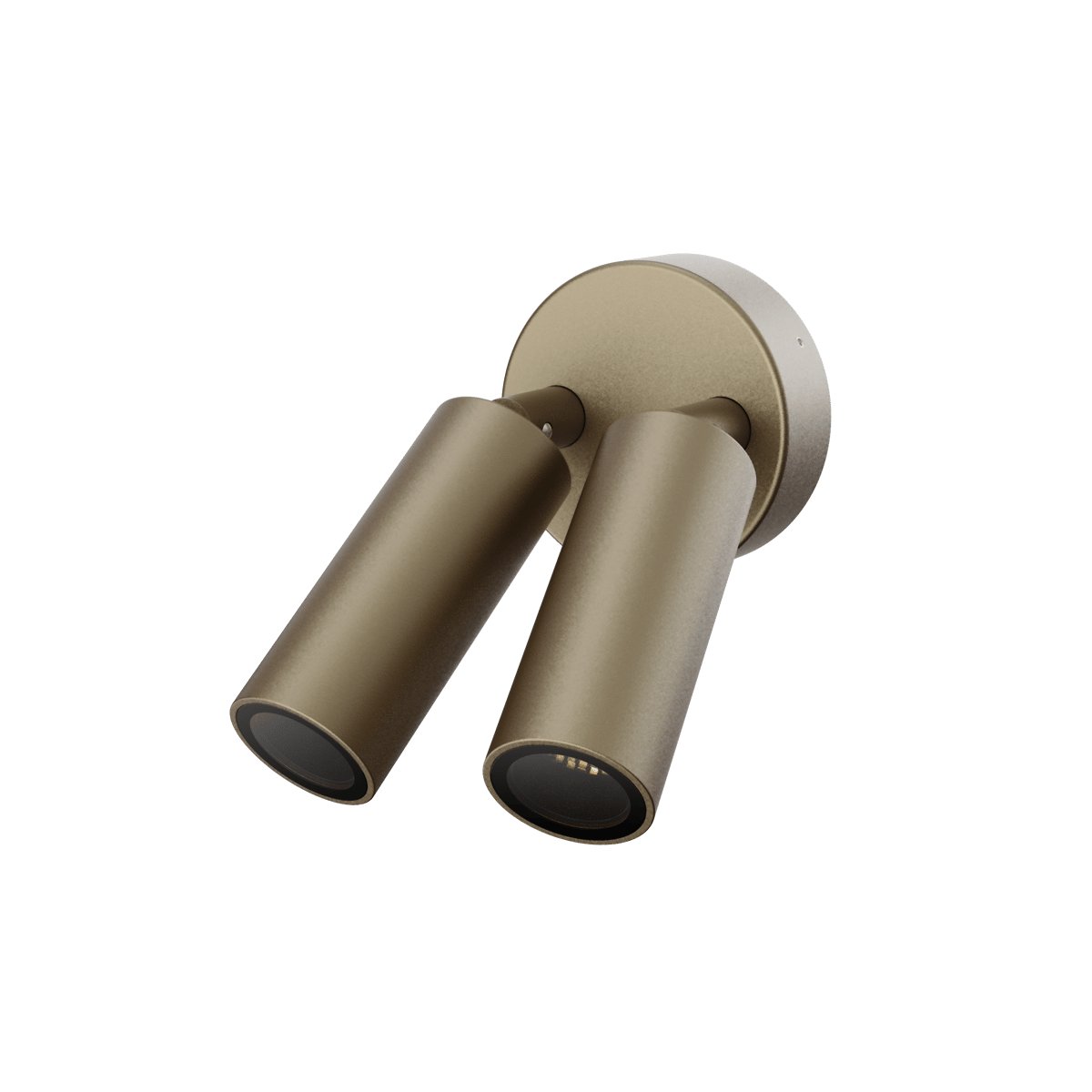

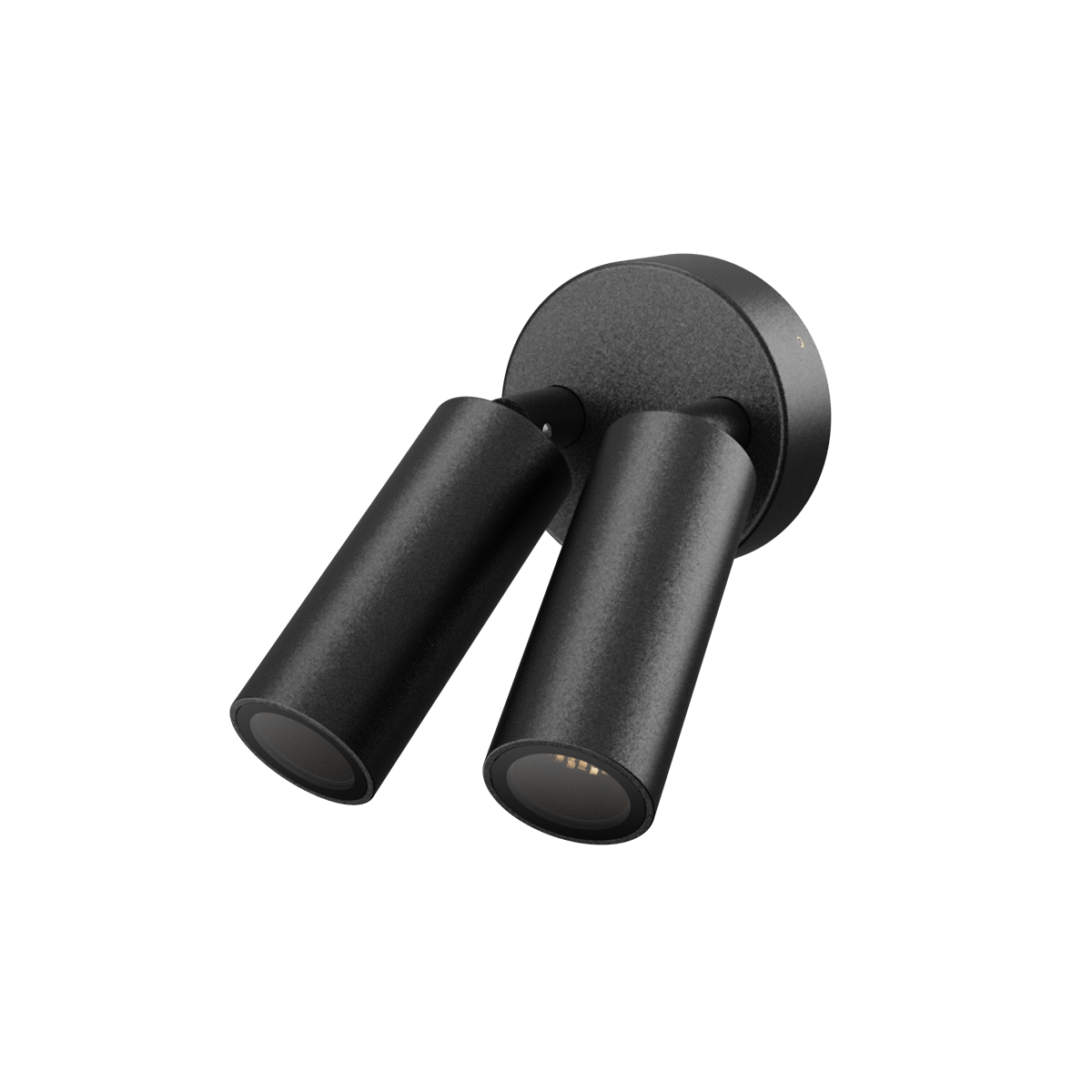

The AQL-240 is a twin surface mount adjustable projector designed for precise directional lighting. It features a recessed light source for improved glare control, offering 180° tilt and 360° rotation.

Constructed from CNC machined 6000 series aluminium, this IP65-rated fixture includes a 500mm silicone/PTFE cable. It operates on 24V DC, offering 8W or 12W outputs, CRI 90+, and DALI dimming.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-240
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
