AQL-246

NEWRGBW OPTION

Single adjustable path light with CNC machined aluminium designed for targeted wayfinding...

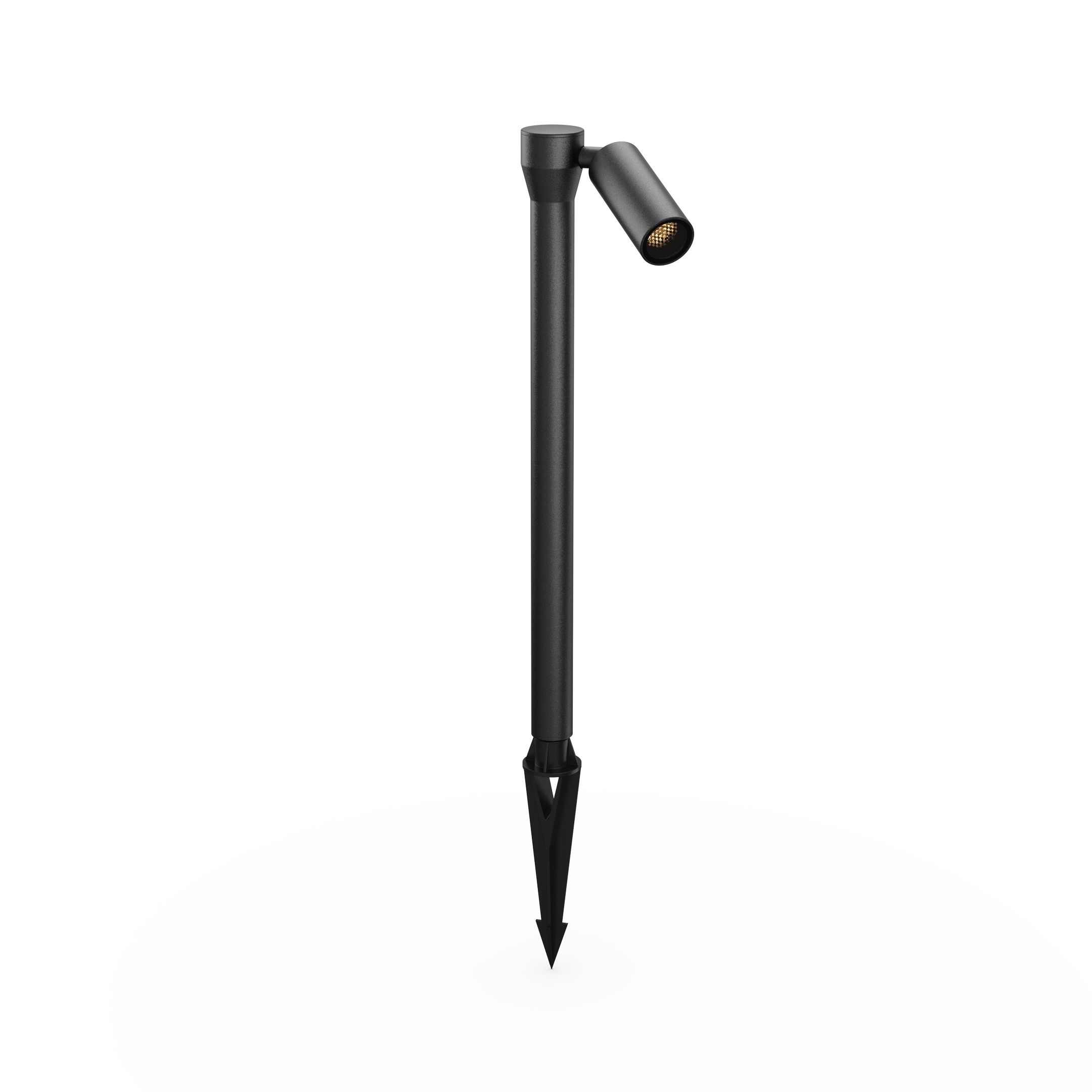

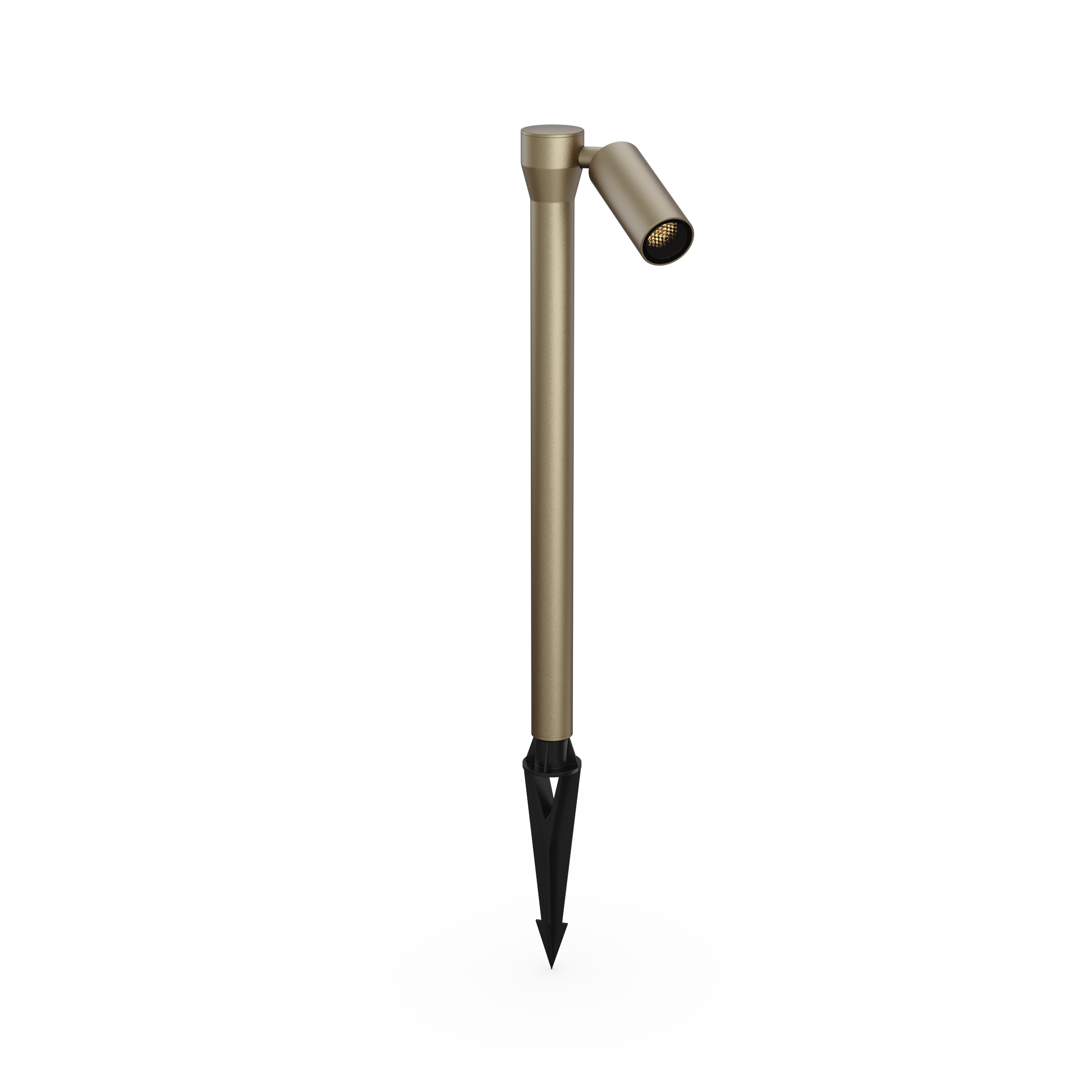

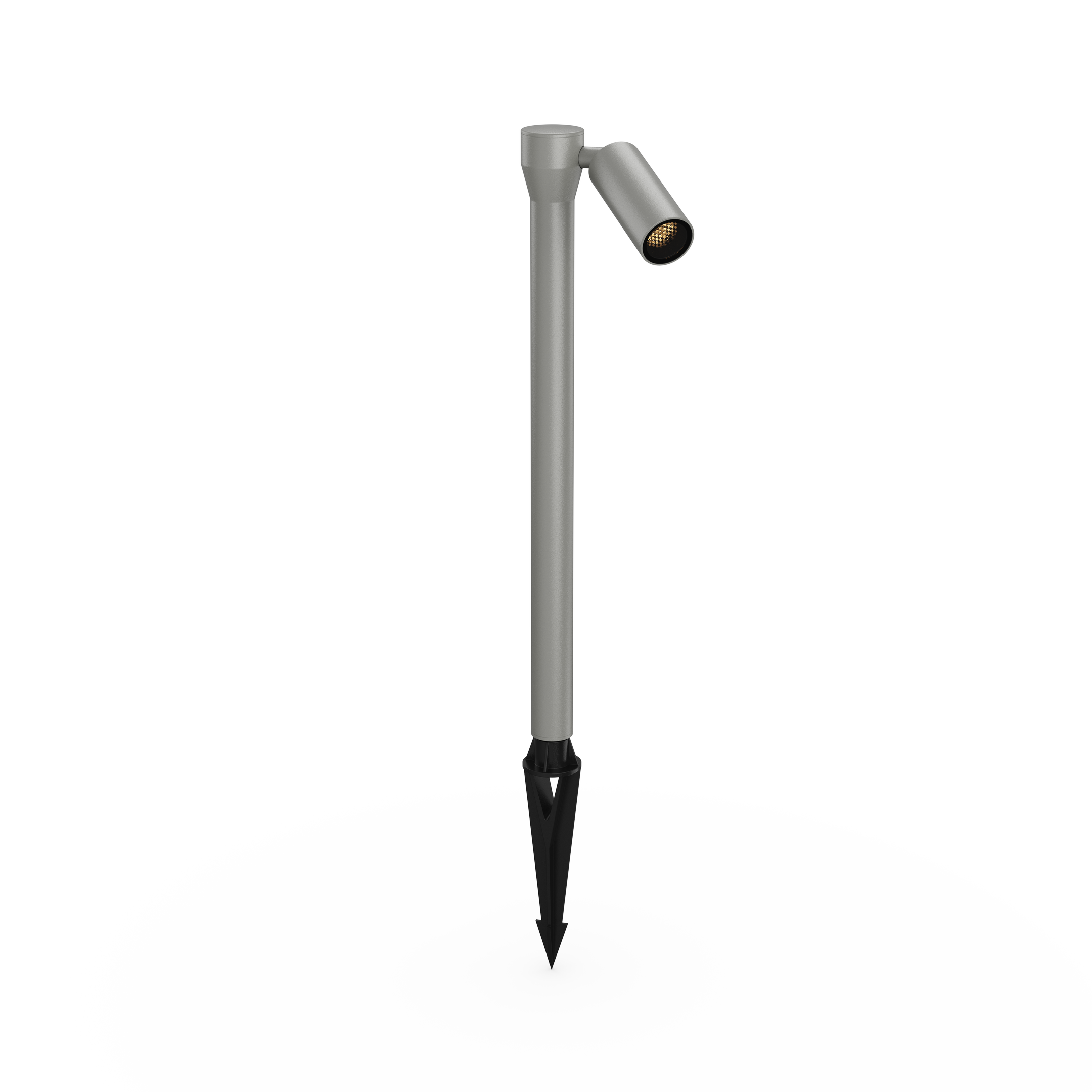

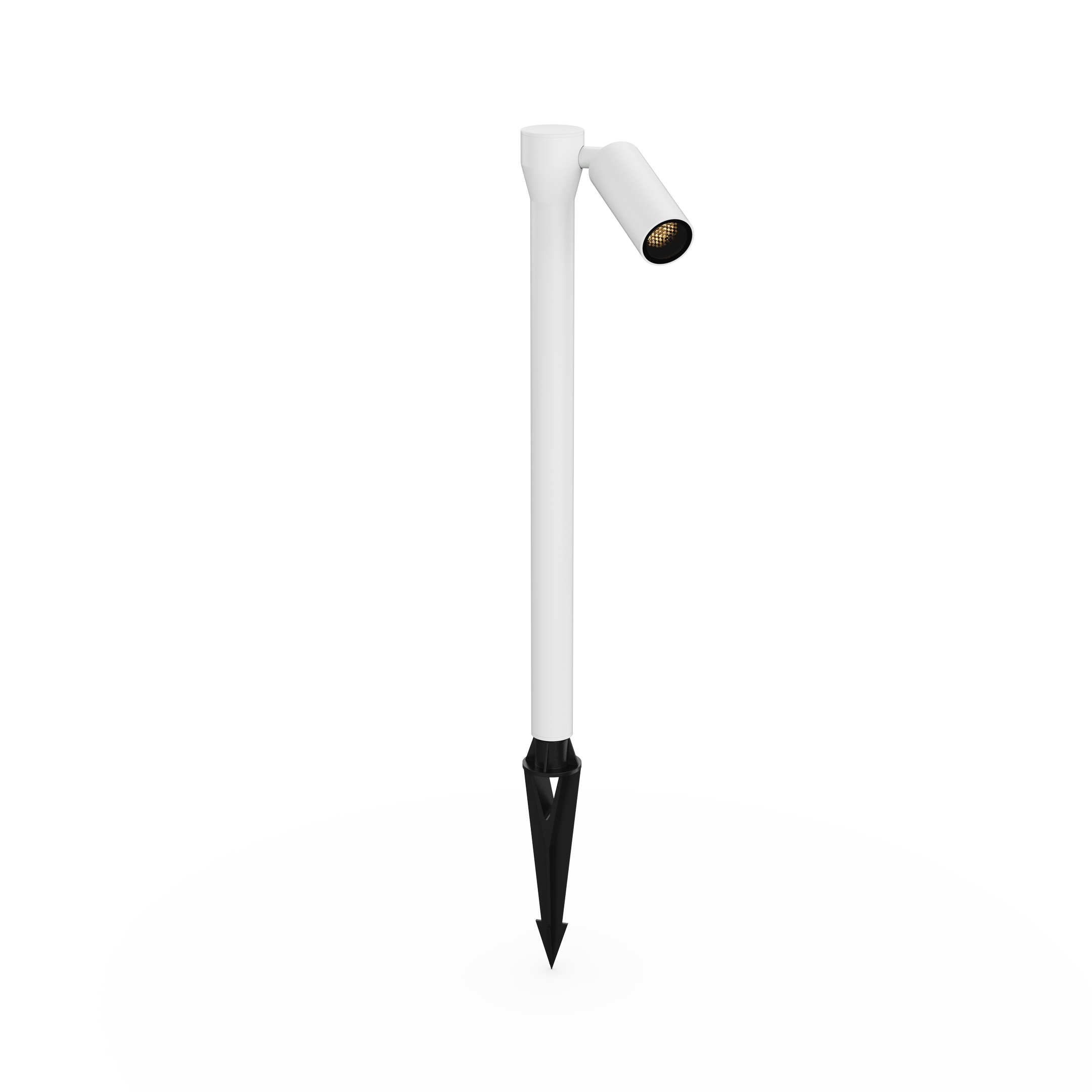

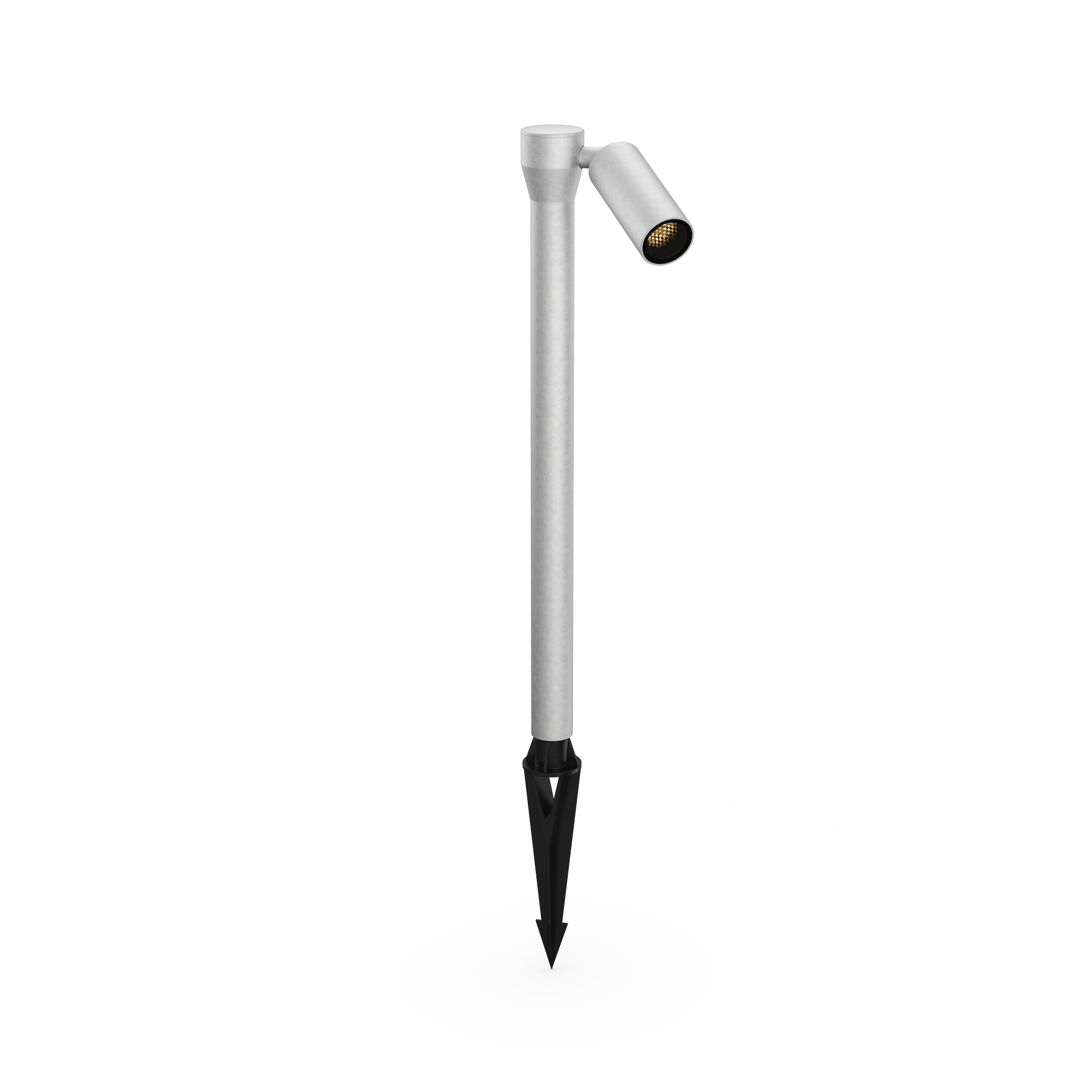

The AQL-246 is a posable, single adjustable path light designed for targeted wayfinding applications. It features a refined adjustment mechanism and optical setup to deliver precise directional illumination.

Constructed from CNC machined 6000 series aluminium, this IP65-rated fixture is available in 400mm and 600mm heights. It operates on 24V DC with 4W or 6W LED sources, offering multiple beam angles and a 2-core anti-siphon cable.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-246
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

CRI (3000K)	90+
SDCM	3

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II

Compliance / Certifications	SELV
Environmental certifications	IP IK
