AQL-402

Adjustable twin spot projector light designed for surface mount lighting applications.

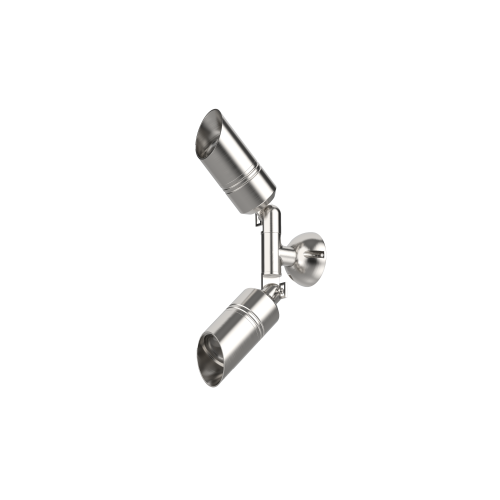

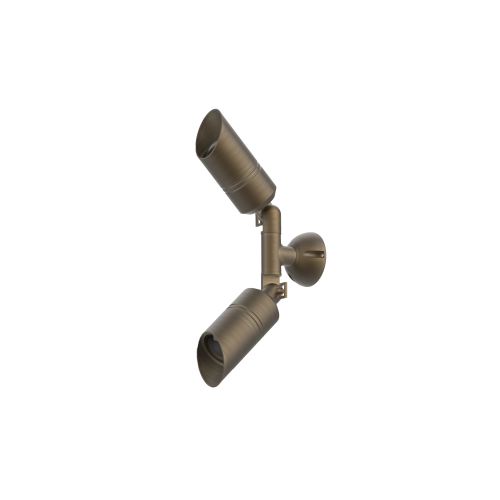

The AQL-402 is an adjustable twin surface-mount spotlight designed for directional projector lighting applications.

Constructed from solid cast brass, this IP65-rated fixture features a 1m Figure 8 twin-core cable. It is compatible with MR16 or MR11 lamps, supporting lamp-dependent dimming, and is available in black brass or aged brass finishes.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-402
Type	Projector
Construction	Cast Brass
Warranty	5 Years
Country of Manufacture	China

Voltage

SELV (12 / 24V AC/DC)

Light source type

MR16 Lamp

IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	500mm 2-Core Fig.8 Cable
Electrical insulation class	Class III

Compliance / Certifications	SELV
Environmental certifications	IP IK
