AQL-405
Lights · Projector
Lights
AQL-405

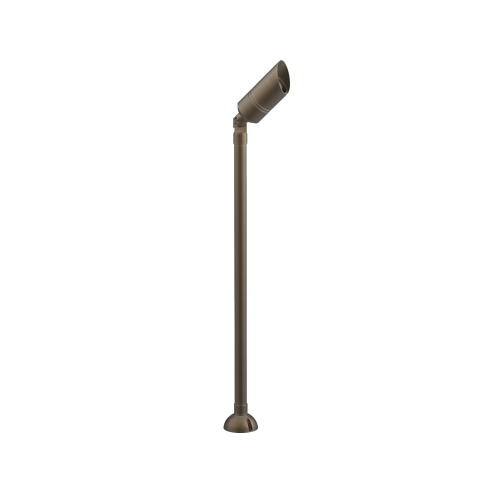

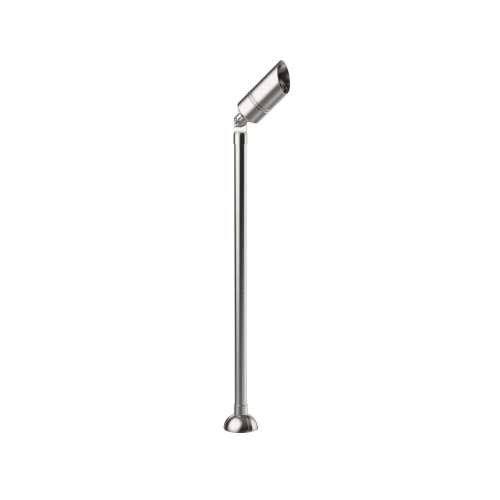

Adjustable surface uplight designed for single head pathlight surface mount.
The AQL-405 is an adjustable surface uplight and projector designed for pathlight applications. It features a single-head configuration with a 60cm stem and a surface mount.
Constructed from solid cast brass, this IP65-rated fixture is available in black brass or aged brass finishes. It includes a 500mm Fig 8 cable and supports MR16 or MR11 lamps, with dimming capabilities dependent on the selected lamp.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-405 |
| Type | Pathlight |
| Construction | Cast Brass |
| Warranty | 5 Years |
| Country of Manufacture | China |
| Voltage | SELV (12 / 24V AC/DC) |
| Light source type | MR16 Lamp |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 500mm 2-Core Fig.8 Cable |
| Electrical insulation class | Class III |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
