AQL-412
Lights · Pathlight
Lights
AQL-412
Adjustable solid cast brass pathlight designed for spike mount applications.

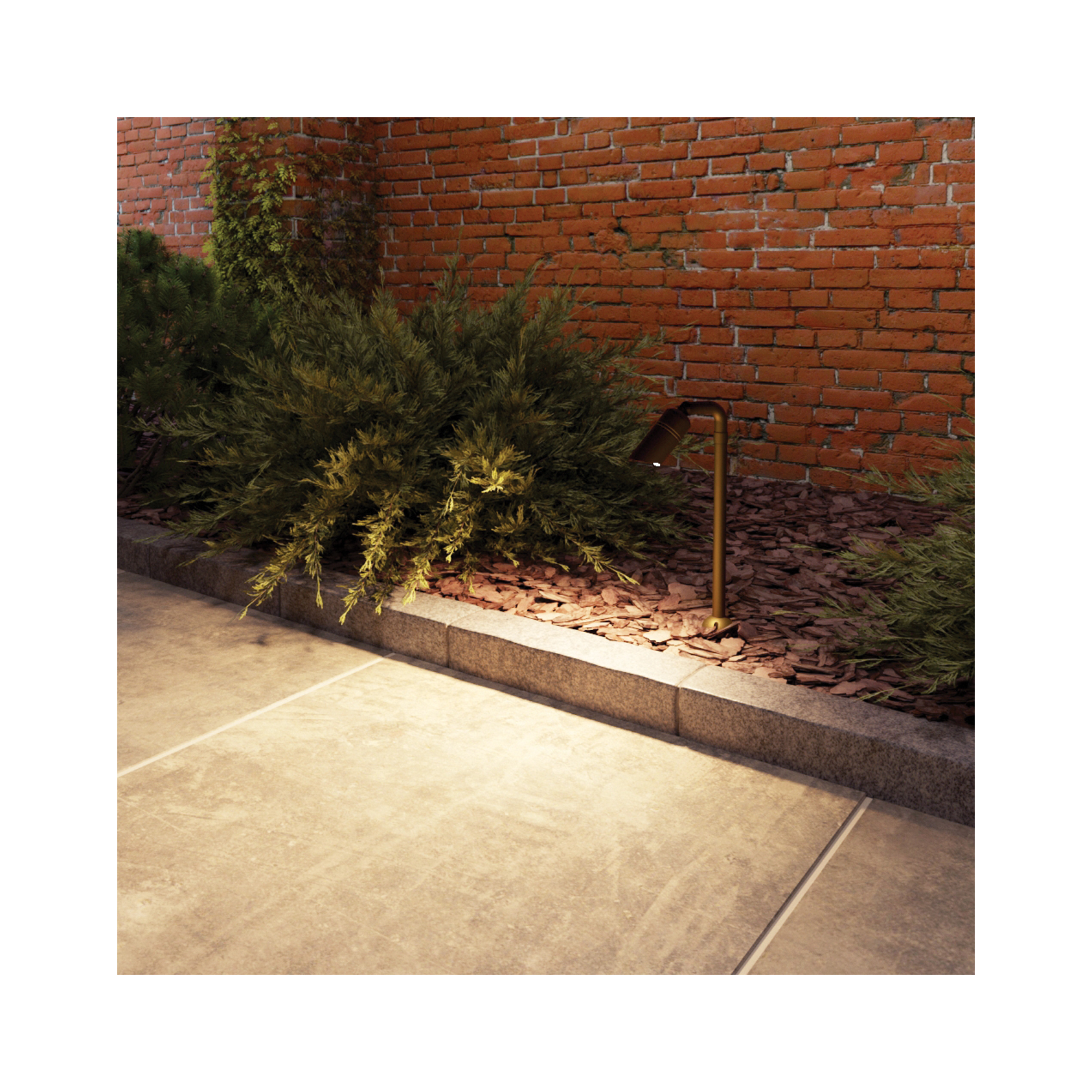

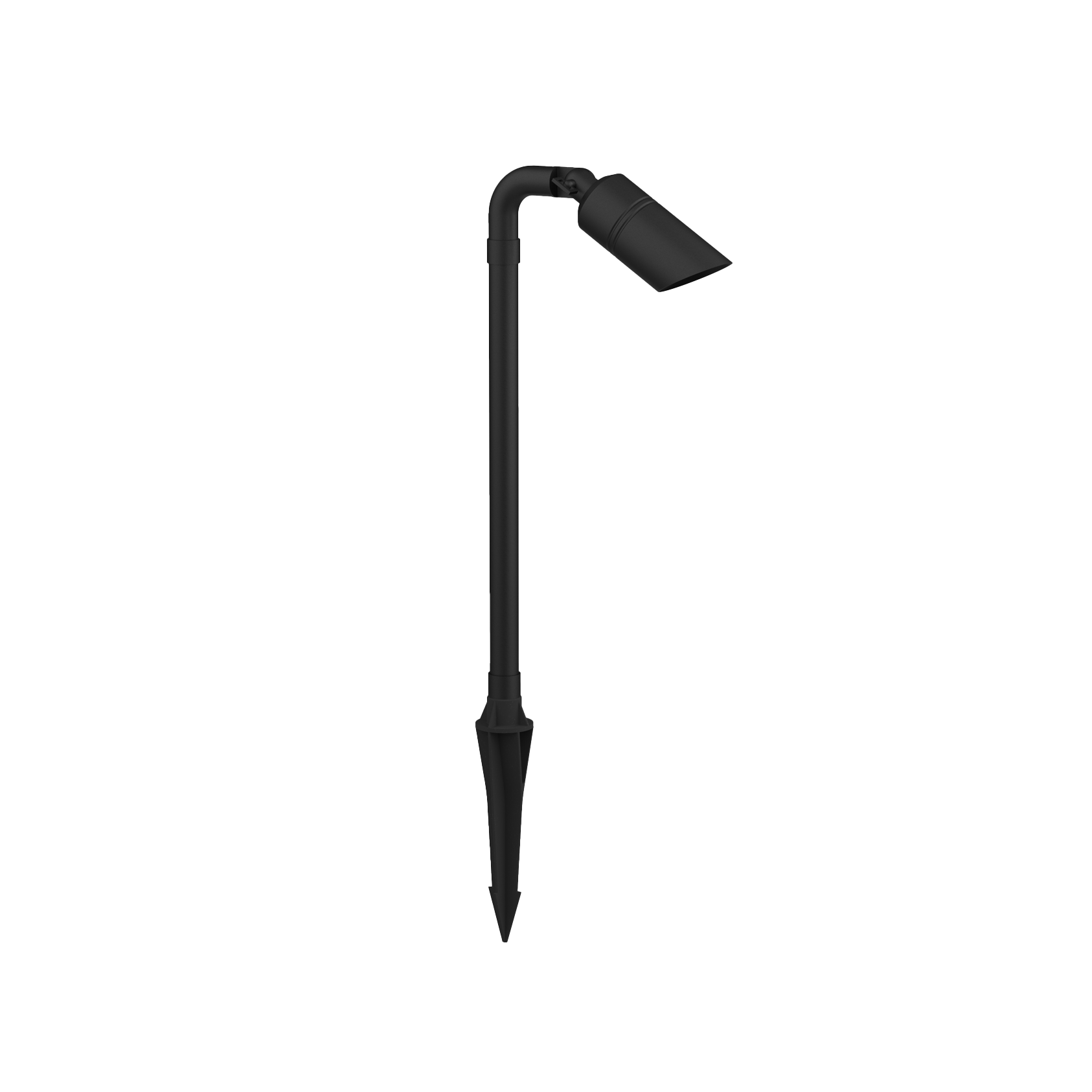

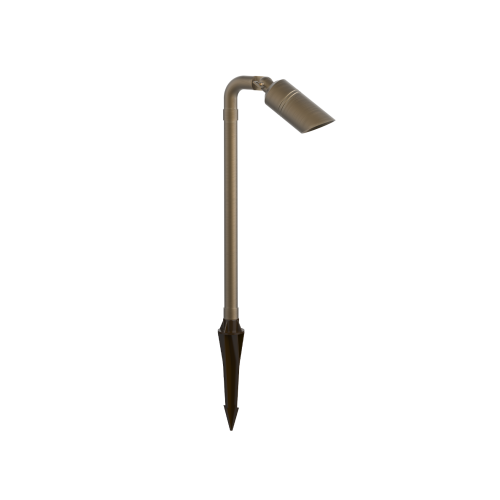

The AQL-412 is an adjustable, single-head spike pathlight designed for pathway illumination. It features an elbow adaptor, a 38cm stem, and a spike mount for ground installation.
Constructed from solid cast brass, this IP65-rated fixture is available in black or aged brass finishes. It includes a 500mm Fig 8 cable and is compatible with MR16 or MR11 lamps.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-412 |
| Type | Pathlight |
| Construction | Cast Brass |
| Warranty | 5 Years |
| Country of Manufacture | China |
| Voltage | SELV (12 / 24V AC/DC) |
| Light source type | MR16 Lamp |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 500mm 2-Core Fig.8 Cable |
| Electrical insulation class | Class III |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
