AQL-417-B3-E004DWDFS

CNC machined brass eyelid steplight designed for wall lighting applications.

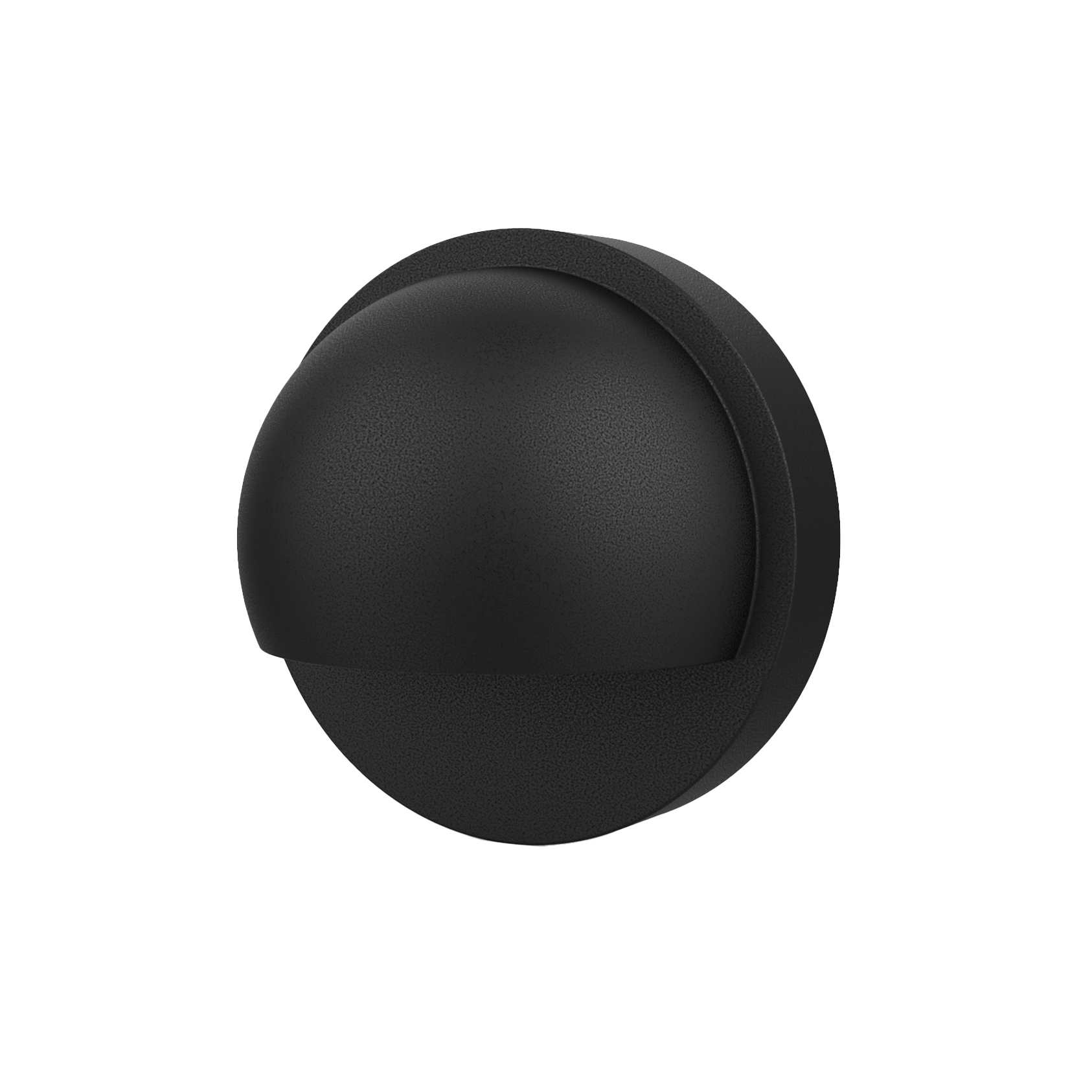

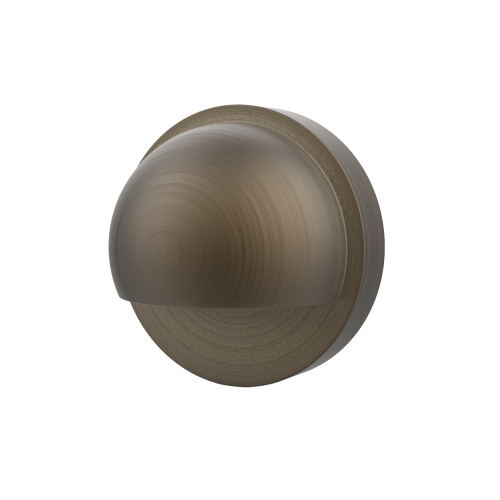

The AQL-417 is an eyelid steplight engineered for wall light applications.

Constructed from CNC machined brass, this IP65-rated fixture features a frosted diffused optical lens. It is available in black or aged brass finishes, utilizing a 4W LED light source in either 3000K or dual CCT 27K/30K configurations. Technical specifications include 12–24V AC/DC or 24V DC power options and a 500mm 2-core cable.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-417
Type	Grazing Light
Construction	Cast Brass
Warranty	5 Years
Country of Manufacture	China

Voltage

SELV (12 / 24V AC/DC)

Light source type

MR16 Lamp

IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	500mm 2-Core Fig.8 Cable
Electrical insulation class	Class III

Compliance / Certifications	SELV
Environmental certifications	IP IK
