AQL-420

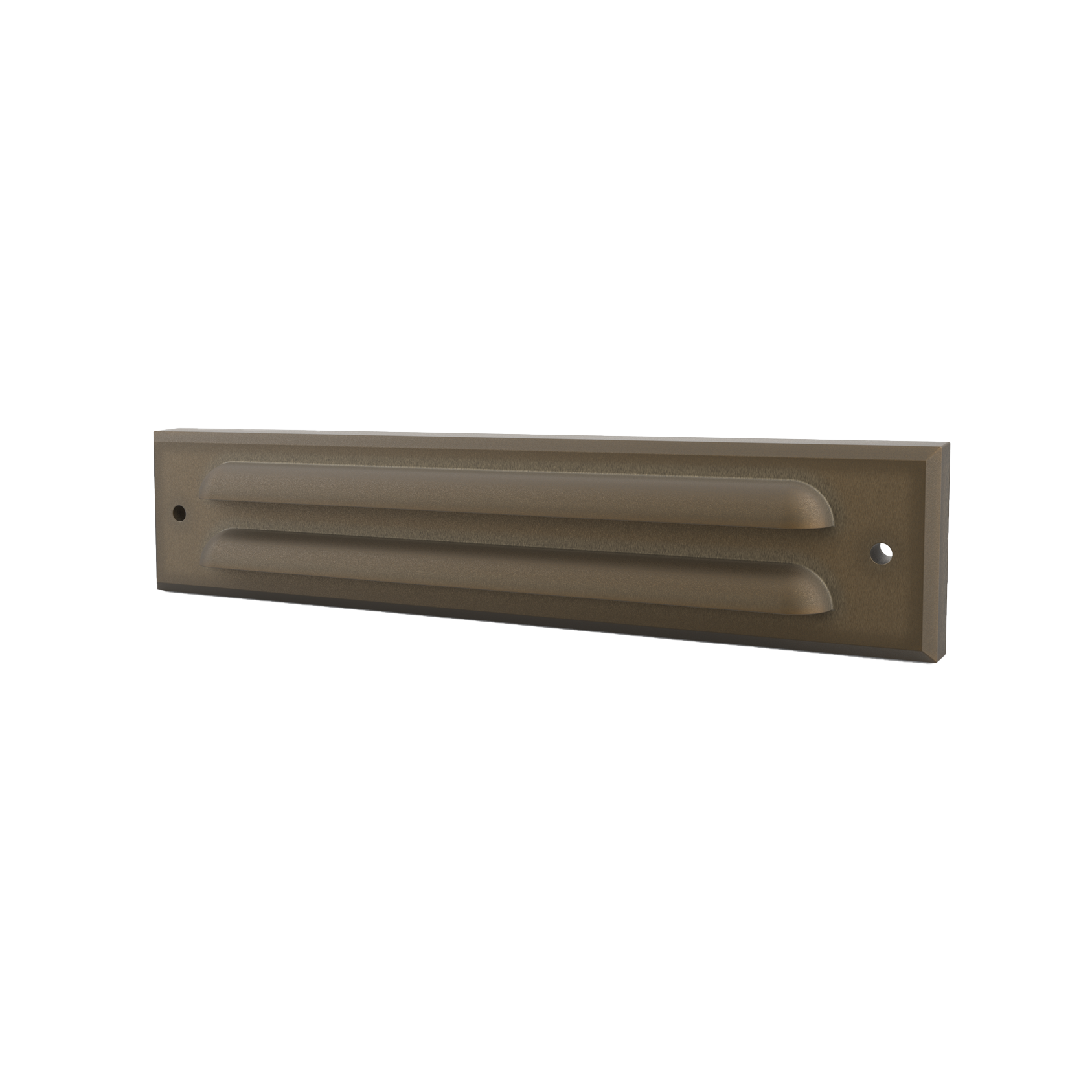

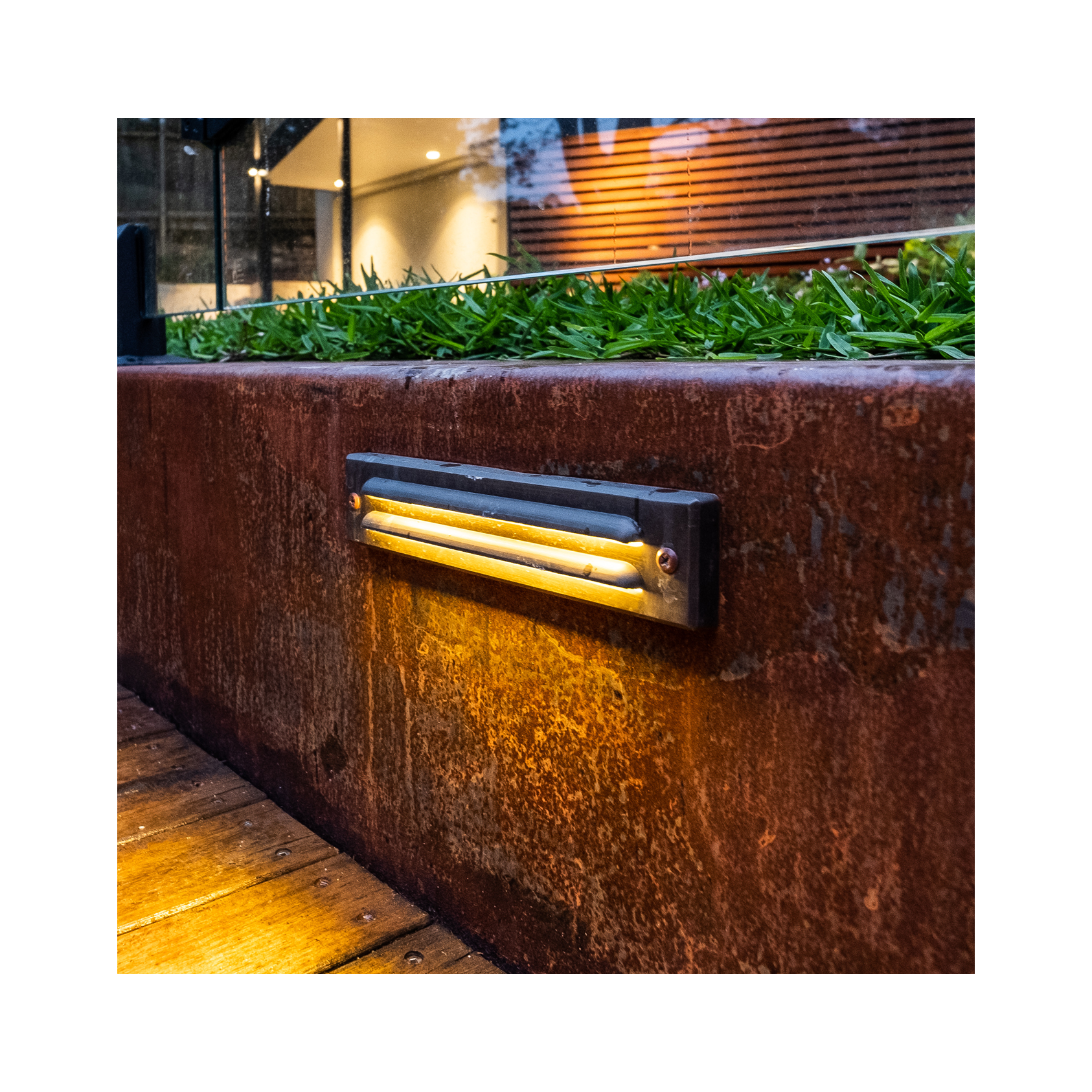

Slotted solid cast brass steplight designed for wall mounted step lighting.
The AQL-420 is a slotted steplight designed for architectural wall-mount and step lighting applications.

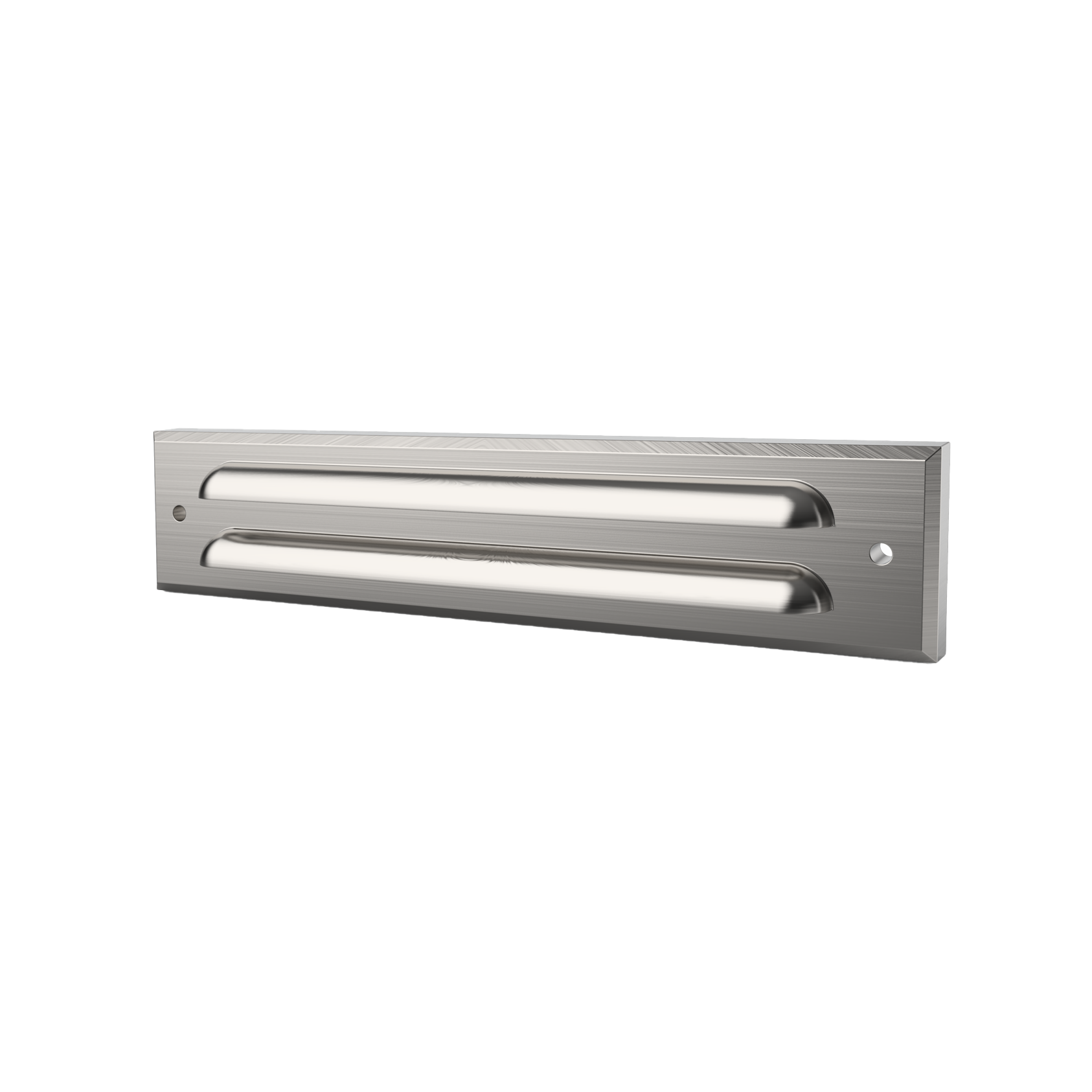

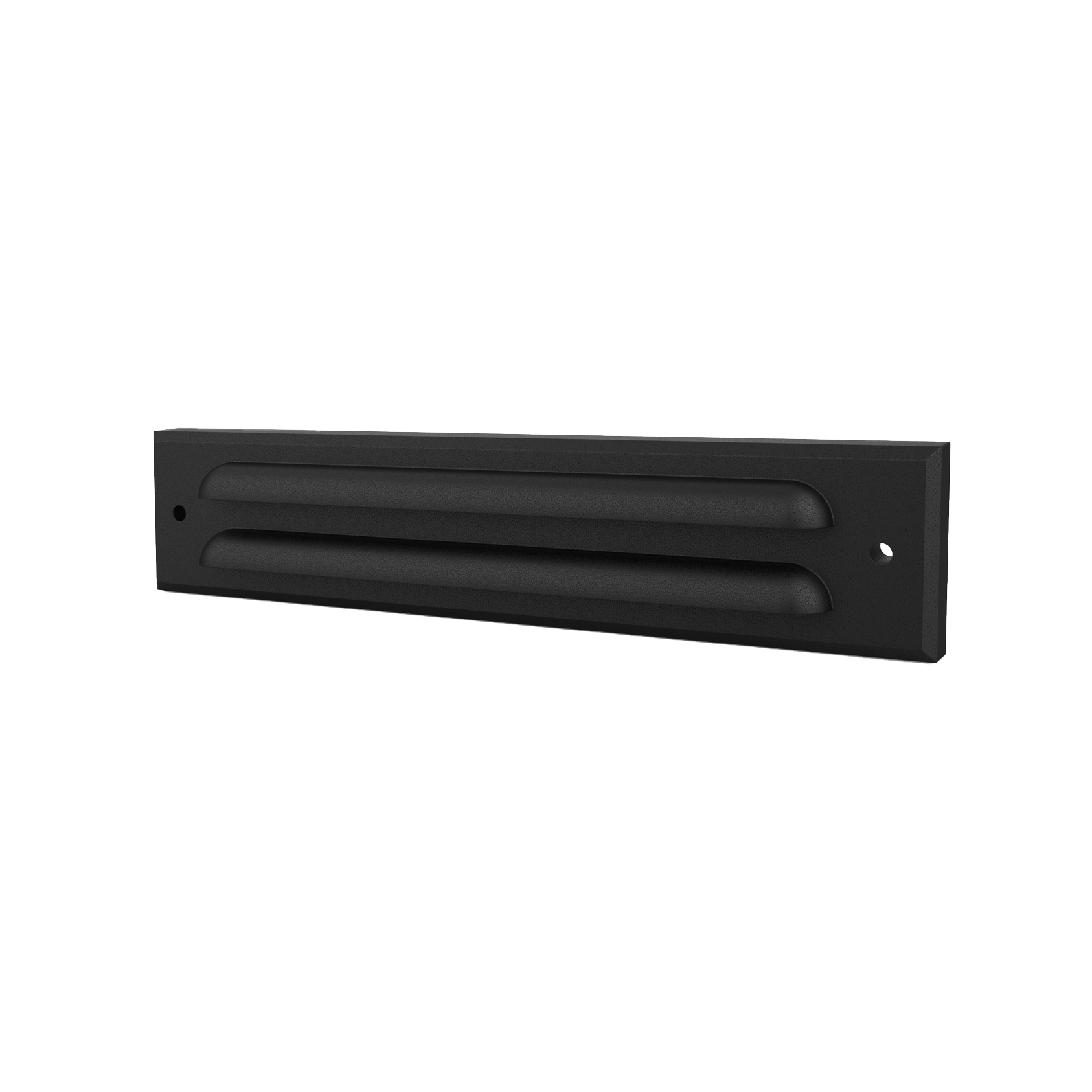

Constructed from solid cast brass, this IP65-rated fixture is available in brushed chrome, black, or aged brass finishes. It features a frosted diffused optic and a 7W LED light source, delivering up to 800 lumens with dual CCT options, operating on 12–24V AC/DC or 24V DC configurations.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-420 |
| Type | Grazing Light |
| Construction | Cast Brass |
| Warranty | 5 Years |
| Country of Manufacture | China |
| Voltage | SELV (12 / 24V AC/DC) |
| Light source type | MR16 Lamp |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 500mm 2-Core Fig.8 Cable |
| Electrical insulation class | Class III |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
