AQL-424
Lights · Spike Uplight
Lights
AQL-424
Adjustable spike uplight with 150mm extension designed for spike mounted lighting.

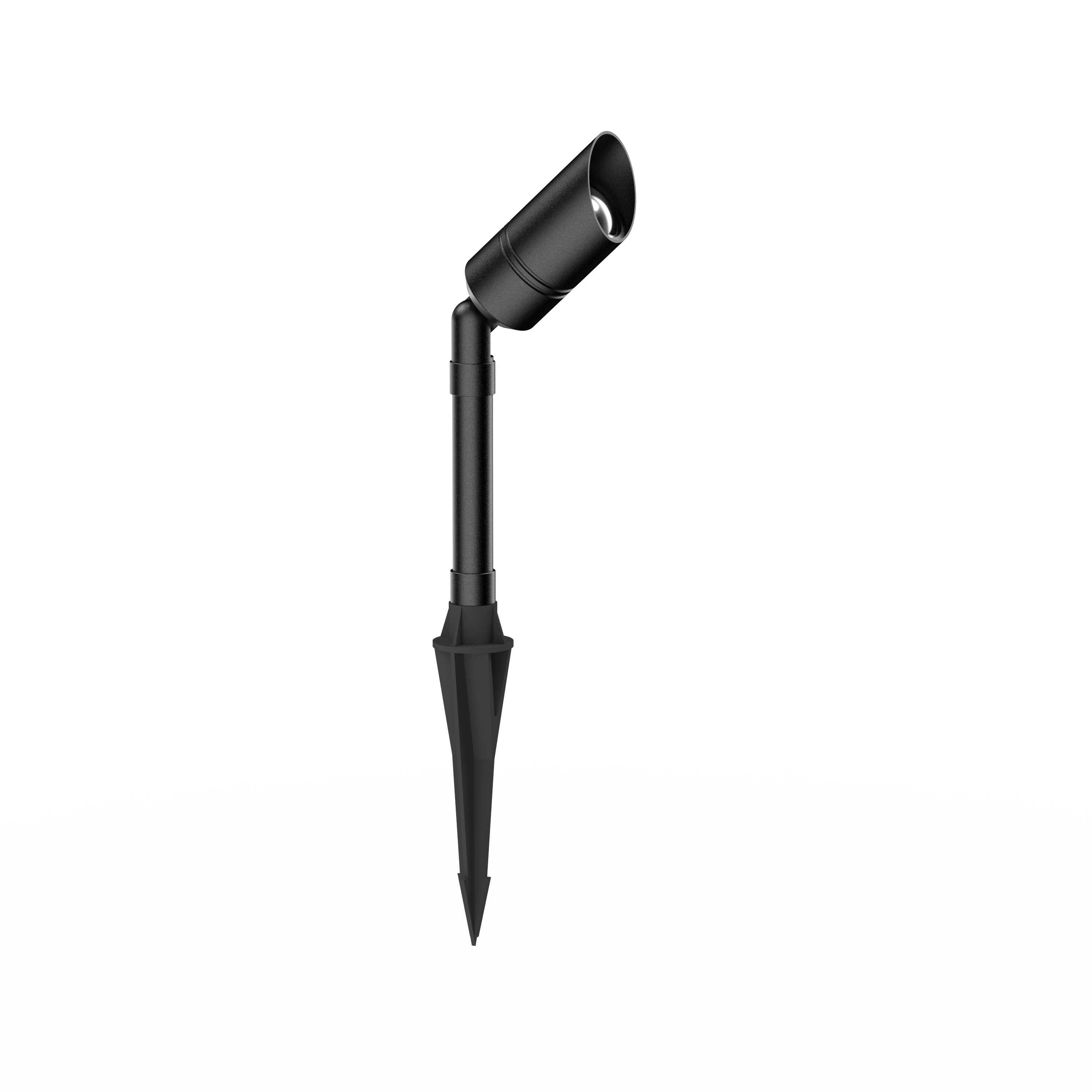

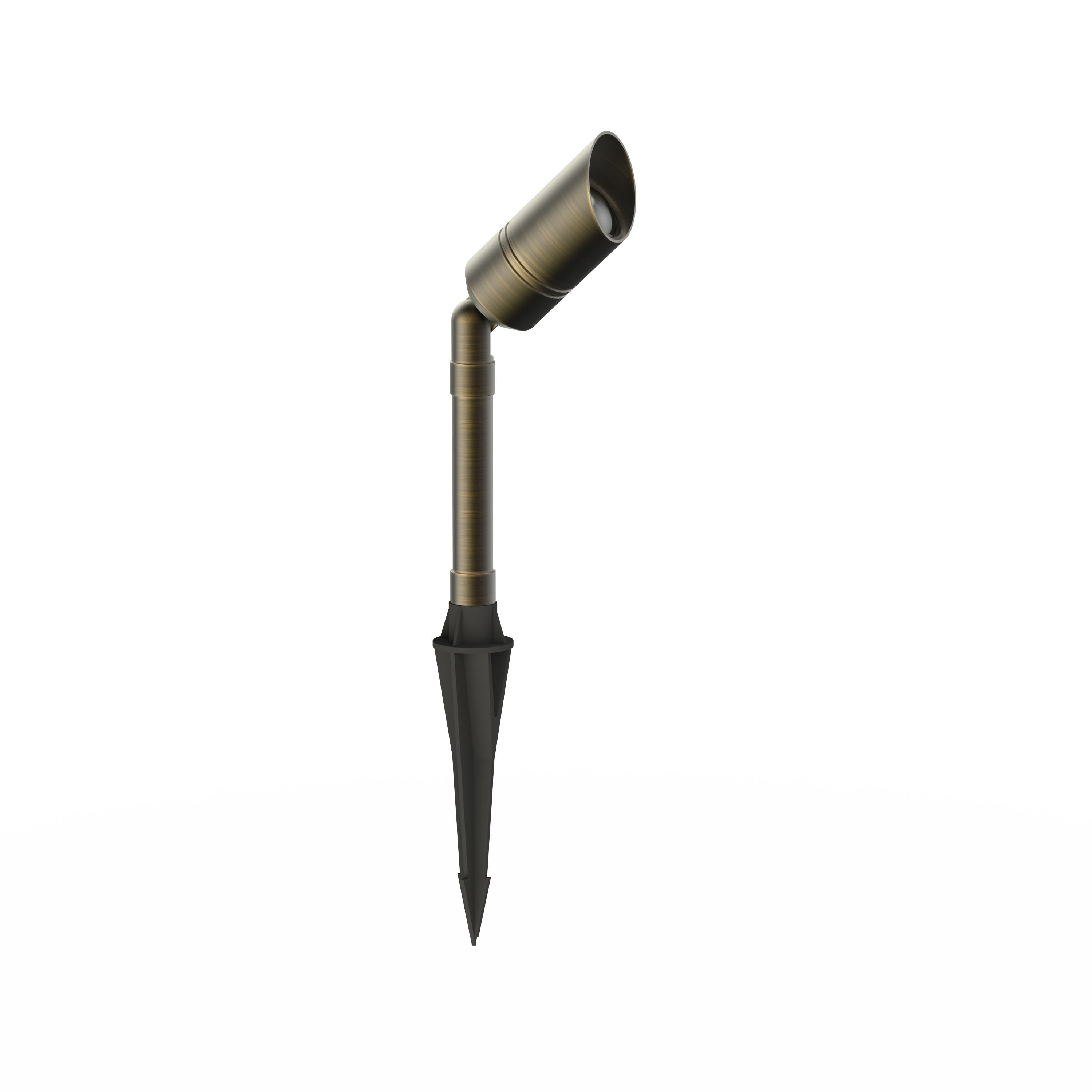

The AQL-424 is a single-head, spike-mounted adjustable uplighter featuring a 150mm extension. It is designed for outdoor spike uplight applications.
Constructed from solid cast brass, this IP65-rated fixture is available in black brass or aged brass finishes. It features a 500mm Fig 8 cable, compatibility with MR16 or MR11 control gear, and lamp-dependent dimming.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-424 |
| Type | Spike Uplight |
| Construction | Cast Brass |
| Warranty | 5 Years |
| Country of Manufacture | China |
| Light source type | MR16 Lamp |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
| Voltage | SELV (12 / 24V AC/DC) |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 500mm 2-Core Fig.8 Cable |
| Electrical insulation class | Class III |
