AQL-433
Lights · Pathlight
Lights
AQL-433
Solid cast brass MR11 surface mount pathlight designed for path lighting.

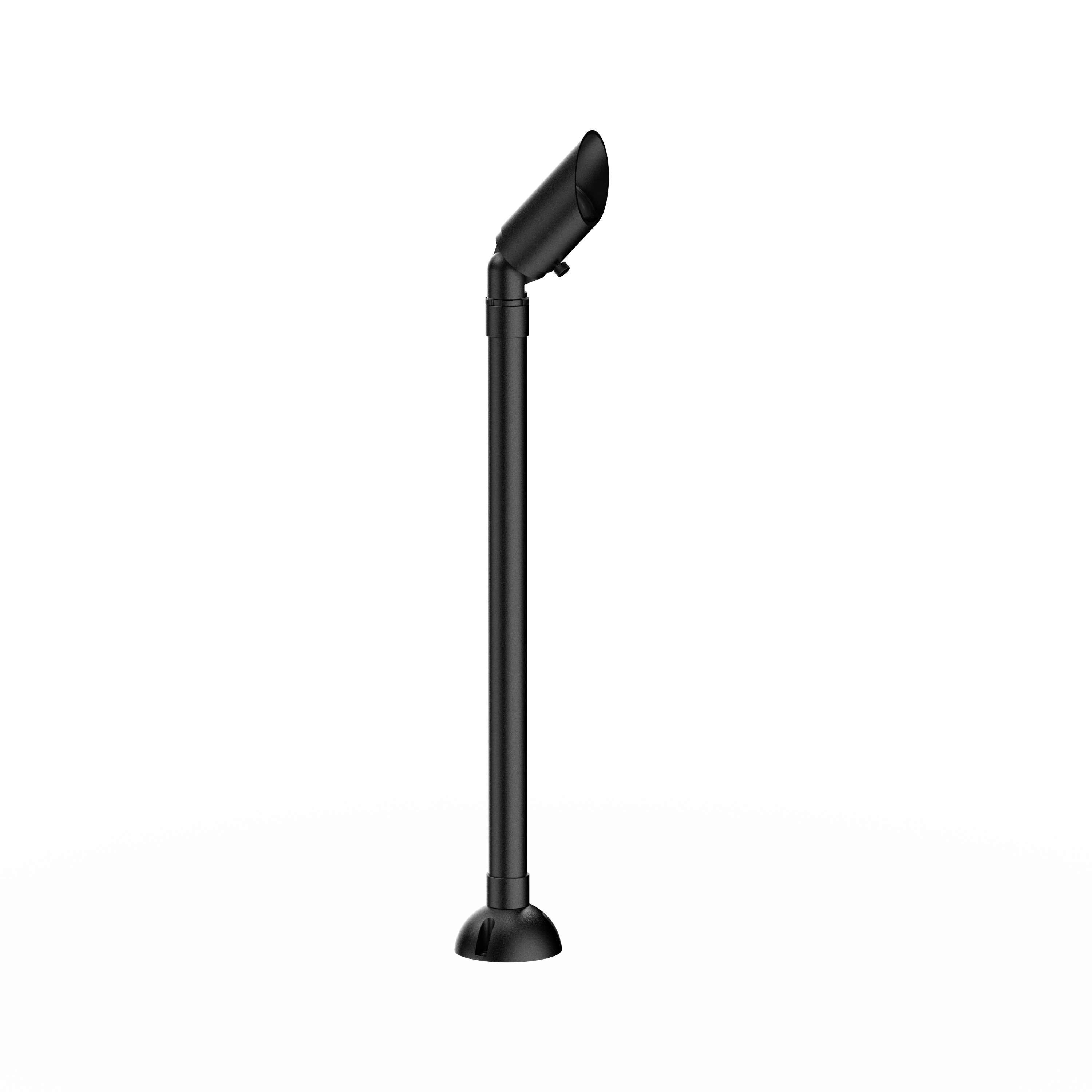

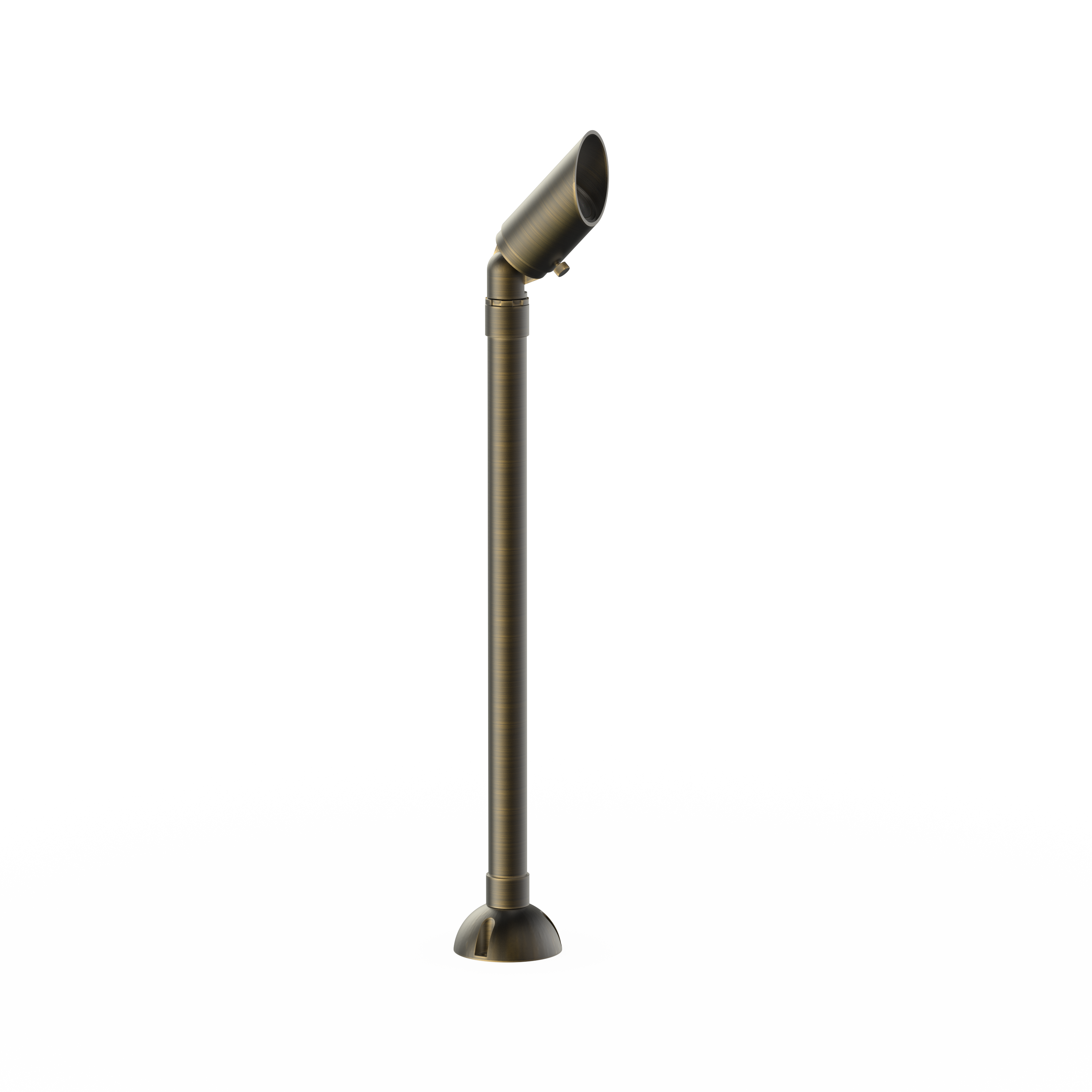

The AQL-433 is a 380mm MR11 surface mount pathlight. It is designed specifically for outdoor pathway lighting applications.
Constructed from solid cast brass, this IP65-rated fixture features a 500mm Fig 8 cable. It accommodates MR11 LED drop-in lamps and is available in black brass or aged brass finishes with lamp-dependent dimming.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-433 |
| Type | Projector |
| Construction | Cast Brass |
| Warranty | 7 Years |
| Country of Manufacture | China |
| Light source type | MR11 Lamp |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
| Voltage | SELV (12 / 24V AC/DC) |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 500mm 2-Core Fig.8 Cable |
| Electrical insulation class | Class III |
