AQL-434
Lights · Pathlight
Lights
AQL-434

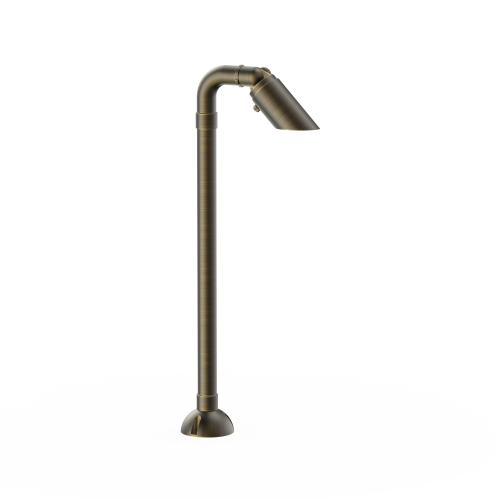

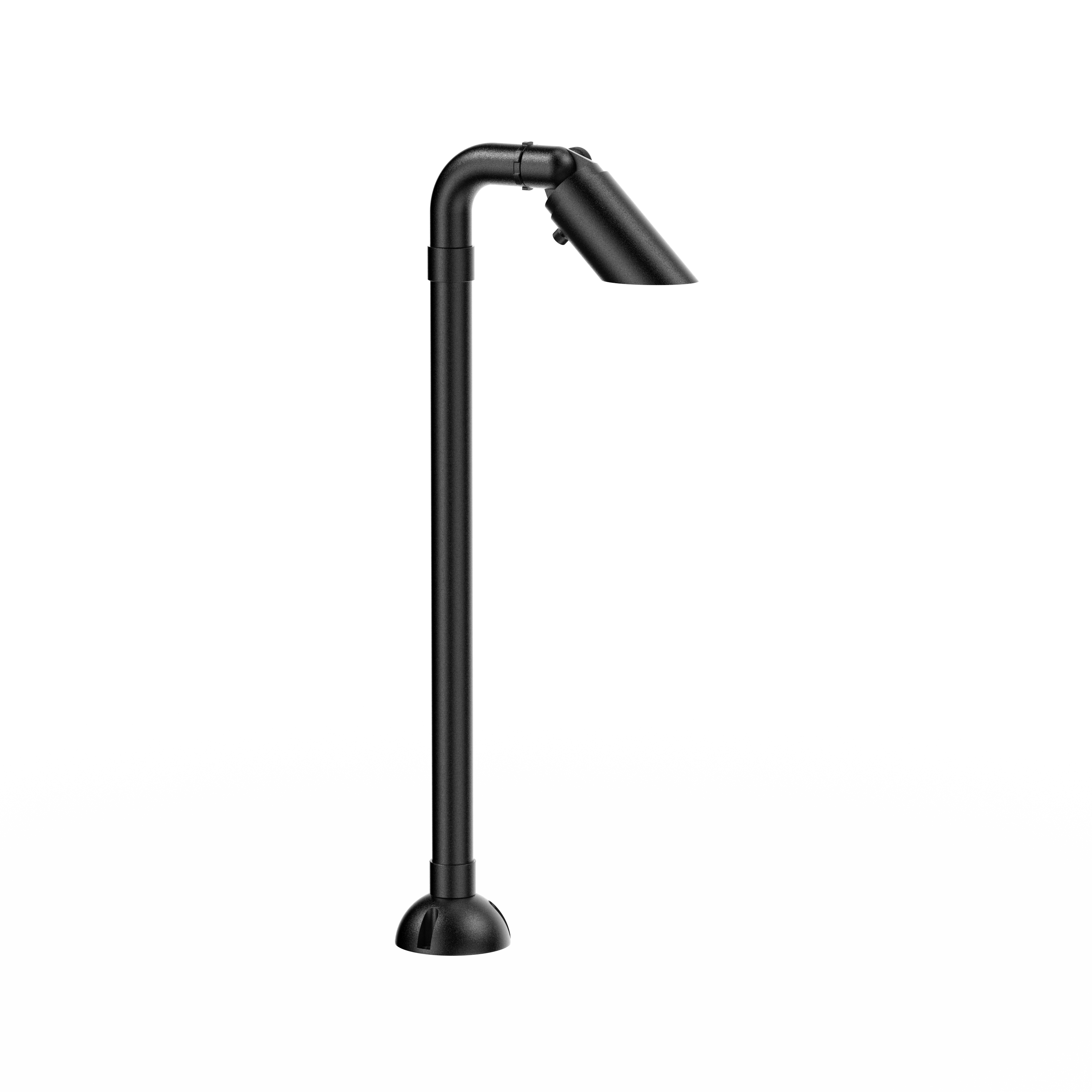

Solid cast brass surface mount pathlight with elbow designed for path lighting.
The AQL-434 is a 380mm surface-mounted pathlight featuring an integrated elbow, designed for pathway and landscape lighting applications.
Constructed from solid cast brass, this IP65-rated fixture is available in black or aged brass finishes. It features a 500mm Fig 8 cable and is compatible with MR11 LED drop-in lamps, with dimming capabilities dependent on the selected lamp.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-434 |
| Type | Pathlight |
| Construction | Cast Brass |
| Warranty | 7 Years |
| Country of Manufacture | China |
| Light source type | MR11 Lamp |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
| Voltage | SELV (12 / 24V AC/DC) |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 500mm 2-Core Fig.8 Cable |
| Electrical insulation class | Class III |
