AQL-437

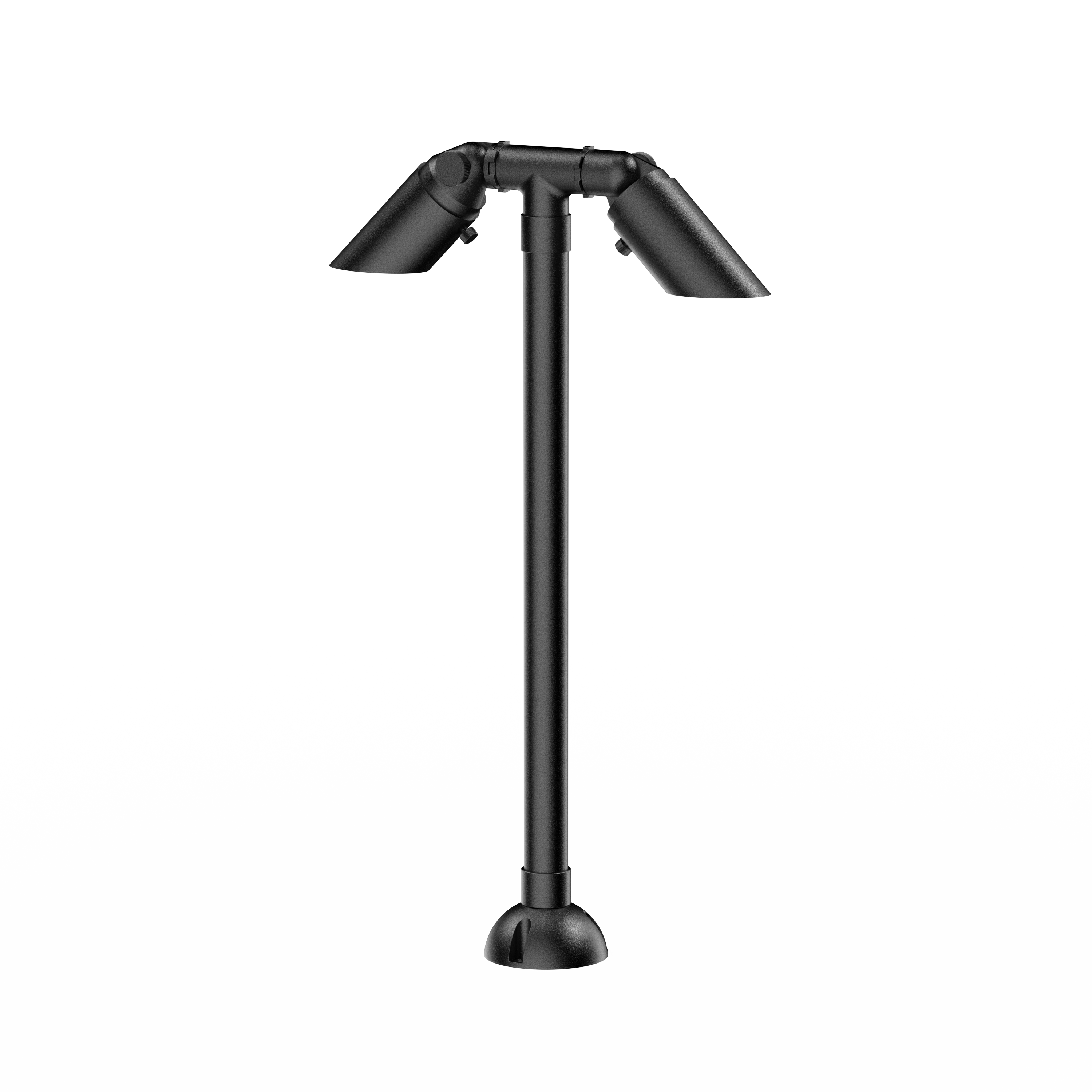

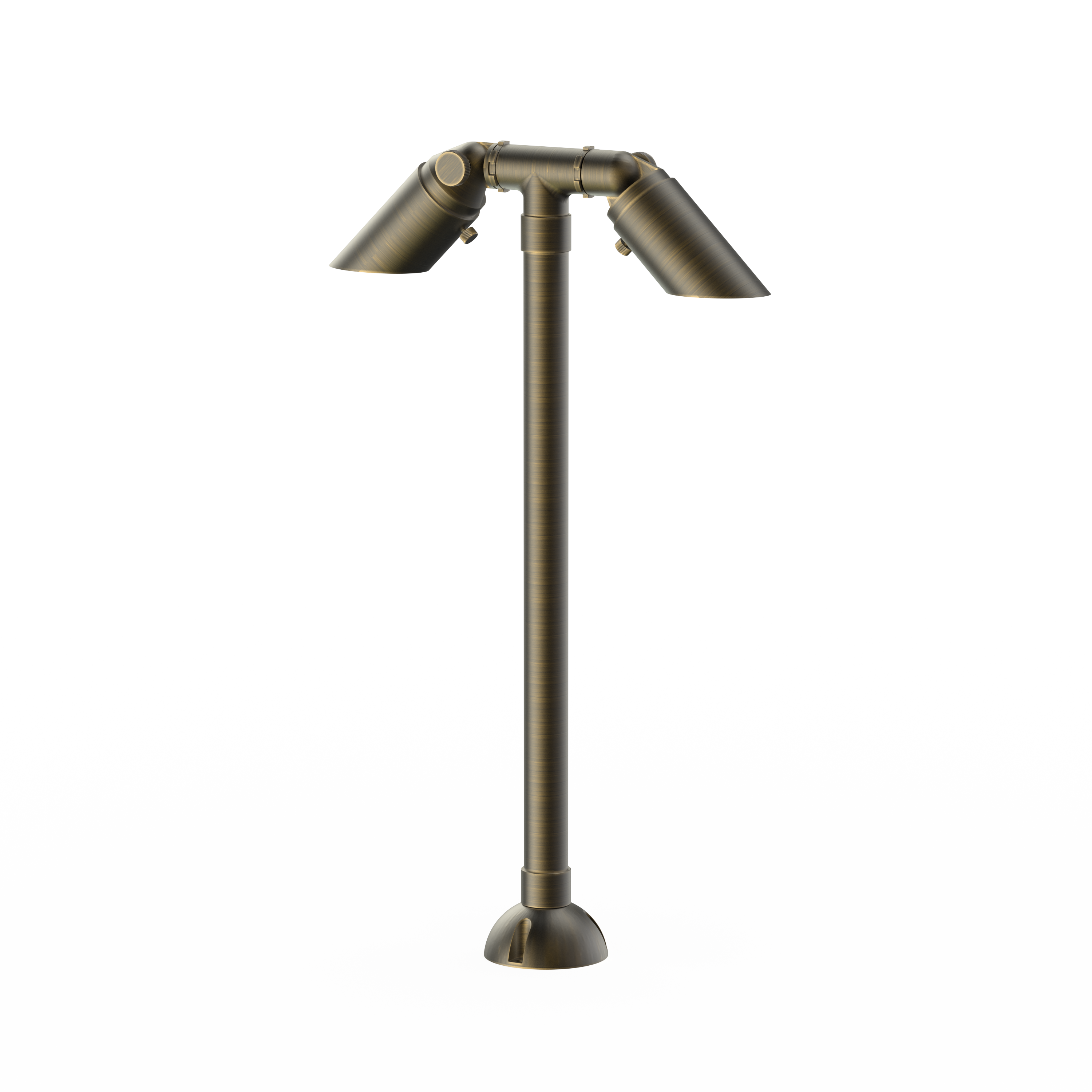

Twin MR11 surface mount cast brass pathlight designed for path lighting.
The AQL-437 is a twin 380mm MR11 surface mount pathlight designed for architectural pathway illumination.
Constructed from solid cast brass, this IP65-rated fixture is available in black brass, aged brass, or natural brass finishes. It features a 500mm Fig 8 cable, accommodates MR11 LED drop-in lamps, utilizes MR16 or MR11 control gear, and supports lamp-dependent dimming.
Available Downloads
Dimension
SPECIFICATIONS
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 500mm 2-Core Fig.8 Cable |
| Electrical insulation class | Class III |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
| Voltage | SELV (12 / 24V AC/DC) |
| Product Code | AQL-437 |
| Type | Pathlight |
| Construction | Cast Brass |
| Warranty | 7 Years |
| Country of Manufacture | China |
| Light source type | MR11 Lamp |
