AQL-438

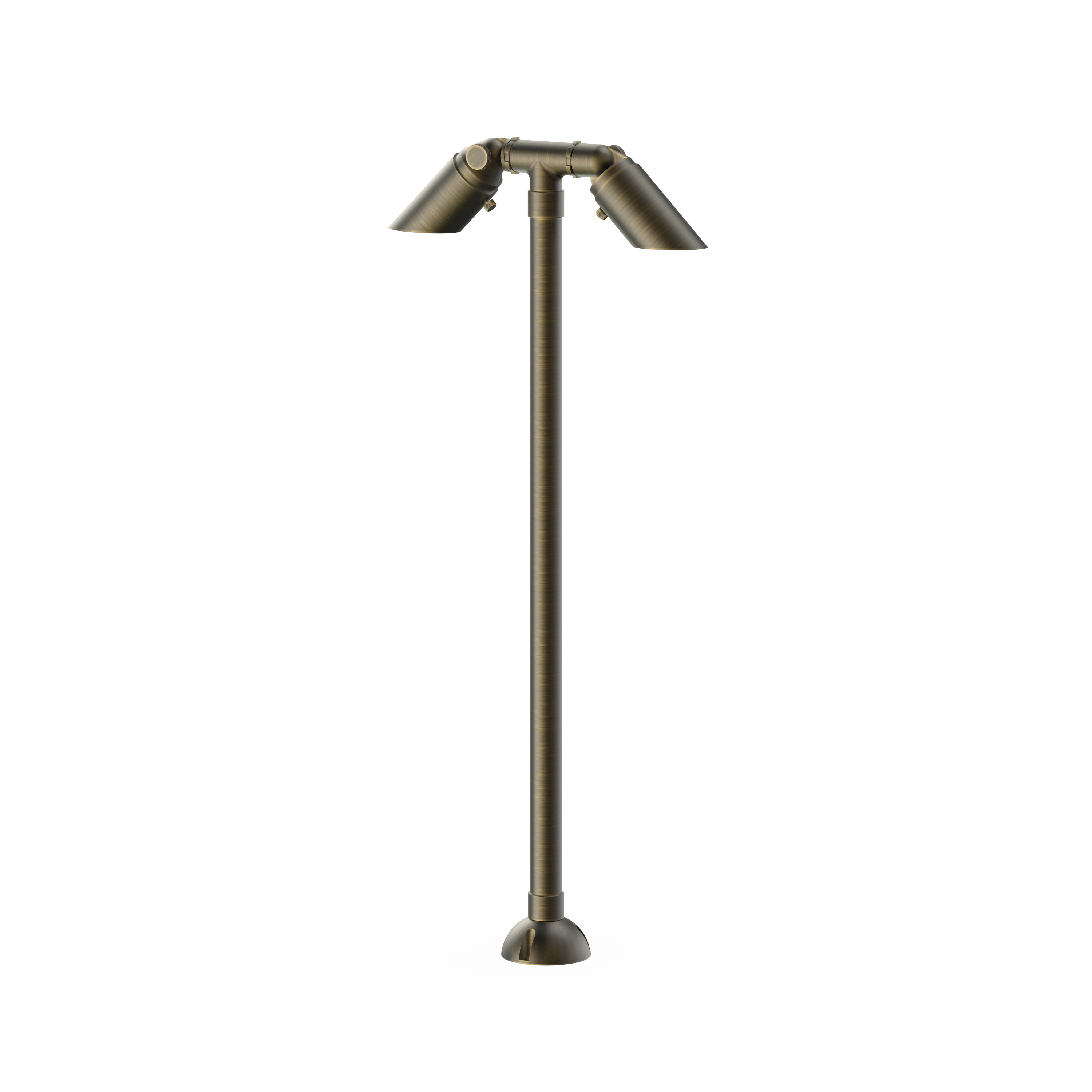

Solid cast brass twin pathlight designed for surface mount path lighting.
The AQL-438 is a 600mm twin surface-mount pathlight designed for outdoor pathway illumination.

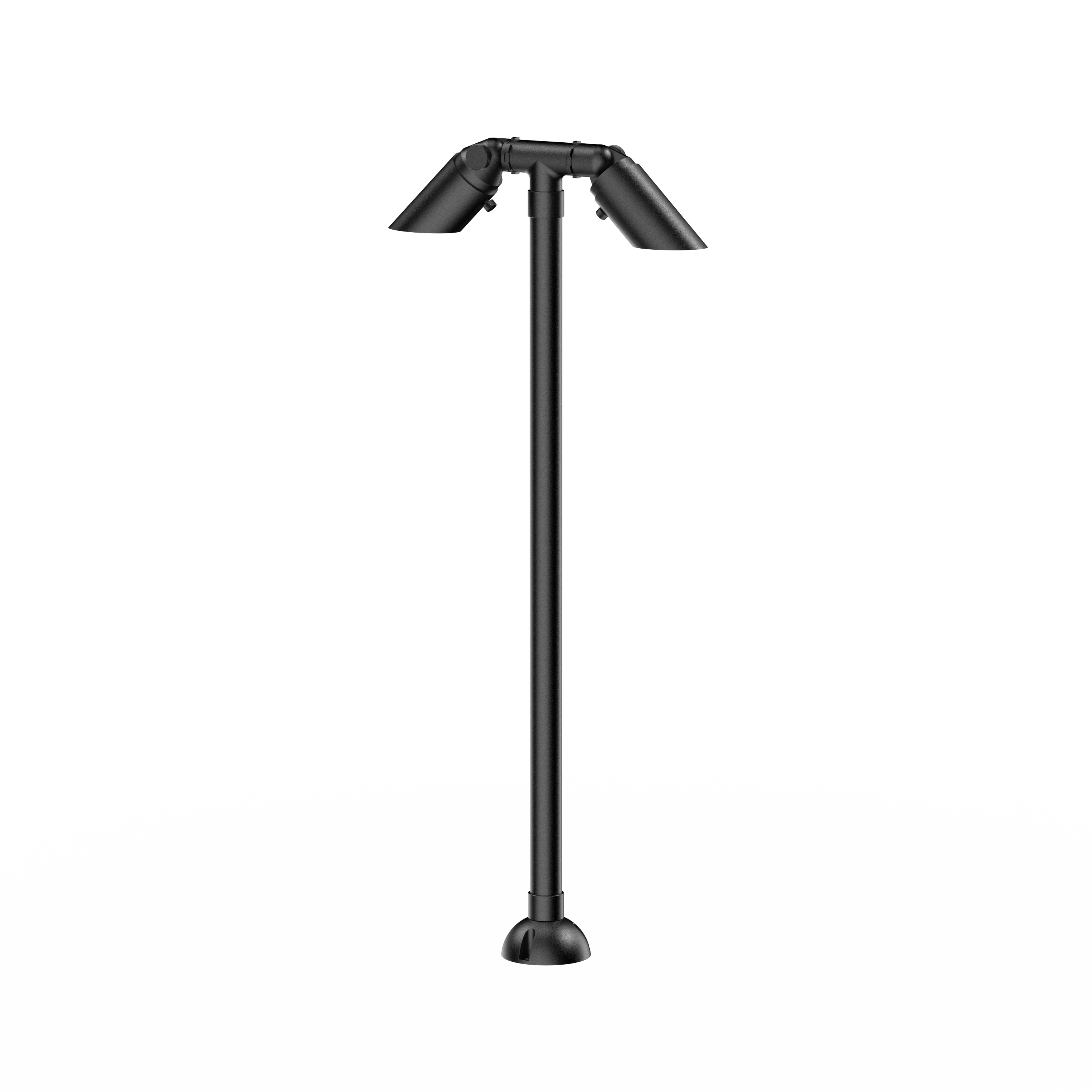

Constructed from solid cast brass, this IP65-rated fixture is available in black brass, aged brass, and brass finishes. It features a 500mm Fig 8 cable, accommodates MR11 LED drop-in lamps, and offers lamp-dependent dimming.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-438 |
| Type | Pathlight |
| Construction | Cast Brass |
| Warranty | 7 Years |
| Country of Manufacture | China |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
| Light source type | MR11 Lamp |
| Voltage | SELV (12 / 24V AC/DC) |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 500mm 2-Core Fig.8 Cable |
| Electrical insulation class | Class III |
