AQL-455
Lights · Spike Uplight
Lights
AQL-455
Adjustable aluminium spike spotlight designed for lighting projects of every budget.

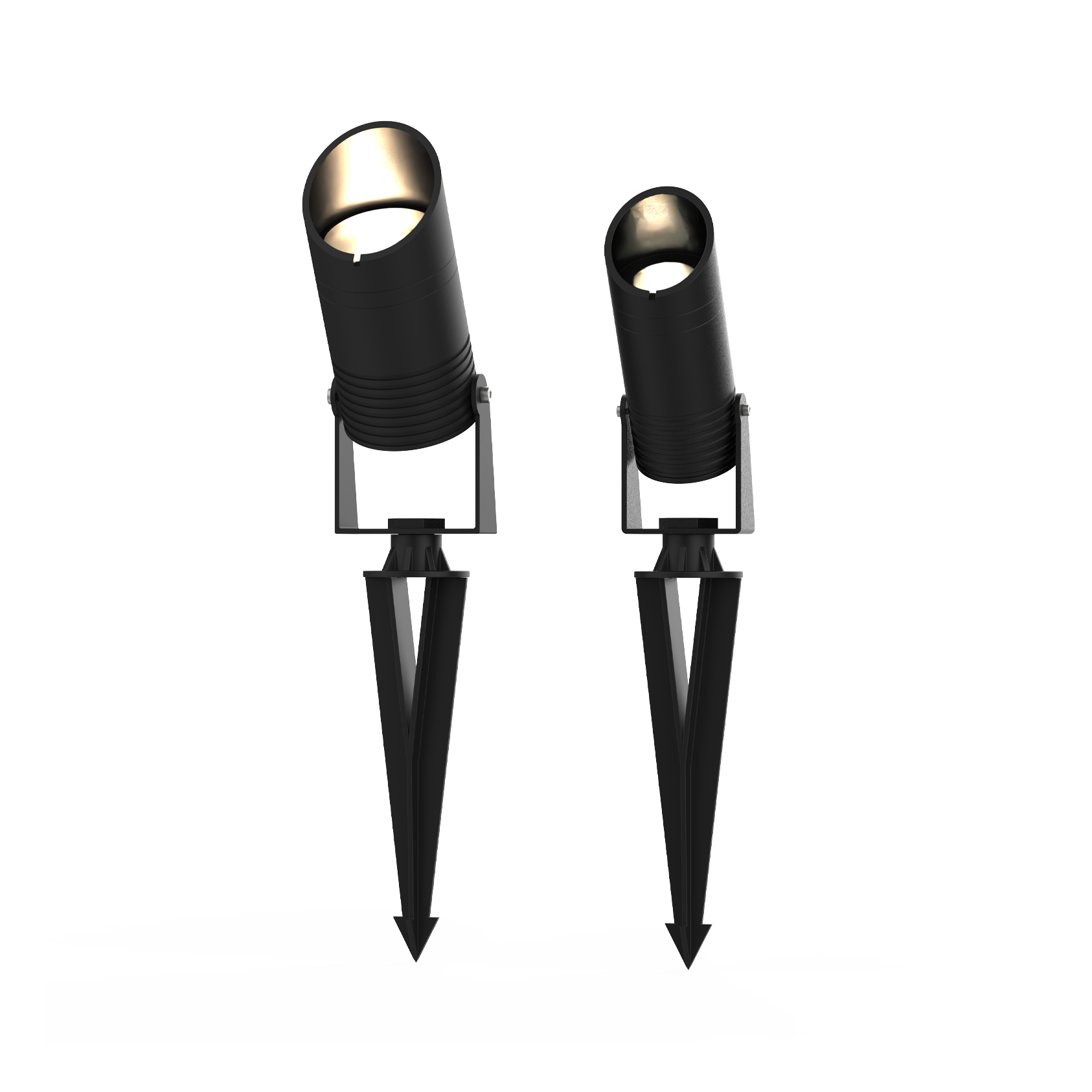

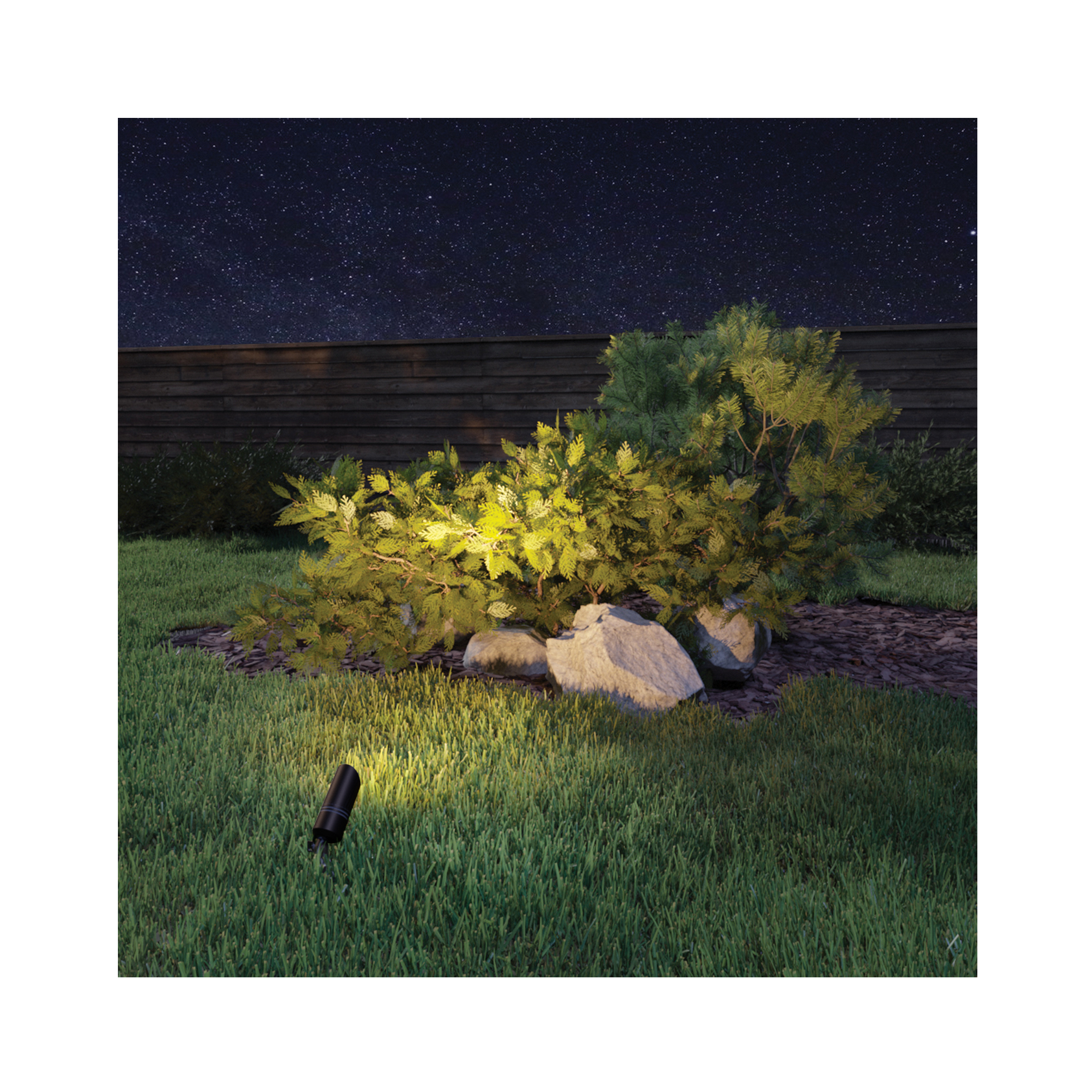

The AQL-455 is an adjustable LED spotlight designed for outdoor spike uplighting applications.
CNC machined from 6000 series aluminium with a textured black powder coat, this IP65-rated fixture features an integrated CREE LED. It offers 3W, 6W, or 10W configurations (200lm to 600lm, 3000K) with a 38° optic. The non-dimmable unit operates on 12–24V AC/DC or 24V DC and includes a 1m twin-core cable.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-455 |
| Construction | CNC Aluminium |
| Warranty | 2 Years |
| Country of Manufacture | Australia |
| Voltage | 24V DC |
| Frequency | - |
| Flicker free | Yes. |
| Dimming | No |
| Max. qty of fixtures C16 Breaker | PSU Dependant |
| CRI (3000K) | 90+ |
| SDCM | 3 |
| LED Lifetime | L80 B10 70,000h (Ta 25C) |
| Operating temperature range | 0C - 40C |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 2-Core Anti-Siphon Cable |
| Electrical insulation class | Class II |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
VARIATIONS
AQL-455 - has 0 variations| Product Code | Body | Control Gear | Power | CCT | Optical | Cable | Datasheet |
|---|
No variations found matching your search.
