AQL-516

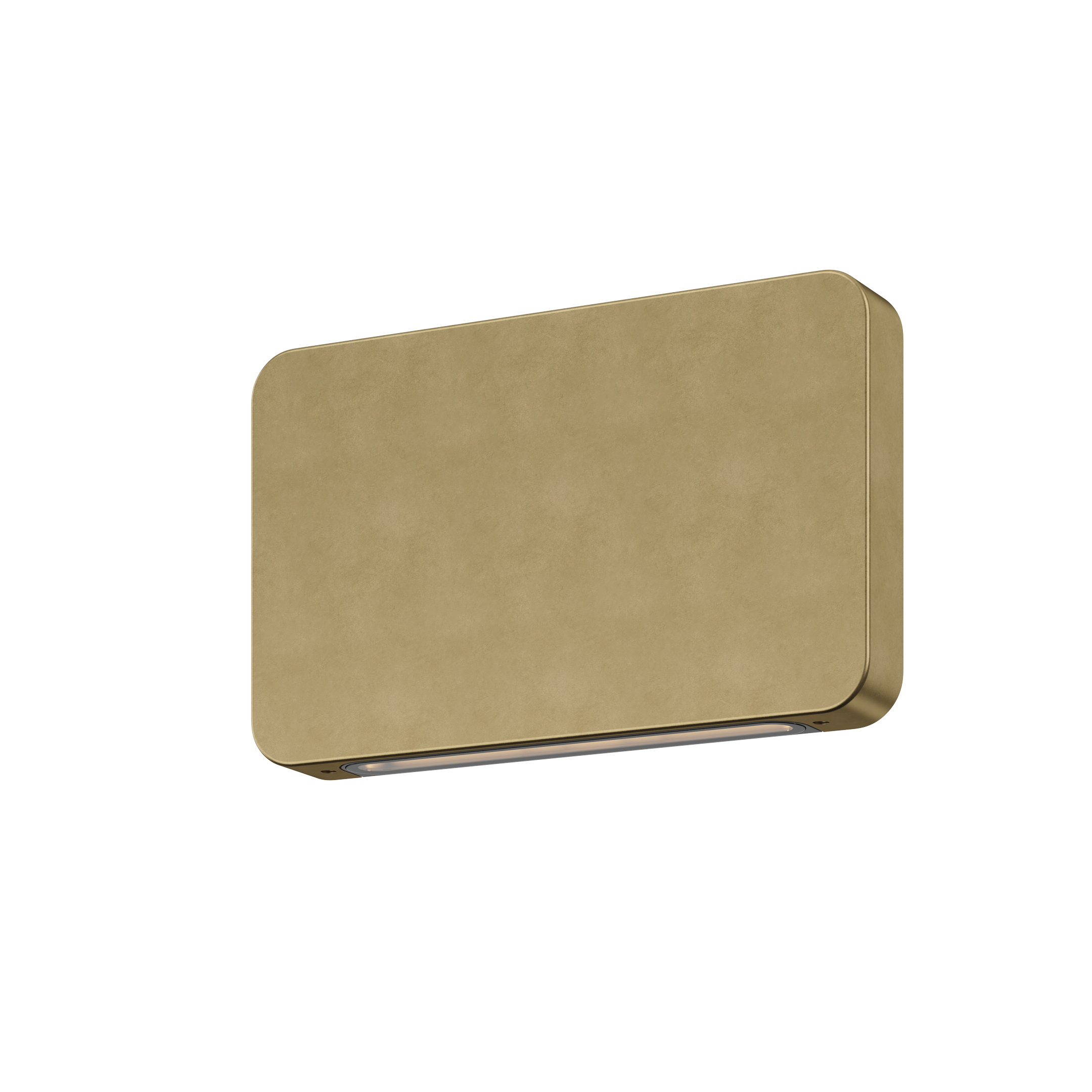

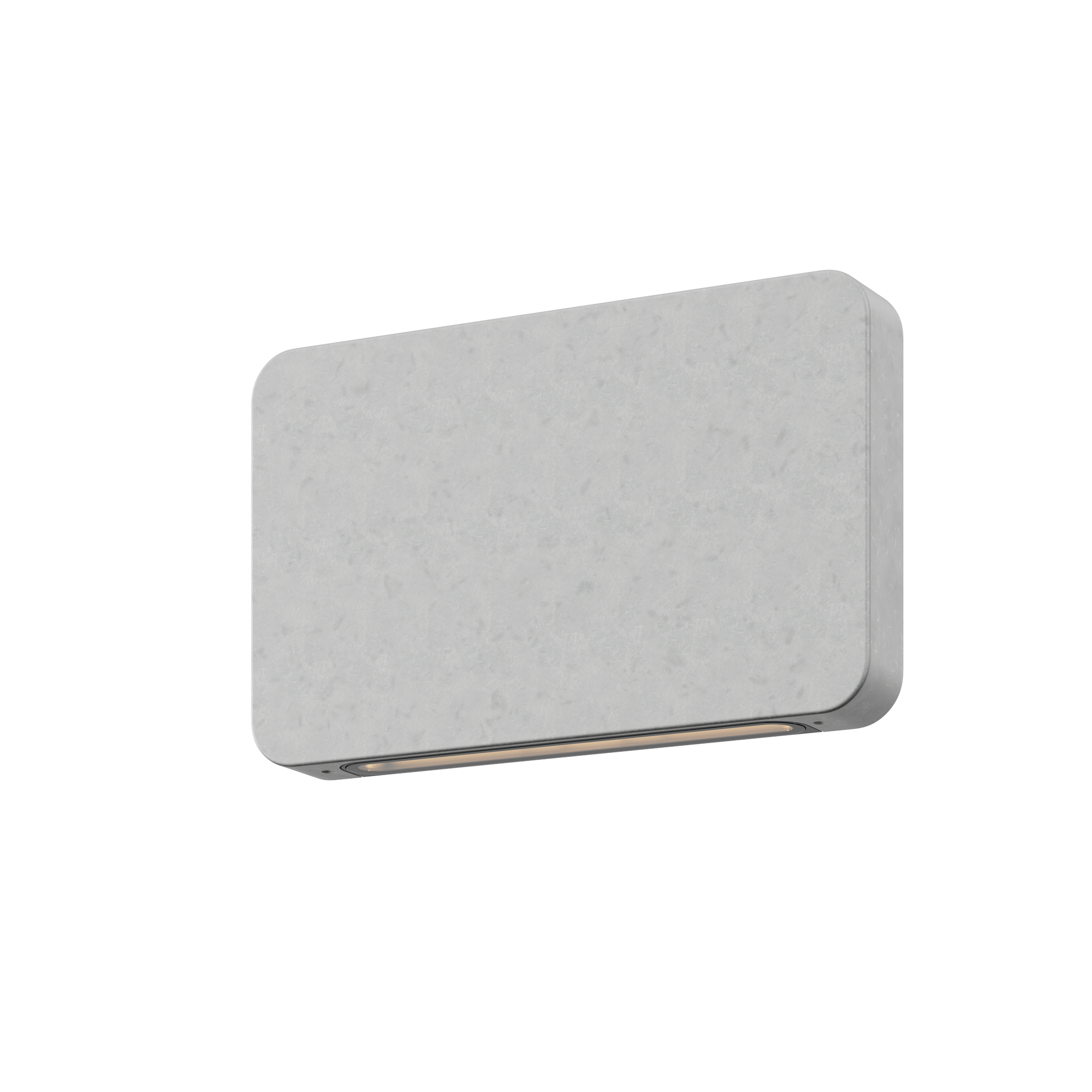

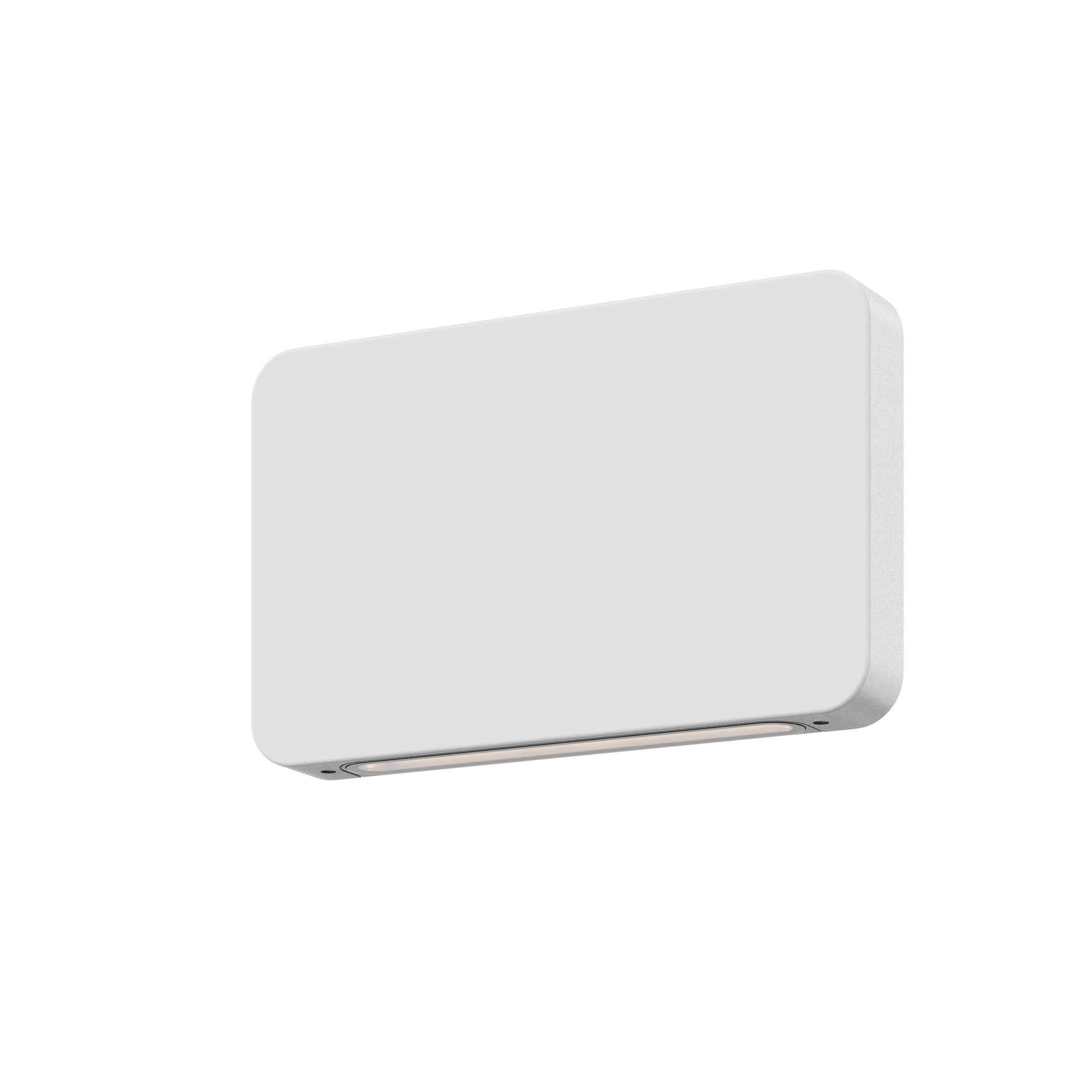

Slimline grazing light designed for steps, corridors and general wayfinding applications.

The AQL-516 is a 145mm slimline grazing light designed for steps, corridors, and general wayfinding. It is suitable for both interior and exterior applications.

Constructed from CNC machined brass or 6000 series aluminium, this IP65-rated fixture includes a 500mm silicone/PTFE cable. It operates on 24V DC, utilizing a 6W, 600lm light source with a diffused optical lens.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-516
Construction	Brass / CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
