AQL-517

Slimline surface grazing light designed for stair-tread and similar wayfinding applications.

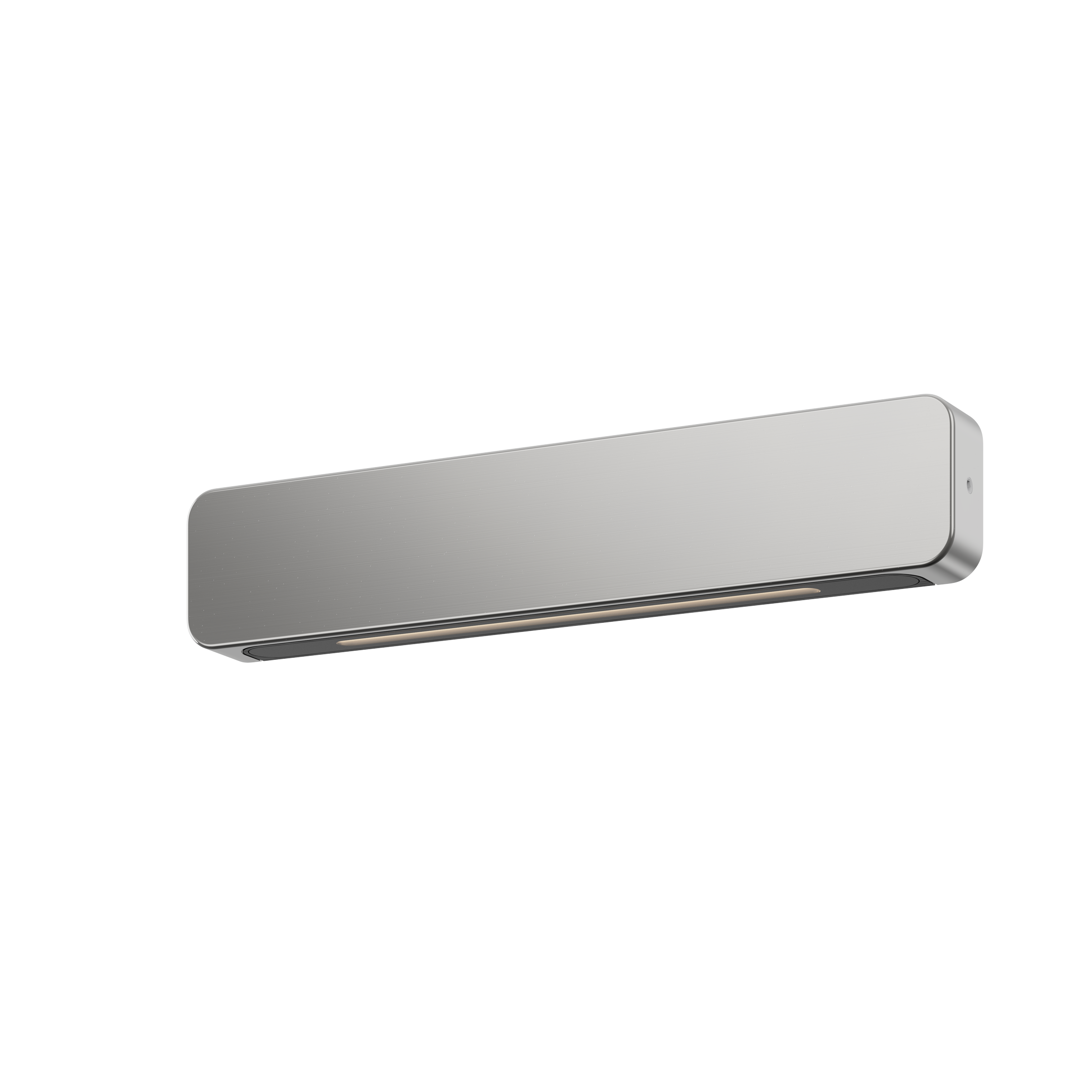

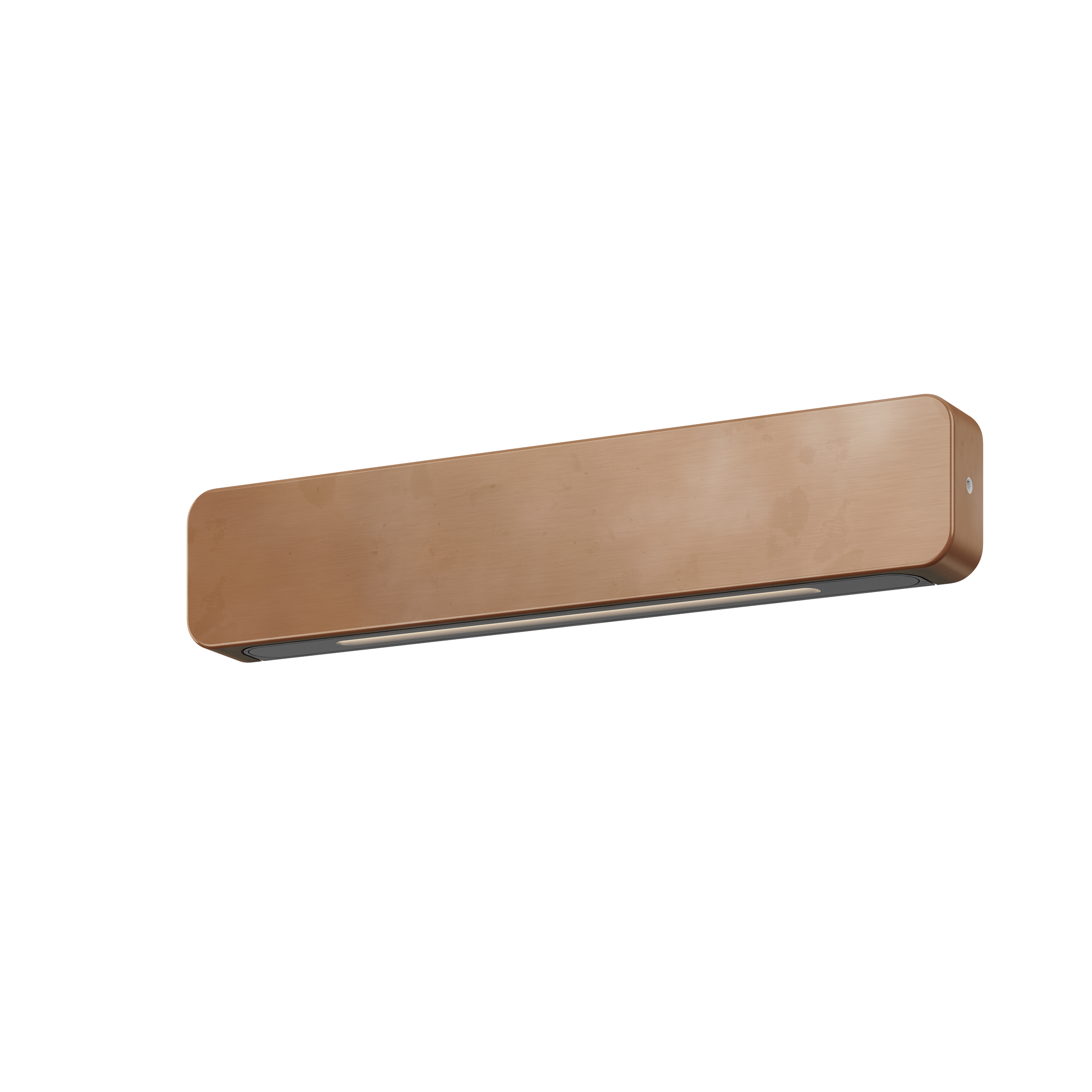

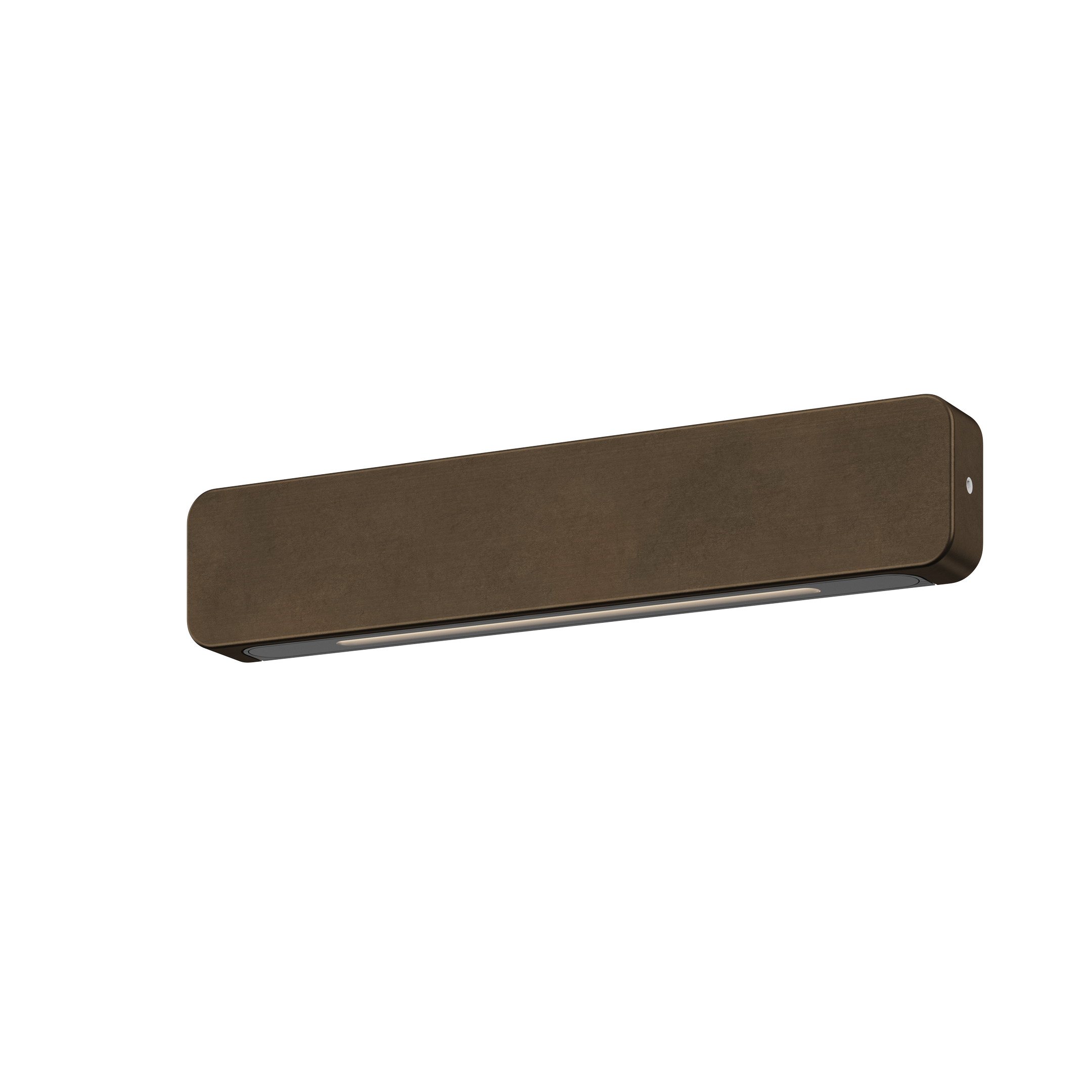

The AQL-517 is a slimline, reduced-height surface grazing light designed for stair-tread and wayfinding applications.

CNC machined from solid brass or 6000 series aluminium, this IP65-rated fixture features an etched glass diffuser and a 500mm two-core cable. It operates on a dimmable 24V DC system, utilizing a 2W LED engine available in 2700K, 3000K, or 4000K color temperatures.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-517
Construction	Brass / CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
