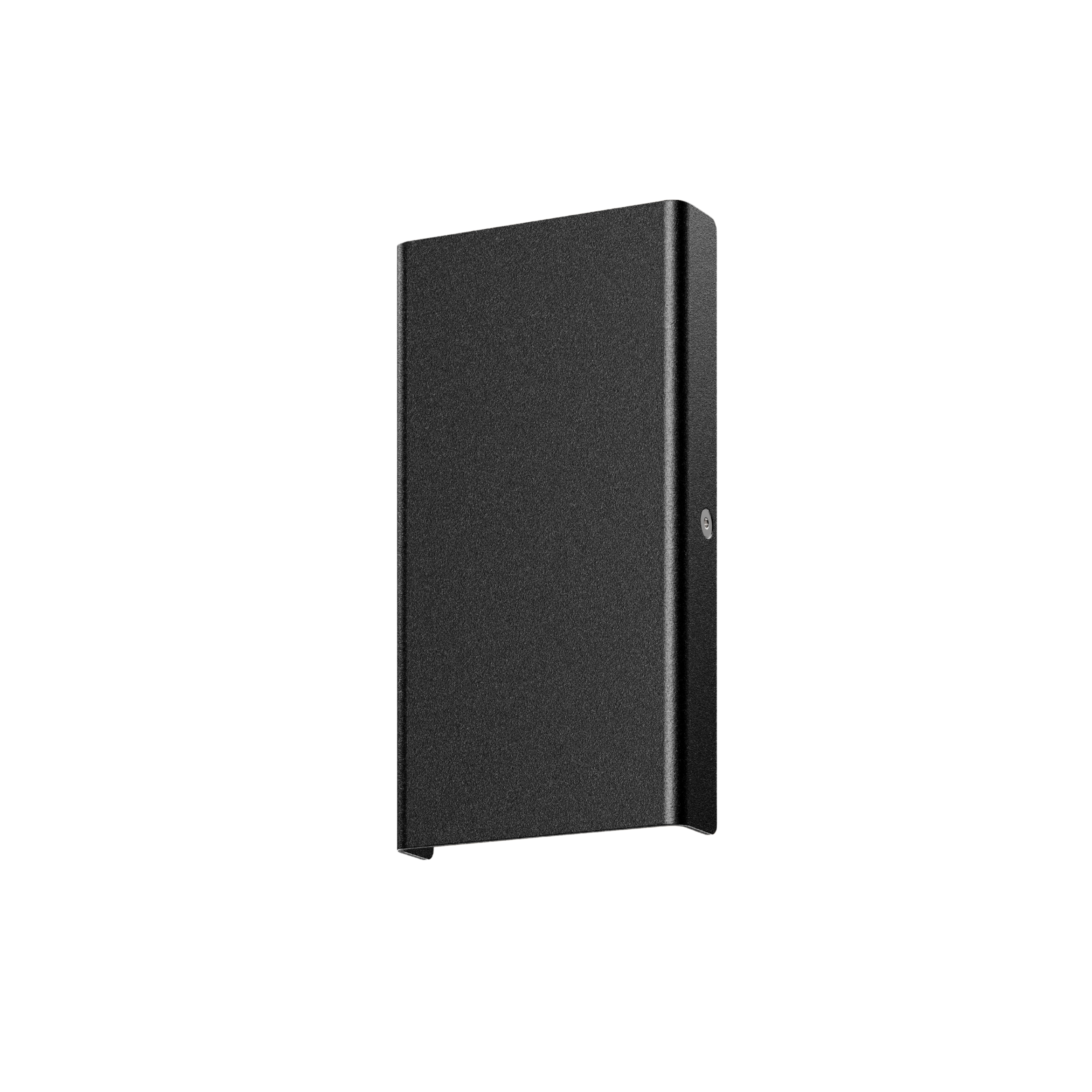

AQL-519

Up-down wall grazing light designed for step and wall lighting applications.

The AQL-519 is a minimal up-down wall grazing step light. It is designed for wall-mounted grazing applications, providing bi-directional illumination to highlight architectural surfaces.

Constructed from CNC machined 6000 series aluminium, this IP65-rated fixture features a diffused optical lens. It operates on 24V DC at 8W, offering light outputs up to 1420 lumens with 2-wire PWM dimming.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-519
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
