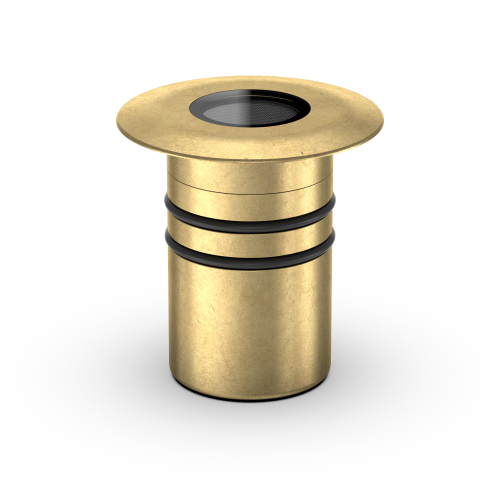

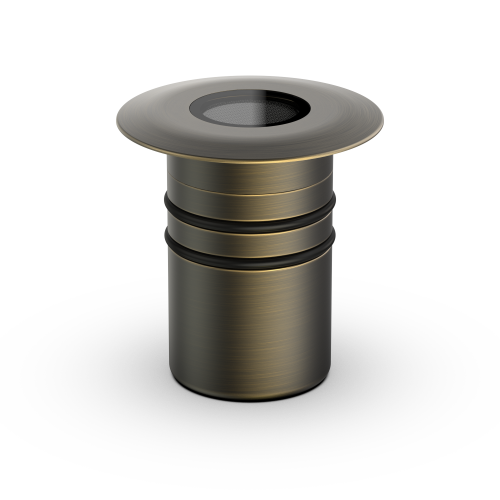

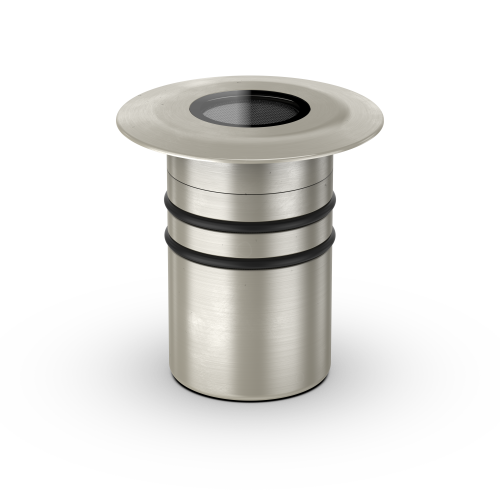

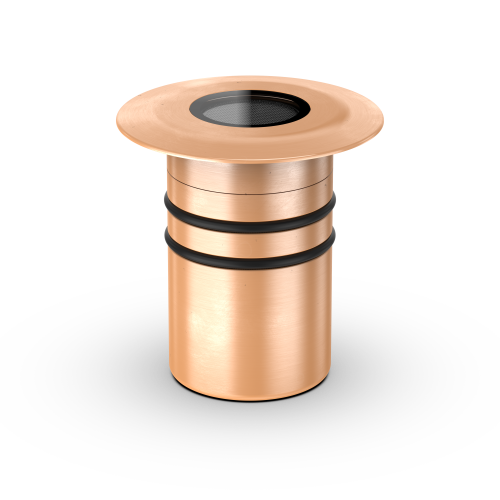

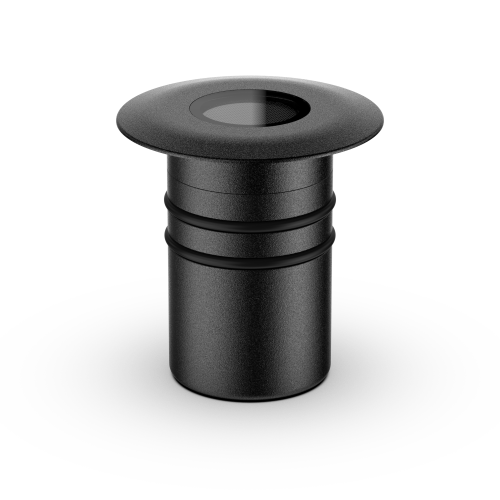

AQL-530

Cast brass inground uplight designed for applications requiring high reliability and performance.

The AQL-530 is an inground uplight designed to withstand the worst conditions nature can offer. It is suitable for any ground-mounted application requiring high reliability and performance.

Constructed from solid cast brass, this IP65-rated fixture features five finish options. Technical specifications include 4W, 7W, or 10W LED light sources, beam angles from 10° to 55°, and a 3-core anti-siphon cable.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-530
Construction	Brass
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
