AQL-531
Lights · Inground Uplight
Lights
AQL-531

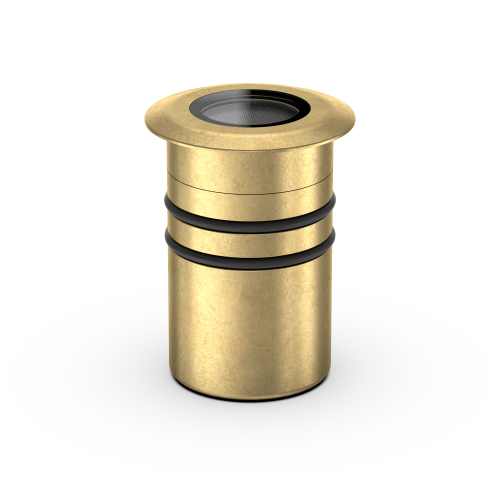

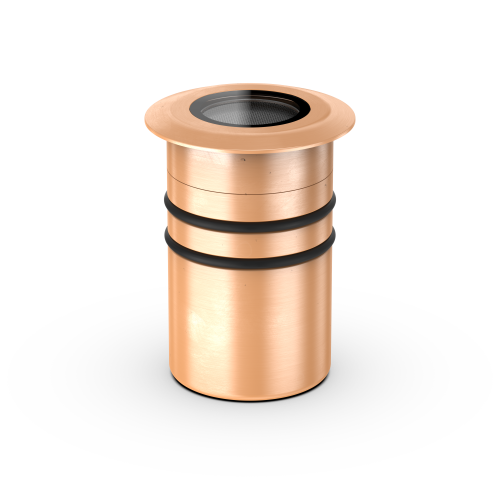

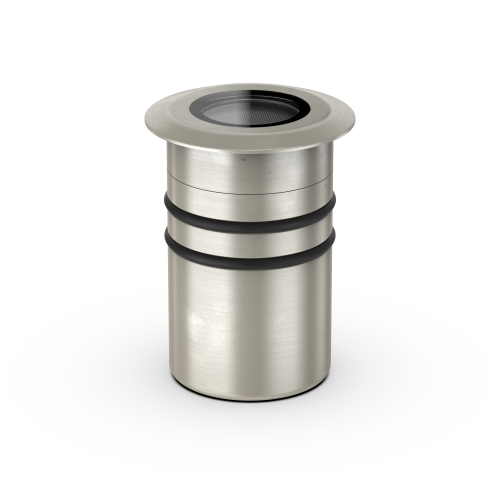

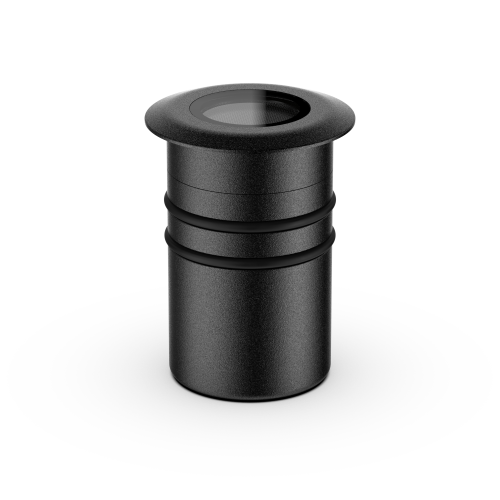

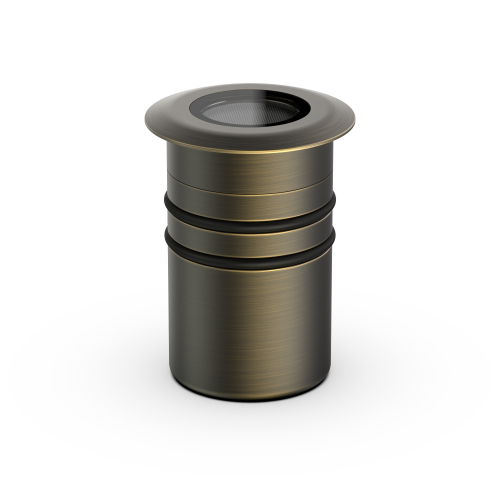

Solid cast brass inground uplight designed for 24V DC LED lighting.
The AQL-531 is an inground uplight designed for ground-mounted uplighting applications.
Constructed from solid cast brass, this IP65-rated fixture features a 3-core anti-siphon cable and a 7-year warranty. It offers various brass finishes, 24V DC or 12–24V AC/DC control gear, and 4W to 10W light sources. Optical configurations range from a narrow 10° to a wide-wide 55° beam.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-531 |
| Construction | Brass |
| Warranty | 7 Years |
| Country of Manufacture | Australia |
| CRI (3000K) | 90+ |
| SDCM | 3 |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
| Voltage | 24V DC |
| Frequency | - |
| Flicker free | Yes. |
| Dimming | Yes. Direct PWM. |
| Max. qty of fixtures C16 Breaker | PSU Dependant |
| LED Lifetime | L80 B10 70,000h (Ta 25C) |
| Operating temperature range | 0C - 40C |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 2-Core Anti-Siphon Cable |
| Electrical insulation class | Class II |
