AQL-532
Lights · Inground Uplight
Lights
AQL-532
Hooded recessed uplight designed for applications requiring reduced glare and minimal back-spill.

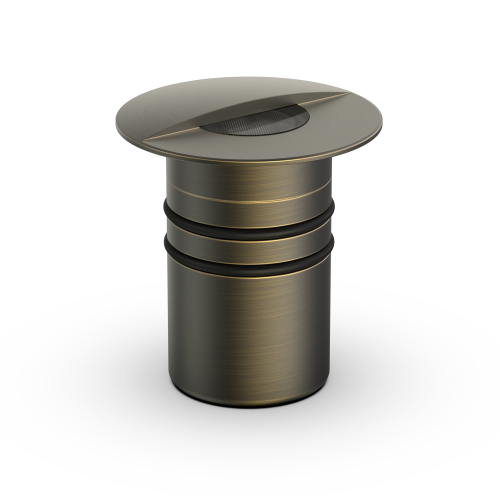

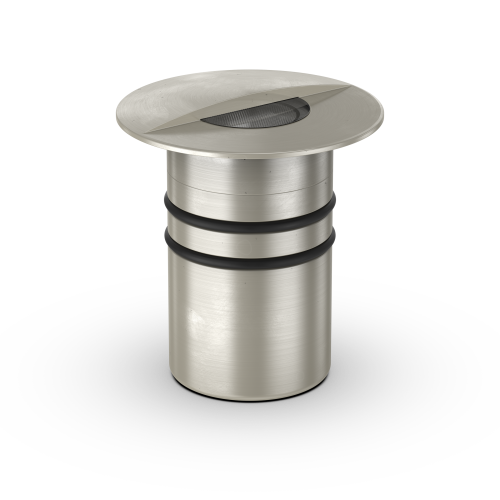

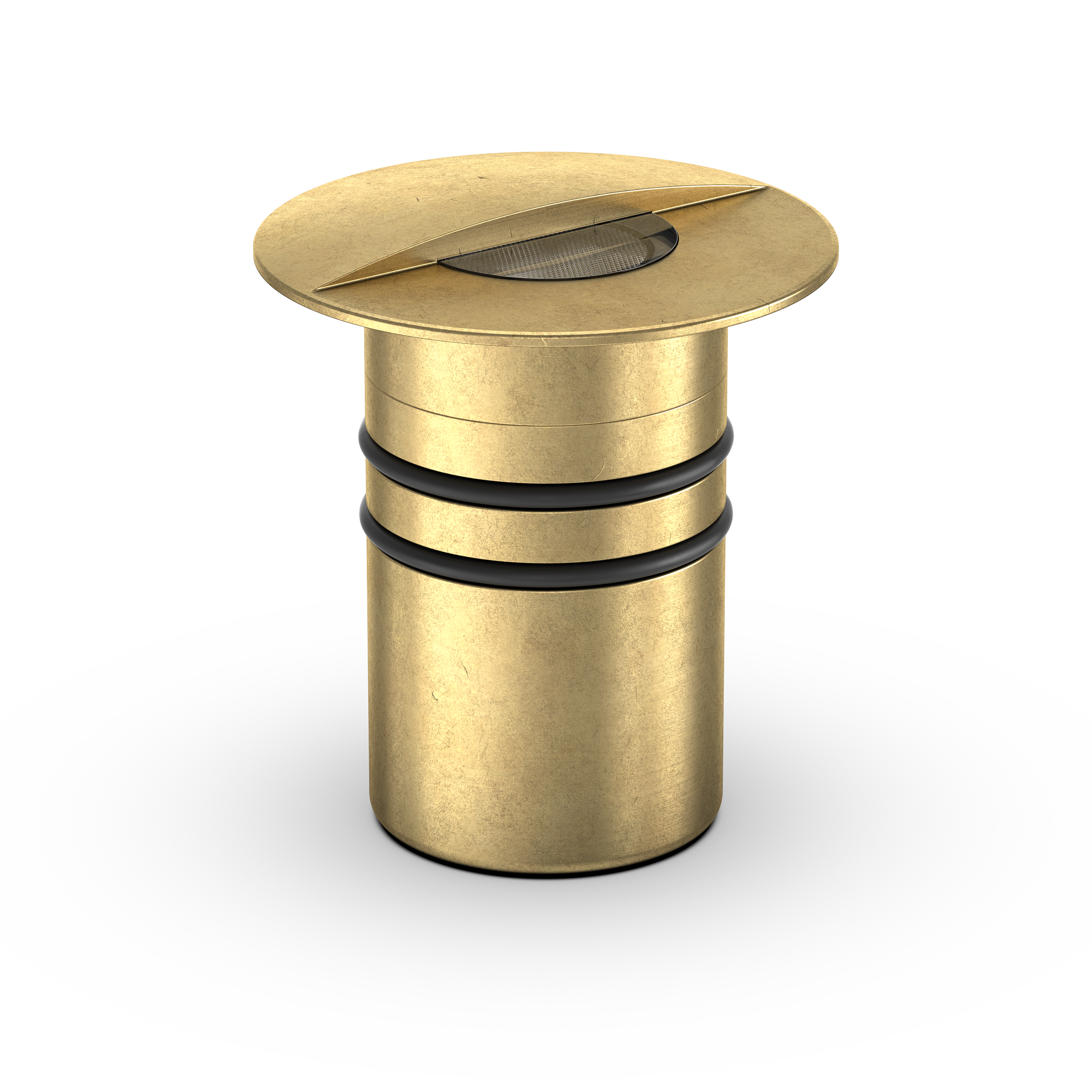

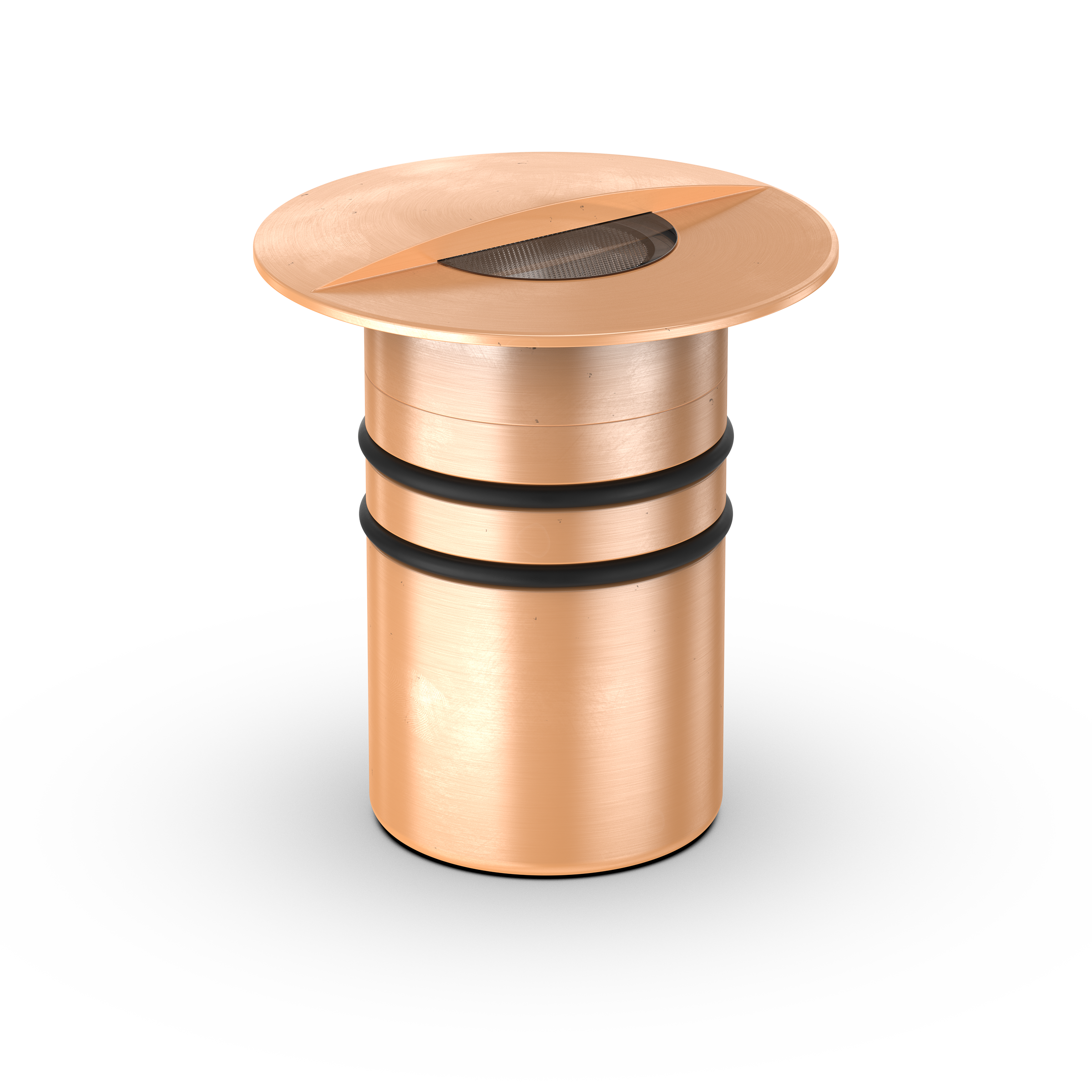

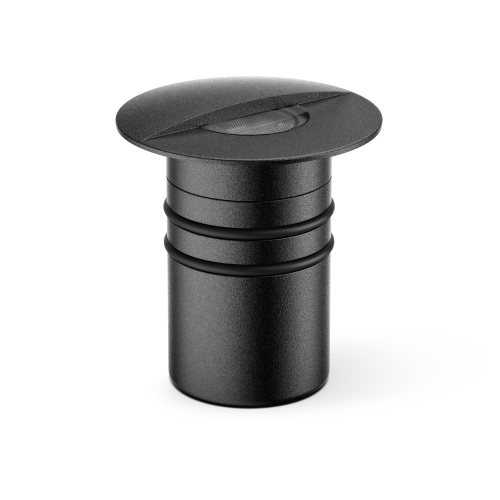

The AQL-532 is a hooded recessed inground uplight and wash light. It is designed for architectural applications requiring reduced glare and minimal back-spill.
CNC machined from solid brass, this IP65-rated fixture features an integrated asymmetric offset optic. It operates on 12–24V AC or 24V DC with a 4W LED light source, delivering up to 320 lumens, and supports 10V PWM dimming.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-532 |
| Construction | Brass |
| Warranty | 7 Years |
| Country of Manufacture | Australia |
| CRI (3000K) | 90+ |
| SDCM | 3 |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
| Voltage | 24V DC |
| Frequency | - |
| Flicker free | Yes. |
| Dimming | Yes. Direct PWM. |
| Max. qty of fixtures C16 Breaker | PSU Dependant |
| LED Lifetime | L80 B10 70,000h (Ta 25C) |
| Operating temperature range | 0C - 40C |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 2-Core Anti-Siphon Cable |
| Electrical insulation class | Class II |
