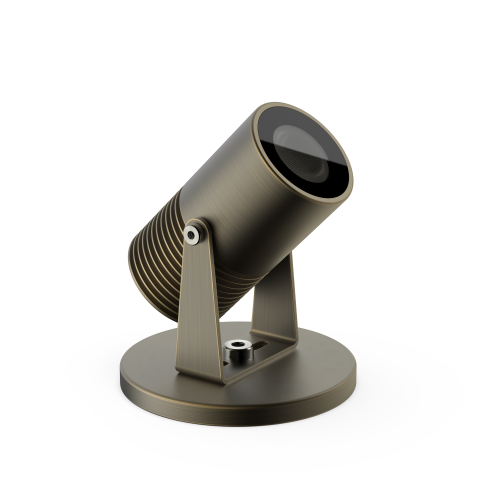

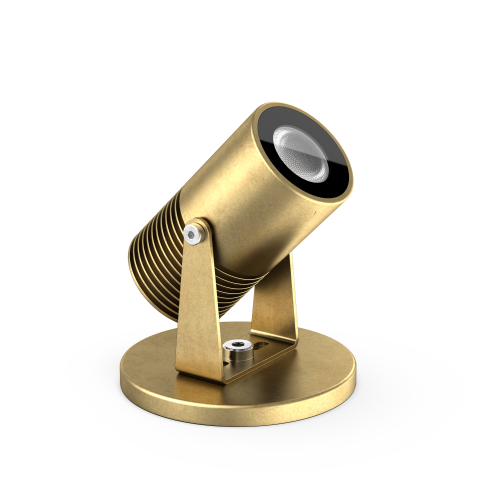

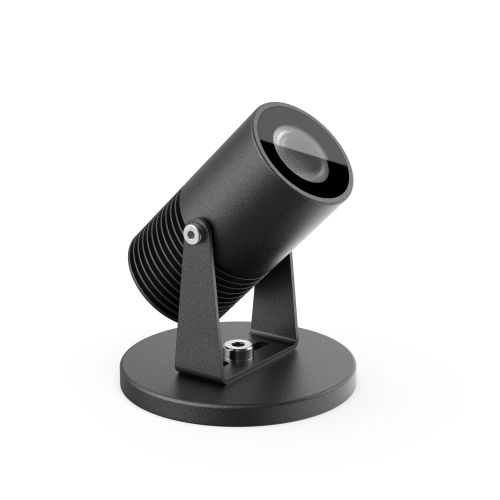

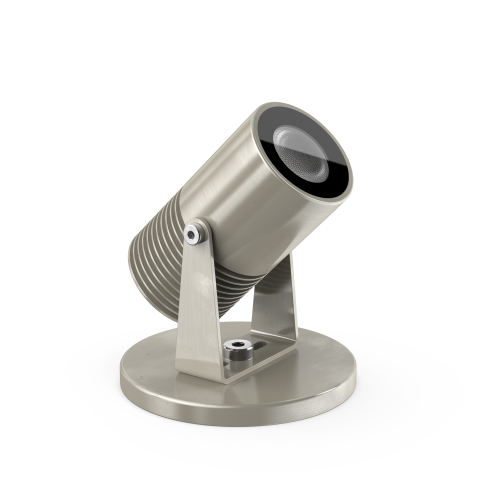

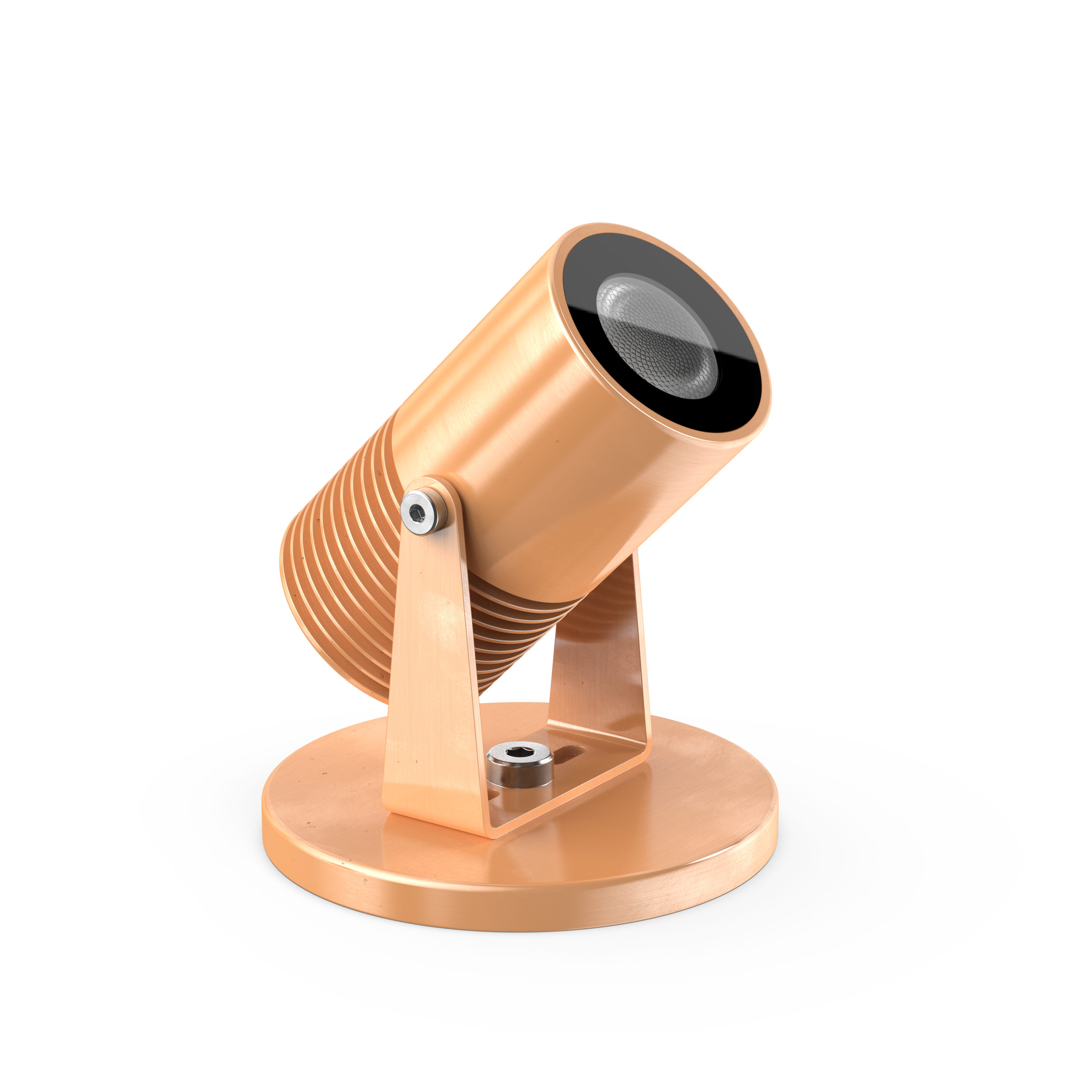

AQL-540

Submersible brass pond light designed for underwater and harsh coastal environments.

The AQL-540 is a submersible pond light and projector designed for underwater applications up to one meter deep, as well as harsh coastal environments.

CNC machined from brass, this IP68-rated fixture features a five-meter, three-core silicone/PTFE cable. Technical specifications include 4W, 7W, or 10W LED configurations, multiple optical beam angles, and 24V DC control options.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-540
Construction	Brass
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
