AQL-565
Lights · Grazing Light
Lights
AQL-565

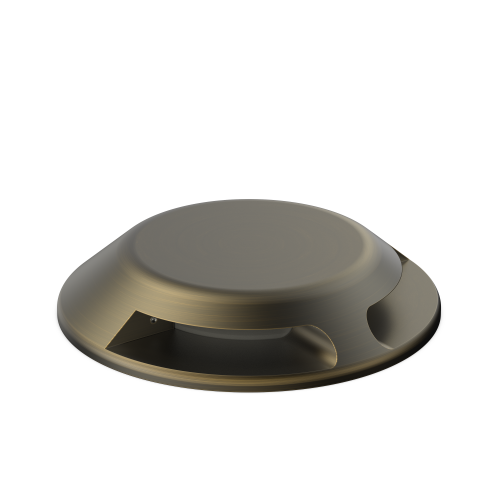

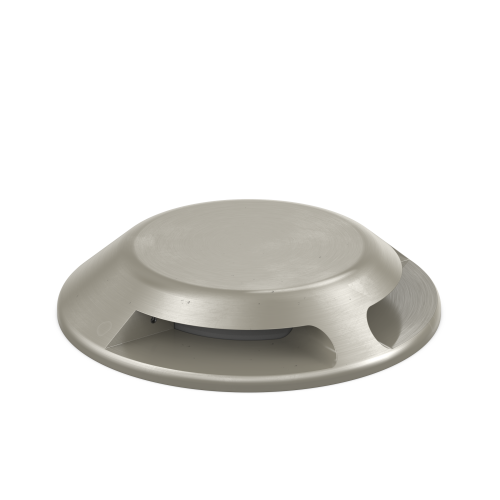

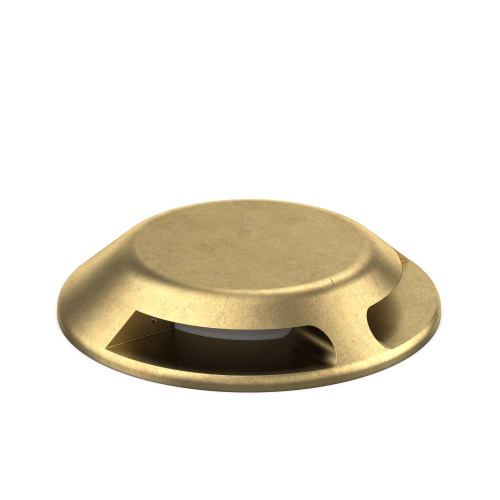

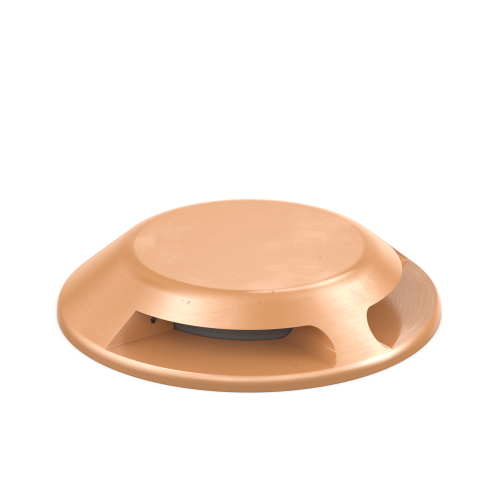

Brass surface mount grazing light designed for 180° spread runway lighting.
The AQL-565 is a surface-mount runway light designed for grazing light applications. It delivers a 180-degree light spread to illuminate ground-level pathways and architectural features.
Constructed from solid cast brass, this IP65 and IK10-rated fixture operates on 24V DC. It features an 8W LED light source delivering up to 640 lumens, a diffused frosted optic, and 3-wire PWM dimming.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQL-565 |
| Construction | Brass |
| Warranty | 7 Years |
| Country of Manufacture | Australia |
| CRI (3000K) | 90+ |
| SDCM | 3 |
| Compliance / Certifications | SELV |
| Environmental certifications | IP IK |
| Voltage | 24V DC |
| Frequency | - |
| Flicker free | Yes. |
| Dimming | Yes. Direct PWM. |
| Max. qty of fixtures C16 Breaker | PSU Dependant |
| LED Lifetime | L80 B10 70,000h (Ta 25C) |
| Operating temperature range | 0C - 40C |
| IP Rating | IP65 |
| IK Rating | IK04 |
| Weight | 0.2kg |
| Power cable | 2-Core Anti-Siphon Cable |
| Electrical insulation class | Class II |
