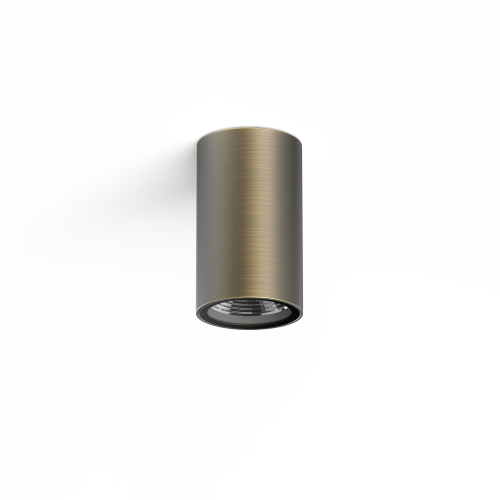

AQL-860

Compact surface mounted IP-rated downlight designed for low glare lighting applications.

The AQL-860 is a compact, surface-mounted downlight and projector designed for architectural lighting applications. It provides directional downlighting in environments requiring an IP-rated fixture.

Constructed from CNC machined brass or 6000 series aluminium, this IP65-rated luminaire features an 8W, 550lm LED light source. It operates on 24V DC with 3-wire dimming and offers narrow, medium, or wide low-glare optics.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-860
Construction	Brass
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
