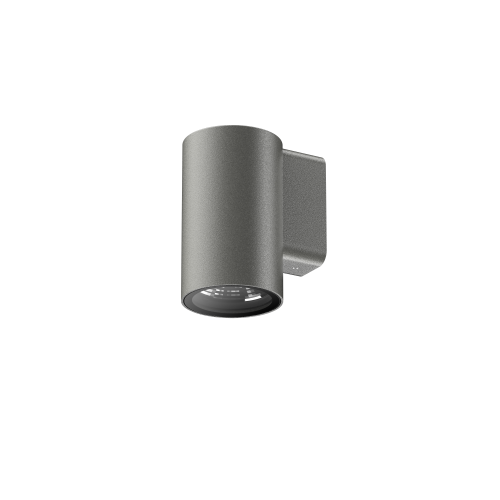

AQL-861

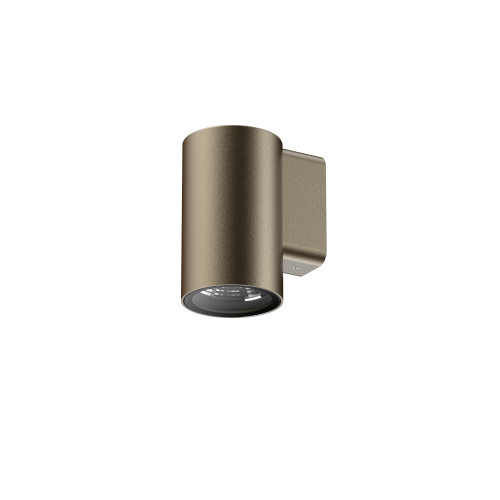

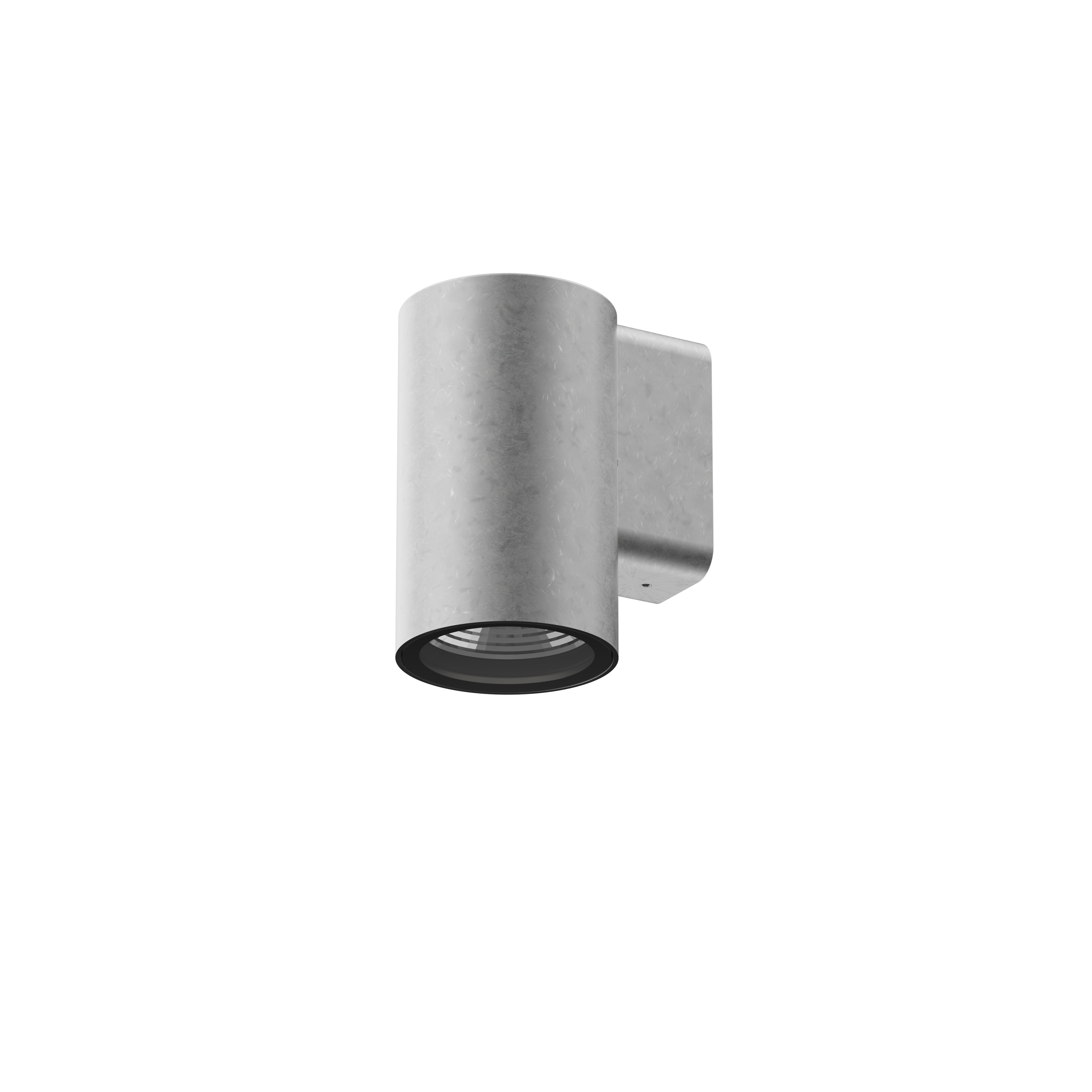

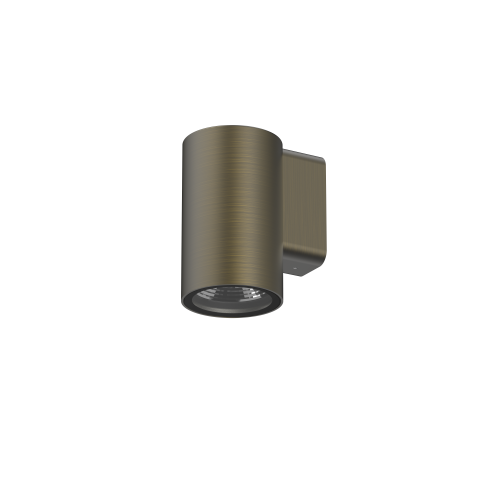

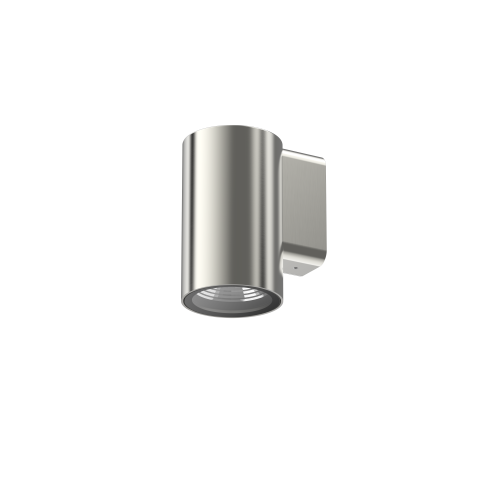

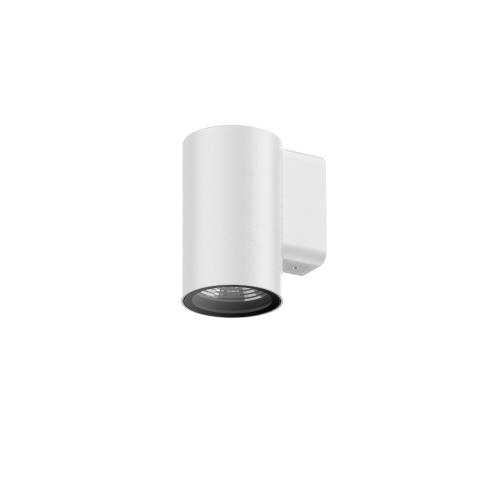

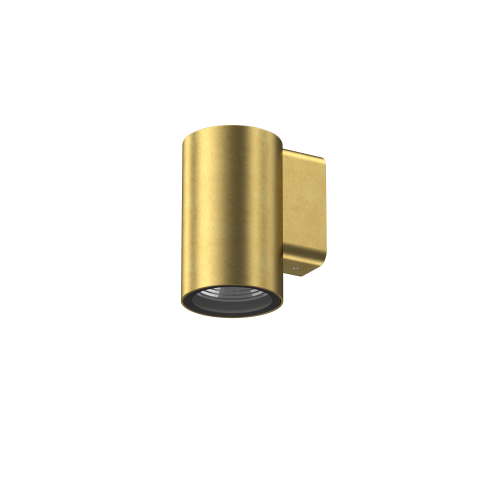

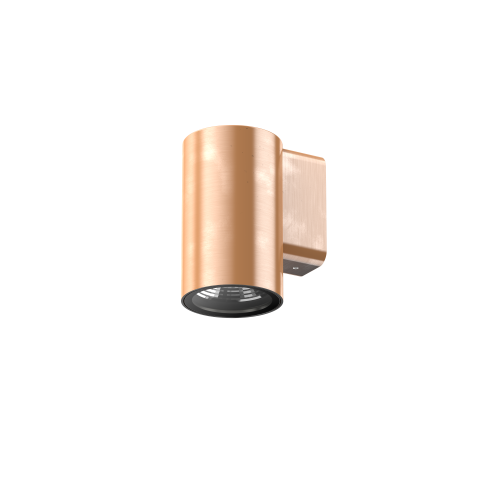

Compact wall mounted IP-rated downlight designed for low glare wall lighting.

The AQL-861 is a compact, wall-mounted downlight designed for wall lighting applications. It features an IP65 rating for dust and water resistance.

Constructed from CNC machined brass or 6000 series aluminium, the fixture includes a 500mm three-core cable. It operates on 24V DC with an 8W, 550-lumen light source, offering color temperatures from 2700K to 4000K and beam angles from 12° to 50°.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-861
Construction	Brass
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
