AQL-862

Minimal bi-directional wall light designed for wall mounted lighting applications.

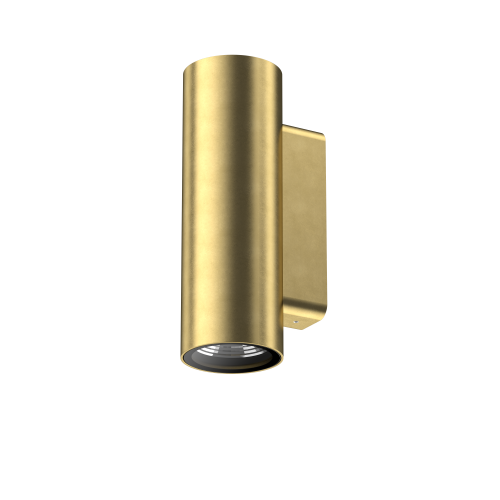

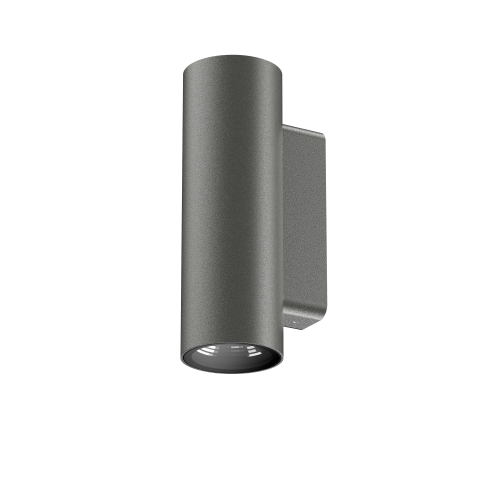

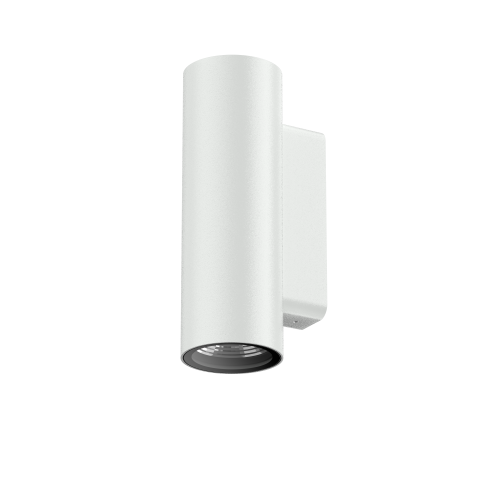

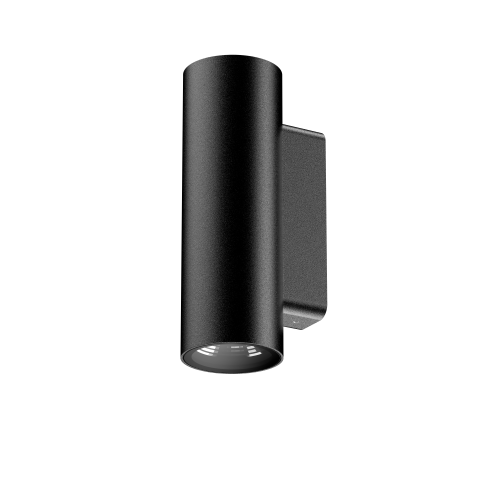

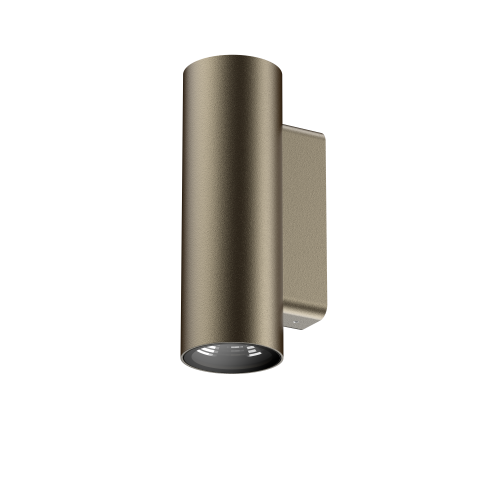

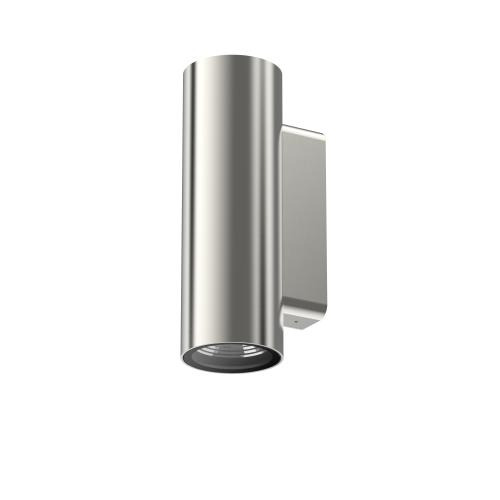

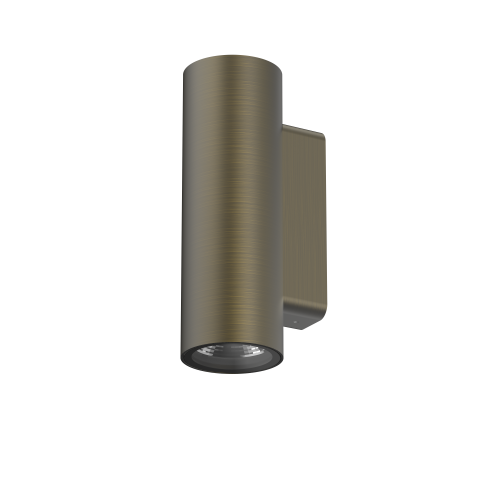

The AQL-862 is a minimal, wall-mounted bi-directional light designed for architectural wall-lighting applications.

CNC machined from brass or 6000 series aluminium, this IP65-rated fixture features a 16W, 1100lm LED source available in 2700K, 3000K, or 4000K. It offers low-glare optics from 12° to 50°, operates on 24V DC 3-wire dimming control gear, and includes a 500mm 3-core cable.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-862
Construction	Brass
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
